Schema PLMXMLSchema.xsd

Elements	Complex types	Simple types	Attr. groups
AnnotationQuery	AnnotationQueryType	AlphaType	idGroup
Attribute	ApplicationRefType	AttenuationType	MassPropertyGroup
AttributeClass	AttribOwnerBase	AttributeOwnerType	referenceGroup
AttributeLegalOwner	AttributeBase	AxisFieldType	UserValueDataGroup
AttributeRef	AttributeRefType	BoundingType	UserValueRangeGroup
BSplineCurve	BoundType	CoordinateFieldType
BSplineSurface	BoxBoundType	CutoffAngleType
Circle	BSplineCurveType	DescriptionType
CompositeCurve	BSplineSurfaceType	DirectionFieldType
Cone	CircleType	DirectionType
CoordinateSystem	CompositeCurveType	DoubleListType
Curve	CompositionType	DrawingStyleType
Cylinder	CompoundRepType	EntityFieldListType
DirectionalLight	ConeType	EntityFieldType
Ellipse	ConstructionGeometryType	EntityRefType
EntityRef	CurveBase	FloatListType
EnumFeature	CylinderType	GeometryParamType
Feature	DescriptionBase	IntegerFieldListType
FeatureQuery	DirectionalLightType	IntegerFieldType
FeatureTree	DisplayControlType	IntegerListType
GeometryComposition	EllipseType	IntensityExponentType
GUIDRef	EntityBase	LocatorRefFormatType
InternalRep	EntityMaterialType	MassPropertyArrayFieldType
LightSource	EntityRefBase	MassPropertyUnitType
Line	EntityTextureType	MatrixType
LocatorRef	EnumFeatureType	PartTypesType
Markup	FeatureBase	PreferredPartUnitsType
MassProperties	FeatureQueryType	RealFieldListType
Plane	FeatureTreeType	RealFieldType
PLMXML	GUIDRefType	RefSelectType
PLMXMLRequest	IdBase	RepQueryType
Point	InstanceGraphType	RepresentationFormatType
PolyLine	InstanceType	RequestIdType
PositionalLight	InternalRepBase	RequestResultType
ProductDefQuery	LightSourceBase	RequestSeverityType
Query	LineType	RGBAType
RefPoint	LocatorRefType	RGBFloatListType
RepresentationQuery	MarkupType	RGBFloatType
RequestInformation	MassPropertyArrayType	RGBType
SPCurve	MassPropertyRealType	ShadingStyleType
Sphere	MassPropertyType	ShininessType
Surface	MassPropertyVectorType	SplineCurveFormType
SurfacePosition	MaterialType	SplineDimensionType
Torus	NormalType	StringFieldType
UserData	OccurrenceType	TextureCoordDataType
UserList	OrthographicType	TextureDataFormatType
XTRep	PartType	TextureMapType
	PerspectiveType	TextureSampleType
	PlanarCoordinateSystemType	TextureWrapType
	PlaneCurveBase	TransformationType
	PlaneType	uriReferenceListType
	PointBase	UserValueDataType
	PointType	VectorFieldType
	PolyLineType	VectorType
	PositionalLightType	ViewPortCornerType
	ProductDefQueryType
	ProductDefType
	ProductViewType
	PropertiesBase
	QueryBase
	ReferencePointType
	RefPointType
	RepresentationQueryType
	RepresentationType
	RequestInformationType
	RequestType
	SamplePointsType
	SPCurveType
	SphereBoundType
	SphereType
	SurfaceBase
	SurfacePositionBase
	Texture1DDataType
	Texture1DType
	Texture2DDataType
	Texture2DType
	TextureCoordType
	TextureDataType
	TextureType
	TorusType
	TransformType
	UserDataElementType
	UserDataType
	UserEnumDataType
	UserListDataType
	UserListElementType
	ViewControlType
	ViewPortType
	XTRepType

element AnnotationQuery

diagram
namespace	http://www.plmxml.org/Schemas/PLMXMLSchema
type	plm:AnnotationQueryType
attributes	Name   Type   Use   Default   Fixed   Annotation label   xsd:string   optional
source	<xsd:element name="AnnotationQuery" type="plm:AnnotationQueryType" substitutionGroup="plm:Query"/>

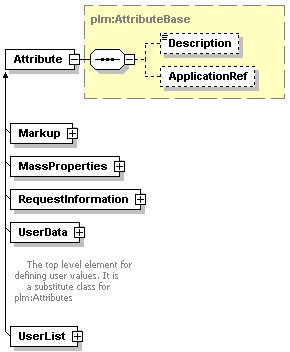

element Attribute

diagram
namespace	http://www.plmxml.org/Schemas/PLMXMLSchema
type	plm:AttributeBase
children	Description ApplicationRef
used by	elements  PLMXML PLMXML complexType  AttribOwnerBase
attributes	Name   Type   Use   Default   Fixed   Annotation id   xsd:ID   required
source	<xsd:element name="Attribute" type="plm:AttributeBase"/>

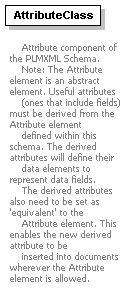

element AttributeClass

diagram
namespace	http://www.plmxml.org/Schemas/PLMXMLSchema
attributes	Name   Type   Use   Default   Fixed   Annotation name   xsd:NMTOKEN   required
annotation	documentation  Attribute component of the PLMXML Schema. Note: The Attribute element is an abstract element. Useful attributes (ones that include fields) must be derived from the Attribute element defined within this schema. The derived attributes will define their data elements to represent data fields. The derived attributes also need to be set as 'equivalent' to the Attribute element. This enables the new derived attribute to be inserted into documents wherever the Attribute element is allowed.
source	<xsd:element name="AttributeClass"> <xsd:annotation> <xsd:documentation xml:lang="en"> Attribute component of the PLMXML Schema. Note: The Attribute element is an abstract element. Useful attributes (ones that include fields) must be derived from the Attribute element defined within this schema. The derived attributes will define their data elements to represent data fields. The derived attributes also need to be set as 'equivalent' to the Attribute element. This enables the new derived attribute to be inserted into documents wherever the Attribute element is allowed. </xsd:documentation> </xsd:annotation> <xsd:complexType> <xsd:attribute name="name" use="required"> <xsd:simpleType> <xsd:restriction base="xsd:NMTOKEN"> <xsd:enumeration value="class_01"/> <xsd:enumeration value="class_02"/> <xsd:enumeration value="class_03"/> <xsd:enumeration value="class_04"/> <xsd:enumeration value="class_05"/> <xsd:enumeration value="class_06"/> <xsd:enumeration value="class_07"/> </xsd:restriction> </xsd:simpleType> </xsd:attribute> </xsd:complexType> </xsd:element>

element AttributeLegalOwner

diagram
namespace	http://www.plmxml.org/Schemas/PLMXMLSchema
attributes	Name   Type   Use   Default   Fixed   Annotation name   plm:AttributeOwnerType   required
source	<xsd:element name="AttributeLegalOwner"> <xsd:complexType> <xsd:attribute name="name" type="plm:AttributeOwnerType" use="required"/> </xsd:complexType> </xsd:element>

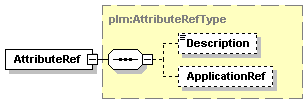

element AttributeRef

diagram
namespace	http://www.plmxml.org/Schemas/PLMXMLSchema
type	plm:AttributeRefType
children	Description ApplicationRef
attributes	Name   Type   Use   Default   Fixed   Annotation id   xsd:ID   required         name   xsd:string   optional         contextRef   xsd:anyURI   optional         select   plm:RefSelectType      single      attribute   xsd:string   required         field   xsd:string   optional         index   xsd:integer   optional         value   xsd:string   required
source	<xsd:element name="AttributeRef" type="plm:AttributeRefType" substitutionGroup="plm:EntityRef"/>

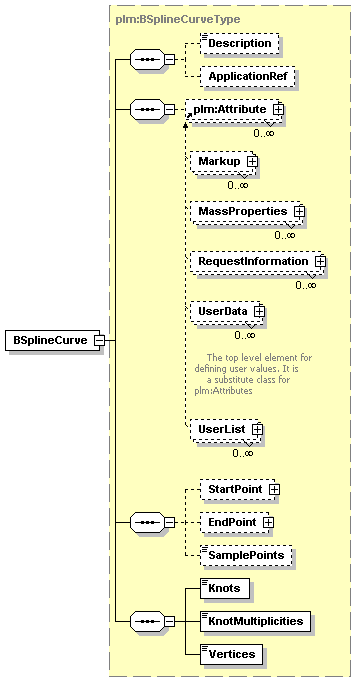

element BSplineCurve

diagram
namespace	http://www.plmxml.org/Schemas/PLMXMLSchema
type	plm:BSplineCurveType
children	Description ApplicationRef plm:Attribute StartPoint EndPoint SamplePoints Knots KnotMultiplicities Vertices
attributes	Name   Type   Use   Default   Fixed   Annotation id   xsd:ID   required         attributeRefs   xsd:IDREFS   optional         entityRef   plm:EntityRefType   optional         startT   xsd:double   optional         endT   xsd:double   optional         degree   xsd:positiveInteger   required         dimension   plm:SplineDimensionType      3      isRational   xsd:boolean   required         isPeriodic   xsd:boolean   required         isClosed   xsd:boolean   required         form   plm:SplineCurveFormType      unknown
source	<xsd:element name="BSplineCurve" type="plm:BSplineCurveType" substitutionGroup="plm:Curve"/>

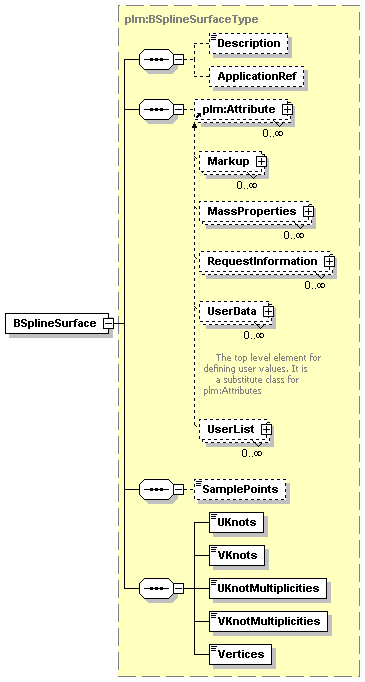

element BSplineSurface

diagram
namespace	http://www.plmxml.org/Schemas/PLMXMLSchema
type	plm:BSplineSurfaceType
children	Description ApplicationRef plm:Attribute SamplePoints UKnots VKnots UKnotMultiplicities VKnotMultiplicities Vertices
attributes	Name   Type   Use   Default   Fixed   Annotation id   xsd:ID   required         attributeRefs   xsd:IDREFS   optional         entityRef   plm:EntityRefType   optional         startU   xsd:double   optional         endU   xsd:double   optional         startV   xsd:double   optional         endV   xsd:double   optional         dimension   plm:SplineDimensionType      3      numberOfUVertices   xsd:positiveInteger   required         numberOfVVertices   xsd:positiveInteger   required         uDegree   xsd:positiveInteger   required         vDegree   xsd:positiveInteger   required         isRational   xsd:boolean   required         isUPeriodic   xsd:boolean   required         isVPeriodic   xsd:boolean   required         isUClosed   xsd:boolean   required         isVClosed   xsd:boolean   required
source	<xsd:element name="BSplineSurface" type="plm:BSplineSurfaceType" substitutionGroup="plm:Surface"/>

element Circle

diagram
namespace	http://www.plmxml.org/Schemas/PLMXMLSchema
type	plm:CircleType
children	Description ApplicationRef plm:Attribute StartPoint EndPoint SamplePoints
attributes	Name   Type   Use   Default   Fixed   Annotation id   xsd:ID   required         attributeRefs   xsd:IDREFS   optional         entityRef   plm:EntityRefType   optional         startT   xsd:double   optional         endT   xsd:double   optional         origin   plm:VectorType      0 0 0      zAxis   plm:DirectionType      0 0 1      xAxis   plm:DirectionType      1 0 0      radius   xsd:double   required
source	<xsd:element name="Circle" type="plm:CircleType" substitutionGroup="plm:Curve"/>

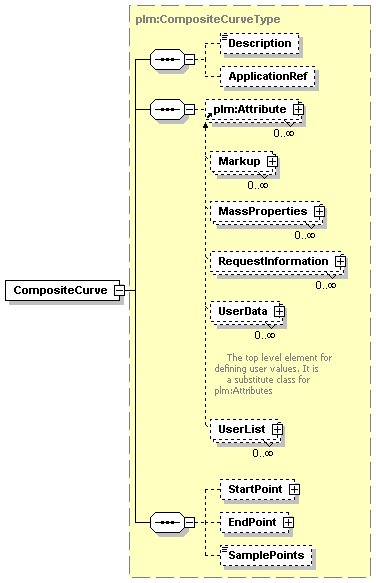

element CompositeCurve

diagram
namespace	http://www.plmxml.org/Schemas/PLMXMLSchema
type	plm:CompositeCurveType
children	Description ApplicationRef plm:Attribute StartPoint EndPoint SamplePoints
attributes	Name   Type   Use   Default   Fixed   Annotation id   xsd:ID   required         attributeRefs   xsd:IDREFS   optional         entityRef   plm:EntityRefType   optional         startT   xsd:double   optional         endT   xsd:double   optional         curves   xsd:IDREFS   required         isClosed   xsd:boolean      false
source	<xsd:element name="CompositeCurve" type="plm:CompositeCurveType" substitutionGroup="plm:Curve"/>

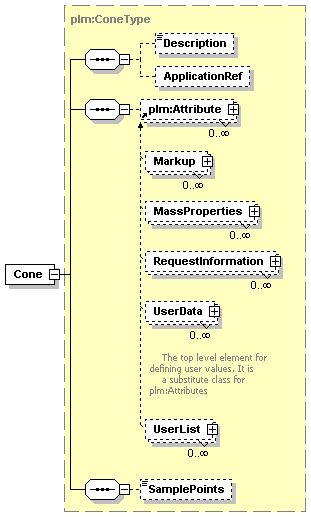

element Cone

diagram
namespace	http://www.plmxml.org/Schemas/PLMXMLSchema
type	plm:ConeType
children	Description ApplicationRef plm:Attribute SamplePoints
attributes	Name   Type   Use   Default   Fixed   Annotation id   xsd:ID   required         attributeRefs   xsd:IDREFS   optional         entityRef   plm:EntityRefType   optional         startU   xsd:double   optional         endU   xsd:double   optional         startV   xsd:double   optional         endV   xsd:double   optional         origin   plm:VectorType      0 0 0      zAxis   plm:DirectionType      0 0 1      xAxis   plm:DirectionType      1 0 0      radius   xsd:double   required         halfAngle   xsd:double   required
source	<xsd:element name="Cone" type="plm:ConeType" substitutionGroup="plm:Surface"/>

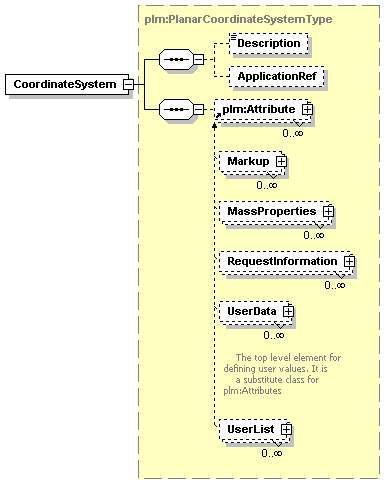

element CoordinateSystem

diagram
namespace	http://www.plmxml.org/Schemas/PLMXMLSchema
type	plm:PlanarCoordinateSystemType
children	Description ApplicationRef plm:Attribute
used by	complexTypes  CompositionType ConstructionGeometryType
attributes	Name   Type   Use   Default   Fixed   Annotation id   xsd:ID   required         attributeRefs   xsd:IDREFS   optional         entityRef   plm:EntityRefType   optional         origin   plm:VectorType      0 0 0      zAxis   plm:DirectionType      0 0 1      xAxis   plm:DirectionType      1 0 0
source	<xsd:element name="CoordinateSystem" type="plm:PlanarCoordinateSystemType"/>

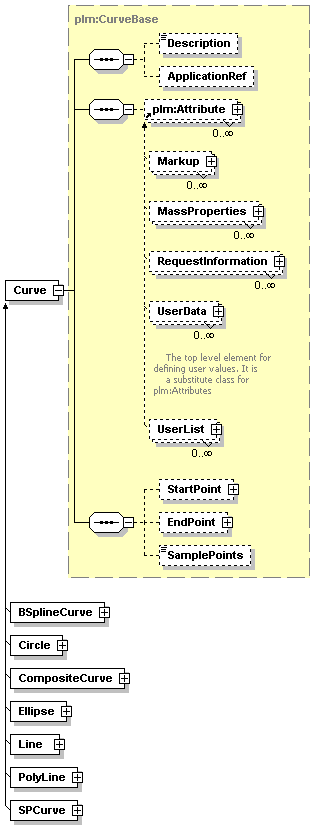

element Curve

diagram
namespace	http://www.plmxml.org/Schemas/PLMXMLSchema
type	plm:CurveBase
children	Description ApplicationRef plm:Attribute StartPoint EndPoint SamplePoints
used by	complexTypes  CompositionType ConstructionGeometryType
attributes	Name   Type   Use   Default   Fixed   Annotation id   xsd:ID   required         attributeRefs   xsd:IDREFS   optional         entityRef   plm:EntityRefType   optional         startT   xsd:double   optional         endT   xsd:double   optional
source	<xsd:element name="Curve" type="plm:CurveBase"/>

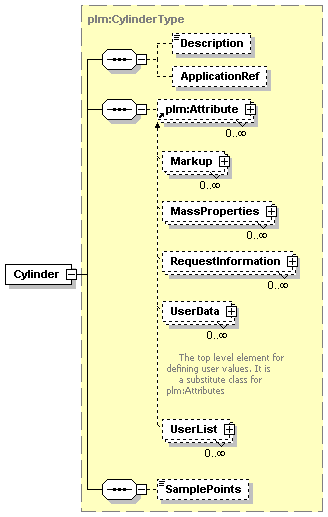

element Cylinder

diagram
namespace	http://www.plmxml.org/Schemas/PLMXMLSchema
type	plm:CylinderType
children	Description ApplicationRef plm:Attribute SamplePoints
attributes	Name   Type   Use   Default   Fixed   Annotation id   xsd:ID   required         attributeRefs   xsd:IDREFS   optional         entityRef   plm:EntityRefType   optional         startU   xsd:double   optional         endU   xsd:double   optional         startV   xsd:double   optional         endV   xsd:double   optional         origin   plm:VectorType      0 0 0      zAxis   plm:DirectionType      0 0 1      xAxis   plm:DirectionType      1 0 0      radius   xsd:double   required
source	<xsd:element name="Cylinder" type="plm:CylinderType" substitutionGroup="plm:Surface"/>

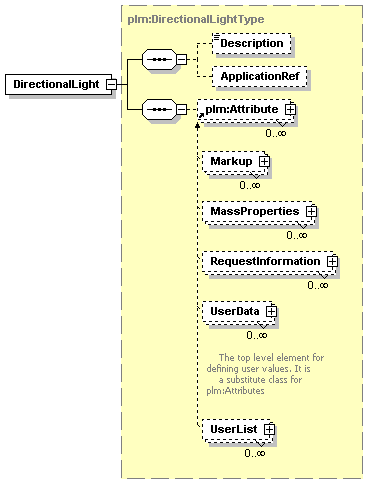

element DirectionalLight

diagram
namespace	http://www.plmxml.org/Schemas/PLMXMLSchema
type	plm:DirectionalLightType
children	Description ApplicationRef plm:Attribute
attributes	Name   Type   Use   Default   Fixed   Annotation id   xsd:ID   required         attributeRefs   xsd:IDREFS   optional         name   xsd:string   optional         ambient   plm:RGBType      0.0 0.0 0.0      diffuse   plm:RGBType      1.0 1.0 1.0      specular   plm:RGBType      1.0 1.0 1.0      intensity   plm:AlphaType      1.0      direction   plm:VectorType      0.0 0.0 1.0
source	<xsd:element name="DirectionalLight" type="plm:DirectionalLightType" substitutionGroup="plm:LightSource"/>

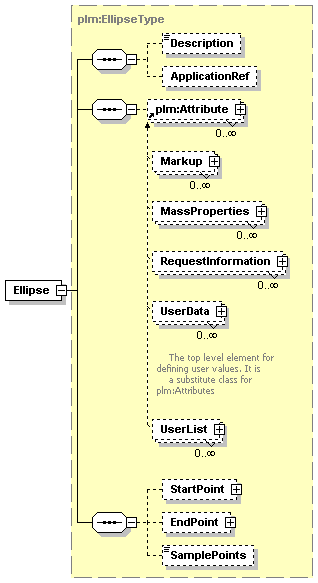

element Ellipse

diagram
namespace	http://www.plmxml.org/Schemas/PLMXMLSchema
type	plm:EllipseType
children	Description ApplicationRef plm:Attribute StartPoint EndPoint SamplePoints
attributes	Name   Type   Use   Default   Fixed   Annotation id   xsd:ID   required         attributeRefs   xsd:IDREFS   optional         entityRef   plm:EntityRefType   optional         startT   xsd:double   optional         endT   xsd:double   optional         origin   plm:VectorType      0 0 0      zAxis   plm:DirectionType      0 0 1      xAxis   plm:DirectionType      1 0 0      majorRadius   xsd:double   required         minorRadius   xsd:double   required
source	<xsd:element name="Ellipse" type="plm:EllipseType" substitutionGroup="plm:Curve"/>

element EntityRef

diagram
namespace	http://www.plmxml.org/Schemas/PLMXMLSchema
type	plm:EntityRefBase<
