Kineoの60日評価版を試す
Kineo
Kineoのコンポーネントは、自動パスプランニング、高速干渉検出、予測可能なケーブル性能を提供します。自動車、航空、エネルギー、造船、製造企業は、これらの技術をロボット工学とデジタル模型ののソフトウェア・アプリケーションに活用しています。また、製品の組立て／分解の検証、ヒューマン・シミュレーション、アクセス性調査などにも用いられています。
OEM、システム・インテグレーター、ソフトウェアベンダーが豊富なGUIフレームワークを使用して、Kineoコンポーネントをベースとしたカスタムなソフトウェアアプリケーションを容易に開発できるため、リスクを抑え、市場投入期間を短縮します。
Kineo
Kineoのコンポーネントは、自動パスプランニング、高速干渉検出、予測可能なケーブル性能を提供します。自動車、航空、エネルギー、造船、製造企業は、これらの技術をロボット工学とデジタル模型ののソフトウェア・アプリケーションに活用しています。また、製品の組立て／分解の検証、ヒューマン・シミュレーション、アクセス性調査などにも用いられています。
OEM、システム・インテグレーター、ソフトウェアベンダーが豊富なGUIフレームワークを使用して、Kineoコンポーネントをベースとしたカスタムなソフトウェアアプリケーションを容易に開発できるため、リスクを抑え、市場投入期間を短縮します。
Kineo Collision Detector
Kineo Collision Detector performs high speed collision analysis on mesh surfaces (polyhedrons) and point cloud data to resolve collisions that would prevent the successful manufacture of an assembly, or impede the intended motion of parts. Its high performance makes it ideal for complex motion simulation environments such as robotics simulation.
- Identify collision, containment, abutment and intersection lines
- Measure depth of interpenetration
- Obtain re-positioning information to remedy collisions
- Monitor clearance (minimum distance) between parts

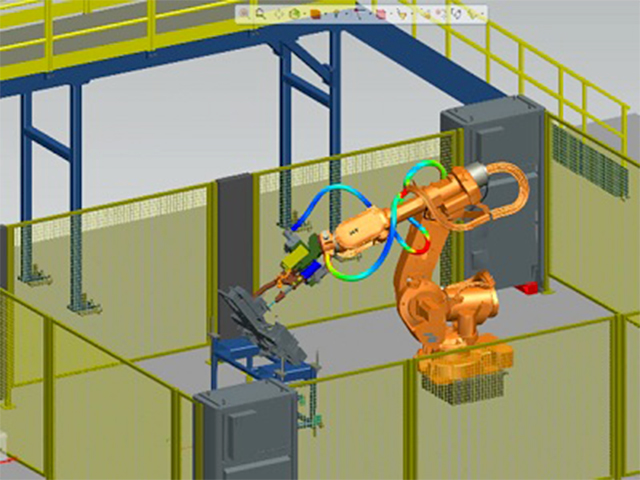

Kineo Flexible Cables
Kineo Flexible Cables simulates the behavior of compliant cables, such as hoses and electrical cables. It is well-suited to robot programming and simulation, where cables are subject to large deformations and high stresses in complex motion environments. A high-performance solver simulates multiple cables and supports user-interaction. Integrated collision detection ensures that cables respect collision-free motion. Stress calculations predict cable tension, flexion and torsion, while effects of gravity, cable inertia and geometric non-linearity are automatically accounted for.

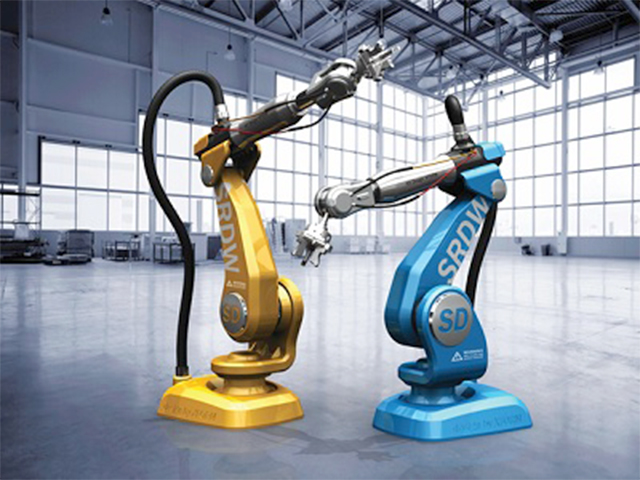

KineoWorks
KineoWorks path planning solution computes collision-free motion for machine programming and simulation in manufacturing, as well as assembly and disassembly verification in digital mock-up. Available as a component with a rich GUI, software vendors, system integrators and OEMs, custom applications can be easily developed with reduced risk and time-to-market.
- Compute collision-free motion in machine tools and industrial robots
- Reduce costs with manufacturing process verification
- Optimize machine cycles for speed, energy consumption and sequence ordering
KineoWorks Interact
KineoWorks Interact is a rich Graphical User Interface (GUI) toolkit that enables OEMs, system integrators, and software vendors to rapidly develop 3D software applications that benefit from Kineo software components.
- Develop customized proprietary modules through standard application programming interfaces (C++/C#).
- Develop a professional GUI (QT, WPF interfaces)
- Provide rich 3D visualization with OpenGL rendering
- Enable mouse navigation, model interaction, copy/paste and undo/redo
- Import 3D geometry via standard format
こちらの関連情報も、ぜひ、併せてご確認ください。
Resource
Kineo Collision Detector Factsheet
Kineo Collision Detector delivers high-performance collision detection and minimal distance computations.
Resource
Kineoworks Factsheet
KineoWorks enables you to automatically compute valid, collisionfree trajectories for path-planning in robotics and assembly/disassembly applications.
Resource
What’s New - Kineo
Find out what’s new in the latest releases of Kineo components.
Video
Kineo Components in Robot Simulation
Learn how Kineo components deliver collision-free path-planning and flexible cable simulation for applications in robotics.
