Schema PLMXMLSchema.xsd

schema location:  PLMXMLSchema.xsd
targetNamespace:  http://www.plmxml.org/Schemas/PLMXMLSchema

Elements  Complex types  Simple types  Attr. groups
AbsoluteOccurrence  AbsoluteOccurrenceType  AccessIntentEnum  idGroup
AccessControl  AccessControlBase  AlphaType  MassPropertyGroup
AccessIntent  AccessIntentType  anyURIType  referenceGroup
Address  AddressType  AttenuationType
And  AndType  AttributeClassType
AssociatedAttachment  ApplicationRefType  AttributeOwnerType
AssociatedDataSet  AreaType  AxisFieldType
AttribOwner  AssociatedAttachmentType  BooleanListType
Attribute  AssociatedDataSetType  BoundingType
AttributeClass  AttribOwnerBase  CompoundRepTypeEnum
AttributeContext  AttributeBase  CoordinateFieldType
AttributeLegalOwner  AttributeClassBase  CoordinateSystemStyleEnum
AttributeRef  AttributeContextType  CutoffAngleType
Bound  AttributeLegalOwnerType  DescriptionType
BSplineCurve  AttributeRefType  DirectionFieldType
BSplineSurface  BoundType  DirectionType
CentreOfMass  BoxBoundType  DoubleListType
CheckMessage  BSplineCurveType  DrawingStyleType
Checkout  BSplineSurfaceType  EffectivityEndConditionType
CheckoutStatus  CentreOfMassType  FloatListType
Circle  CheckMessageType  GDERelationshipType
Colour  CheckoutStatusBase  GeometryParamType
CompositeCurve  CheckoutType  IntegerFieldListType
CompositionInstance  CircleType  IntegerFieldType
CompoundRep  ColourType  IntegerListType
Cone  CompositeCurveType  IntensityExponentType
ConfigRule  CompositionInstanceType  LineStyleEnum
ConfigurationContext  CompoundRepType  LineThicknessEnum
ConfigurationView  ConditionalStatementType  LoadOptionComponentSetType
ConfiguredOccurrenceGroup  ConeType  LoadOptionErrorActionType
Connection  ConfigRuleBase  LoadOptionLinkedComponentsType
ConnectionInstance  ConfigurationContextType  LoadOptionModeType
ConnectionRevision  ConfigurationViewType  LoadOptionPartFamilyComponentsType
ConnectionRevisionView  ConfiguredOccurrenceGroupType  LoadOptionPreferredRepresentationsScopeType
ConstructionGeometry  ConnectionBase  LoadOptionRevisionType
CoordinateSystem  ConnectionInstanceType  LoadOptionSearchPathsLocationType
CoordinateSystemDisplay  ConnectionRevisionType  LocatorRefFormatType
Curve  ConnectionRevisionViewType  LogicalFieldType
Cylinder  ConstructionGeometryType  LogicalOperationType
DataSet  CoordinateSystemDisplayType  MassPropertyArrayFieldType
DateEffectivity  CoordinateSystemType  MassPropertyUnitType
DefinitionRelation  CurveBase  MatrixType
Density  CylinderType  OccurrenceControlEnum
Derived  DataSetType  OptionScopeType
Design  DateEffectivityType  OptionTypesType
DesignRevision  DefinitionRelationType  PartTypesType
DesignRevisionView  DensityType  PointStyleEnum
DirectionalLight  DeprecatedCentreOfMassType  PolyLineDimensionType
Discipline  DeprecatedDensityType  PreferredPartUnitsType
DisciplineLevel  DeprecatedVolumeType  ProductSourceEnum
DisciplineRelation  DerivedType  ProductViewDefinitionType
DisplayPreferences  DescriptionBase  ProductViewStateEnum
Drawing  DesignRevisionType  ProductViewUsageType
DrawingRevision  DesignRevisionViewType  PropertyFilterOperationEnum
DrawingRevisionView  DesignType  RealFieldListType
Effectivity  DirectionalLightType  RealFieldType
Ellipse  DisciplineLevelType  RefSelectType
Entity  DisciplineRelationType  RepresentationFormatType
EntityMaterial  DisciplineType  RepresentationTypeEnum
EntityPropertyGroup  DisplayControlType  RGBAType
EntityRef  DisplayPreferencesType  RGBFloatListType
EntityTexture  DocumentBase  RGBFloatType
EntityUserData  DocumentHeaderType  RGBType
EnumFeature  DrawingRevisionType  SetFilterOperationEnum
ErrorMessage  DrawingRevisionViewType  ShadingStyleType
Expression  DrawingType  ShininessType
ExternalFile  EffectivityType  SpecificHeatCapacityEnum
Feature  EllipseType  SplineCurveFormType
FeatureTree  EntityBase  SplineDimensionType
Fix  EntityMaterialType  StringFieldType
GDE  EntityPropertyGroupType  TextureCoordDataType
GDEInstance  EntityRefBase  TextureDataFormatType
GDEInstanceGroup  EntityTextureType  TextureMapType
GeneralRelation  EntityUserDataType  TextureSampleType
Geometry  EnumFeatureType  TextureWrapType
GeometryComposition  ErrorMessageType  TransformationType
GroupFilter  ExpressionBase  UnitPrefixType
GUIDRef  ExternalFileType  uriReferenceListType
If  FeatureBase  UserValueDataType
Inertia  FeatureTreeType  VectorFieldType
InformMessage  FixType  VectorType
Instance  GDEBase  ViewPortCornerType
InstanceGraph  GDEInstanceGroupType  XTDataType
InstancePath  GDEInstanceType
InstancePathRoot  GDEReferenceType
InstanceThread  GeneralRelationType
InternalRep  GeneralUnitComponentType
Layer  GeometryBase
LengthProperty  GeometryCompositionType
LightSource  GroupFilterType
Line  GUIDRefType
LineDisplay  IdBase
Link  InertiaType
LocatorRef  InformMessageType
LogicalExpression  InstanceBase
LotEffectivity  InstanceGraphType
Managed  InstancePathRootType
Markup  InstancePathType
MassProperties  InstanceThreadType
MassProperty  InternalRepBase
Material  LayerType
Message  LengthPropertyType
ModulusOfElasticity  LengthType
Not  LightSourceBase
Occurrence  LineDisplayType
OccurrenceControl  LineType
OccurrenceControlRevision  LinkBase
OccurrenceFilter  LoadOptionPreferredRepresentationsType
OccurrenceGroup  LoadOptionPreferredRepresentationType
Operand  LoadOptionSearchPathsType
Option  LoadOptionSearchPathType
OptionIs  LoadOptionsType
Or  LocatorRefType
Organisation  LogicalExpressionBase
OrganisationMember  LotEffectivityType
Owner  ManagedBase
Part  MarkupType
PathIs  MassPropertiesType
Person  MassPropertyArrayType
PlanarZone  MassPropertyRealType
Plane  MassPropertyType
PLMXML  MassPropertyVectorType
Point  MassType
PointDisplay  MaterialType
PoissonsRatio  MessageBase
PolyLine  ModulusOfElasticityType
PositionalLight  MomentsOfInertiaType
Product  NormalType
ProductDef  NotType
ProductDependency  OccurrenceControlRevisionType
ProductFamily  OccurrenceControlType
ProductInstance  OccurrenceFilterBase
ProductRevision  OccurrenceGroupType
ProductRevisionView  OccurrenceType
ProductStructureView  OperandBase
ProductView  OptionIsType
Properties  OptionType
Property  OptionValueType
PropertyFilter  OrganisationMemberType
PropertyGroup  OrganisationType
ProximityZone  OrthographicType
RangeWithUnit  OrType
RefPoint  OwnerBase
ReleaseStatus  PathIsType
Representation  PersonType
RepresentationEntity  PerspectiveType
RepresentedByRelation  PlanarZoneType
Requirement  PlaneCurveBase
RequirementRevision  PlaneType
ResourcePool  PLMXMLType
Role  PointBase
SchemaInfo  PointDisplayType
Section  PoissonsRatioType
SerialNumberEffectivity  PolyLineType
Set  PositionalLightType
SetDefault  PositionType
SetFilter  ProductDefType
Site  ProductDependencyType
SPCurve  ProductFamilyType
SpecificHeatCapacity  ProductInstanceType
Sphere  ProductRevisionType
Statement  ProductRevisionViewType
Status  ProductsOfInertiaType
StatusInfo  ProductStructureViewType
Structure  ProductType
StructureDef  ProductViewType
StructureRevision  PropertiesBase
StructureRevisionView  PropertyBase
StructureUsage  PropertyFilterType
StructureView  PropertyGroupType
Suppression  ProximityZoneType
Surface  RangeWithUnitType
SurfaceArea  ReferencePointType
SymbolicOccurrence  RefPointType
Texture  ReleaseStatusType
TextureData  RepresentationEntityType
ThermalConductivity  RepresentationType
ThermalExpansionCoefficient  RepresentedByRelationType
Torus  RequirementRevisionType
TraceabilityRelation  RequirementType
Transform  ResourcePoolType
Translucency  RoleType
UltimateElongation  SamplePointsType
UltimateStress  SchemaInfoType
Unit  SchemaType
User  SectionType
UserData  SerialNumberEffectivityType
UserList  SetDefaultType
ValueWithUnit  SetFilterType
VariantCondition  SetType
VariantDefault  SiteType
VariantDefaultDerived  SPCurveType
VariantDefaultFixed  SpecificHeatCapacityType
VariantRule  SphereBoundType
VariantRuleCheck  SphereType
View  StatementBase
ViewControl  StatementListType
Visibility  StatusBase
Volume  StatusInfoType
WarnMessage  StructureBase
XTRep  StructureDefBase
YieldStress  StructureRevisionBase
Zone  StructureRevisionViewBase
ZoneFilter  StructureUsageBase
StructureViewType
SuppressionType
SurfaceAreaType
SurfaceBase
SurfacePositionBase
SymbolicOccurrenceType
Texture1DDataType
Texture1DType
Texture2DDataType
Texture2DType
TextureCoordType
TextureDataType
TextureType
ThermalConductivityType
ThermalExpansionCoefficientType
TorusType
TraceabilityRelationType
TransformType
TranslucencyType
UltimateElongationType
UltimateStressType
UnitComponentType
UnitType
UserDataElementType
UserDataType
UserEnumDataType
UserListDataType
UserListElementType
UserType
ValueWithUnitType
VariantConditionType
VariantDefaultBase
VariantDefaultDerivedType
VariantDefaultFixedType
VariantRuleCheckType
VariantRuleType
ViewControlType
ViewPortType
ViewType
VisibilityType
VolumeType
WarnMessageType
XTRepType
YieldStressType
ZoneBase
ZoneFilterType


Schema PLMXMLAnnotationSchema.xsd

schema location:  PLMXMLAnnotationSchema.xsd
targetNamespace:  http://www.plmxml.org/Schemas/PLMXMLSchema

Elements  Complex types  Simple types  Attr. groups
Ann3DDisplay  Ann3DAttributeNoteDisplayType  Ann3DAngleFormat  TextGroup
Ann3DeMarking  Ann3DAttributeNoteType  Ann3DArrow
Ann3DeMarkingDisplay  Ann3DAttributeReferenceType  Ann3DAttachment
Ann3DGroup  Ann3DBalloonDisplayType  Ann3DBundleOrDressingNote
Ann3DInstance  Ann3DBalloonType  Ann3DCircleCentreDisplay
Ann3DInstanceGroup  Ann3DBundleDressingNoteDisplayType  Ann3DCrosshatchPattern
Ann3DOccurrence  Ann3DBundleDressingNoteType  Ann3DDatumTarget
Ann3DOrganisation  Ann3DCircleCentreDisplayType  Ann3DDimDiameterPlacement
Ann3DOrganisationDisplay  Ann3DCircleCentreType  Ann3DDimension
Ann3DSpec  Ann3DCoordinateNoteDisplayType  Ann3DDimensionArrowPlacement
Annotation3D  Ann3DCoordinateNoteType  Ann3DDimensionCausality
Annotation3DGroup  Ann3DCPSClosedCutterType  Ann3DDimensionDual
AnnotationOutline  Ann3DCPSClosedPolylineCutterType  Ann3DDimensionDualPlacement
AttributeNote  Ann3DCPSOpenCutterType  Ann3DDimensionOrigin
AttributeNoteDisplay  Ann3DCPSOpenPolylineCutterType  Ann3DDimensionStandardType
Balloon  Ann3DCPSPlaneCutterType  Ann3DDimensionStubDirection
BalloonDisplay  Ann3DCrosshatchDisplayType  Ann3DDimensionStyle
BundleDressingNote  Ann3DCrosshatchType  Ann3DDimensionTextPosition
BundleDressingNoteDisplay  Ann3DCuttingPlaneSymbolDisplayType  Ann3DDimensionTolerance
CircleCentre  Ann3DCuttingPlaneSymbolType  Ann3DDimensionZeroToleranceDisplay
CircleCentreDisplay  Ann3DDatumFeatureSymbolDisplayType  Ann3DDimReferenceDisplay
CoordinateNote  Ann3DDatumFeatureSymbolType  Ann3DDimStatisticalPlacement
CoordinateNoteDisplay  Ann3DDatumTargetDisplayType  Ann3DeMarkingEnumType
Crosshatch  Ann3DDatumTargetType  Ann3DFastenerDisplay
CrosshatchDisplay  Ann3DDimensionDisplayType  Ann3DFCF
CuttingPlaneSymbol  Ann3DDimensionTextType  Ann3DFCFModifier
CuttingPlaneSymbolDisplay  Ann3DDimensionType  Ann3DFCFProfileType
DatumFeatureSymbol  Ann3DDisplayType  Ann3DFCFZoneShape
DatumFeatureSymbolDisplay  Ann3DeMarkingDisplayType  Ann3DLineType
DatumTarget  Ann3DeMarkingType  Ann3DLineWeldFinishSymbol
DatumTargetDisplay  Ann3DFastenerDisplayType  Ann3DLineWeldStandardType
Dimension  Ann3DFastenerType  Ann3DLineWeldSupplementalSymbol
DimensionDisplay  Ann3DFCFDatumGroupType  Ann3DLineWeldSymbol
Fastener  Ann3DFCFDatumReferenceType  Ann3DLocatorChangeLevel
FastenerDisplay  Ann3DFCFToleranceCompartmentType  Ann3DLocatorCoordinatePlane
FeatureControlFrame  Ann3DFeatureControlFrameDisplayType  Ann3DLocatorEdgeType
FeatureControlFrameDisplay  Ann3DFeatureControlFrameType  Ann3DLocatorHoleType
LineWeld  Ann3DFreeStateRefinementType  Ann3DLocatorRectSlotFreeformType
LineWeldDisplay  Ann3DGroupType  Ann3DLocatorSubtype
Locator  Ann3DInstanceGroupType  Ann3DLocatorSurfaceType
LocatorDisplay  Ann3DInstanceType  Ann3DLocatorSymbol
MaterialSpec  Ann3DLeaderType  Ann3DMeasurementPointDisplay
MaterialSpecDisplay  Ann3DLineWeldDisplayType  Ann3DOutlineEnum
MeasurementPoint  Ann3DLineWeldType  Ann3DSpotWeld
MeasurementPointDisplay  Ann3DLocatorDisplayType  Ann3DSpotWeldDisplay
Note  Ann3DLocatorType  Ann3DSurfaceFinish
NoteDisplay  Ann3DMaterialSpecDisplayType  Ann3DSurfaceFinishLay
PartSpec  Ann3DMaterialSpecType  Ann3DSurfaceFinishStandardType
PartSpecDisplay  Ann3DMeasurementPointDisplayType  Ann3DTextOrientationType
ProcessSpec  Ann3DMeasurementPointType  Ann3DTextSymbol
ProcessSpecDisplay  Ann3DNoteDisplayType  SurfaceUVType
SpotWeld  Ann3DNoteType  TextJustificationType
SpotWeldDisplay  Ann3DOccurrenceType  TextLineThicknessType
SurfaceFinish  Ann3DOrganisationDisplayType  TextUnderlineType
SurfaceFinishDisplay  Ann3DOrganisationType
UserDefinedSymbol  Ann3DOutlineType
UserDefinedSymbolDisplay  Ann3DPartSpecDisplayType
Ann3DPartSpecType
Ann3DProcessSpecDisplayType
Ann3DProcessSpecType
Ann3DSpecBase
Ann3DSpotWeldDisplayType
Ann3DSpotWeldType
Ann3DStatisticalRefinementType
Ann3DSurfaceFinishDisplayType
Ann3DSurfaceFinishType
Ann3DTextItemType
Ann3DTextType
Ann3DUserDefinedSymbolDisplayType
Ann3DUserDefinedSymbolTextType
Ann3DUserDefinedSymbolType
Annotation3DGroupType
Annotation3DType


Schema PLMXMLConstraintSchema.xsd

schema location:  PLMXMLConstraintSchema.xsd
targetNamespace:  http://www.plmxml.org/Schemas/PLMXMLSchema

Elements  Complex types  Simple types
BushingData  BushingDataType  ConstraintAlignmentEnum
Constraint  ConstraintDataType  ConstraintEnum
ConstraintData  ConstraintHelpType  ConstraintHalfSpaceEnum
ConstraintHelp  ConstraintInstanceType  ConstraintHelpEnum
ConstraintInstance  ConstraintOccurrenceType  ConstraintPrecedenceEnum
ConstraintOccurrence  ConstraintTargetRefType  ConstraintTorusCoincidenceEnum
ConstraintTargetRef  ConstraintType  CouplerEnum
ContactData  ContactDataType  DegreeOfFreedomEnum
CouplerData  CouplerDataType  DimensionalityType
DamperData  DamperDataType  DriverEnum
DriverComponent  DriverComponentType  GeometrySubTypeEnum
DriverData  DriverDataType  GeometryTypeEnum
ForceComponent  ForceComponentType  JointEnum
ForceData  ForceDataType  JointOverlapDeltaEnum
FrictionData  FrictionDataType  MarkerEnum
GeometryData  GeometryDataType  SolverAnalysisEnum
Gravity  GravityType  SolverEnum
InitialVelocity  InitialVelocityType  SolverParameterEnum
JointAccelerationLimit  JointAccelerationLimitType
JointData  JointDataType
JointLimits  JointLimitsType
JointVelocityLimit  JointVelocityLimitType
LimitsDependencyData  LimitsDependencyDataType
Marker  MarkerType
Mechanism  MechanismExpressionType
MechanismExpression  MechanismInertiaType
MechanismInertia  MechanismInstanceType
MechanismInstance  MechanismOccurrenceType
MechanismOccurrence  MechanismParametersType
MechanismParameters  MechanismRevisionType
MechanismRevision  MechanismRevisionViewType
MechanismRevisionView  MechanismType
MechanismView  MechanismViewType
SolverParameter  SolverParameterType
SpringData  SpringDataType


Schema PLMXMLDeltaSchema.xsd

schema location:  PLMXMLDeltaSchema.xsd
targetNamespace:  http://www.plmxml.org/Schemas/PLMXMLSchema

Elements  Complex types  Simple types
DeltaOperationGroup  DeltaAddType  DeltaModifyOpType
ExternalReference  DeltaDeleteType
PLMXMLDelta  DeltaModifyType
DeltaOperationBase
DeltaOperationGroupType
DeltaReplaceType
ExternalReferenceType
PLMXMLDeltaType


Schema PLMXMLFDSchema.xsd

schema location:  PLMXMLFDSchema.xsd
targetNamespace:  http://www.plmxml.org/Schemas/PLMXMLSchema

Elements  Complex types  Simple types
FeatureDescriptions  CounterBoreType  HoleExtentType
HoleFeature  CounterSinkType  HoleOrientationType
ThreadedFeature  FeatureDescriptionsType  ThreadEntrySettingType
HoleComponentType  ThreadExtentType
HoleFeatureType
HolePositionType
ThreadedFeatureType
ThreadType


Schema PLMXMLMechatronicsSchema.xsd

schema location:  PLMXMLMechatronicsSchema.xsd
targetNamespace:  http://www.plmxml.org/Schemas/PLMXMLSchema

Elements  Complex types  Simple types
Allocation  AllocationGroupRevisionType  CoordinateExtentEnum
AllocationGroup  AllocationGroupType  HarnessProductTypeEnum
AllocationGroupRevision  AllocationType  ProcessorArchitectureEnum
BendRadius  BendRadiusType  ProcessorByteOrderEnum
CompatibleWireSize  CompatibleWireSizeType  RatedCurrentEnum
ConnectorCavity  ConnectorCavityGroupType  RatedPowerEnum
ConnectorCavityGroup  ConnectorCavityType  RatedVoltageEnum
CoordinateExtent  CoordinateExtentType  RouteLineTypeEnum
Copyright  CopyrightType  SoftwareEnum
CrossSectionalArea  CrossSectionalAreaType  TemperatureEnum
DerivedFromRelation  DerivedFromRelationType  WireProtectionTapingEnum
FlowConnection  FlowConnectionRevisionType
FlowConnectionRevision  FlowConnectionRevisionViewType
FlowConnectionRevisionView  FlowConnectionType
FrameSignal  FrameSignalRevisionType
FrameSignalRevision  FrameSignalType
GeneralRelationGroup  GeneralRelationGroupRevisionType
GeneralRelationGroupRevision  GeneralRelationGroupType
HarnessProduct  HarnessProductType
Location  LocationAssignmentType
LocationAssignment  LocationInstanceType
LocationInstance  LocationRevisionType
LocationRevision  LocationType
MaterialSpecification  MaterialSpecificationType
OutsideDiameter  OutsideDiameterType
Processor  ProcessorProductRevisionType
ProcessorProduct  ProcessorProductType
ProcessorProductRevision  ProcessorType
ProcessVariable  ProcessVariableType
RatedCurrent  RatedCurrentType
RatedPower  RatedPowerType
RatedVoltage  RatedVoltageType
Route  RouteDataSegmentType
RouteData  RouteDataType
RouteNode  RouteNodeAssignmentType
RouteNodeAssignment  RouteNodeType
RouteSection  RouteSectionAssignmentType
RouteSectionAssignment  RouteSectionType
Signal  RouteType
SignalRevision  SignalRevisionType
SignalValue  SignalType
Software  SignalValueType
SoftwareInstance  SoftwareInstanceType
SoftwareRevision  SoftwareRevisionType
SoftwareRevisionView  SoftwareRevisionViewType
Temperature  SoftwareType
Terminal  TemperatureType
WireCore  TerminalType
WireGauge  WireCoreType
WireProtectionAreaRelation  WireGaugeType
WireProtectionAreaRelationType


Schema PLMXMLMotionSchema.xsd

schema location:  PLMXMLMotionSchema.xsd
targetNamespace:  http://www.plmxml.org/Schemas/PLMXMLSchema

Elements  Complex types  Simple types
Frame  FrameSequenceInstanceType  FrameTypeEnum
FrameSequence  FrameSequenceType  MotionTransformEnum
FrameSequenceInstance  FrameType
MotionAssembly  MotionAssemblyType
MotionEntity  MotionEntityRefType
MotionEntityRef  MotionEntityType


Schema PLMXMLMPMSchema.xsd

schema location:  PLMXMLMPMSchema.xsd
targetNamespace:  http://www.plmxml.org/Schemas/PLMXMLSchema

Elements  Complex types
Activity  ActivityType
ConfiguredActivity  ConfiguredActivityType
Operation  OperationRevisionType
OperationRevision  OperationType
PlantDef  PlantDefType
PlantRevisionView  PlantRevisionViewType
PlantView  PlantViewType
Process  ProcessDefType
ProcessDef  ProcessInstanceType
ProcessInstance  ProcessOccurrenceType
ProcessOccurrence  ProcessRevisionType
ProcessRevision  ProcessRevisionViewType
ProcessRevisionView  ProcessStructureViewType
ProcessStructureView  ProcessType
ProcessView  ProcessViewType
SetupInstance  SetupInstanceType
WorkArea  WorkAreaInstanceType
WorkAreaInstance  WorkAreaOccurrenceType
WorkAreaOccurrence  WorkAreaRevisionType
WorkAreaRevision  WorkAreaStructureViewType
WorkAreaStructureView  WorkAreaType


Schema PLMXMLMROSchema.xsd

schema location:  PLMXMLMROSchema.xsd
targetNamespace:  http://www.plmxml.org/Schemas/PLMXMLSchema

Elements  Complex types  Simple types
Facility  FacilityType  RealisedProductTraceableType
Inventory  InventoryType
RealisedProduct  RealisedProductRevisionType
RealisedProductRevision  RealisedProductType
RepairShop  RepairShopType


Schema PLMXMLPDMSchema.xsd

schema location:  PLMXMLPDMSchema.xsd
targetNamespace:  http://www.plmxml.org/Schemas/PLMXMLSchema

Elements  Complex types  Simple types
AssociatedFolder  AssociatedFolderType  ClosureRuleScopeType
AssociatedForm  AssociatedFormType  DecisionType
Change  ChangeOrderType  MachineTypesType
ChangeOrder  ChangeRecordGroupType  RevisionConfigType
ChangeRecord  ChangeRecordType  StatusConfigType
ChangeRecordGroup  ChangeType  TaskStateType
ClosureRule  ClosureRuleClauseType  WorkflowTemplateClassificationEnum
CollaborationContext  ClosureRuleType  WorkflowTemplateStageEnum
ConfigurationRule  CollaborationContextType
ContextRuleEntry  ConfigurationRuleType
DateRuleEntry  ContextRuleEntryType
Folder  DateRuleEntryType
Form  FolderType
GroupByTypeRuleEntry  FormType
GroupRuleEntry  GroupByTypeRuleEntryType
IdContext  GroupRuleEntryType
Identifier  IdContextType
LatestRuleEntry  IdentifierType
LatestWorkingRuleEntry  IncrementalChangeType
OverrideRuleEntry  LatestRuleEntryType
PreciseRuleEntry  LatestWorkingRuleEntryType
Project  OverrideRuleEntryType
RevisionRule  PreciseRuleEntryType
RuleEntry  ProjectType
SerialNumberRuleEntry  RelatedItemType
StatusRuleEntry  RevisionRuleType
StructureContext  RuleEntryBase
ValidationResults  SerialNumberRuleEntryType
Vault  SignoffType
WorkflowAction  StatusRuleEntryType
WorkflowBusinessRule  StructureContextType
WorkflowBusinessRuleHandler  TaskType
WorkflowHandler  ValidationCheckerType
WorkflowProcess  ValidationResultsType
WorkflowProfileRelation  VaultType
WorkflowSignoffProfile  WorkflowActionType
WorkflowTemplate  WorkflowBusinessRuleHandlerType
WorkingRuleEntry  WorkflowBusinessRuleType
WorkflowHandlerType
WorkflowProcessType
WorkflowProfileRelationType
WorkflowSignoffProfileType
WorkflowTemplateType
WorkingRuleEntryType


Schema PLMXMLUGSSchema.xsd

schema location:  PLMXMLUGSSchema.xsd
targetNamespace:  http://www.plmxml.org/Schemas/PLMXMLSchema

Elements  Complex types  Simple types
MonikerContext  EntityMonikerRefType  MassConstraintsUnitType
MonikerRef  GUIDTableType  PartUnitsType
PartConstraints  GUIDType  RefEntityType
RepresentationData  MassConstraintsType
UGRep  MonikerContextPropertyType
MonikerDataRefType
MonikerGUIDRefType
MonikerPathType
MonikerRefType
PartConstraintsType
RepresentationDataType
UGRepType


Schema PLMXMLBusinessSchema.xsd

schema location:  PLMXMLBusinessSchema.xsd
targetNamespace:  http://www.plmxml.org/Schemas/PLMXMLBusinessSchema

Elements  Complex types  Simple types
ActivityTypeDef  ActivityTypeDefType  APILanguageType
AliasTypeDef  AliasTypeDefType  AttributeDefAttrType
ApplicationInterface  ApplicationInterfaceType  AuthorisationRuleDomainEnum
ApplicationToolDef  ApplicationToolDefType  ChangeIdDefFormatType
AuthorisationRule  AttributeDefType  DeepCopyRuleOperationType
Autogen  AuthorisationRuleType  DeepCopyType
BusinessDataDef  AutogenType  LOVAttachmentEnum
BusinessOperation  BusinessDataDefBase  LOVType
BusinessRule  BusinessOperationType  LOVUsageType
ChangeIdDef  BusinessRuleBase  LOVValueType
ChangeTypeDef  ChangeIdDefType  MethodAttachmentPointEnum
ClosureRule  ChangeTypeDefType  NameFieldCaseType
CompoundPropDef  ClosureRuleType  PropertyRuleIsModifiableType
DatasetTypeDef  CompoundPropDefType  PropertyRuleWriteOnceType
DataTypeDef  DatasetTypeDefType  RuleScopeType
DeepCopyRule  DataTypeDefBase  SavedQueryResultsEnum
FilterRule  DeepCopyRuleType  StorageMediaType
FolderTypeDef  FilterRuleType  TransferModeDirectionType
FormTypeDef  FolderTypeDefType
GenericTypeDef  FormTypeDefType
HideTypeRule  GenericTypeDefType
IdContextRule  HideTypeRuleType
IdentifierTypeDef  IdContextRuleType
ItemTypeDef  IdentifierTypeDefType
ListOfValues  ItemTypeDefType
ListOfValuesFilter  ListOfValuesFilterType
MEOperationTypeDef  ListOfValuesType
MEProcessTypeDef  LOVAttachmentType
Method  MEOperationTypeDefType
MethodAttachmentPoint  MEProcessTypeDefType
MethodDescriptor  MethodArgumentDefinitionType
MethodOpts  MethodArgumentGroupType
NameField  MethodArgumentType
NameRule  MethodAttachmentPointType
NoteTypeDef  MethodConditionType
OccurrenceGroupTypeDef  MethodDescriptorType
Parameter  MethodOptsType
PLMXMLBusinessTypes  MethodType
ProductInstanceTypeDef  MethodValidityType
PropertyBusinessOperation  NameFieldType
PropertyRule  NameRuleType
PropertySet  NoteTypeDefType
RelationRule  OccurrenceGroupTypeDefType
RelationTypeDef  ParameterType
SavedQueryDef  PLMXMLBusinessTypesType
StatusTypeDef  ProductInstanceTypeDefType
StorageClassDef  PropertyBusinessOperationType
StorageMediaDef  PropertyRuleType
TransferMode  PropertySetType
TypeBusinessOperation  RelationRuleType
TypeCannedMethod  RelationTypeDefType
UnitOfMeasureDef  SavedQueryDefType
ViewTypeDef  StatusTypeDefType
WorkAreaTypeDef  StorageClassDefType
StorageMediaDefType
TransferModeType
TypeBusinessOperationType
TypeCannedMethodType
UnitOfMeasureDefType
ValueDetailsType
ViewTypeDefType
WorkAreaTypeDefType


Schema PLMXMLClassificationSchema.xsd

schema location:  PLMXMLClassificationSchema.xsd
targetNamespace:  http://www.plmxml.org/Schemas/PLMXMLClassificationSchema

Elements  Complex types  Simple types  Attr. groups
AdminClass  AbstractClassAttributeType  AttributeIdType  CommonClassAttrAttributes
AdminView  AbstractClassType  FormatDateType  CommonClassAttributes
AdminViewAttribute  AdminClassAttributeType  ICSIdType  HistoryAttributes
Classification  AdminClassType  KeyLOVOptionsEnumType
DictionaryAttribute  AdminViewAttributeOptions  UnitBaseType
FormatDate  AdminViewAttributeType  UnitType
FormatFloat  AdminViewType
FormatInteger  AnnotationType
FormatKeyLov  ClassAttributeOptionType
FormatString  ClassificationType
ICO  CommentType
KeyLOV  DescriptionType
Unit  DictionaryAttributeType
UserClass  FileType
FormatAdminType
FormatFloatType
FormatIntegerType
FormatKeyLOVType
FormatStringType
FormatUserType
GeneralOptionType
ICOClassIdType
ICOPropertyType
ICOType
KeyLOVType
KeyLOVValueType
LanguageStringType
NameType
ParentType
ReferenceSpecificationType
ShortNameType
UserClassAttributeType
UserClassType
UserDataType
ValueType


Schema PLMXMLRouteListSchema.xsd

schema location:  PLMXMLRouteListSchema.xsd
targetNamespace:  http://www.plmxml.org/Schemas/PLMXMLRouteListSchema

Elements  Complex types  Simple types
Cable  CableType  CrossSectionType
ConductorOccurrence  ConductorOccurrenceType
Connection  ConnectionType
DisplayFilter  DisplayFilterType
DisplayFormat  DisplayFormatType
ElectricalComponentDefinition  ElectricalComponentDefinitionType
ElectricalComponentUsage  ElectricalComponentUsageType
FormatField  FormatFieldType
Harness  HarnessComponentType
HarnessComponent  HarnessType
IntermediateComponent  IdentifiedRouteListElementBase
NonHarnessComponent  IntermediateComponentType
RouteList  NonHarnessComponentType
RouteListElement  RouteListElementBase
SpaceReservation  RouteListType
Wire  SpaceReservationType
WireType


element plm:AbsoluteOccurrence
diagram
namespace http://www.plmxml.org/Schemas/PLMXMLSchema
type plm:AbsoluteOccurrenceType
children Description ApplicationRef plm:Attribute
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID  optional
name  xsd:string  optional
attributeRefs  xsd:IDREFS  optional
occurrenceId  xsd:string  optional
instancePathRefs  plm:uriReferenceListType  optional
source
<xsd:element name="AbsoluteOccurrence" type="plm:AbsoluteOccurrenceType" substitutionGroup="plm:AttribOwner"/>

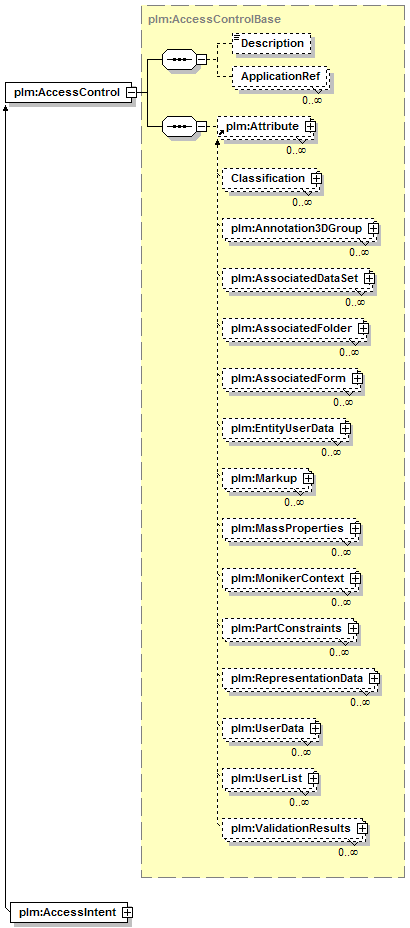

element plm:AccessControl
diagram
namespace http://www.plmxml.org/Schemas/PLMXMLSchema
type plm:AccessControlBase
children Description ApplicationRef plm:Attribute
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID  optional
name  xsd:string  optional
attributeRefs  xsd:IDREFS  optional
source
<xsd:element name="AccessControl" type="plm:AccessControlBase" substitutionGroup="plm:AttribOwner"/>

element plm:AccessIntent
diagram
namespace http://www.plmxml.org/Schemas/PLMXMLSchema
type plm:AccessIntentType
children Description ApplicationRef plm:Attribute
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID  optional
name  xsd:string  optional
attributeRefs  xsd:IDREFS  optional
ownerRefs  plm:uriReferenceListType  optional
intent  plm:AccessIntentEnum    modifiable
source
<xsd:element name="AccessIntent" type="plm:AccessIntentType" substitutionGroup="plm:AccessControl"/>

element plm:Address
diagram
namespace http://www.plmxml.org/Schemas/PLMXMLSchema
type plm:AddressType
children Description ApplicationRef plm:Attribute
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID  optional
name  xsd:string  optional
attributeRefs  xsd:IDREFS  optional
internalLocation  xsd:string  optional
streetNumber  xsd:string  optional
street  xsd:string  optional
town  xsd:string  optional
region  xsd:string  optional
postalCode  xsd:string  optional
country  xsd:string  optional
emailAddress  xsd:string  optional
telephone  xsd:string  optional
source
<xsd:element name="Address" type="plm:AddressType" substitutionGroup="plm:AttribOwner"/>

element plm:And
diagram
namespace http://www.plmxml.org/Schemas/PLMXMLSchema
type plm:AndType
children plm:LogicalExpression
source
<xsd:element name="And" type="plm:AndType" substitutionGroup="plm:LogicalExpression"/>

element plm:AssociatedAttachment
diagram
namespace http://www.plmxml.org/Schemas/PLMXMLSchema
type plm:AssociatedAttachmentType
children Description ApplicationRef plm:Attribute
used by
complexTypes plm:ConfigurationViewType plm:ConfiguredOccurrenceGroupType plm:OccurrenceType
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID  optional
name  xsd:string  optional
attributeRefs  xsd:IDREFS  optional
role  xsd:string
contextRef  plm:anyURIType
attachmentRef  plm:anyURIType  required
childRefs  plm:uriReferenceListType
source
<xsd:element name="AssociatedAttachment" type="plm:AssociatedAttachmentType" substitutionGroup="plm:AttribOwner"/>

element plm:AssociatedDataSet

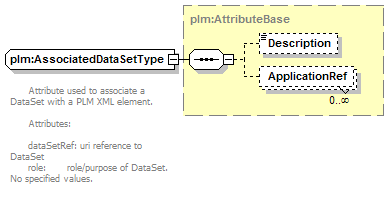

diagram
namespace http://www.plmxml.org/Schemas/PLMXMLSchema
type plm:AssociatedDataSetType
children Description ApplicationRef
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID  optional
name  xsd:string  optional
dataSetRef  plm:anyURIType  required
role  xsd:string  required
source
<xsd:element name="AssociatedDataSet" type="plm:AssociatedDataSetType" substitutionGroup="plm:Attribute"/>

element plm:AttribOwner
diagram
namespace http://www.plmxml.org/Schemas/PLMXMLSchema
type plm:AttribOwnerBase
children Description ApplicationRef plm:Attribute
used by
complexTypes plm:PLMXMLType PLMXMLBusinessTypesType
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID  optional
name  xsd:string  optional
attributeRefs  xsd:IDREFS  optional
source
<xsd:element name="AttribOwner" type="plm:AttribOwnerBase"/>

element plm:Attribute
diagram
namespace http://www.plmxml.org/Schemas/PLMXMLSchema
type plm:AttributeBase
children Description ApplicationRef
used by
complexType plm:AttribOwnerBase
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID  optional
name  xsd:string  optional
source
<xsd:element name="Attribute" type="plm:AttributeBase"/>

element plm:AttributeClass
diagram
namespace http://www.plmxml.org/Schemas/PLMXMLSchema
type plm:AttributeClassBase
attributes
Name  Type  Use  Default  Fixed  Annotation
name  plm:AttributeClassType  required
source
<xsd:element name="AttributeClass" type="plm:AttributeClassBase"/>

element plm:AttributeContext
diagram
namespace http://www.plmxml.org/Schemas/PLMXMLSchema
type plm:AttributeContextType
used by
complexType plm:OccurrenceType
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID  optional
attributeName  xsd:string  optional
targetRef  plm:anyURIType  optional
contextRef  plm:anyURIType  optional
changeRef  plm:anyURIType  optional
source
<xsd:element name="AttributeContext" type="plm:AttributeContextType"/>

element plm:AttributeLegalOwner
diagram
namespace http://www.plmxml.org/Schemas/PLMXMLSchema
type plm:AttributeLegalOwnerType
attributes
Name  Type  Use  Default  Fixed  Annotation
name  plm:AttributeOwnerType  required
source
<xsd:element name="AttributeLegalOwner" type="plm:AttributeLegalOwnerType"/>

element plm:AttributeRef
diagram
namespace http://www.plmxml.org/Schemas/PLMXMLSchema
type plm:AttributeRefType
children Description ApplicationRef
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID  optional
name  xsd:string  optional
contextRef  plm:anyURIType  optional
select  plm:RefSelectType    single
attribute  xsd:string  required
field  xsd:string  optional
index  xsd:integer  optional
value  xsd:string  required
source
<xsd:element name="AttributeRef" type="plm:AttributeRefType" substitutionGroup="plm:EntityRef"/>

element plm:Bound

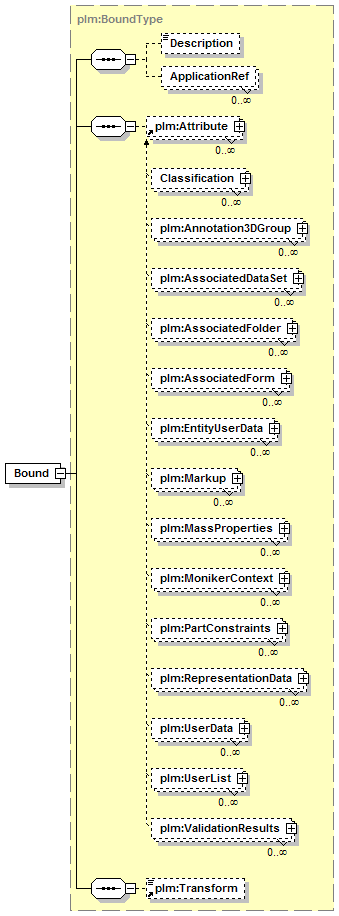

diagram
namespace http://www.plmxml.org/Schemas/PLMXMLSchema
type plm:BoundType
children Description ApplicationRef plm:Attribute plm:Transform
used by
complexType plm:CentreOfMassType
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID  optional
name  xsd:string  optional
attributeRefs  xsd:IDREFS  optional
transformRef  xsd:IDREF  optional
type  plm:BoundingType    box
values  plm:DoubleListType  required
source
<xsd:element name="Bound" type="plm:BoundType" substitutionGroup="plm:Zone"/>

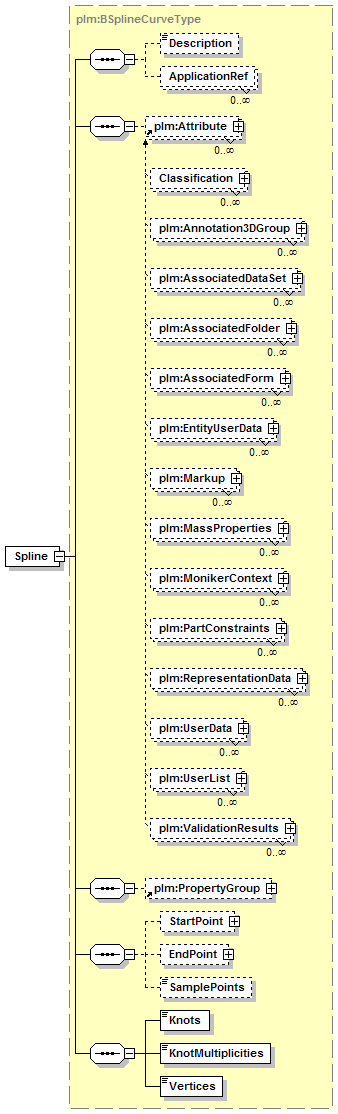

element plm:BSplineCurve
diagram
namespace http://www.plmxml.org/Schemas/PLMXMLSchema
type plm:BSplineCurveType
children Description ApplicationRef plm:Attribute plm:PropertyGroup StartPoint EndPoint SamplePoints Knots KnotMultiplicities Vertices
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID  optional
name  xsd:string  optional
attributeRefs  xsd:IDREFS  optional
entityRef  plm:anyURIType  optional
propertyRefs  plm:uriReferenceListType  optional
startT  xsd:double  optional
endT  xsd:double  optional
degree  xsd:positiveInteger  required
dimension  plm:SplineDimensionType    3
isRational  xsd:boolean  required
isPeriodic  xsd:boolean  required
isClosed  xsd:boolean  required
form  plm:SplineCurveFormType    unknown
source
<xsd:element name="BSplineCurve" type="plm:BSplineCurveType" substitutionGroup="plm:Curve"/>

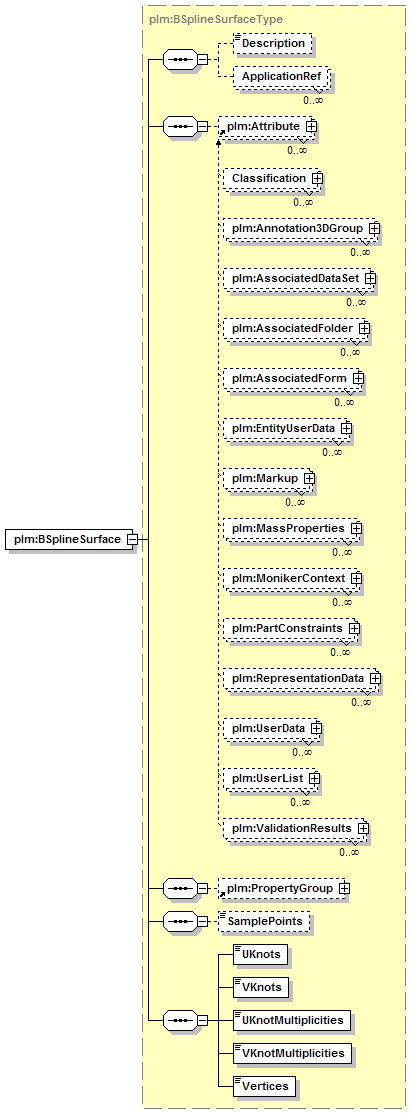

element plm:BSplineSurface
diagram
namespace http://www.plmxml.org/Schemas/PLMXMLSchema
type plm:BSplineSurfaceType
children Description ApplicationRef plm:Attribute plm:PropertyGroup SamplePoints UKnots VKnots UKnotMultiplicities VKnotMultiplicities Vertices
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID  optional
name  xsd:string  optional
attributeRefs  xsd:IDREFS  optional
entityRef  plm:anyURIType  optional
propertyRefs  plm:uriReferenceListType  optional
startU  xsd:double  optional
endU  xsd:double  optional
startV  xsd:double  optional
endV  xsd:double  optional
dimension  plm:SplineDimensionType    3
numberOfUVertices  xsd:positiveInteger  required
numberOfVVertices  xsd:positiveInteger  required
uDegree  xsd:positiveInteger  required
vDegree  xsd:positiveInteger  required
isRational  xsd:boolean  required
isUPeriodic  xsd:boolean  required
isVPeriodic  xsd:boolean  required
isUClosed  xsd:boolean  required
isVClosed  xsd:boolean  required
source
<xsd:element name="BSplineSurface" type="plm:BSplineSurfaceType" substitutionGroup="plm:Surface"/>

element plm:CentreOfMass
diagram
namespace http://www.plmxml.org/Schemas/PLMXMLSchema
type plm:CentreOfMassType
children Description ApplicationRef plm:Attribute plm:Bound
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID  optional
name  xsd:string  optional
attributeRefs  xsd:IDREFS  optional
ownerRef  plm:anyURIType  optional
value  plm:VectorType
source
<xsd:element name="CentreOfMass" type="plm:CentreOfMassType" substitutionGroup="plm:Property"/>

element plm:CheckMessage
diagram
namespace http://www.plmxml.org/Schemas/PLMXMLSchema
type plm:CheckMessageType
used by
complexType plm:VariantRuleCheckType
attributes
Name  Type  Use  Default  Fixed  Annotation
message  xsd:string  required
source
<xsd:element name="CheckMessage" type="plm:CheckMessageType" substitutionGroup="plm:Message"/>

element plm:Checkout
diagram
namespace http://www.plmxml.org/Schemas/PLMXMLSchema
type plm:CheckoutType
children Description ApplicationRef plm:Attribute
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID  optional
name  xsd:string  optional
attributeRefs  xsd:IDREFS  optional
date  xsd:dateTime  optional
by  plm:anyURIType  optional
appInfo
validate=skipName
source
<xsd:element name="Checkout" type="plm:CheckoutType" substitutionGroup="plm:CheckoutStatus"/>

element plm:CheckoutStatus
diagram
namespace http://www.plmxml.org/Schemas/PLMXMLSchema
type plm:CheckoutStatusBase
children Description ApplicationRef plm:Attribute
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID  optional
name  xsd:string  optional
attributeRefs  xsd:IDREFS  optional
source
<xsd:element name="CheckoutStatus" type="plm:CheckoutStatusBase" substitutionGroup="plm:AttribOwner"/>

element plm:Circle
diagram
namespace http://www.plmxml.org/Schemas/PLMXMLSchema
type plm:CircleType

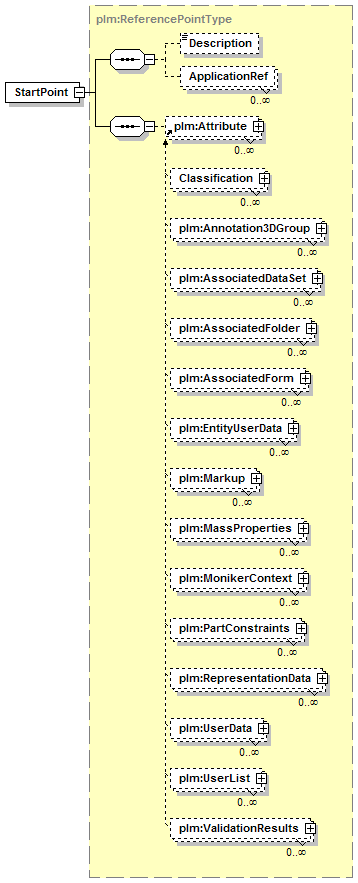

children Description ApplicationRef plm:Attribute plm:PropertyGroup StartPoint EndPoint SamplePoints
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID  optional
name  xsd:string  optional
attributeRefs  xsd:IDREFS  optional
entityRef  plm:anyURIType  optional
propertyRefs  plm:uriReferenceListType  optional
startT  xsd:double  optional
endT  xsd:double  optional
origin  plm:VectorType    0 0 0
zAxis  plm:DirectionType    0 0 1
xAxis  plm:DirectionType    1 0 0
radius  xsd:double  required
source
<xsd:element name="Circle" type="plm:CircleType" substitutionGroup="plm:Curve"/>

element plm:Colour
diagram
namespace http://www.plmxml.org/Schemas/PLMXMLSchema
type plm:ColourType
children Description ApplicationRef plm:Attribute
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID  optional
name  xsd:string  optional
attributeRefs  xsd:IDREFS  optional
ownerRef  plm:anyURIType  optional
ambient  plm:RGBType  optional
diffuse  plm:RGBType  optional
specular  plm:RGBType    0.0 0.0 0.0
emissive  plm:RGBType    0.0 0.0 0.0
shininess  plm:ShininessType    0.0
alpha  plm:AlphaType    1.0
colourId  xsd:string  optional
type  xsd:string  optional
source
<xsd:element name="Colour" type="plm:ColourType" substitutionGroup="plm:Property"/>

element plm:CompositeCurve
diagram
namespace http://www.plmxml.org/Schemas/PLMXMLSchema
type plm:CompositeCurveType
children Description ApplicationRef plm:Attribute plm:PropertyGroup StartPoint EndPoint SamplePoints
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID  optional
name  xsd:string  optional
attributeRefs  xsd:IDREFS  optional
entityRef  plm:anyURIType  optional
propertyRefs  plm:uriReferenceListType  optional
startT  xsd:double  optional
endT  xsd:double  optional
curves  xsd:IDREFS  required
appInfo
validate=skipName
isClosed  xsd:boolean    false
source
<xsd:element name="CompositeCurve" type="plm:CompositeCurveType" substitutionGroup="plm:Curve"/>

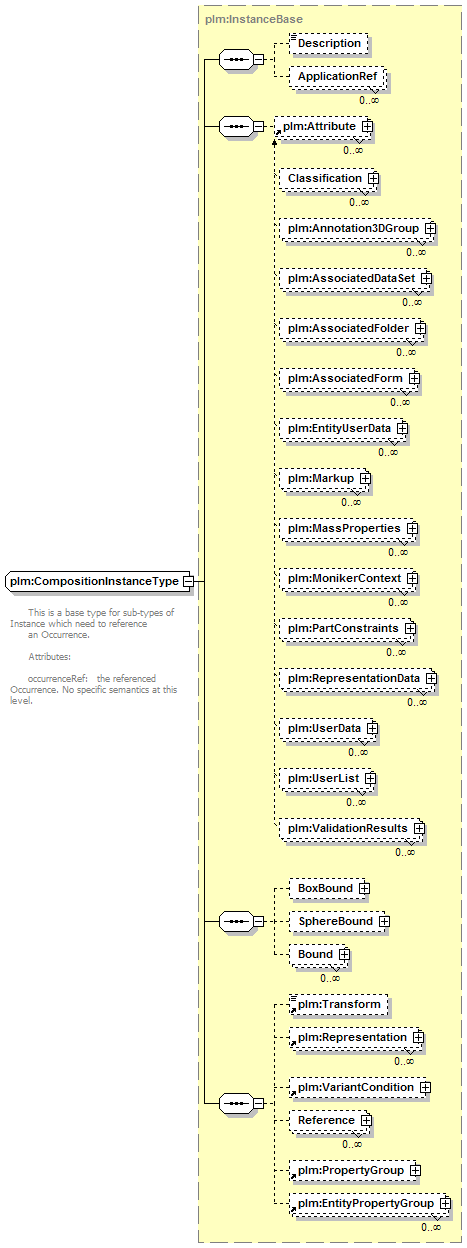

element plm:CompositionInstance
diagram
namespace http://www.plmxml.org/Schemas/PLMXMLSchema
type plm:CompositionInstanceType
children Description ApplicationRef plm:Attribute BoxBound SphereBound Bound plm:Transform plm:Representation plm:VariantCondition Reference plm:PropertyGroup plm:EntityPropertyGroup
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID  optional
name  xsd:string  optional
attributeRefs  xsd:IDREFS  optional
accessRefs  plm:uriReferenceListType  optional
statusRef  plm:anyURIType  optional
checkoutRefs  plm:uriReferenceListType  optional
subType  xsd:string  optional
effectivityRefs  plm:uriReferenceListType  optional
releaseStatusRefs  plm:uriReferenceListType  optional
instancedRef  plm:anyURIType  optional
transformRef  xsd:IDREF  optional
materialRef  xsd:IDREF  optional
partRef  plm:anyURIType  optional
representationRefs  plm:uriReferenceListType  optional
propertyRefs  plm:uriReferenceListType  optional
designRequired  xsd:boolean  optional
quantity  xsd:double  optional
unitRef  xsd:IDREF  optional
instanceType  xsd:string  optional
sequenceNumber  xsd:nonNegativeInteger  optional
instanceThreadRef  plm:anyURIType  optional
occurrenceRef  plm:anyURIType  optional
source
<xsd:element name="CompositionInstance" type="plm:CompositionInstanceType" substitutionGroup="plm:Instance"/>

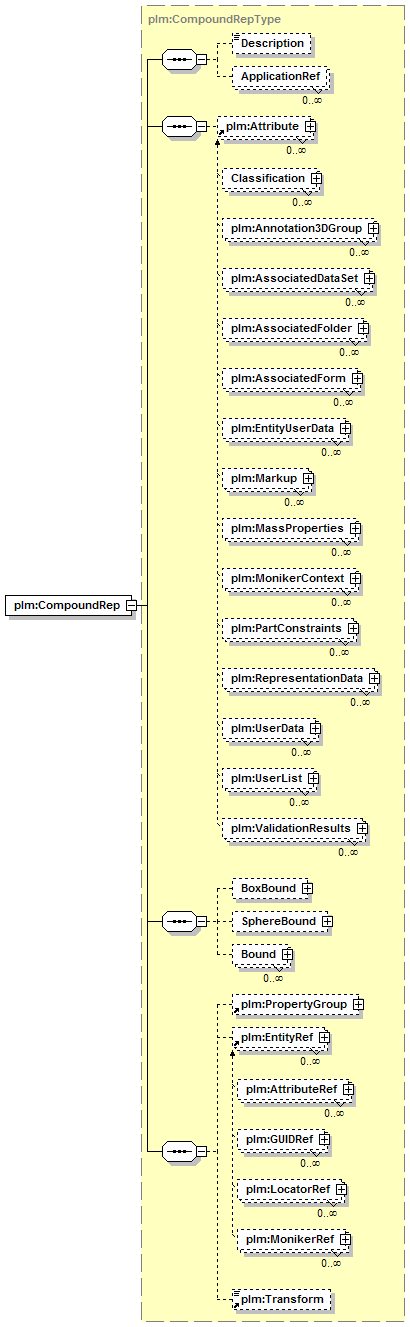

element plm:CompoundRep
diagram
namespace http://www.plmxml.org/Schemas/PLMXMLSchema
type plm:CompoundRepType
children Description ApplicationRef plm:Attribute BoxBound SphereBound Bound plm:PropertyGroup plm:EntityRef plm:Transform
used by
complexType plm:RepresentationType
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID  optional
name  xsd:string  optional
attributeRefs  xsd:IDREFS  optional
location  plm:anyURIType  optional
appInfo
validate=skipName
load  xsd:boolean    false
format  plm:RepresentationFormatType  optional
equivalentRef  xsd:IDREF  optional
type  plm:CompoundRepTypeEnum    default
baseRef  plm:anyURIType  optional
transformRef  plm:anyURIType  optional
source
<xsd:element name="CompoundRep" type="plm:CompoundRepType" substitutionGroup="plm:Properties"/>

element plm:Cone
diagram
namespace http://www.plmxml.org/Schemas/PLMXMLSchema
type plm:ConeType
children Description ApplicationRef plm:Attribute plm:PropertyGroup SamplePoints
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID  optional
name  xsd:string  optional
attributeRefs  xsd:IDREFS  optional
entityRef  plm:anyURIType  optional
propertyRefs  plm:uriReferenceListType  optional
startU  xsd:double  optional
endU  xsd:double  optional
startV  xsd:double  optional
endV  xsd:double  optional
origin  plm:VectorType    0 0 0
zAxis  plm:DirectionType    0 0 1
xAxis  plm:DirectionType    1 0 0
radius  xsd:double  required
halfAngle  xsd:double  required
source
<xsd:element name="Cone" type="plm:ConeType" substitutionGroup="plm:Surface"/>

element plm:ConfigRule
diagram
namespace http://www.plmxml.org/Schemas/PLMXMLSchema
type plm:ConfigRuleBase
children Description ApplicationRef plm:Attribute BoxBound SphereBound Bound
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID  optional
name  xsd:string  optional
attributeRefs  xsd:IDREFS  optional
accessRefs  plm:uriReferenceListType  optional
statusRef  plm:anyURIType  optional
checkoutRefs  plm:uriReferenceListType  optional
subType  xsd:string  optional
effectivityRefs  plm:uriReferenceListType  optional
releaseStatusRefs  plm:uriReferenceListType  optional
source
<xsd:element name="ConfigRule" type="plm:ConfigRuleBase" substitutionGroup="plm:Managed"/>

element plm:ConfigurationContext

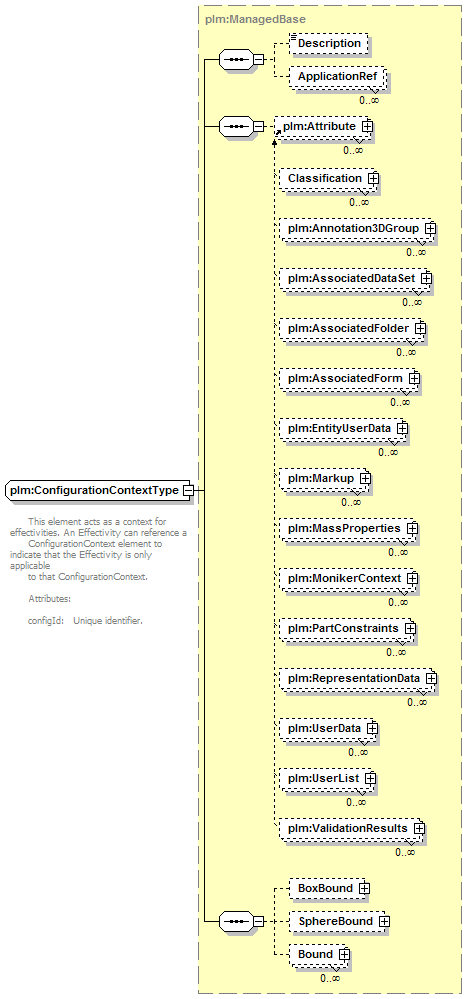

diagram
namespace http://www.plmxml.org/Schemas/PLMXMLSchema
type plm:ConfigurationContextType
children Description ApplicationRef plm:Attribute BoxBound SphereBound Bound
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID  optional
name  xsd:string  optional
attributeRefs  xsd:IDREFS  optional
accessRefs  plm:uriReferenceListType  optional
statusRef  plm:anyURIType  optional
checkoutRefs  plm:uriReferenceListType  optional
subType  xsd:string  optional
effectivityRefs  plm:uriReferenceListType  optional
releaseStatusRefs  plm:uriReferenceListType  optional
configId  xsd:string  required
source
<xsd:element name="ConfigurationContext" type="plm:ConfigurationContextType" substitutionGroup="plm:Managed"/>

element plm:ConfigurationView
diagram
namespace http://www.plmxml.org/Schemas/PLMXMLSchema
type plm:ConfigurationViewType
children Description ApplicationRef plm:Attribute plm:AssociatedAttachment
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID  optional
name  xsd:string  optional
attributeRefs  xsd:IDREFS  optional
ruleRefs  plm:uriReferenceListType  optional
attachmentRefs  plm:uriReferenceListType  optional
source
<xsd:element name="ConfigurationView" type="plm:ConfigurationViewType" substitutionGroup="plm:AttribOwner"/>

element plm:ConfiguredOccurrenceGroup

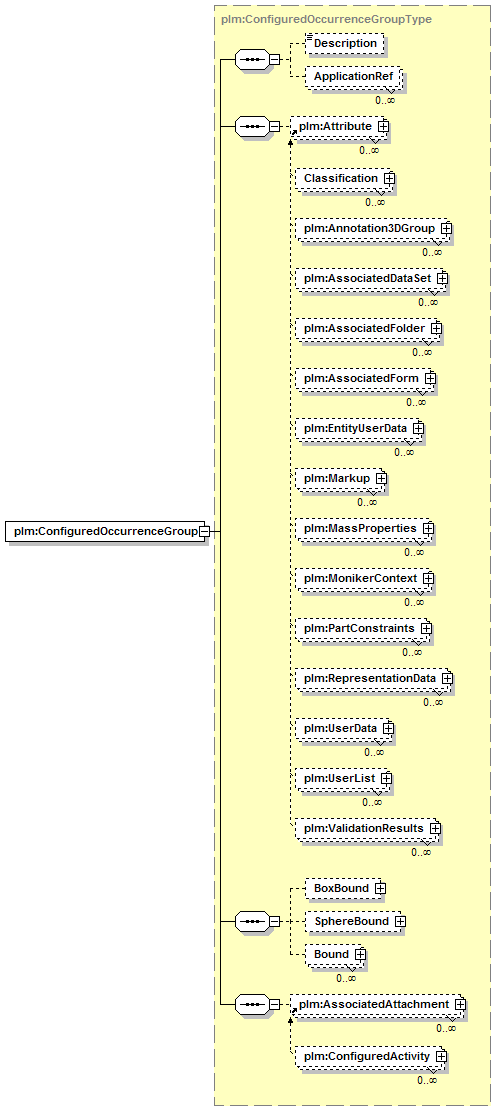

diagram
namespace http://www.plmxml.org/Schemas/PLMXMLSchema
type plm:ConfiguredOccurrenceGroupType
children Description ApplicationRef plm:Attribute BoxBound SphereBound Bound plm:AssociatedAttachment
used by
complexTypes plm:PlantViewType plm:ProcessViewType plm:ProductViewType
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID  optional
name  xsd:string  optional
attributeRefs  xsd:IDREFS  optional
accessRefs  plm:uriReferenceListType  optional
statusRef  plm:anyURIType  optional
checkoutRefs  plm:uriReferenceListType  optional
subType  xsd:string  optional
effectivityRefs  plm:uriReferenceListType  optional
releaseStatusRefs  plm:uriReferenceListType  optional
childRefs  plm:uriReferenceListType  optional
sourceRef  plm:anyURIType  optional
associatedAttachmentRefs  plm:uriReferenceListType  optional
source
<xsd:element name="ConfiguredOccurrenceGroup" type="plm:ConfiguredOccurrenceGroupType" substitutionGroup="plm:Managed"/>

element plm:Connection
diagram
namespace http://www.plmxml.org/Schemas/PLMXMLSchema

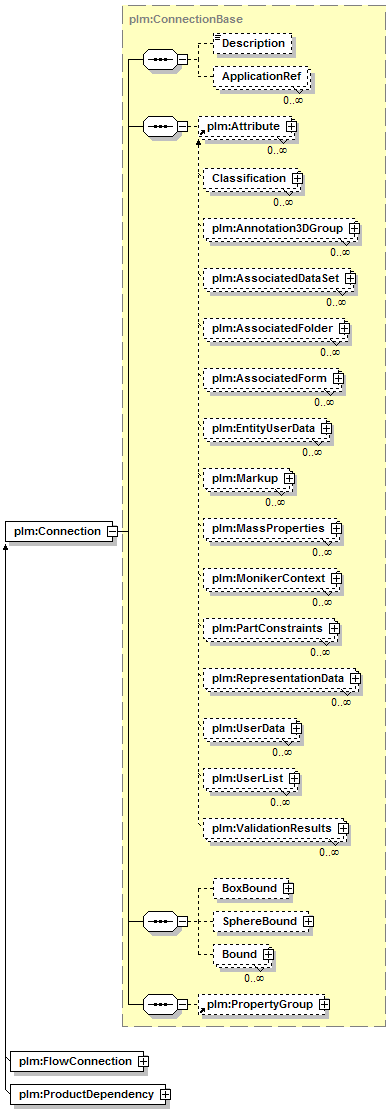

type plm:ConnectionBase
children Description ApplicationRef plm:Attribute BoxBound SphereBound Bound plm:PropertyGroup
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID  optional
name  xsd:string  optional
attributeRefs  xsd:IDREFS  optional
accessRefs  plm:uriReferenceListType  optional
statusRef  plm:anyURIType  optional
checkoutRefs  plm:uriReferenceListType  optional
subType  xsd:string  optional
effectivityRefs  plm:uriReferenceListType  optional
releaseStatusRefs  plm:uriReferenceListType  optional
catalogueId  xsd:string  optional
optionRefs  plm:uriReferenceListType  optional
propertyRefs  plm:uriReferenceListType  optional
source
<xsd:element name="Connection" type="plm:ConnectionBase" substitutionGroup="plm:Structure"/>

element plm:ConnectionInstance
diagram
namespace http://www.plmxml.org/Schemas/PLMXMLSchema
type plm:ConnectionInstanceType
children Description ApplicationRef plm:Attribute BoxBound SphereBound Bound plm:Transform plm:Representation plm:VariantCondition Reference plm:PropertyGroup plm:EntityPropertyGroup
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID  optional
name  xsd:string  optional
attributeRefs  xsd:IDREFS  optional
accessRefs  plm:uriReferenceListType  optional
statusRef  plm:anyURIType  optional
checkoutRefs  plm:uriReferenceListType  optional
subType  xsd:string  optional
effectivityRefs  plm:uriReferenceListType  optional
releaseStatusRefs  plm:uriReferenceListType  optional
instancedRef  plm:anyURIType  optional
transformRef  xsd:IDREF  optional
materialRef  xsd:IDREF  optional
partRef  plm:anyURIType  optional
representationRefs  plm:uriReferenceListType  optional
propertyRefs  plm:uriReferenceListType  optional
designRequired  xsd:boolean  optional
quantity  xsd:double  optional
unitRef  xsd:IDREF  optional
instanceType  xsd:string  optional
sequenceNumber  xsd:nonNegativeInteger  optional
instanceThreadRef  plm:anyURIType  optional
source
<xsd:element name="ConnectionInstance" type="plm:ConnectionInstanceType" substitutionGroup="plm:Instance"/>

element plm:ConnectionRevision
diagram
namespace http://www.plmxml.org/Schemas/PLMXMLSchema
type plm:ConnectionRevisionType
children Description ApplicationRef plm:Attribute BoxBound SphereBound Bound plm:VariantDefault plm:VariantRuleCheck plm:PropertyGroup
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID  optional
name  xsd:string  optional
attributeRefs  xsd:IDREFS  optional
accessRefs  plm:uriReferenceListType  optional
statusRef  plm:anyURIType  optional
checkoutRefs  plm:uriReferenceListType  optional
subType  xsd:string  optional
effectivityRefs  plm:uriReferenceListType  optional
releaseStatusRefs  plm:uriReferenceListType  optional
revision  xsd:string  required
version  xsd:nonNegativeInteger  optional
masterRef  plm:anyURIType  required
optionRefs  plm:uriReferenceListType  optional
instanceRefs  plm:uriReferenceListType  optional
gdeInstanceRefs  plm:uriReferenceListType  optional
simplifiedRepRefs  plm:uriReferenceListType  optional
propertyRefs  plm:uriReferenceListType  optional
source
<xsd:element name="ConnectionRevision" type="plm:ConnectionRevisionType" substitutionGroup="plm:StructureRevision"/>

element plm:ConnectionRevisionView
diagram
namespace http://www.plmxml.org/Schemas/PLMXMLSchema
type plm:ConnectionRevisionViewType
children Description ApplicationRef plm:Attribute BoxBound SphereBound Bound plm:Occurrence plm:PropertyGroup plm:RepresentationEntity plm:EntityPropertyGroup plm:SymbolicOccurrence
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID  optional
name  xsd:string  optional
attributeRefs  xsd:IDREFS  optional
accessRefs  plm:uriReferenceListType  optional
statusRef  plm:anyURIType  optional
checkoutRefs  plm:uriReferenceListType  optional
subType  xsd:string  optional
effectivityRefs  plm:uriReferenceListType  optional
releaseStatusRefs  plm:uriReferenceListType  optional
revisionRef  plm:anyURIType  optional
viewRef  plm:anyURIType  optional
structureViewRef  plm:anyURIType  optional
instanceRefs  xsd:IDREFS  optional
gdeInstanceRefs  plm:uriReferenceListType  optional
connectionInstanceRefs  plm:uriReferenceListType  optional
signalInstanceRefs  plm:uriReferenceListType  optional
routeInstanceRefs  plm:uriReferenceListType  optional
occurrenceRefs  plm:uriReferenceListType  optional
locationInstanceRefs  plm:uriReferenceListType  optional
propertyRefs  plm:uriReferenceListType  optional
ruleRefs  plm:uriReferenceListType  optional
occurrenceControlState  plm:OccurrenceControlEnum    implicit
source
<xsd:element name="ConnectionRevisionView" type="plm:ConnectionRevisionViewType" substitutionGroup="plm:StructureRevisionView"/>

element plm:ConstructionGeometry
diagram
namespace http://www.plmxml.org/Schemas/PLMXMLSchema
type plm:ConstructionGeometryType
children Description ApplicationRef plm:Attribute plm:Point plm:Curve plm:Surface plm:CoordinateSystem plm:GeometryComposition
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID  optional
name  xsd:string  optional
attributeRefs  xsd:IDREFS  optional
entityRef  plm:anyURIType  optional
source
<xsd:element name="ConstructionGeometry" type="plm:ConstructionGeometryType" substitutionGroup="plm:Entity"/>

element plm:CoordinateSystem
diagram
namespace http://www.plmxml.org/Schemas/PLMXMLSchema
type plm:CoordinateSystemType
children Description ApplicationRef plm:Attribute plm:PropertyGroup
used by
complexTypes plm:ConstructionGeometryType plm:GeometryCompositionType
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID  optional
name  xsd:string  optional
attributeRefs  xsd:IDREFS  optional
entityRef  plm:anyURIType  optional
propertyRefs  plm:uriReferenceListType  optional
origin  plm:VectorType    0 0 0
zAxis  plm:DirectionType    0 0 1
xAxis  plm:DirectionType    1 0 0
source
<xsd:element name="CoordinateSystem" type="plm:CoordinateSystemType" substitutionGroup="plm:Geometry"/>

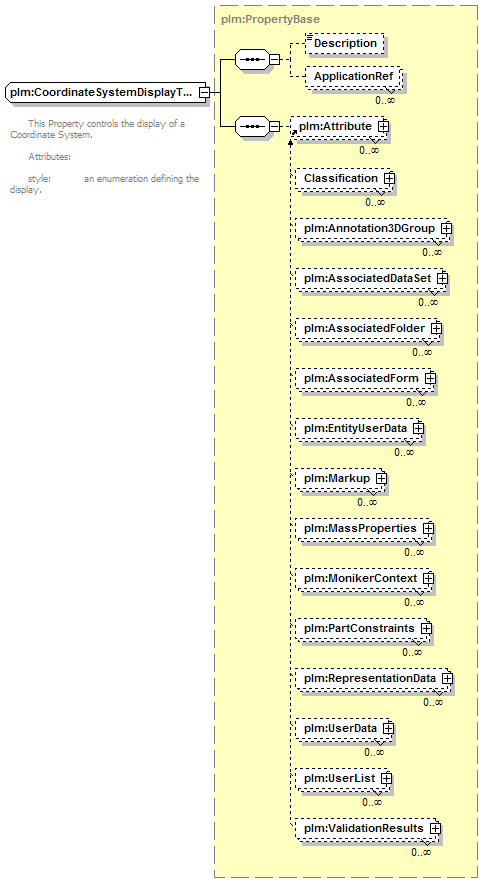

element plm:CoordinateSystemDisplay
diagram
namespace http://www.plmxml.org/Schemas/PLMXMLSchema
type plm:CoordinateSystemDisplayType
children Description ApplicationRef plm:Attribute
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID  optional
name  xsd:string  optional
attributeRefs  xsd:IDREFS  optional
ownerRef  plm:anyURIType  optional
style  plm:CoordinateSystemStyleEnum  optional
source
<xsd:element name="CoordinateSystemDisplay" type="plm:CoordinateSystemDisplayType" substitutionGroup="plm:Property"/>

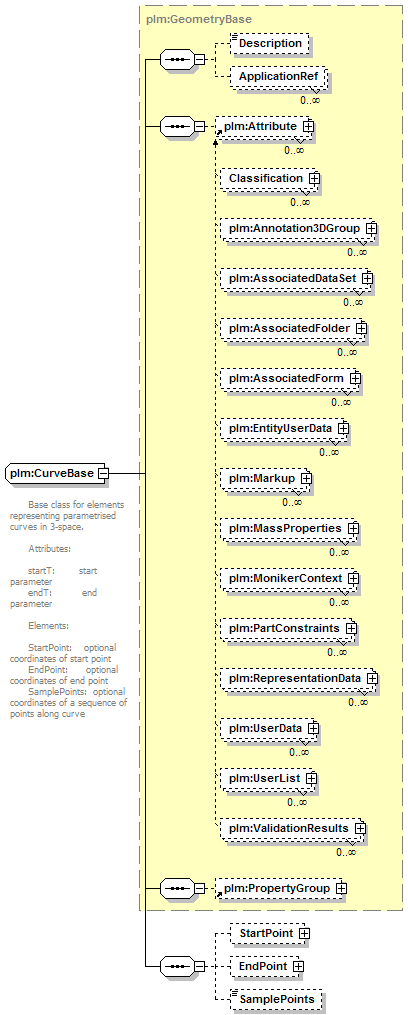

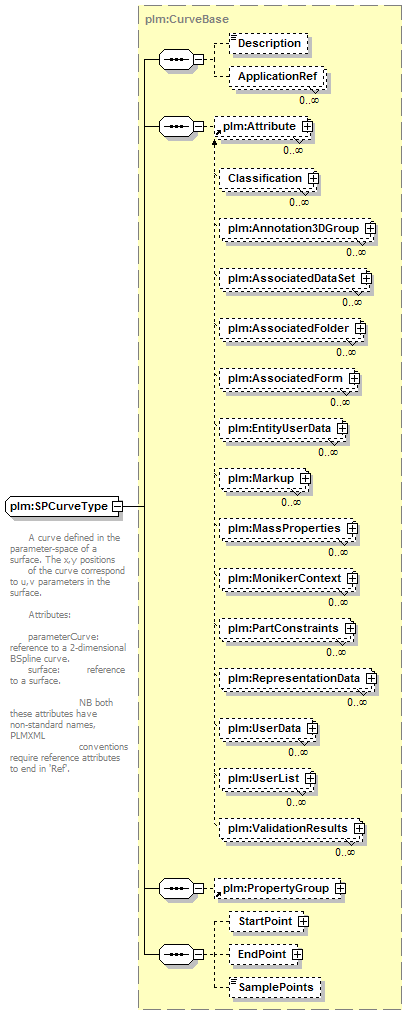

element plm:Curve
diagram
namespace http://www.plmxml.org/Schemas/PLMXMLSchema
type plm:CurveBase
children Description ApplicationRef plm:Attribute plm:PropertyGroup StartPoint EndPoint SamplePoints
used by
complexTypes plm:Ann3DLeaderType plm:ConstructionGeometryType plm:GeometryCompositionType
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID  optional
name  xsd:string  optional
attributeRefs  xsd:IDREFS  optional
entityRef  plm:anyURIType  optional
propertyRefs  plm:uriReferenceListType  optional
startT  xsd:double  optional
endT  xsd:double  optional
source
<xsd:element name="Curve" type="plm:CurveBase" substitutionGroup="plm:Entity"/>

element plm:Cylinder
diagram
namespace http://www.plmxml.org/Schemas/PLMXMLSchema
type plm:CylinderType
children Description ApplicationRef plm:Attribute plm:PropertyGroup SamplePoints
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID  optional
name  xsd:string  optional
attributeRefs  xsd:IDREFS  optional
entityRef  plm:anyURIType  optional
propertyRefs  plm:uriReferenceListType  optional
startU  xsd:double  optional
endU  xsd:double  optional
startV  xsd:double  optional
endV  xsd:double  optional
origin  plm:VectorType    0 0 0
zAxis  plm:DirectionType    0 0 1
xAxis  plm:DirectionType    1 0 0
radius  xsd:double  required
source
<xsd:element name="Cylinder" type="plm:CylinderType" substitutionGroup="plm:Surface"/>

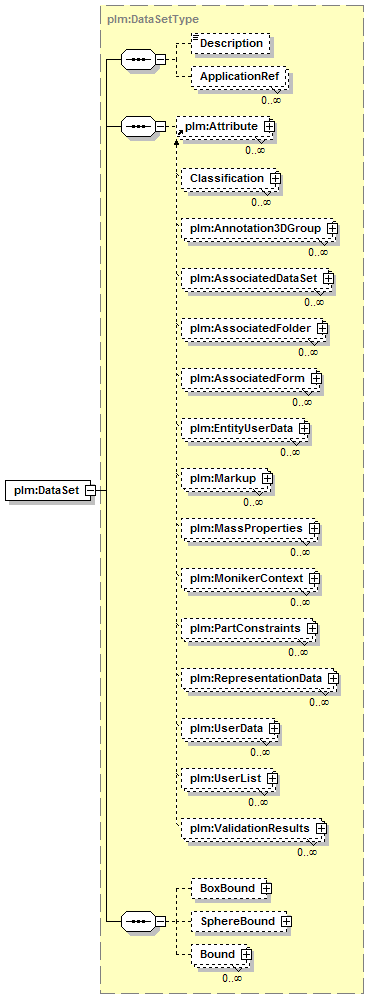

element plm:DataSet
diagram
namespace http://www.plmxml.org/Schemas/PLMXMLSchema
type plm:DataSetType
children Description ApplicationRef plm:Attribute BoxBound SphereBound Bound
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID  optional
name  xsd:string  optional
attributeRefs  xsd:IDREFS  optional
accessRefs  plm:uriReferenceListType  optional
statusRef  plm:anyURIType  optional
checkoutRefs  plm:uriReferenceListType  optional
subType  xsd:string  optional
effectivityRefs  plm:uriReferenceListType  optional
releaseStatusRefs  plm:uriReferenceListType  optional
version  xsd:nonNegativeInteger  optional
type  xsd:string  optional
memberRefs  plm:uriReferenceListType  optional
source
<xsd:element name="DataSet" type="plm:DataSetType" substitutionGroup="plm:Managed"/>

element plm:DateEffectivity
diagram
namespace http://www.plmxml.org/Schemas/PLMXMLSchema
type plm:DateEffectivityType
children Description ApplicationRef plm:Attribute
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID  optional
name  xsd:string  optional
attributeRefs  xsd:IDREFS  optional
contextRef  plm:anyURIType  optional
start  xsd:dateTime  optional
end  xsd:dateTime  optional
endCondition  plm:EffectivityEndConditionType  optional
source
<xsd:element name="DateEffectivity" type="plm:DateEffectivityType" substitutionGroup="plm:Effectivity"/>

element plm:DefinitionRelation
diagram
namespace http://www.plmxml.org/Schemas/PLMXMLSchema
type plm:DefinitionRelationType
children Description ApplicationRef plm:Attribute BoxBound SphereBound Bound
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID  optional
name  xsd:string  optional
attributeRefs  xsd:IDREFS  optional
accessRefs  plm:uriReferenceListType  optional
statusRef  plm:anyURIType  optional
checkoutRefs  plm:uriReferenceListType  optional
subType  xsd:string  optional
effectivityRefs  plm:uriReferenceListType  optional
releaseStatusRefs  plm:uriReferenceListType  optional
relatedRefs  plm:uriReferenceListType  optional
transform  xsd:boolean    false
geometry  xsd:boolean    false
source
<xsd:element name="DefinitionRelation" type="plm:DefinitionRelationType" substitutionGroup="plm:GeneralRelation"/>

element plm:Density
diagram
namespace http://www.plmxml.org/Schemas/PLMXMLSchema
type plm:DensityType
children Description ApplicationRef plm:Attribute plm:ValueWithUnit plm:RangeWithUnit
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID  optional
name  xsd:string  optional
attributeRefs  xsd:IDREFS  optional
ownerRef  plm:anyURIType  optional
source
<xsd:element name="Density" type="plm:DensityType" substitutionGroup="plm:Property"/>

element plm:Derived
diagram
namespace http://www.plmxml.org/Schemas/PLMXMLSchema
type plm:DerivedType
used by
complexType plm:VariantRuleType
attributes
Name  Type  Use  Default  Fixed  Annotation
optionRef  plm:anyURIType  required
value  xsd:string  required
source
<xsd:element name="Derived" type="plm:DerivedType" substitutionGroup="plm:Statement"/>

element plm:Design
diagram
namespace http://www.plmxml.org/Schemas/PLMXMLSchema
type plm:DesignType
children Description ApplicationRef plm:Attribute BoxBound SphereBound Bound plm:PropertyGroup
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID  optional
name  xsd:string  optional
attributeRefs  xsd:IDREFS  optional
accessRefs  plm:uriReferenceListType  optional
statusRef  plm:anyURIType  optional
checkoutRefs  plm:uriReferenceListType  optional
subType  xsd:string  optional
effectivityRefs  plm:uriReferenceListType  optional
releaseStatusRefs  plm:uriReferenceListType  optional
catalogueId  xsd:string  optional
optionRefs  plm:uriReferenceListType  optional
propertyRefs  plm:uriReferenceListType  optional
source
<xsd:element name="Design" type="plm:DesignType" substitutionGroup="plm:Structure"/>

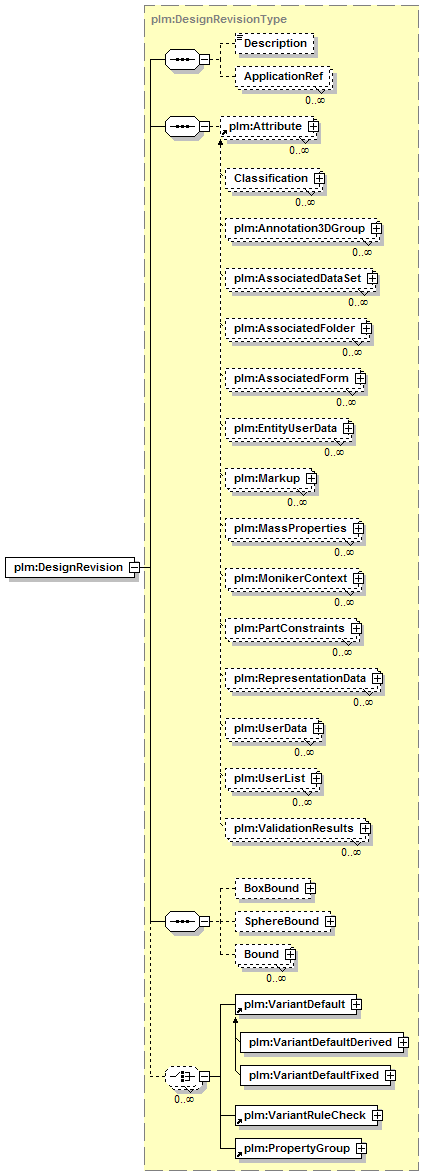

element plm:DesignRevision
diagram
namespace http://www.plmxml.org/Schemas/PLMXMLSchema
type plm:DesignRevisionType
children Description ApplicationRef plm:Attribute BoxBound SphereBound Bound plm:VariantDefault plm:VariantRuleCheck plm:PropertyGroup
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID  optional
name  xsd:string  optional
attributeRefs  xsd:IDREFS  optional
accessRefs  plm:uriReferenceListType  optional
statusRef  plm:anyURIType  optional
checkoutRefs  plm:uriReferenceListType  optional
subType  xsd:string  optional
effectivityRefs  plm:uriReferenceListType  optional
releaseStatusRefs  plm:uriReferenceListType  optional
revision  xsd:string  required
version  xsd:nonNegativeInteger  optional
masterRef  plm:anyURIType  required
optionRefs  plm:uriReferenceListType  optional
instanceRefs  plm:uriReferenceListType  optional
gdeInstanceRefs  plm:uriReferenceListType  optional
simplifiedRepRefs  plm:uriReferenceListType  optional
propertyRefs  plm:uriReferenceListType  optional
source
<xsd:element name="DesignRevision" type="plm:DesignRevisionType" substitutionGroup="plm:StructureRevision"/>

element plm:DesignRevisionView
diagram
namespace http://www.plmxml.org/Schemas/PLMXMLSchema
type plm:DesignRevisionViewType
children Description ApplicationRef plm:Attribute BoxBound SphereBound Bound plm:Occurrence plm:PropertyGroup plm:RepresentationEntity plm:EntityPropertyGroup plm:SymbolicOccurrence plm:Representation
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID  optional
name  xsd:string  optional
attributeRefs  xsd:IDREFS  optional
accessRefs  plm:uriReferenceListType  optional
statusRef  plm:anyURIType  optional
checkoutRefs  plm:uriReferenceListType  optional
subType  xsd:string  optional
effectivityRefs  plm:uriReferenceListType  optional
releaseStatusRefs  plm:uriReferenceListType  optional
revisionRef  plm:anyURIType  optional
viewRef  plm:anyURIType  optional
structureViewRef  plm:anyURIType  optional
instanceRefs  xsd:IDREFS  optional
gdeInstanceRefs  plm:uriReferenceListType  optional
connectionInstanceRefs  plm:uriReferenceListType  optional
signalInstanceRefs  plm:uriReferenceListType  optional
routeInstanceRefs  plm:uriReferenceListType  optional
occurrenceRefs  plm:uriReferenceListType  optional
locationInstanceRefs  plm:uriReferenceListType  optional
propertyRefs  plm:uriReferenceListType  optional
ruleRefs  plm:uriReferenceListType  optional
occurrenceControlState  plm:OccurrenceControlEnum    implicit
representationRefs  xsd:IDREFS  optional
geometryRefs  plm:uriReferenceListType  optional
source
<xsd:element name="DesignRevisionView" type="plm:DesignRevisionViewType" substitutionGroup="plm:StructureRevisionView"/>

element plm:DirectionalLight
diagram
namespace http://www.plmxml.org/Schemas/PLMXMLSchema
type plm:DirectionalLightType
children Description ApplicationRef plm:Attribute
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID  optional
name  xsd:string  optional
attributeRefs  xsd:IDREFS  optional
ambient  plm:RGBType    0.0 0.0 0.0
diffuse  plm:RGBType    1.0 1.0 1.0
specular  plm:RGBType    1.0 1.0 1.0
intensity  plm:AlphaType    1.0
direction  plm:VectorType    0.0 0.0 1.0
source
<xsd:element name="DirectionalLight" type="plm:DirectionalLightType" substitutionGroup="plm:LightSource"/>

element plm:Discipline
diagram
namespace http://www.plmxml.org/Schemas/PLMXMLSchema
type plm:DisciplineType
children Description ApplicationRef plm:Attribute Level
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID  optional
name  xsd:string  optional
attributeRefs  xsd:IDREFS  optional
rate  xsd:double  optional
source
<xsd:element name="Discipline" type="plm:DisciplineType" substitutionGroup="plm:AttribOwner"/>

element plm:DisciplineLevel
diagram
namespace http://www.plmxml.org/Schemas/PLMXMLSchema
type plm:DisciplineLevelType
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID  optional
name  xsd:string  optional
number  xsd:double  optional
source
<xsd:element name="DisciplineLevel" type="plm:DisciplineLevelType"/>

element plm:DisciplineRelation
diagram
namespace http://www.plmxml.org/Schemas/PLMXMLSchema
type plm:DisciplineRelationType
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID  optional
disciplineRef  plm:anyURIType  optional
level  xsd:string  optional
source
<xsd:element name="DisciplineRelation" type="plm:DisciplineRelationType"/>

element plm:DisplayPreferences
diagram
namespace http://www.plmxml.org/Schemas/PLMXMLSchema
type plm:DisplayPreferencesType
children Description ApplicationRef plm:Attribute
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID  optional
name  xsd:string  optional
attributeRefs  xsd:IDREFS  optional
ownerRef  plm:anyURIType  optional
unitRef  plm:anyURIType  optional
displayAnnotations  xsd:boolean    true
displayGeometry  xsd:boolean    true
source
<xsd:element name="DisplayPreferences" type="plm:DisplayPreferencesType" substitutionGroup="plm:Property"/>

element plm:Drawing
diagram
namespace http://www.plmxml.org/Schemas/PLMXMLSchema
type plm:DrawingType
children Description ApplicationRef plm:Attribute BoxBound SphereBound Bound plm:PropertyGroup
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID  optional
name  xsd:string  optional
attributeRefs  xsd:IDREFS  optional
accessRefs  plm:uriReferenceListType  optional
statusRef  plm:anyURIType  optional
checkoutRefs  plm:uriReferenceListType  optional
subType  xsd:string  optional
effectivityRefs  plm:uriReferenceListType  optional
releaseStatusRefs  plm:uriReferenceListType  optional
catalogueId  xsd:string  optional
optionRefs  plm:uriReferenceListType  optional
propertyRefs  plm:uriReferenceListType  optional
title  xsd:string  optional
source
<xsd:element name="Drawing" type="plm:DrawingType" substitutionGroup="plm:Structure"/>

element plm:DrawingRevision
diagram
namespace http://www.plmxml.org/Schemas/PLMXMLSchema
type plm:DrawingRevisionType
children Description ApplicationRef plm:Attribute BoxBound SphereBound Bound plm:VariantDefault plm:VariantRuleCheck plm:PropertyGroup
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID  optional
name  xsd:string  optional
attributeRefs  xsd:IDREFS  optional
accessRefs  plm:uriReferenceListType  optional
statusRef  plm:anyURIType  optional
checkoutRefs  plm:uriReferenceListType  optional
subType  xsd:string  optional
effectivityRefs  plm:uriReferenceListType  optional
releaseStatusRefs  plm:uriReferenceListType  optional
revision  xsd:string  required
version  xsd:nonNegativeInteger  optional
masterRef  plm:anyURIType  required
optionRefs  plm:uriReferenceListType  optional
instanceRefs  plm:uriReferenceListType  optional
gdeInstanceRefs  plm:uriReferenceListType  optional
simplifiedRepRefs  plm:uriReferenceListType  optional
propertyRefs  plm:uriReferenceListType  optional
externalFileRefs  plm:uriReferenceListType  optional
drawnRefs  plm:uriReferenceListType  optional
source
<xsd:element name="DrawingRevision" type="plm:DrawingRevisionType" substitutionGroup="plm:StructureRevision"/>

element plm:DrawingRevisionView
diagram
namespace http://www.plmxml.org/Schemas/PLMXMLSchema
type plm:DrawingRevisionViewType
children Description ApplicationRef plm:Attribute BoxBound SphereBound Bound plm:Occurrence plm:PropertyGroup plm:RepresentationEntity plm:EntityPropertyGroup plm:SymbolicOccurrence
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID  optional
name  xsd:string  optional
attributeRefs  xsd:IDREFS  optional
accessRefs  plm:uriReferenceListType  optional
statusRef  plm:anyURIType  optional
checkoutRefs  plm:uriReferenceListType  optional
subType  xsd:string  optional
effectivityRefs  plm:uriReferenceListType  optional
releaseStatusRefs  plm:uriReferenceListType  optional
revisionRef  plm:anyURIType  optional
viewRef  plm:anyURIType  optional
structureViewRef  plm:anyURIType  optional
instanceRefs  xsd:IDREFS  optional
gdeInstanceRefs  plm:uriReferenceListType  optional
connectionInstanceRefs  plm:uriReferenceListType  optional
