Schema PLMXMLSchemaCollection.xsd


schema location:  PLMXMLSchema.xsd
targetNamespace:  http://www.plmxml.org/Schemas/PLMXMLSchema

Elements  Complex types  Simple types  Attr. groups
AccessControl  AccessControlBase  AccessIntentEnum  idGroup
AccessIntent  AccessIntentType  AlphaType  MassPropertyGroup
Address  AddressType  anyURIType  referenceGroup
And  AndType  AttenuationType
AssociatedDataSet  ApplicationRefType  AttributeClassType
AttribOwner  AreaType  AttributeOwnerType
Attribute  AssociatedDataSetType  AxisFieldType
AttributeClass  AttribOwnerBase  BooleanListType
AttributeLegalOwner  AttributeBase  BoundingType
AttributeRef  AttributeClassBase  CoordinateFieldType
Bound  AttributeLegalOwnerType  CutoffAngleType
BSplineCurve  AttributeRefType  DescriptionType
BSplineSurface  BoundType  DirectionFieldType
CheckMessage  BoxBoundType  DirectionType
Checkout  BSplineCurveType  DoubleListType
CheckoutStatus  BSplineSurfaceType  DrawingStyleType
Circle  CentreOfMassType  FloatListType
CompositeCurve  CheckMessageType  GDERelationshipType
CompositionInstance  CheckoutStatusBase  GeometryParamType
CompoundRep  CheckoutType  IntegerFieldListType
Cone  CircleType  IntegerFieldType
ConfigurationContext  CompositeCurveType  IntegerListType
Connection  CompositionInstanceType  IntensityExponentType
ConnectionRevision  CompositionType  LocatorRefFormatType
ConnectionRevisionView  CompoundRepType  LogicalOperationType

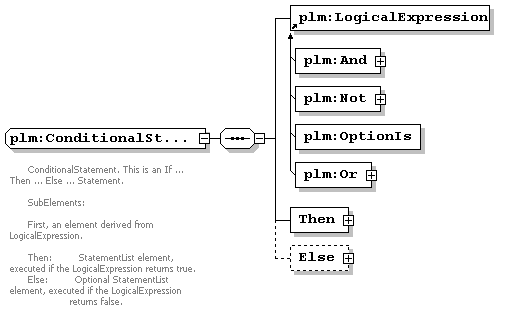

CoordinateSystem  ConditionalStatementType  MassPropertyArrayFieldType
Curve  ConeType  MassPropertyUnitType
Cylinder  ConfigurationContextType  MatrixType
DataSet  ConnectionBase  OptionScopeType
DateEffectivity  ConnectionRevisionType  OptionTypesType
DirectionalLight  ConnectionRevisionViewType  PartTypesType
Drawing  ConstructionGeometryType  PolyLineDimensionType
DrawingRevision  CurveBase  PreferredPartUnitsType
Effectivity  CylinderType  ProductViewDefinitionType
Ellipse  DataSetType  ProductViewUsageType
EntityMaterial  DateEffectivityType  RealFieldListType
EntityRef  DensityType  RealFieldType

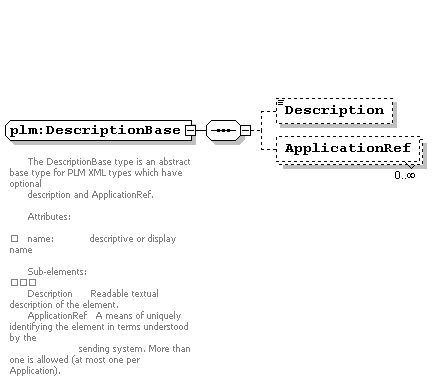

EntityTexture  DescriptionBase  RefSelectType
EntityUserData  DirectionalLightType  RepresentationFormatType
EnumFeature  DisplayControlType  RGBAType
ErrorMessage  DocumentBase  RGBFloatListType
Expression  DocumentHeaderType  RGBFloatType
ExternalFile  DrawingRevisionType  RGBType
Feature  DrawingType  ShadingStyleType

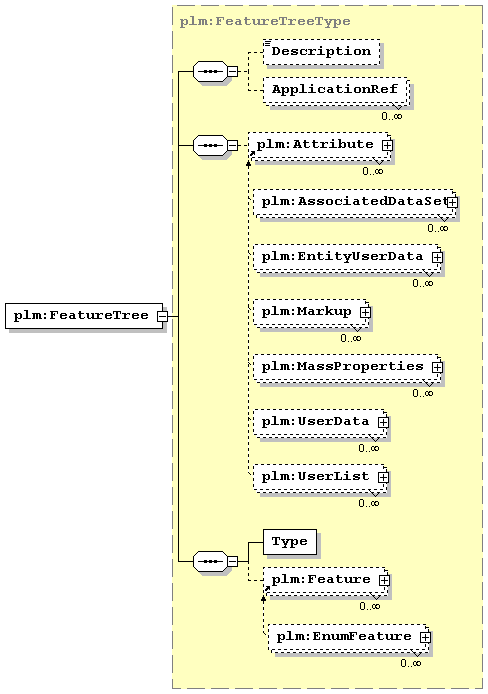

FeatureTree  EffectivityType  ShininessType
Fix  EllipseType  SplineCurveFormType

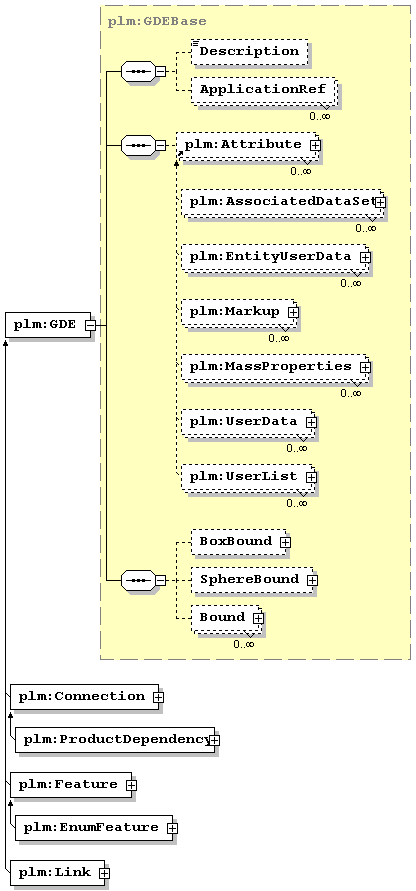

GDE  EntityBase  SplineDimensionType
GDEInstance  EntityMaterialType  StringFieldType
GDEInstanceGroup  EntityRefBase  TextureCoordDataType
GDERevision  EntityTextureType  TextureDataFormatType
GDERevisionView  EntityUserDataType  TextureMapType

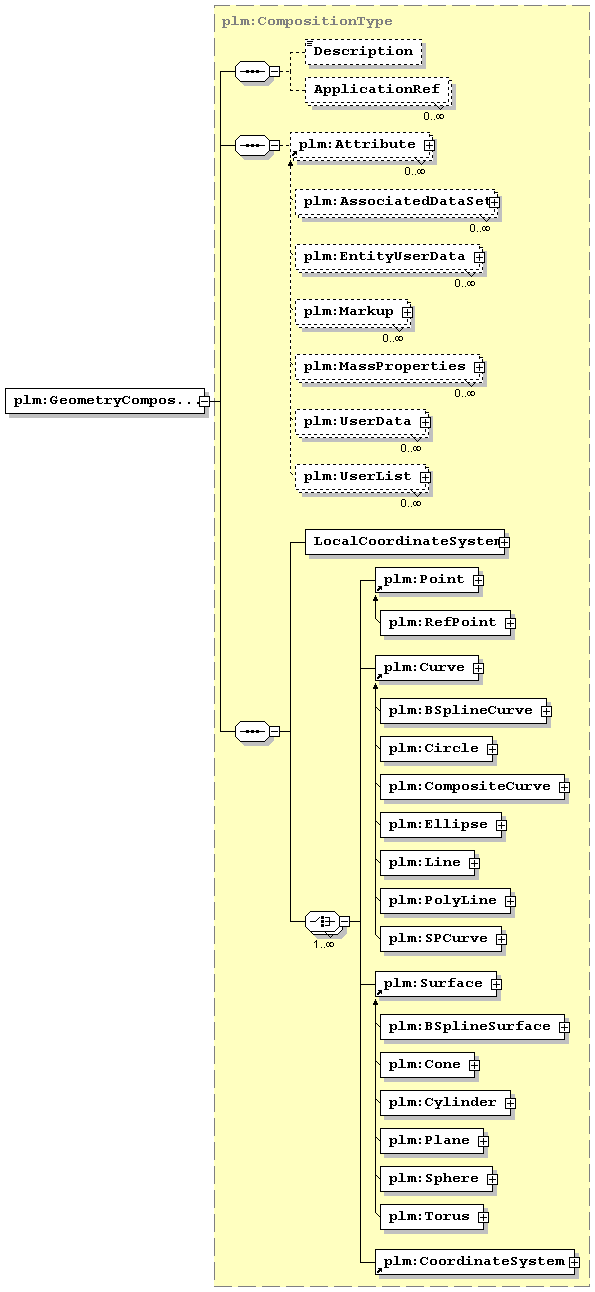

GeometryComposition  EnumFeatureType  TextureSampleType
GUIDRef  ErrorMessageType  TextureWrapType
If  ExpressionBase  TransformationType
InformMessage  ExternalFileType  UnitPrefixType
Instance  FeatureBase  uriReferenceListType
InstanceGraph  FeatureTreeType  UserValueDataType
InternalRep  FixType  VectorFieldType
LightSource  GDEBase  VectorType
Line  GDEInstanceGroupType  ViewPortCornerType
Link  GDEInstanceType  XTDataType
LocatorRef  GDEReferenceType
LogicalExpression  GDERevisionBase
LotEffectivity  GDERevisionViewBase

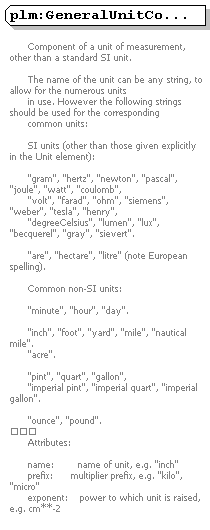

Managed  GeneralUnitComponentType

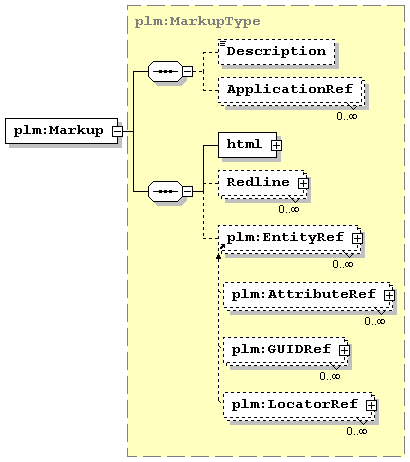

Markup  GUIDRefType

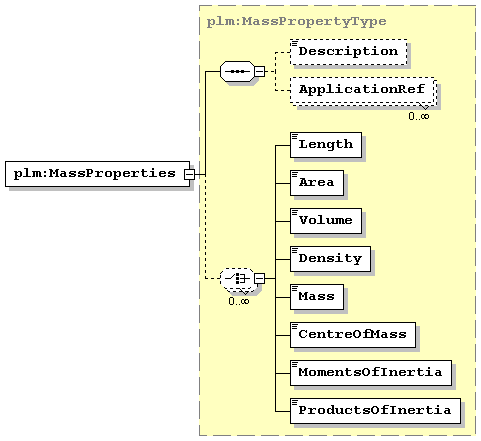

MassProperties  IdBase
Material  InformMessageType

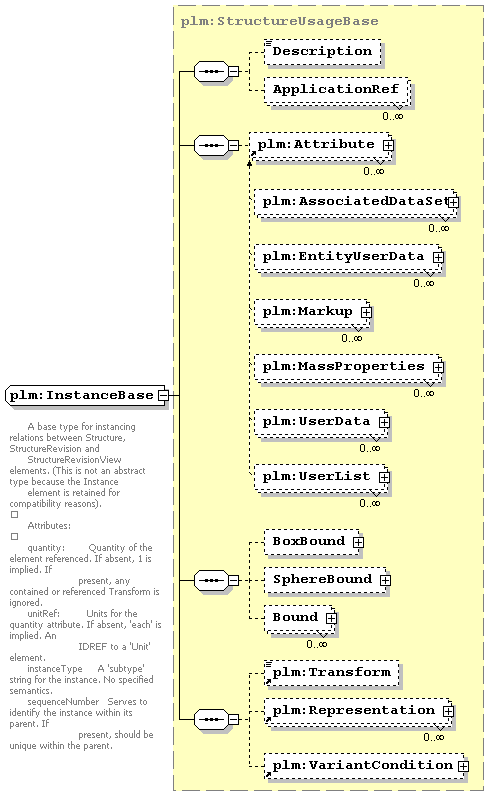

Message  InstanceBase

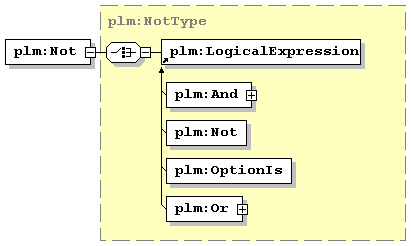

Not  InstanceGraphType
Occurrence  InternalRepBase
Operand  LengthType
Option  LightSourceBase
OptionIs  LineType

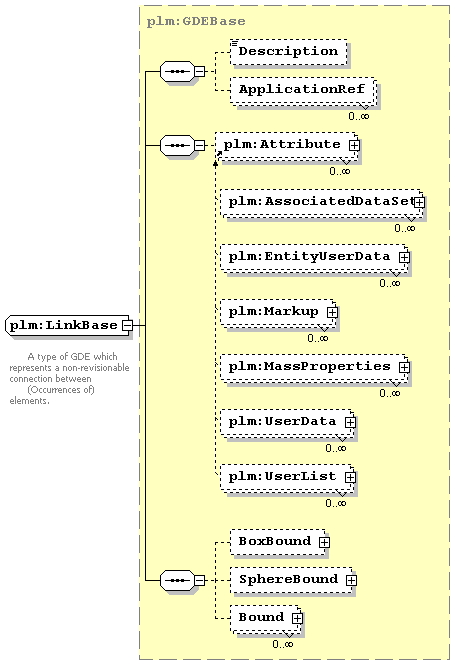

Or  LinkBase

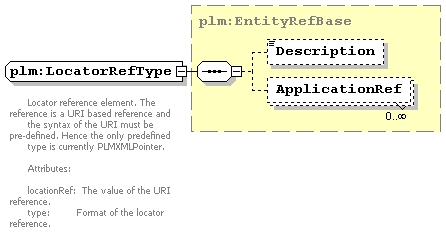

Organisation  LocatorRefType
OrganisationMember  LogicalExpressionBase

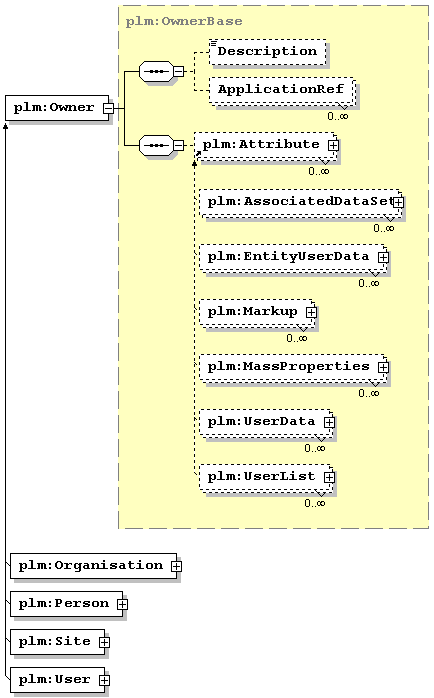

Owner  LotEffectivityType

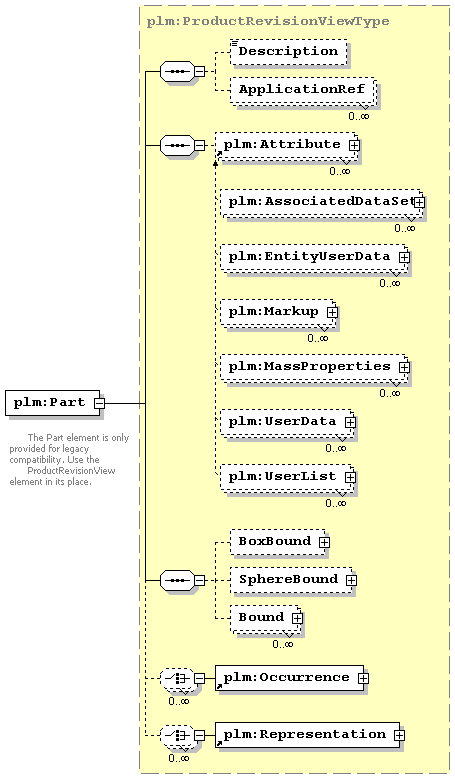

Part  ManagedBase
Person  MarkupType
PlanarZone  MassPropertyArrayType
Plane  MassPropertyRealType
PLMXML  MassPropertyType
Point  MassPropertyVectorType
PolyLine  MassType
PositionalLight  MaterialType
Product  MessageBase
ProductDef  MomentsOfInertiaType

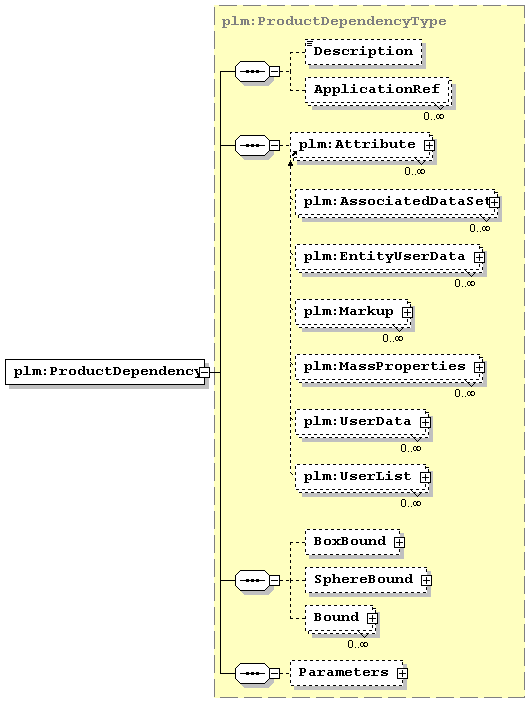

ProductDependency  NormalType

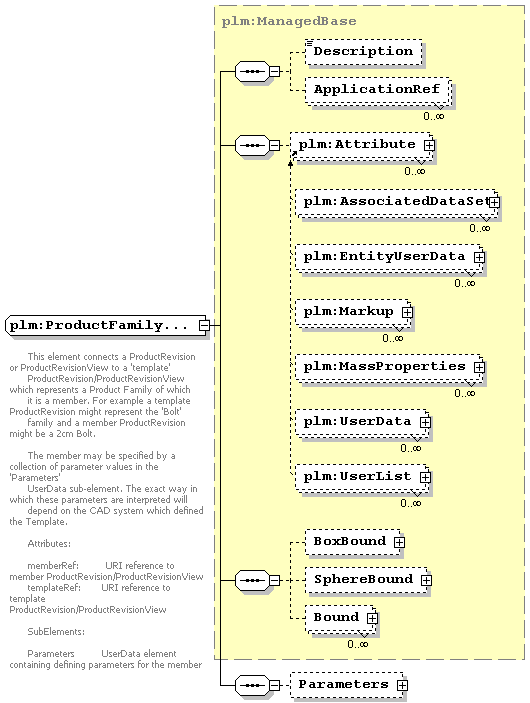

ProductFamily  NotType
ProductInstance  OccurrenceType
ProductRevision  OperandBase

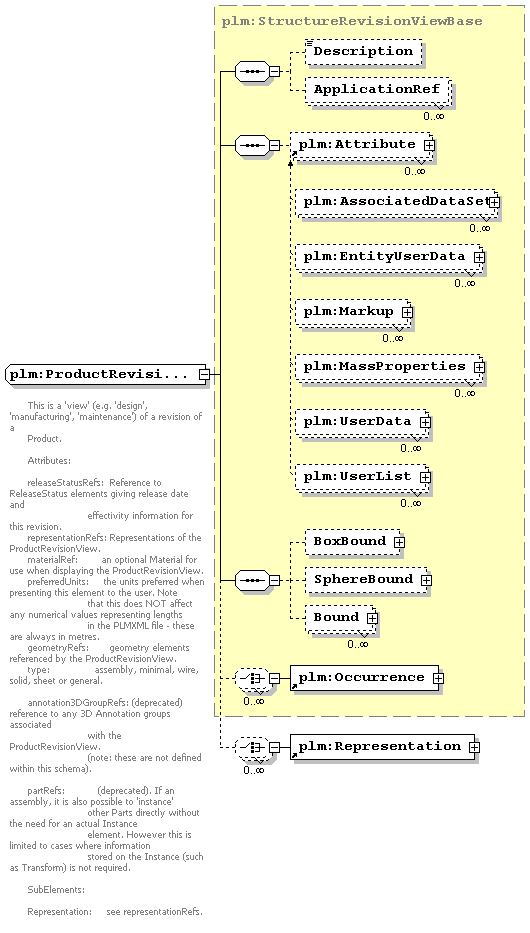

ProductRevisionView  OptionIsType
Properties  OptionType

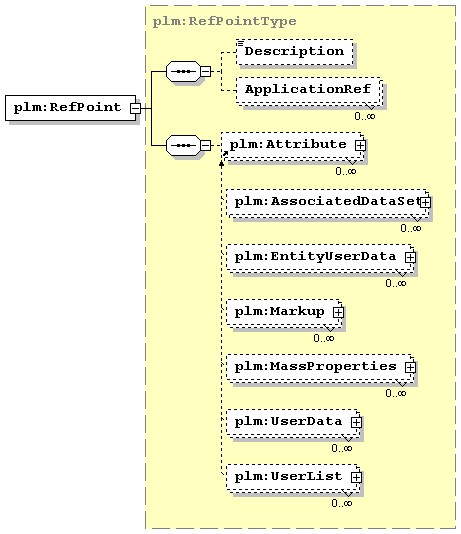

RefPoint  OptionValueType
ReleaseStatus  OrganisationMemberType

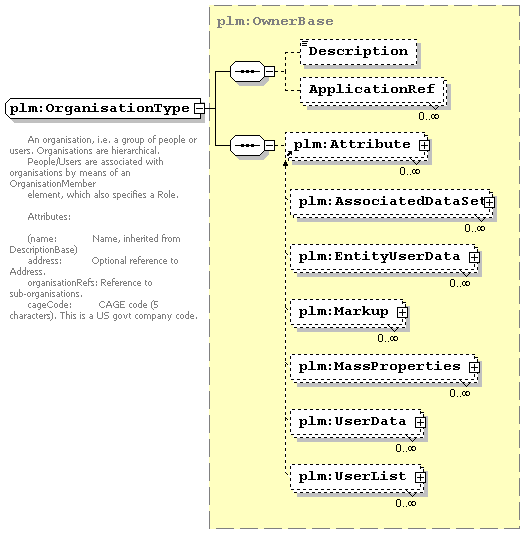

Representation  OrganisationType

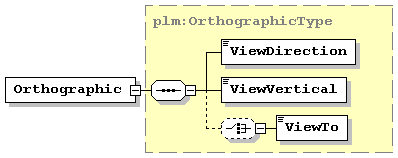

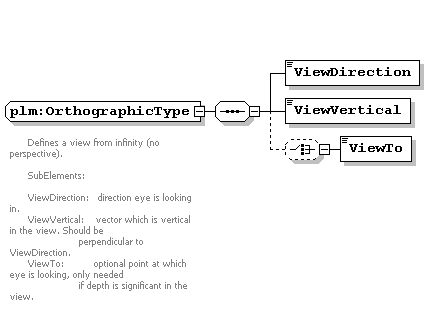

ResourcePool  OrthographicType

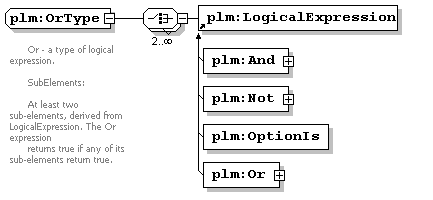

Role  OrType

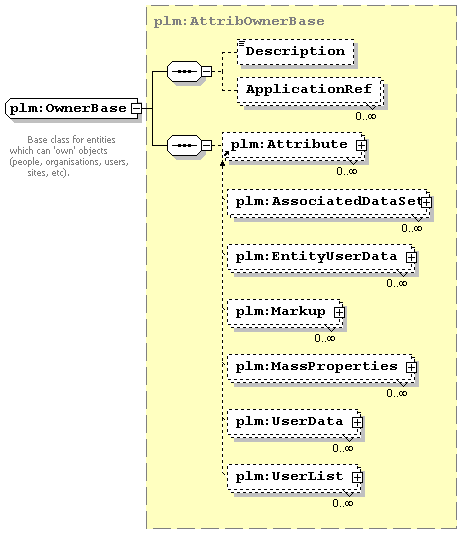

SchemaInfo  OwnerBase

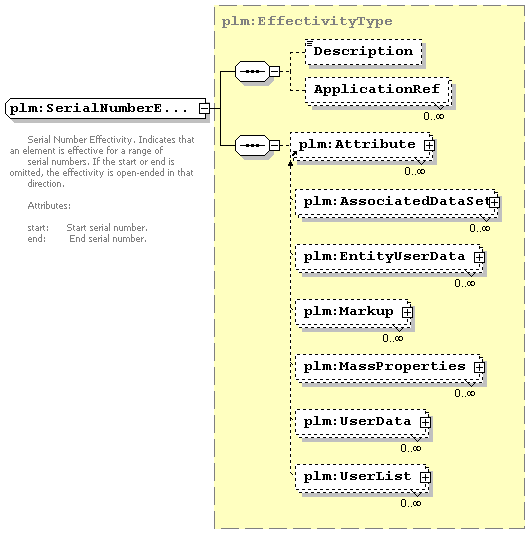

SerialNumberEffectivity  PersonType
Set  PerspectiveType
SetDefault  PlanarCoordinateSystemType
Site  PlanarZoneType

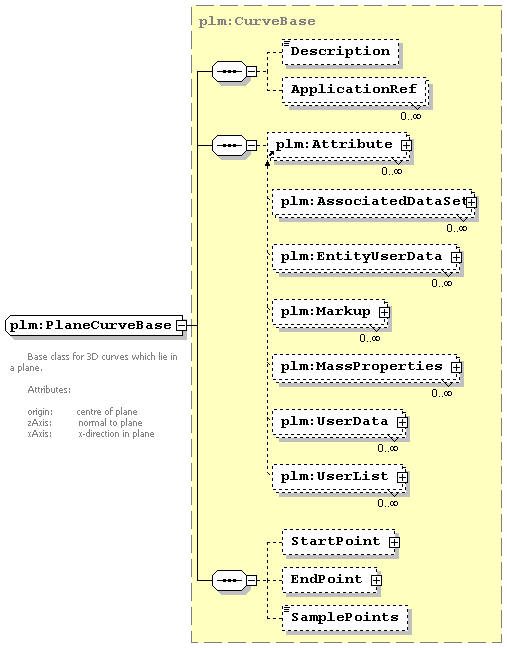

SPCurve  PlaneCurveBase
Sphere  PlaneType
Statement  PLMXMLType

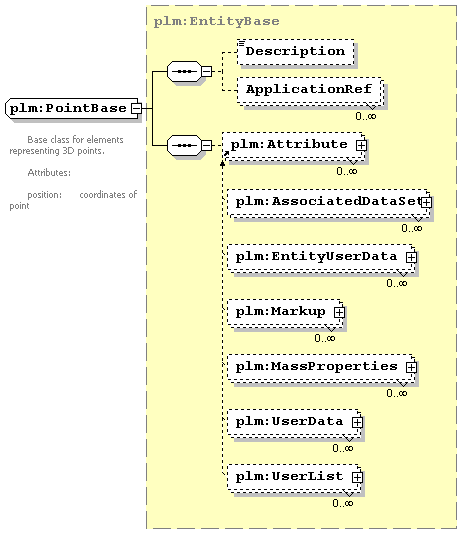

Status  PointBase
StatusInfo  PolyLineType
Structure  PositionalLightType
StructureDef  PositionType

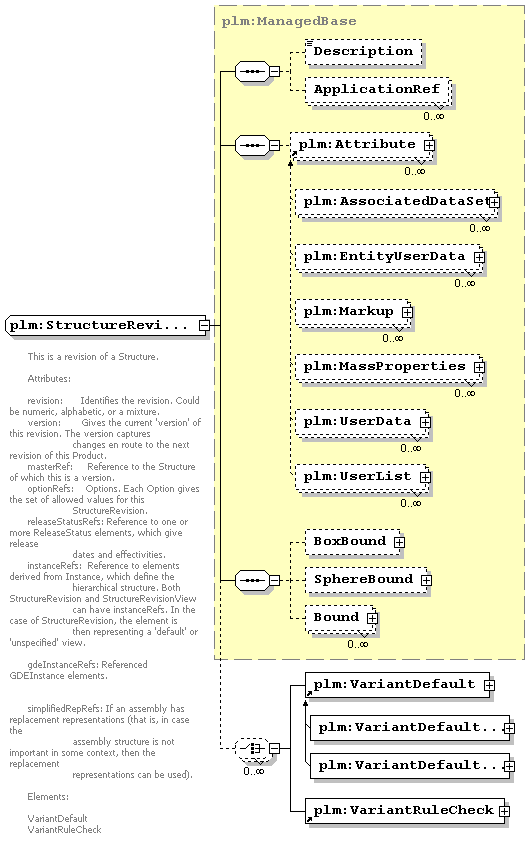

StructureRevision  ProductDefType
StructureRevisionView  ProductDependencyType

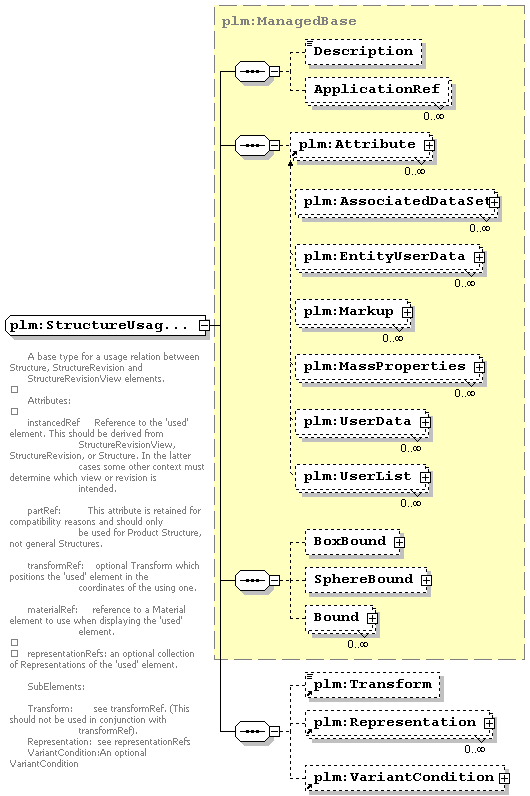

StructureUsage  ProductFamilyType
Surface  ProductInstanceType
Texture  ProductRevisionType
TextureData  ProductRevisionViewType
Torus  ProductsOfInertiaType
Transform  ProductType

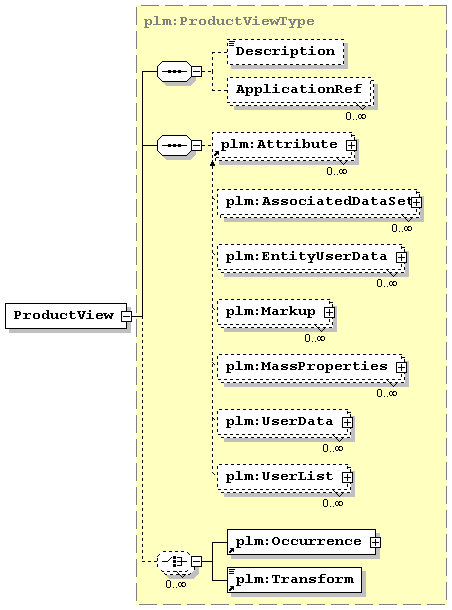

Unit  ProductViewType
User  PropertiesBase
UserData  ReferencePointType

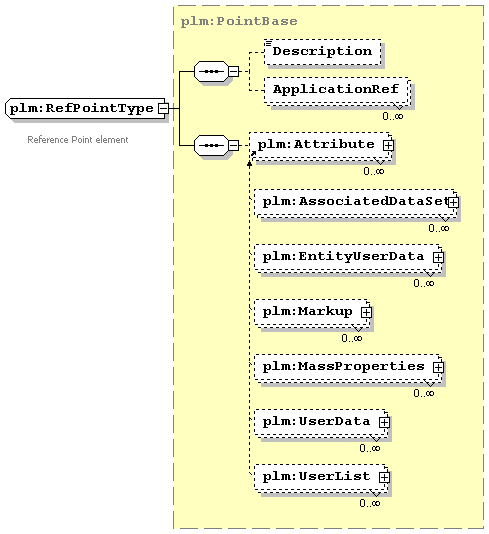

UserList  RefPointType
ValueWithUnit  ReleaseStatusType
VariantCondition  RepresentationType
VariantDefault  ResourcePoolType

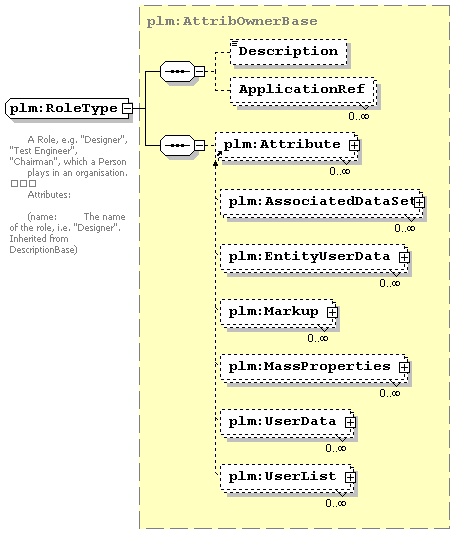

VariantDefaultDerived  RoleType

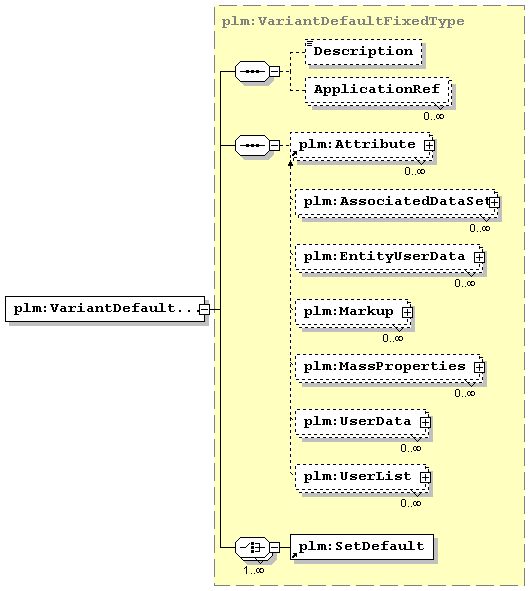

VariantDefaultFixed  SamplePointsType
VariantRule  SchemaInfoType
VariantRuleCheck  SchemaType
View  SerialNumberEffectivityType
WarnMessage  SetDefaultType
XTRep  SetType

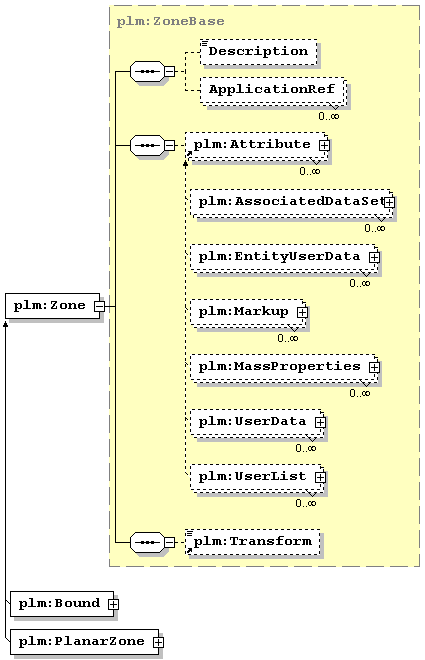

Zone  SiteType
SPCurveType
SphereBoundType

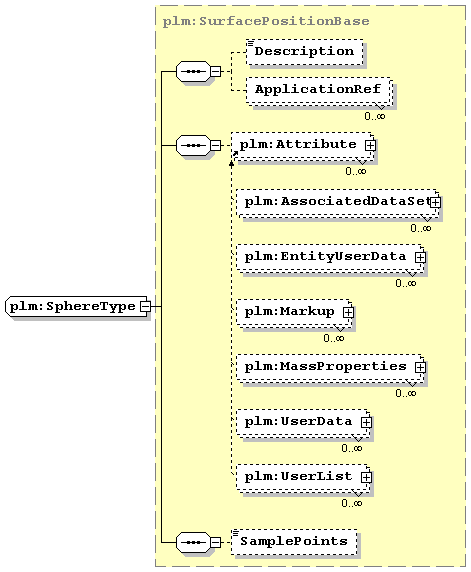

SphereType
StatementBase

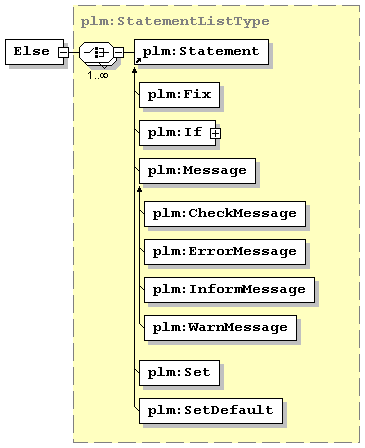

StatementListType
StatusBase
StatusInfoType
StructureBase
StructureDefBase
StructureRevisionBase
StructureRevisionViewBase
StructureUsageBase
SurfaceBase
SurfacePositionBase
Texture1DDataType
Texture1DType
Texture2DDataType
Texture2DType
TextureCoordType
TextureDataType
TextureType
TorusType
TransformType
UnitComponentType
UnitType
UserDataElementType
UserDataType
UserEnumDataType
UserListDataType
UserListElementType
UserType
ValueWithUnitType
VariantConditionType
VariantDefaultBase
VariantDefaultDerivedType
VariantDefaultFixedType
VariantRuleCheckType
VariantRuleType
ViewControlType
ViewPortType
ViewType
VolumeType
WarnMessageType
XTRepType
ZoneBase


schema location:  PLMXMLMROSchema.xsd
targetNamespace:  http://www.plmxml.org/Schemas/PLMXMLSchema

Elements  Complex types  Simple types
Facility  FacilityType  RealisedProductTraceableType

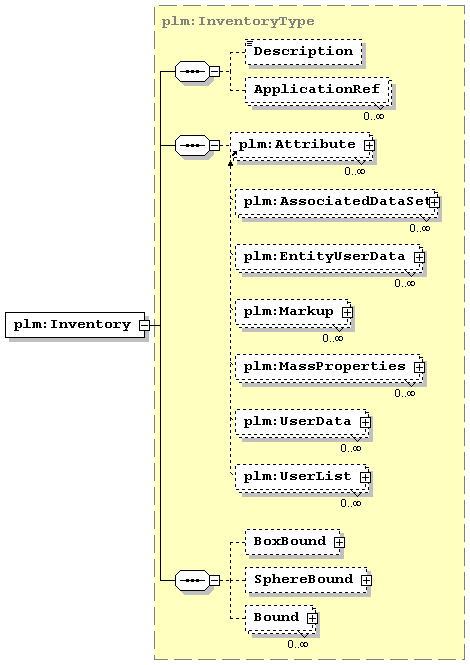

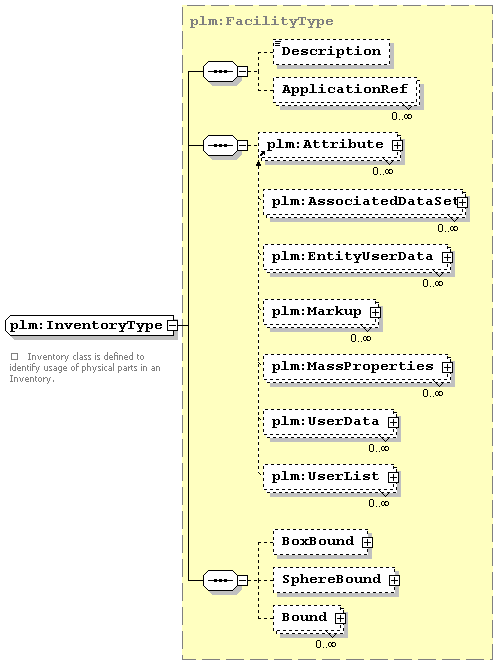

Inventory  InventoryType

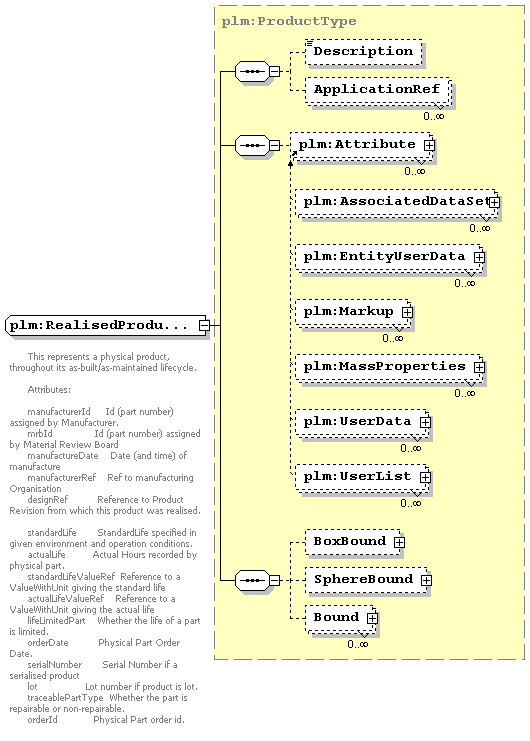

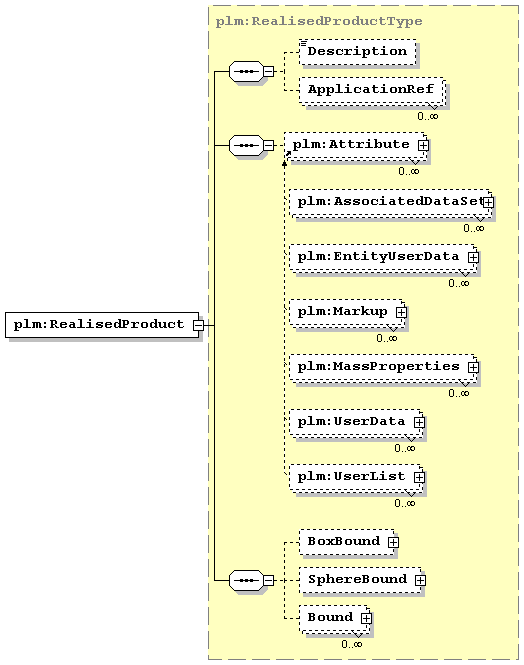

RealisedProduct  RealisedProductRevisionType

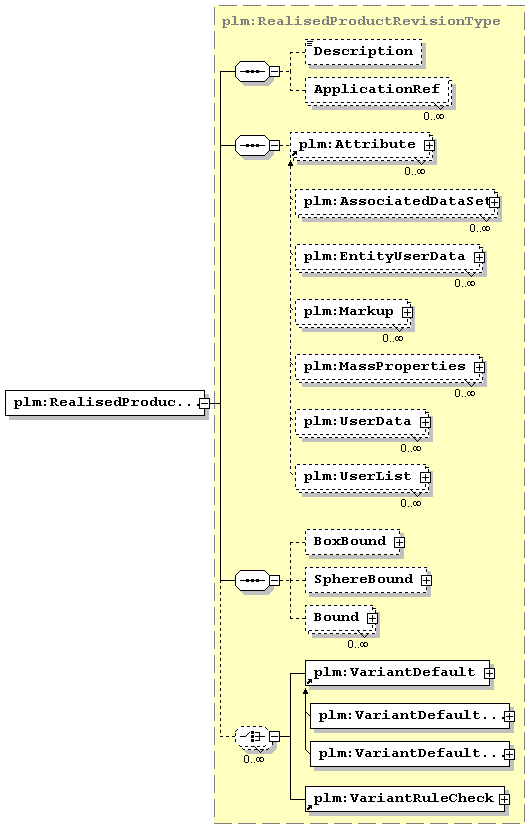

RealisedProductRevision  RealisedProductType

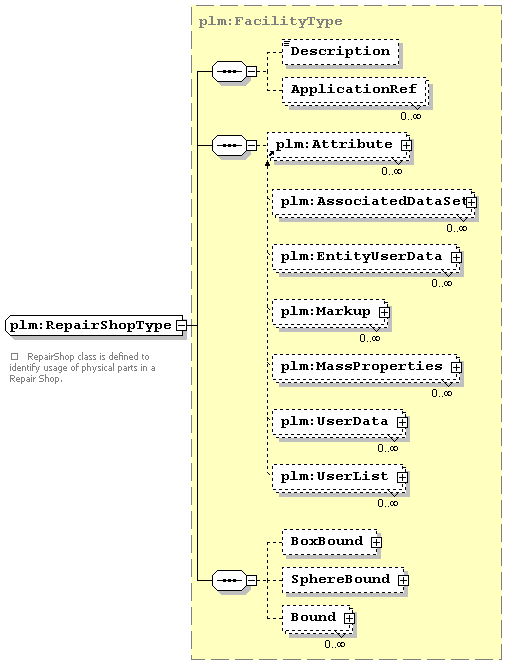

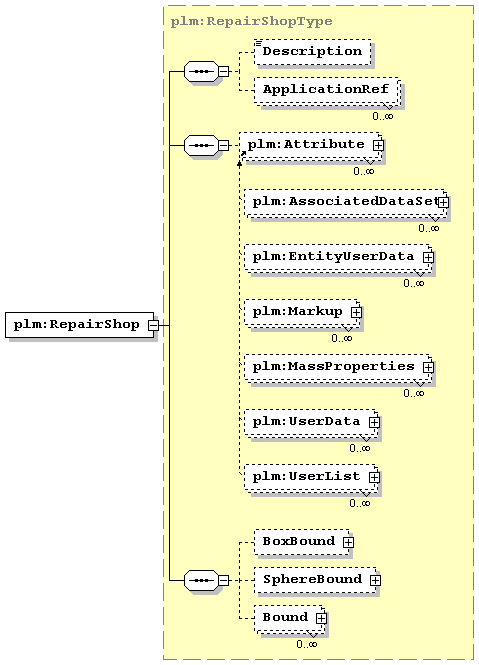

RepairShop  RepairShopType


schema location:  PLMXMLDeltaSchema.xsd
targetNamespace:  http://www.plmxml.org/Schemas/PLMXMLSchema

Elements  Complex types  Simple types
PLMXMLDelta  DeltaAddType  DeltaModifyOpType
DeltaDeleteType

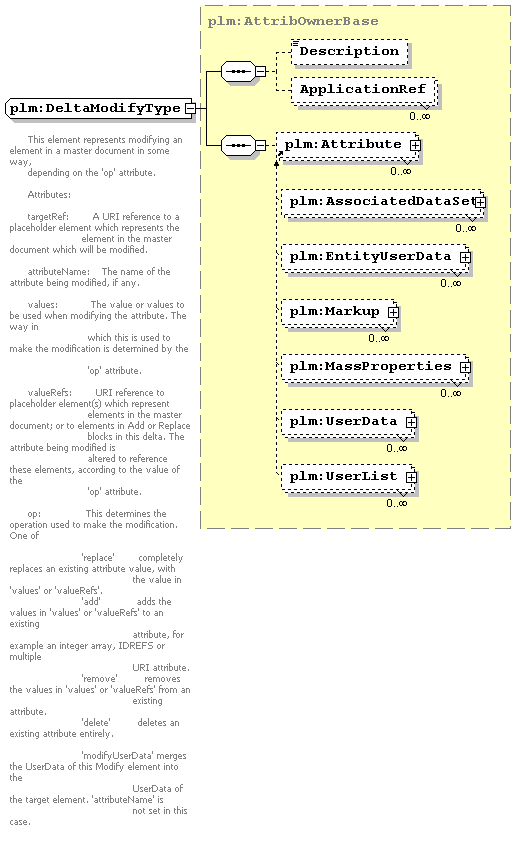

DeltaModifyType
DeltaReplaceType
ExternalReferenceType
PLMXMLDeltaType


element plm:AccessControl

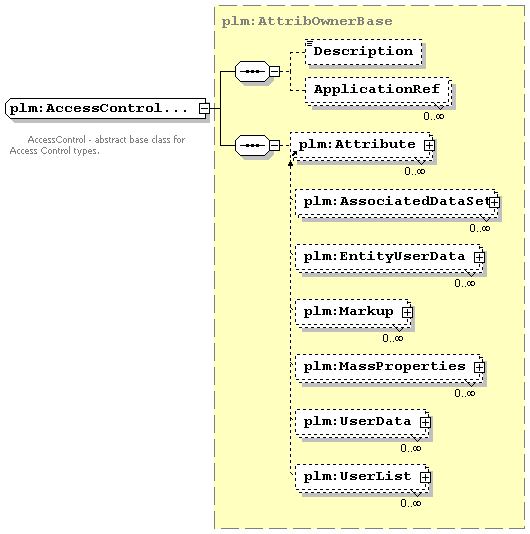

diagram
namespace http://www.plmxml.org/Schemas/PLMXMLSchema
type plm:AccessControlBase

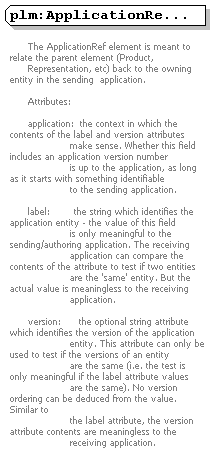

children Description ApplicationRef plm:Attribute
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID  optional
name  xsd:string  optional
attributeRefs  xsd:IDREFS  optional
source
<xsd:element name="AccessControl" type="plm:AccessControlBase" substitutionGroup="plm:AttribOwner"/>

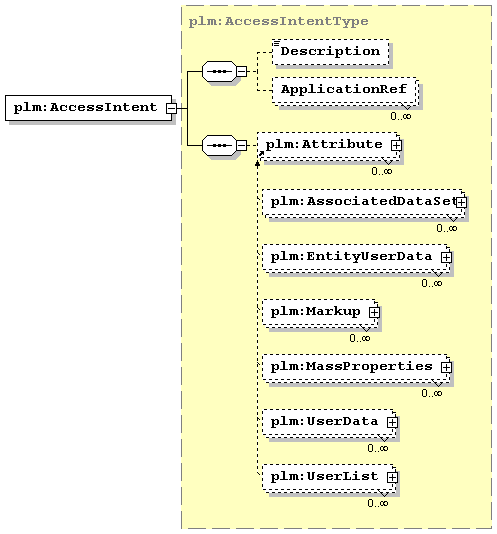

element plm:AccessIntent

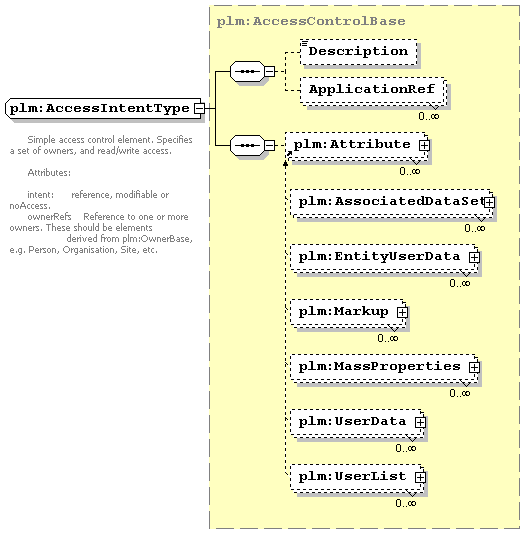

diagram
namespace http://www.plmxml.org/Schemas/PLMXMLSchema
type plm:AccessIntentType
children Description ApplicationRef plm:Attribute
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID  optional
name  xsd:string  optional
attributeRefs  xsd:IDREFS  optional
ownerRefs  plm:uriReferenceListType  optional
intent  plm:AccessIntentEnum    modifiable
source
<xsd:element name="AccessIntent" type="plm:AccessIntentType" substitutionGroup="plm:AccessControl"/>

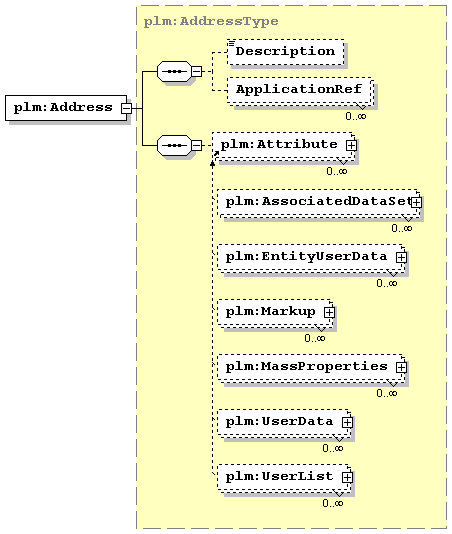

element plm:Address
diagram
namespace http://www.plmxml.org/Schemas/PLMXMLSchema
type plm:AddressType
children Description ApplicationRef plm:Attribute
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID  optional
name  xsd:string  optional
attributeRefs  xsd:IDREFS  optional
internalLocation  xsd:string  optional
streetNumber  xsd:string  optional
street  xsd: string  optional
town  xsd:string  optional
region  xsd:string  optional
postalCode  xsd:string  optional
country  xsd:string  optional
emailAddress  xsd:string  optional
telephone  xsd:string  optional
source
<xsd:element name="Address" type="plm:AddressType" substitutionGroup="plm:AttribOwner"/>

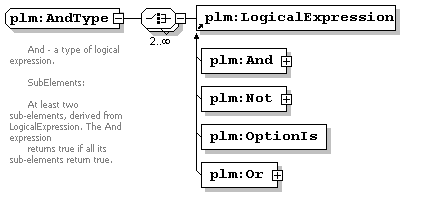

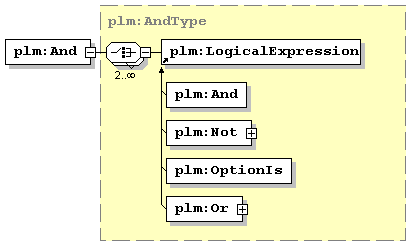

element plm:And
diagram
namespace http://www.plmxml.org/Schemas/PLMXMLSchema
type plm:AndType
children plm:LogicalExpression
source
<xsd:element name="And" type="plm:AndType" substitutionGroup="plm:LogicalExpression"/>

element plm:AssociatedDataSet

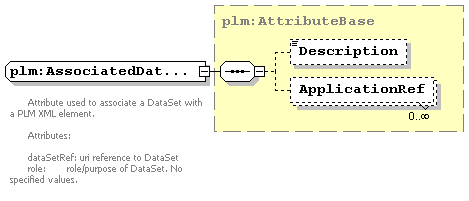

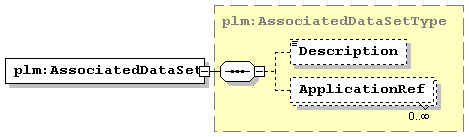

diagram
namespace http://www.plmxml.org/Schemas/PLMXMLSchema
type plm:AssociatedDataSetType
children Description ApplicationRef
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID  optional
name  xsd:string  optional
dataSetRef  plm:anyURIType  required
role  xsd:string  required
source
<xsd:element name="AssociatedDataSet" type="plm:AssociatedDataSetType" substitutionGroup="plm:Attribute"/>

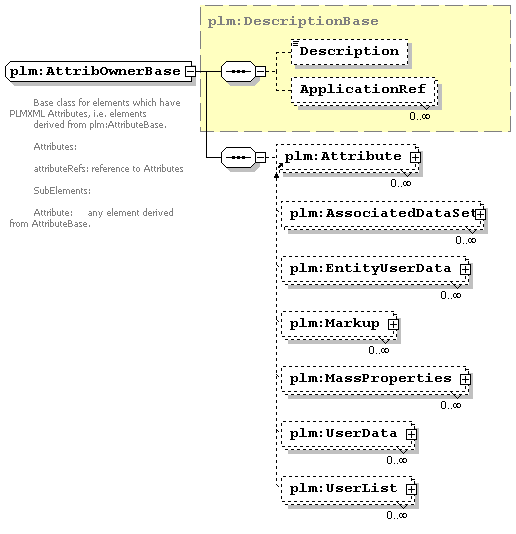

element plm:AttribOwner

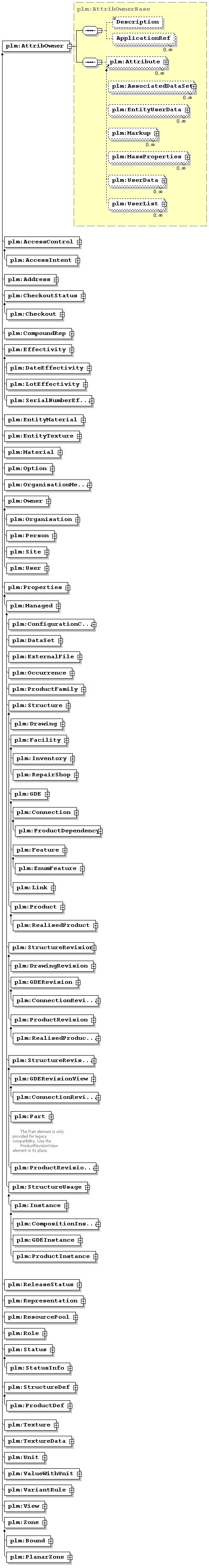

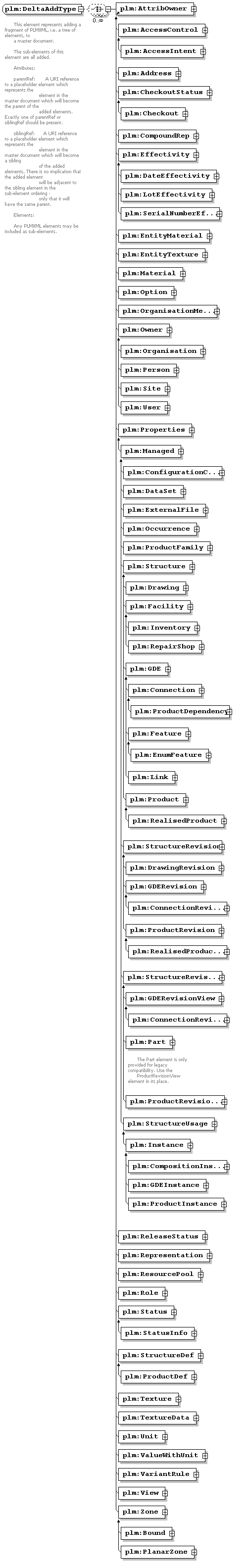

diagram
namespace http://www.plmxml.org/Schemas/PLMXMLSchema
type plm:AttribOwnerBase
children Description ApplicationRef plm:Attribute
used by
complexTypes plm:DeltaAddType plm:DeltaReplaceType plm:PLMXMLType
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID  optional
name  xsd:string  optional
attributeRefs  xsd:IDREFS  optional
source
<xsd:element name="AttribOwner" type="plm:AttribOwnerBase"/>

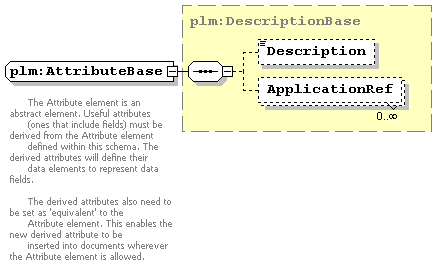

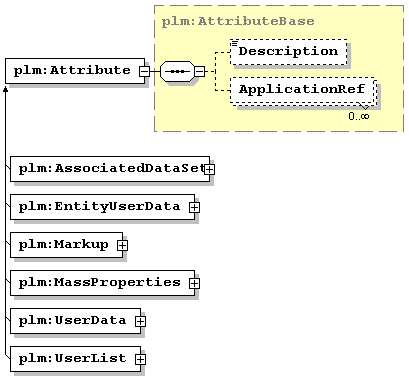

element plm:Attribute
diagram
namespace http://www.plmxml.org/Schemas/PLMXMLSchema
type plm:AttributeBase
children Description ApplicationRef
used by
complexType plm:AttribOwnerBase
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID  optional
name  xsd:string  optional
source
<xsd:element name="Attribute" type="plm:AttributeBase"/>

element plm:AttributeClass
diagram
namespace http://www.plmxml.org/Schemas/PLMXMLSchema
type plm:AttributeClassBase
attributes
Name  Type  Use  Default  Fixed  Annotation
name  plm:AttributeClassType  required
source
<xsd:element name="AttributeClass" type="plm:AttributeClassBase"/>

element plm:AttributeLegalOwner
diagram
namespace http://www.plmxml.org/Schemas/PLMXMLSchema
type plm:AttributeLegalOwnerType
attributes
Name  Type  Use  Default  Fixed  Annotation
name  plm:AttributeOwnerType  required
source
<xsd:element name="AttributeLegalOwner" type="plm:AttributeLegalOwnerType"/>

element plm:AttributeRef

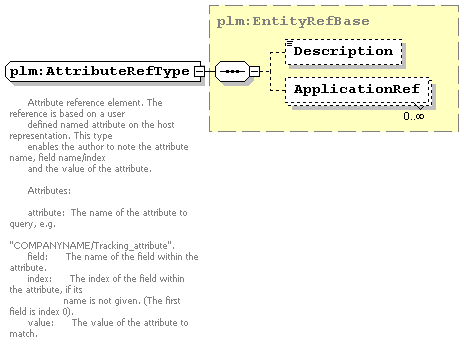

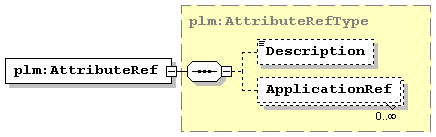

diagram
namespace http://www.plmxml.org/Schemas/PLMXMLSchema
type plm:AttributeRefType
children Description ApplicationRef
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID  optional
name  xsd:string  optional
contextRef  plm:anyURIType  optional
select  plm:RefSelectType    single
attribute  xsd:string  required
field  xsd:string&n bsp; optional
index  xsd:integer  optional
value  xsd:string  required
source
<xsd:element name="AttributeRef" type="plm:AttributeRefType" substitutionGroup="plm:EntityRef"/>

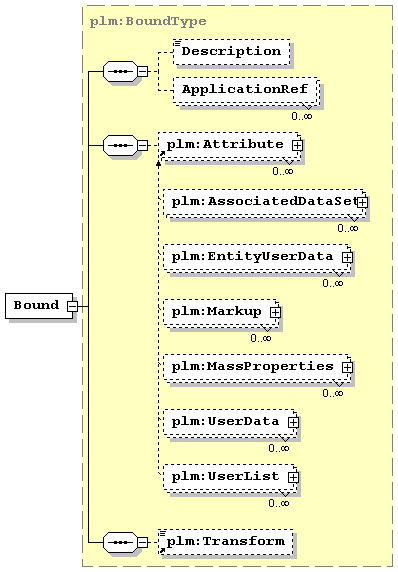

element plm:Bound

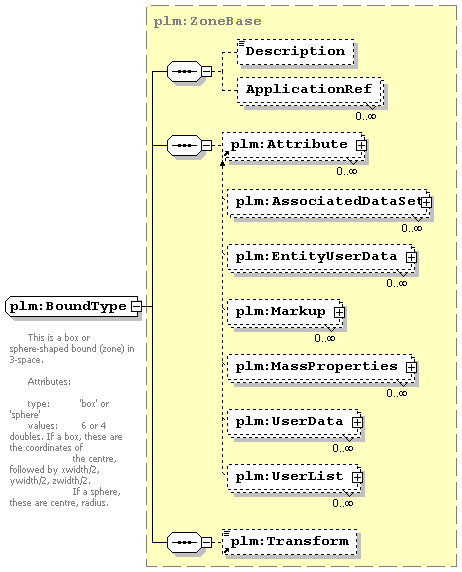

diagram
namespace http://www.plmxml.org/Schemas/PLMXMLSchema
type plm:BoundType
children Description ApplicationRef plm:Attribute plm:Transform
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID  optional
name  xsd:string  optional
attributeRefs  xsd:IDREFS  optional
transformRef  xsd:IDREF  optional
type  plm:BoundingType    box
values  plm:DoubleListTy pe  required
source
<xsd:element name="Bound" type="plm:BoundType" substitutionGroup="plm:Zone"/>

element plm:BSplineCurve

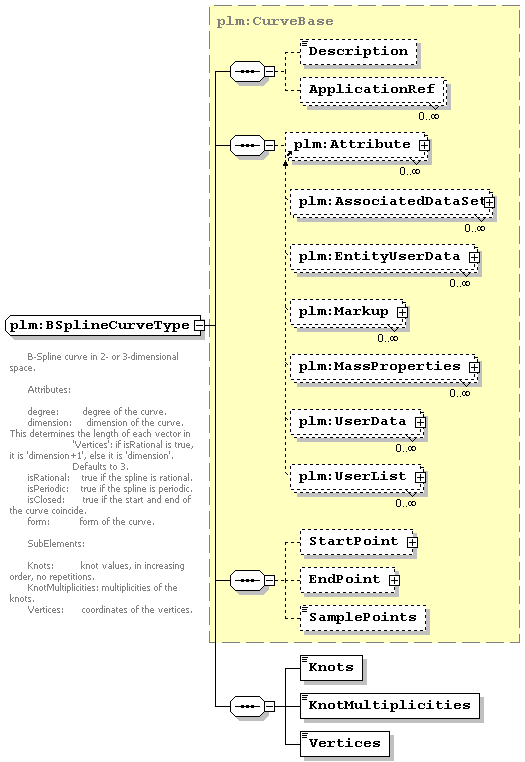

diagram
namespace http://www.plmxml.org/Schemas/PLMXMLSchema
type plm:BSplineCurveType

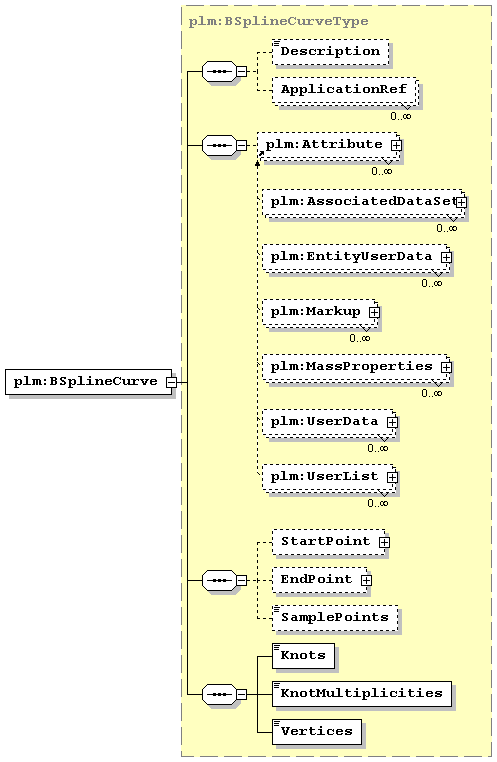

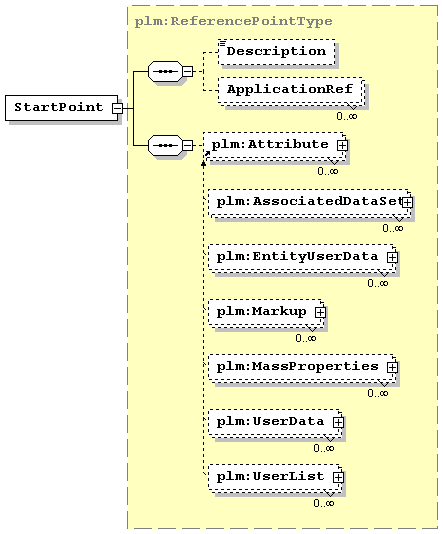

children Description ApplicationRef plm:Attribute StartPoint EndPoint SamplePoints Knots KnotMultiplicities Vertices
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID  optional
name  xsd:string  optional
attributeRefs  xsd:IDREFS  optional
entityRef  plm:anyURIType  optional
startT  xsd:double  optional
endT  xsd:double  ; optional
degree  xsd:positiveInteger  required
dimension  plm:SplineDimensionType    3
isRational  xsd:boolean  required
isPeriodic  xsd:boolean  required
isClosed  xsd:boolean  required
form  plm:SplineCurveFormType    unknown
source
<xsd:element name="BSplineCurve" type="plm:BSplineCurveType" substitutionGroup="plm:Curve"/>

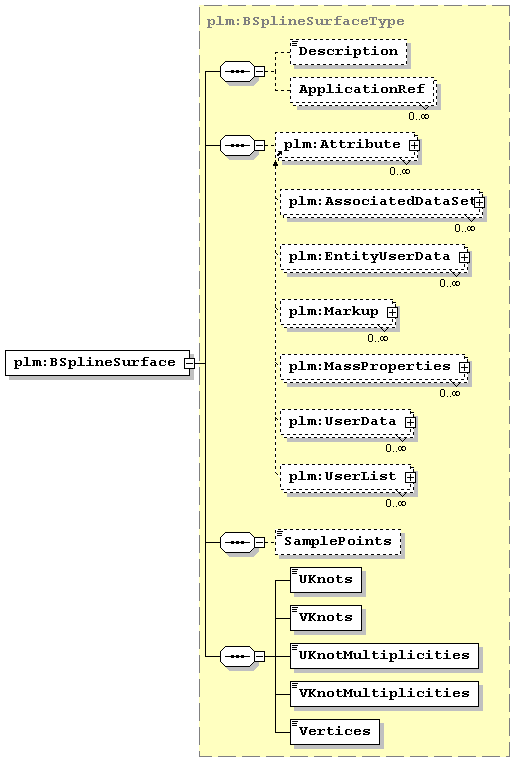

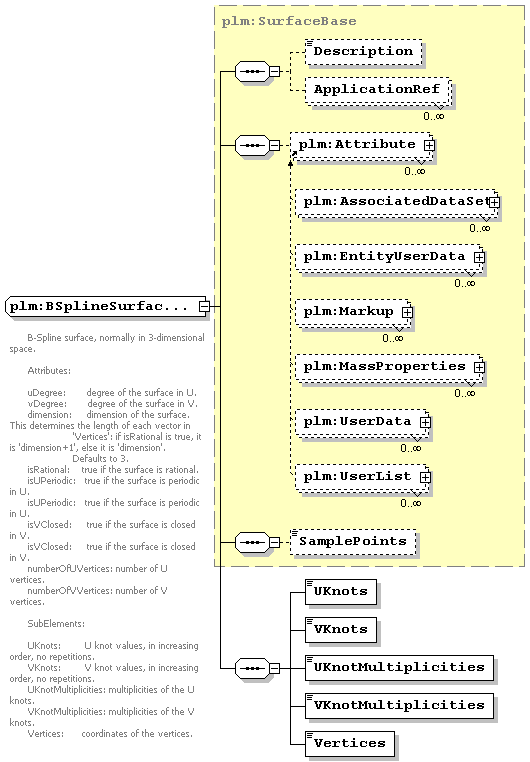

element plm:BSplineSurface
diagram
namespace http://www.plmxml.org/Schemas/PLMXMLSchema
type plm:BSplineSurfaceType
children Description ApplicationRef plm:Attribute SamplePoints UKnots VKnots UKnotMultiplicities VKnotMultiplicities Vertices
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID  optional
name  xsd:string  optional
attributeRefs  xsd:IDREFS  optional
entityRef  plm:anyURIType  optional
startU  xsd:double  optional
endU  xsd:double  ; optional
startV  xsd:double  optional
endV  xsd:double  optional
dimension  plm:SplineDimensionType    3
numberOfUVertices  xsd:positiveInteger  required
numberOfVVertices  xsd:positiveInteger  required
uDegree  xsd:positiveInteger  required
vDegree  xsd:positiveInteger  required
isRational  xsd:boolean  required
isUPeriodic  xsd:boolean  required
isVPeriodic  xsd:boolean  required
isUClosed  xsd:boolean  required
isVClosed  xsd:boolean  required
source
<xsd:element name="BSplineSurface" type="plm:BSplineSurfaceType" substitutionGroup="plm:Surface"/>

element plm:CheckMessage
diagram
namespace http://www.plmxml.org/Schemas/PLMXMLSchema
type plm:CheckMessageType
used by
complexType plm:VariantRuleCheckType
attributes
Name  Type  Use  Default  Fixed  Annotation
message  xsd:string  required
source
<xsd:element name="CheckMessage" type="plm:CheckMessageType" substitutionGroup="plm:Message"/>

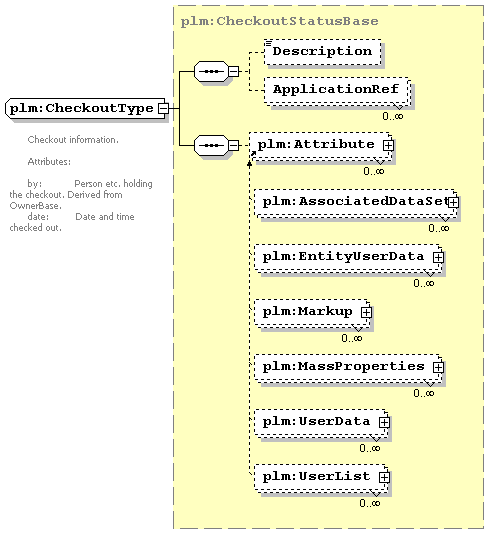

element plm:Checkout
diagram
namespace http://www.plmxml.org/Schemas/PLMXMLSchema
type plm:CheckoutType
children Description ApplicationRef plm:Attribute
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID  optional
name  xsd:string  optional
attributeRefs  xsd:IDREFS  optional
date  xsd:dateTime  optional
by  plm:anyURIType  optional
source
<xsd:element name="Checkout" type="plm:CheckoutType" substitutionGroup="plm:CheckoutStatus"/>

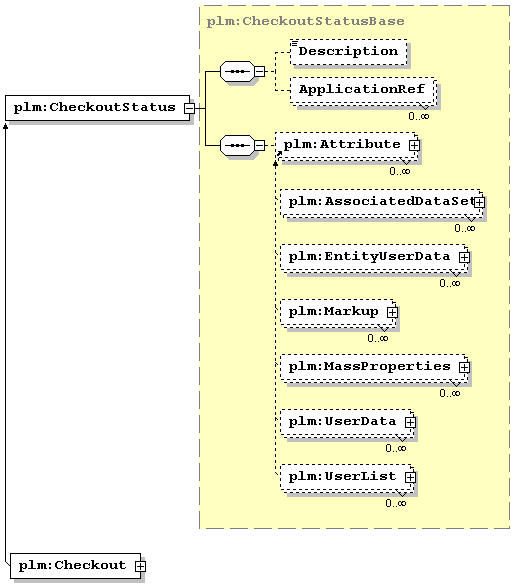

element plm:CheckoutStatus
diagram
namespace http://www.plmxml.org/Schemas/PLMXMLSchema
type plm:CheckoutStatusBase
children Description ApplicationRef plm:Attribute
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID  optional
name  xsd:string  optional
attributeRefs  xsd:IDREFS  optional
source
<xsd:element name="CheckoutStatus" type="plm:CheckoutStatusBase" substitutionGroup="plm:AttribOwner"/>

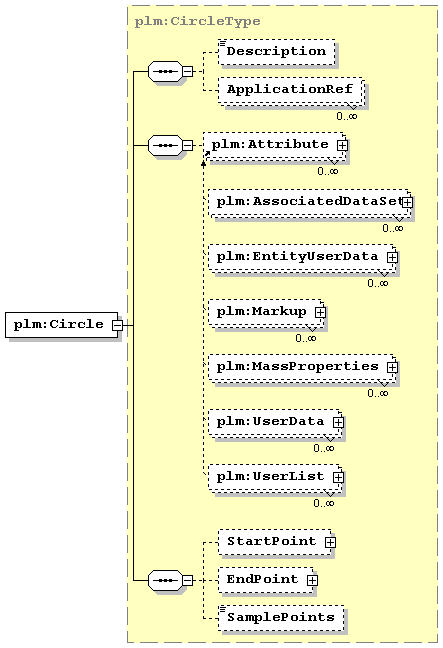

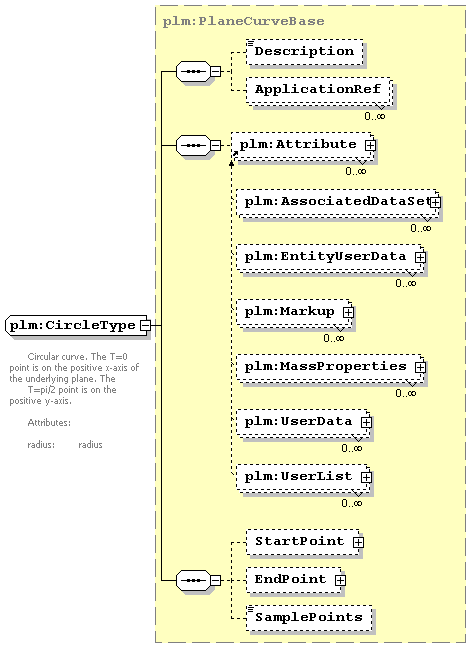

element plm:Circle
diagram
namespace http://www.plmxml.org/Schemas/PLMXMLSchema
type plm:CircleType
children Description ApplicationRef plm:Attribute StartPoint EndPoint SamplePoints
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID  optional
name  xsd:string  optional
attributeRefs  xsd:IDREFS  optional
entityRef  plm:anyURIType  optional
startT  xsd:double  optional
endT  xsd:double  ; optional
origin  plm:VectorType    0 0 0
zAxis  plm:DirectionType    0 0 1
xAxis  plm:DirectionType    1 0 0
radius  xsd:double  required
source
<xsd:element name="Circle" type="plm:CircleType" substitutionGroup="plm:Curve"/>

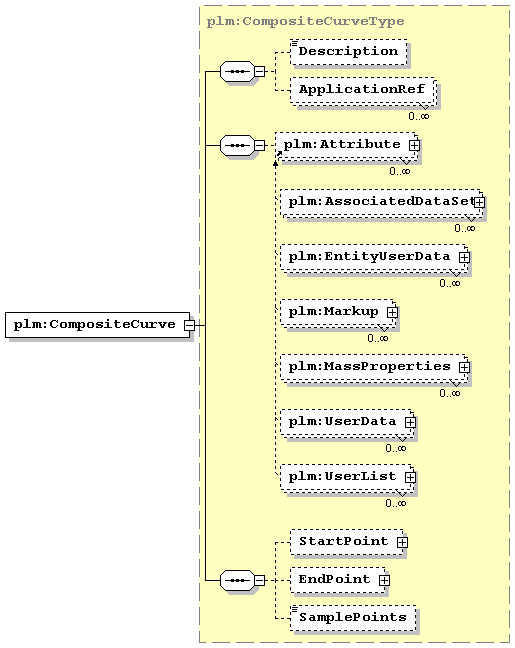

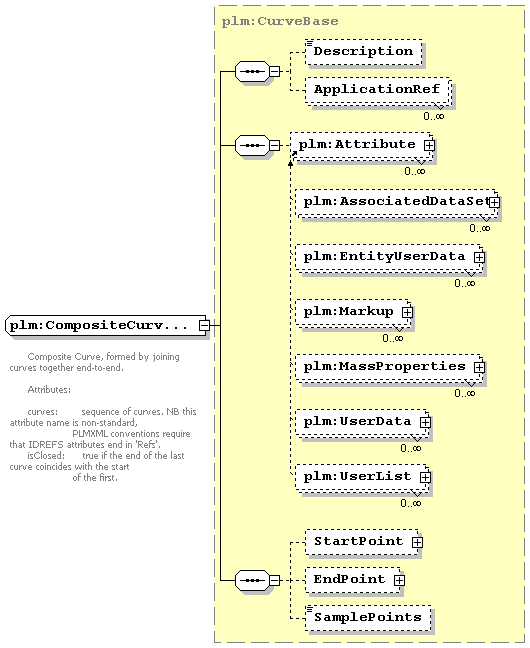

element plm:CompositeCurve
diagram
namespace http://www.plmxml.org/Schemas/PLMXMLSchema
type plm:CompositeCurveType
children Description ApplicationRef plm:Attribute StartPoint EndPoint SamplePoints
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID  optional
name  xsd:string  optional
attributeRefs  xsd:IDREFS  optional
entityRef  plm:anyURIType  optional
startT  xsd:double  optional
endT  xsd:double  ; optional
curves  xsd:IDREFS  required
isClosed  xsd:boolean    false
source
<xsd:element name="CompositeCurve" type="plm:CompositeCurveType" substitutionGroup="plm:Curve"/>

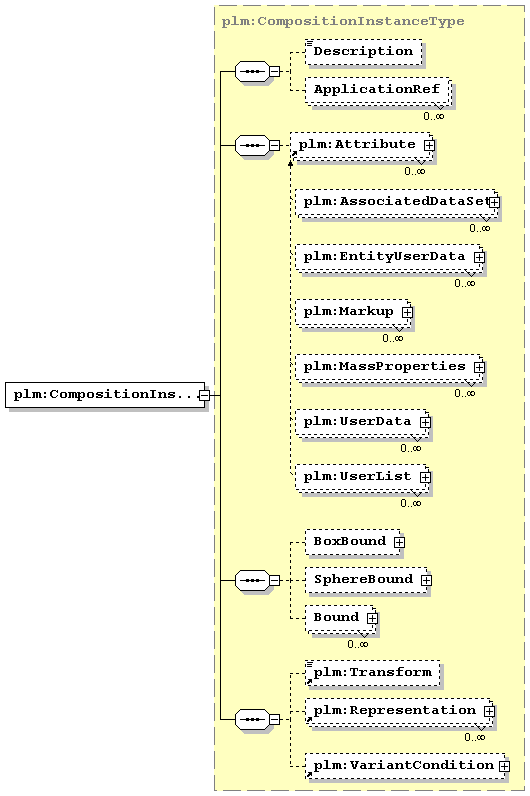

element plm:CompositionInstance

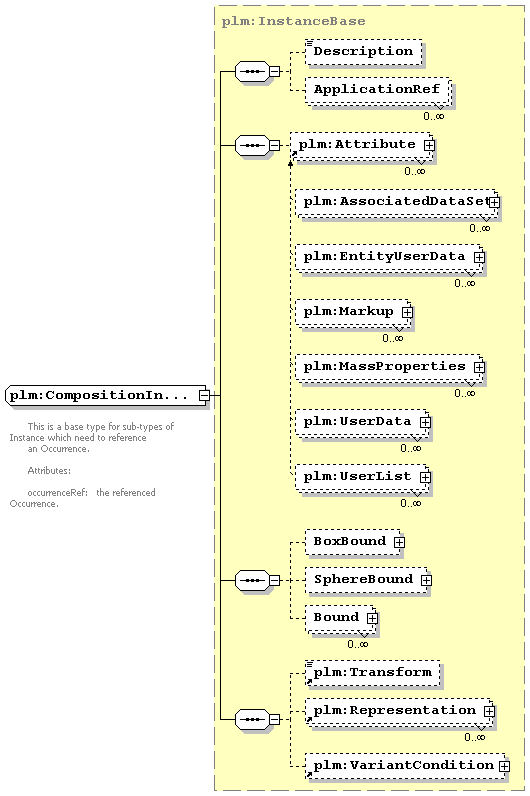

diagram
namespace http://www.plmxml.org/Schemas/PLMXMLSchema
type plm:CompositionInstanceType

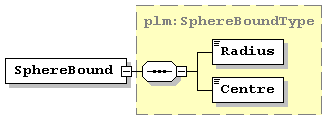

children Description ApplicationRef plm:Attribute BoxBound SphereBound Bound plm:Transform plm:Representation plm:VariantCondition
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID  optional
name  xsd:string  optional
attributeRefs  xsd:IDREFS  optional
accessRefs  plm:uriReferenceListType  optional
statusRef  plm:anyURIType  optional
checkoutRefs  plm:uriReferenceListType  optional
subType  xsd:string  optional
effectivityRefs  plm:uriReferenceListType  optional
instancedRef  plm:anyURIType  optional
transformRef  xsd:IDREF  optional
materialRef  xsd:IDREF  optional
partRef  plm:anyURIType  optional
appInfo
deprecated=true
representationRefs  plm:uriReferenceListType  optional
quantity  xsd:double  optional
unitRef  xsd:IDREF  optional
instanceType  xsd:string  optional
sequenceNumber  xsd:nonNegativeInteger  optional
occurrenceRef  plm:anyURIType  optional
source
<xsd:element name="CompositionInstance" type="plm:CompositionInstanceType" substitutionGroup="plm:Instance"/>

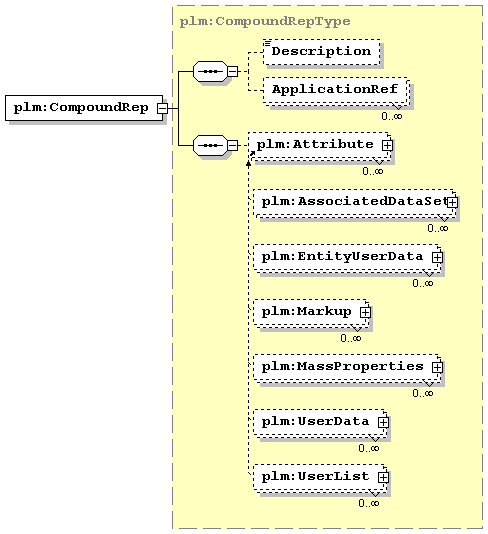

element plm:CompoundRep
diagram
namespace http://www.plmxml.org/Schemas/PLMXMLSchema
type plm:CompoundRepType

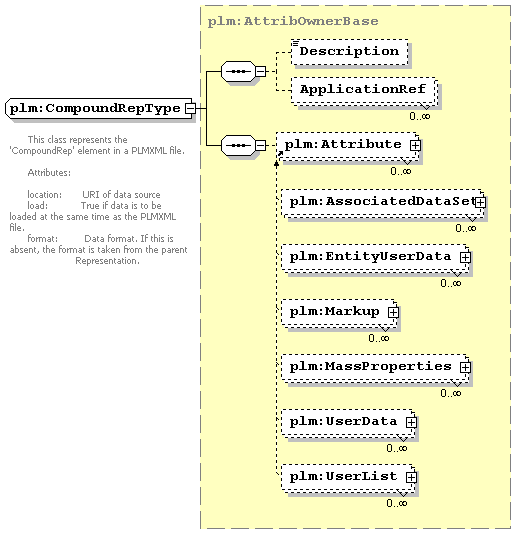

children Description ApplicationRef plm:Attribute
used by
complexType plm:RepresentationType
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID  optional
name  xsd:string  optional
attributeRefs  xsd:IDREFS  optional
location  plm:anyURIType  optional
load  xsd:boolean    false
format  plm:Representation FormatType  optional
source
<xsd:element name="CompoundRep" type="plm:CompoundRepType" substitutionGroup="plm:AttribOwner"/>

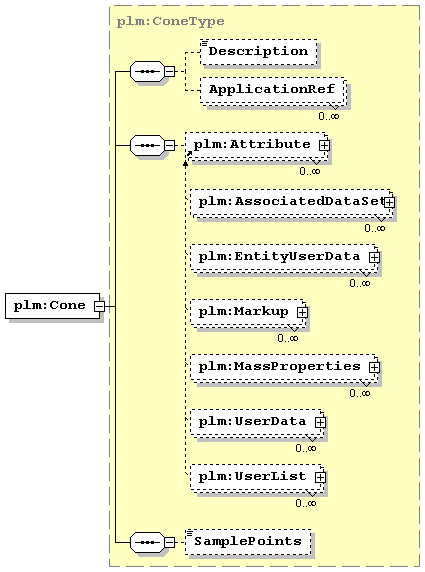

element plm:Cone

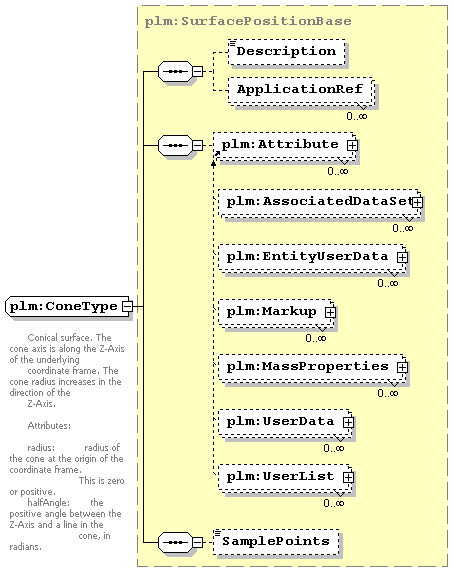

diagram
namespace http://www.plmxml.org/Schemas/PLMXMLSchema
type plm:ConeType
children Description ApplicationRef plm:Attribute SamplePoints
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID  optional
name  xsd:string  optional
attributeRefs  xsd:IDREFS  optional
entityRef  plm:anyURIType  optional
startU  xsd:double  optional
endU  xsd:double  ; optional
startV  xsd:double  optional
endV  xsd:double  optional
origin  plm:VectorType    0 0 0
zAxis  plm:DirectionType    0 0 1
xAxis  plm:DirectionType    1 0 0
radius  xsd:double  required
halfAngle  xsd:double  required
source
<xsd:element name="Cone" type="plm:ConeType" substitutionGroup="plm:Surface"/>

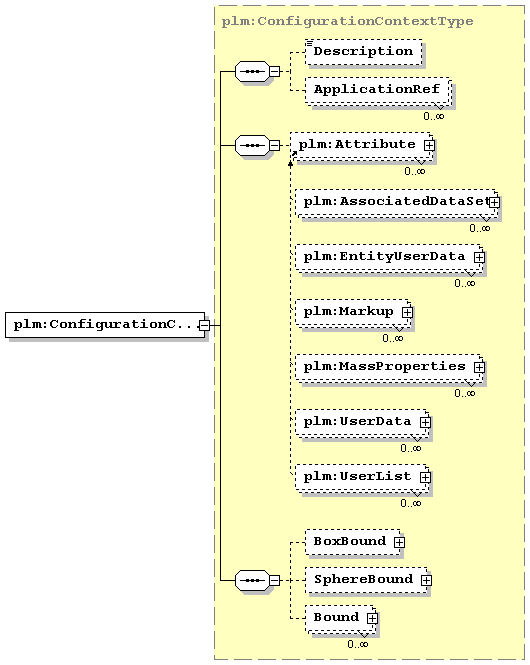

element plm:ConfigurationContext

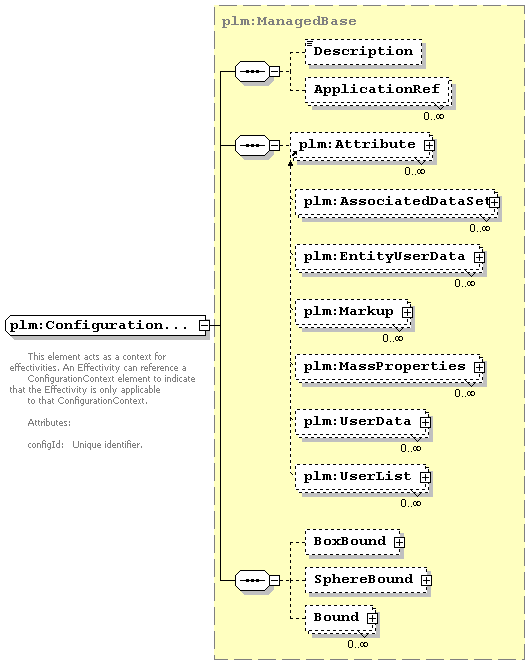

diagram
namespace http://www.plmxml.org/Schemas/PLMXMLSchema
type plm:ConfigurationContextType
children Description ApplicationRef plm:Attribute BoxBound SphereBound Bound
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID  optional
name  xsd:string  optional
attributeRefs  xsd:IDREFS  optional
accessRefs  plm:uriReferenceListType  optional
statusRef  plm:anyURIType  optional
checkoutRefs  plm:uriReferenceListType  optional
subType  xsd:string  optional
effectivityRefs  plm:uriReferenceListType  optional
configId  xsd:string  r equired
source
<xsd:element name="ConfigurationContext" type="plm:ConfigurationContextType" substitutionGroup="plm:Managed"/>

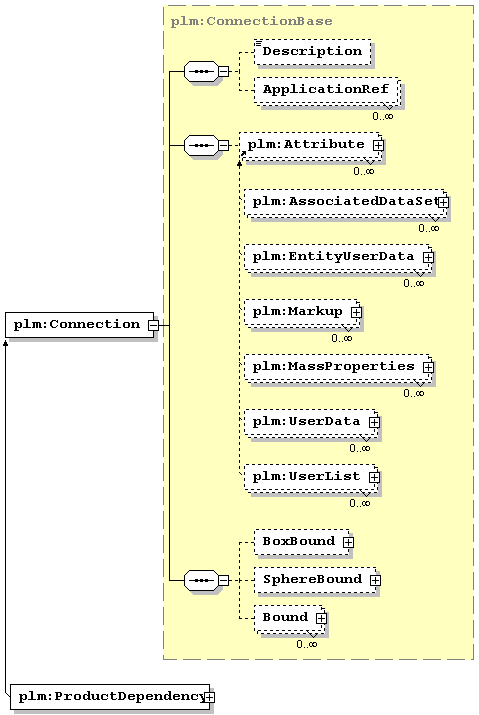

element plm:Connection

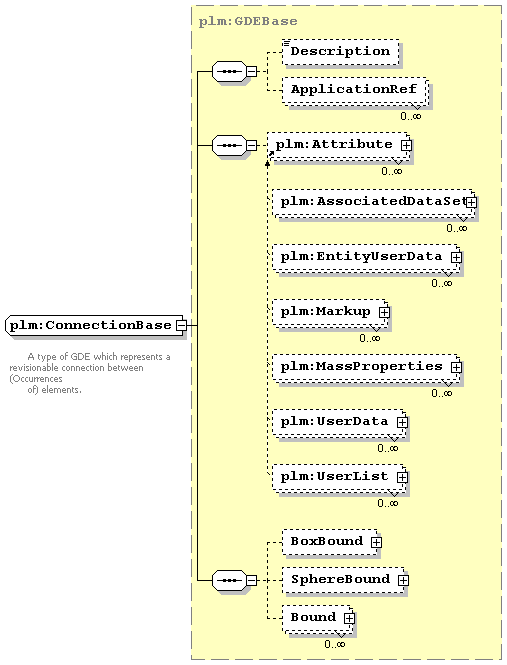

diagram
namespace http://www.plmxml.org/Schemas/PLMXMLSchema
type plm:ConnectionBase
children Description ApplicationRef plm:Attribute BoxBound SphereBound Bound
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID  optional
name  xsd:string  optional
attributeRefs  xsd:IDREFS  optional
accessRefs  plm:uriReferenceListType  optional
statusRef  plm:anyURIType  optional
checkoutRefs  plm:uriReferenceListType  optional
subType  xsd:string  optional
effectivityRefs  plm:uriReferenceListType  optional
catalogueId  xsd:string  optional
optionRefs  plm:uriReferenceListType  optional
releaseStatusRefs  plm:uriReferenceListType  optional
gdeInstanceRefs  plm:uriReferenceListType  optional
source
<xsd:element name="Connection" type="plm:ConnectionBase" substitutionGroup="plm:GDE"/>

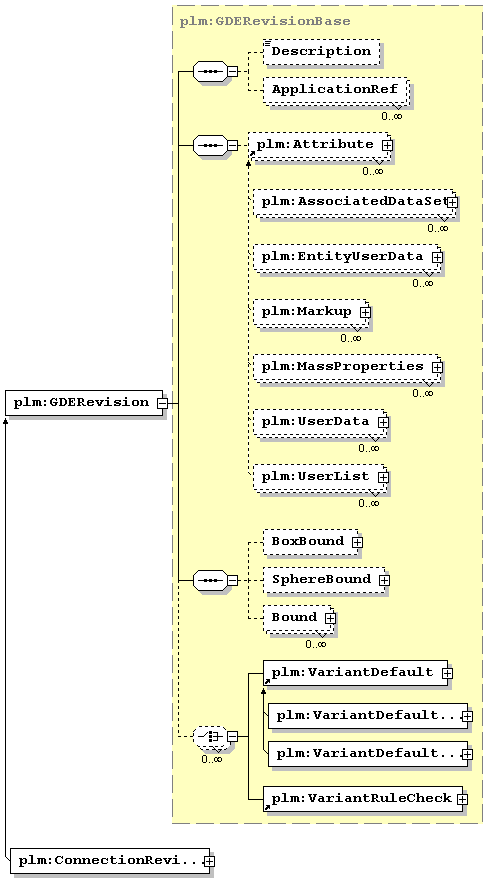

element plm:ConnectionRevision

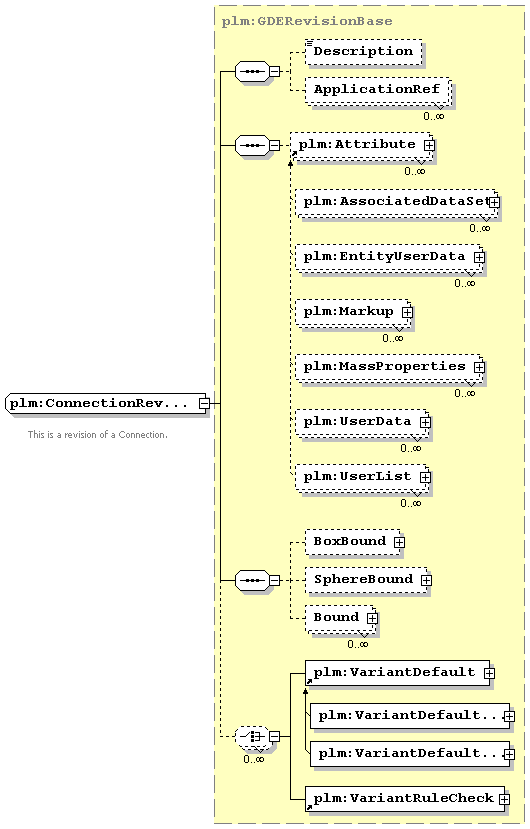

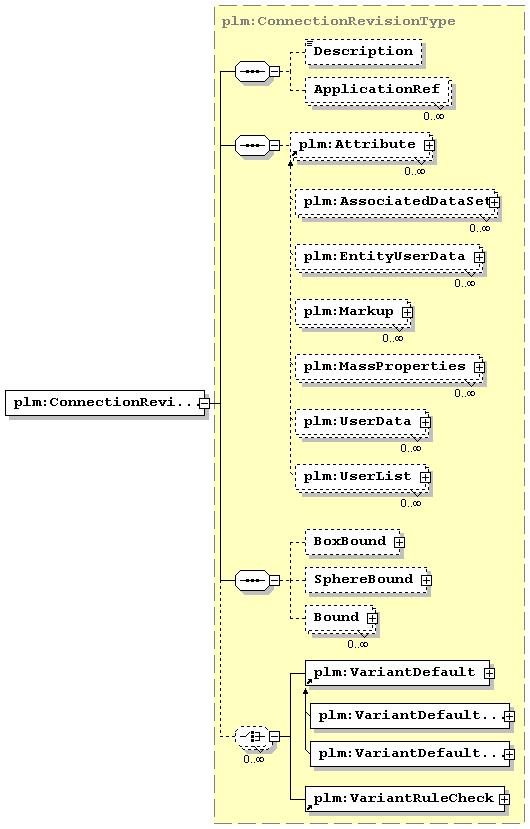

diagram
namespace http://www.plmxml.org/Schemas/PLMXMLSchema
type plm:ConnectionRevisionType
children Description ApplicationRef plm:Attribute BoxBound SphereBound Bound plm:VariantDefault plm:VariantRuleCheck
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID  optional
name  xsd:string  optional
attributeRefs  xsd:IDREFS  optional
accessRefs  plm:uriReferenceListType  optional
statusRef  plm:anyURIType  optional
checkoutRefs  plm:uriReferenceListType  optional
subType  xsd:string  optional
effectivityRefs  plm:uriReferenceListType  optional
revision  xsd:string  r equired
version  xsd:nonNegativeInteger  optional
masterRef  plm:anyURIType  required
optionRefs  plm:uriReferenceListType  optional
releaseStatusRefs  plm:uriReferenceListType  optional
instanceRefs  plm:uriReferenceListType  optional
gdeInstanceRefs  plm:uriReferenceListType  optional       ;
simplifiedRepRefs  plm:uriReferenceListType  optional
source
<xsd:element name="ConnectionRevision" type="plm:ConnectionRevisionType" substitutionGroup="plm:GDERevision"/>

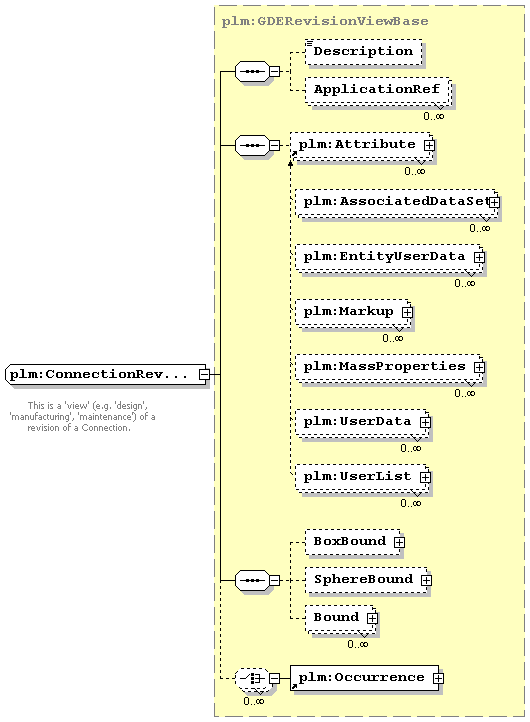

element plm:ConnectionRevisionView

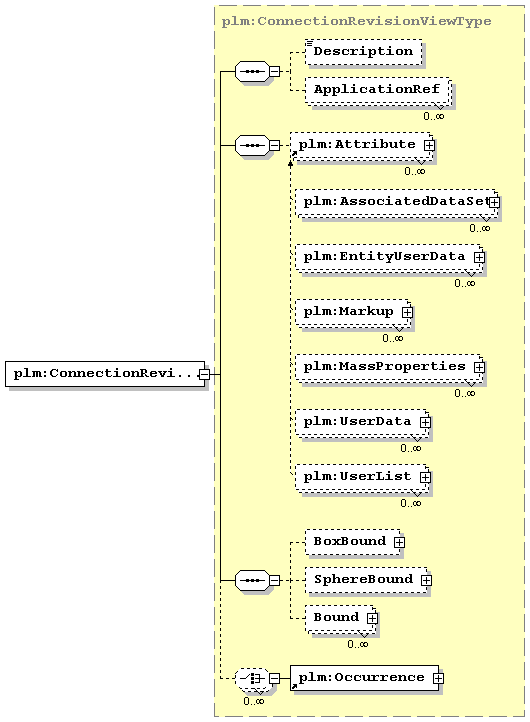

diagram
namespace http://www.plmxml.org/Schemas/PLMXMLSchema
type plm:ConnectionRevisionViewType
children Description ApplicationRef plm:Attribute BoxBound SphereBound Bound plm:Occurrence
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID  optional
name  xsd:string  optional
attributeRefs  xsd:IDREFS  optional
accessRefs  plm:uriReferenceListType  optional
statusRef  plm:anyURIType  optional
checkoutRefs  plm:uriReferenceListType  optional
subType  xsd:string  optional
effectivityRefs  plm:uriReferenceListType  optional
revisionRef  plm:anyURIType  optional
viewRef  plm:anyURIType  optional
instanceRefs  xsd:IDREFS  optional
gdeInstanceRefs  plm:uriReferenceListType  optional
occurrenceRefs  plm:uriReferenceListType  optional
source
<xsd:element name="ConnectionRevisionView" type="plm:ConnectionRevisionViewType" substitutionGroup="plm:GDERevisionView"/>

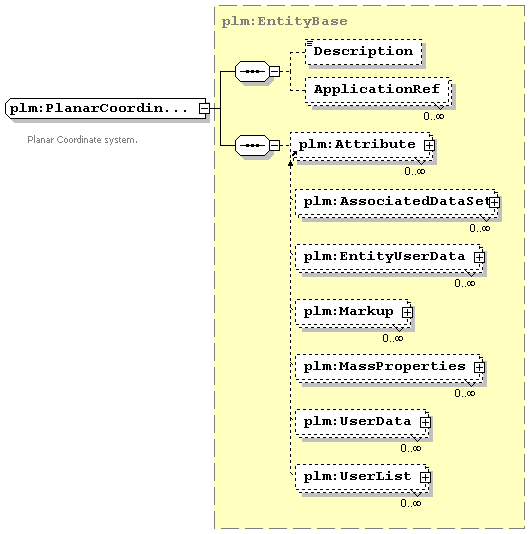

element plm:CoordinateSystem
diagram
namespace http://www.plmxml.org/Schemas/PLMXMLSchema
type plm:PlanarCoordinateSystemType
children Description ApplicationRef plm:Attribute
used by
complexTypes plm:CompositionType plm:ConstructionGeometryType
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID  optional
name  xsd:string  optional
attributeRefs  xsd:IDREFS  optional
entityRef  plm:anyURIType  optional
origin  plm:VectorType    0 0 0
zAxis  plm:Direction Type    0 0 1
xAxis  plm:DirectionType    1 0 0
source
<xsd:element name="CoordinateSystem" type="plm:PlanarCoordinateSystemType"/>

element plm:Curve

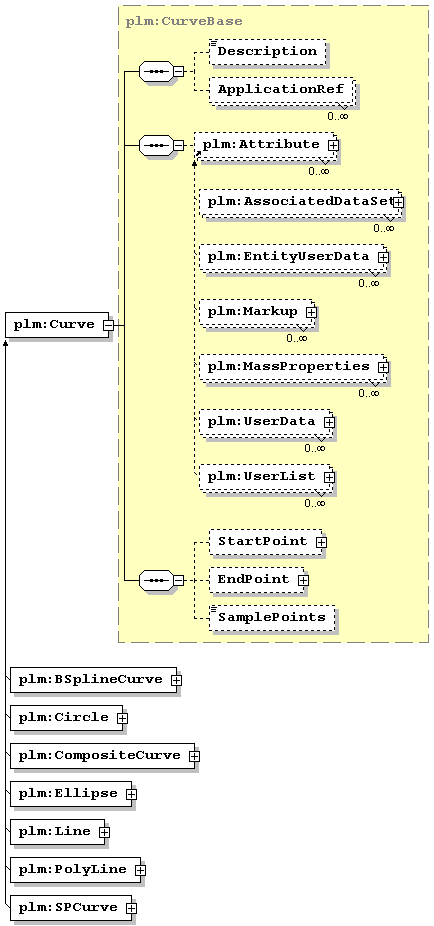

diagram
namespace http://www.plmxml.org/Schemas/PLMXMLSchema

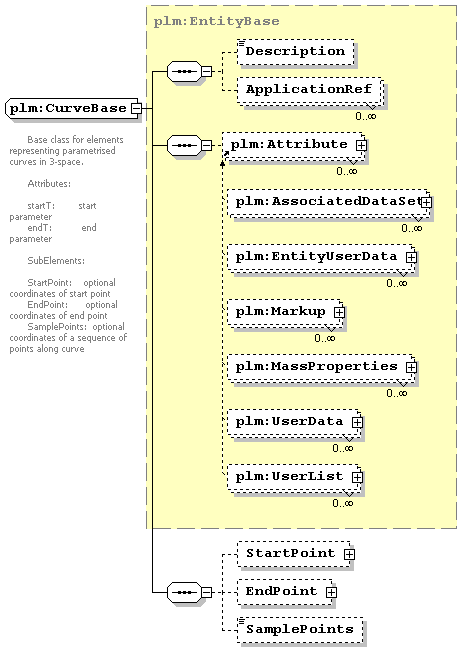

type plm:CurveBase
children Description ApplicationRef plm:Attribute StartPoint EndPoint SamplePoints
used by
complexTypes plm:CompositionType plm:ConstructionGeometryType
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID  optional
name  xsd:string  optional
attributeRefs  xsd:IDREFS  optional
entityRef  plm:anyURIType  optional
startT  xsd:double  optional
endT  xsd:double  ; optional
source
<xsd:element name="Curve" type="plm:CurveBase"/>

element plm:Cylinder

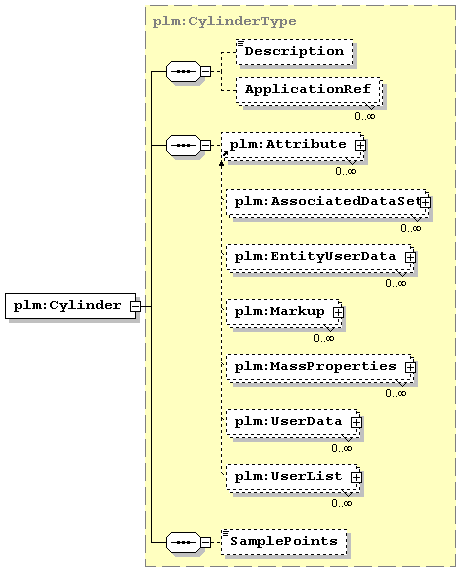

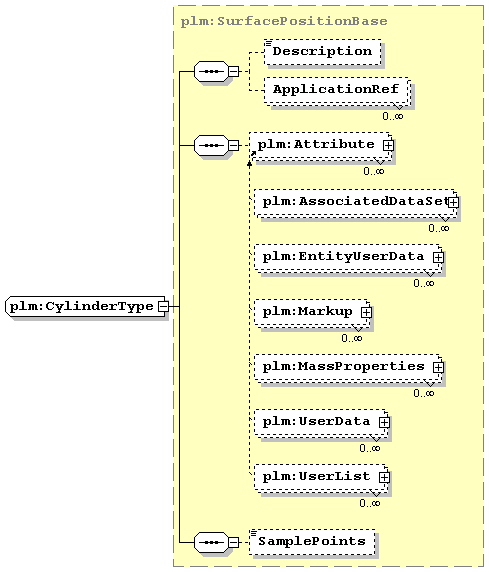

diagram
namespace http://www.plmxml.org/Schemas/PLMXMLSchema
type plm:CylinderType
children Description ApplicationRef plm:Attribute SamplePoints
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID  optional
name  xsd:string  optional
attributeRefs  xsd:IDREFS  optional
entityRef  plm:anyURIType  optional
startU  xsd:double  optional
endU  xsd:double  ; optional
startV  xsd:double  optional
endV  xsd:double  optional
origin  plm:VectorType    0 0 0
zAxis  plm:DirectionType    0 0 1
xAxis  plm:DirectionType    1 0 0
radius  xsd:double  required
source
<xsd:element name="Cylinder" type="plm:CylinderType" substitutionGroup="plm:Surface"/>

element plm:DataSet

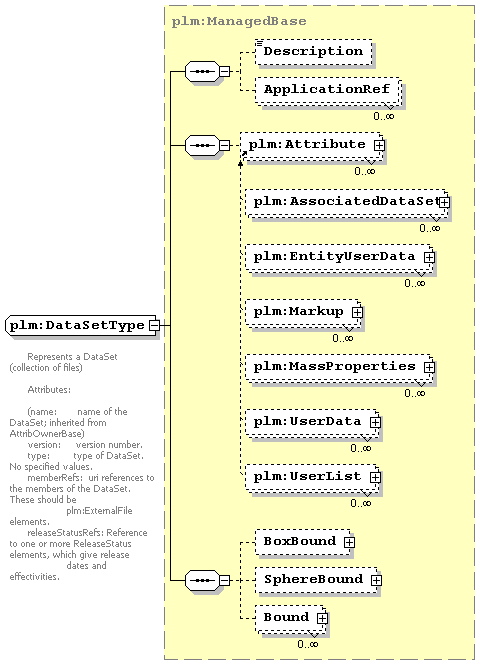

diagram
namespace http://www.plmxml.org/Schemas/PLMXMLSchema
type plm:DataSetType
children Description ApplicationRef plm:Attribute BoxBound SphereBound Bound
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID  optional
name  xsd:string  optional
attributeRefs  xsd:IDREFS  optional
accessRefs  plm:uriReferenceListType  optional
statusRef  plm:anyURIType  optional
checkoutRefs  plm:uriReferenceListType  optional
subType  xsd:string  optional
effectivityRefs  plm:uriReferenceListType  optional
version  xsd:nonNegativeInteger  optional
type  xsd:string  optional
memberRefs  plm:uriReferenceListType  optional
releaseStatusRefs  plm:uriReferenceListType  optional  &nb sp;
source
<xsd:element name="DataSet" type="plm:DataSetType" substitutionGroup="plm:Managed"/>

element plm:DateEffectivity
diagram
namespace http://www.plmxml.org/Schemas/PLMXMLSchema
type plm:DateEffectivityType
children Description ApplicationRef plm:Attribute
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID  optional
name  xsd:string  optional
attributeRefs  xsd:IDREFS  optional
contextRef  plm:anyURIType  optional
start  xsd:dateTime  optional
end  xsd:dateTime&n bsp; optional
source
<xsd:element name="DateEffectivity" type="plm:DateEffectivityType" substitutionGroup="plm:Effectivity"/>

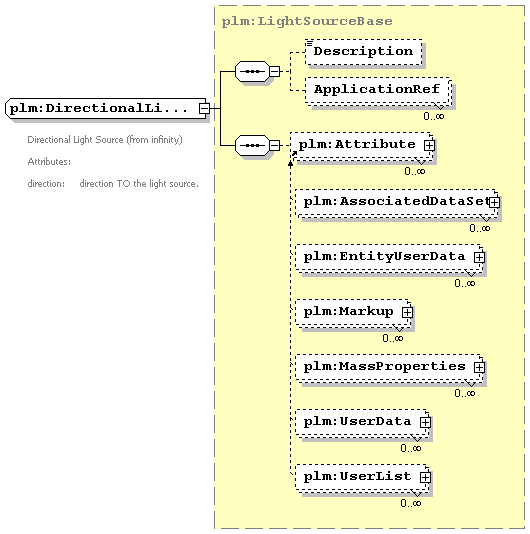

element plm:DirectionalLight
diagram
namespace http://www.plmxml.org/Schemas/PLMXMLSchema
type plm:DirectionalLightType
children Description ApplicationRef plm:Attribute
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID  optional
name  xsd:string  optional
attributeRefs  xsd:IDREFS  optional
ambient  plm:RGBType    0.0 0.0 0.0
diffuse  plm:RGBType    1.0 1.0 1.0
specular  plm:RGBT ype    1.0 1.0 1.0
intensity  plm:AlphaType    1.0
direction  plm:VectorType    0.0 0.0 1.0
source
<xsd:element name="DirectionalLight" type="plm:DirectionalLightType" substitutionGroup="plm:LightSource"/>

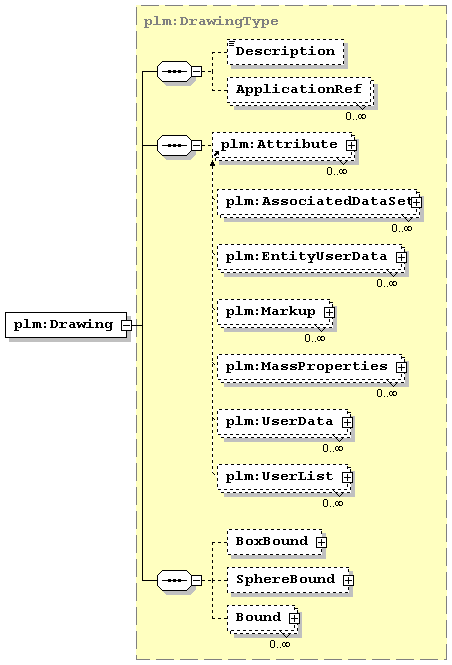

element plm:Drawing

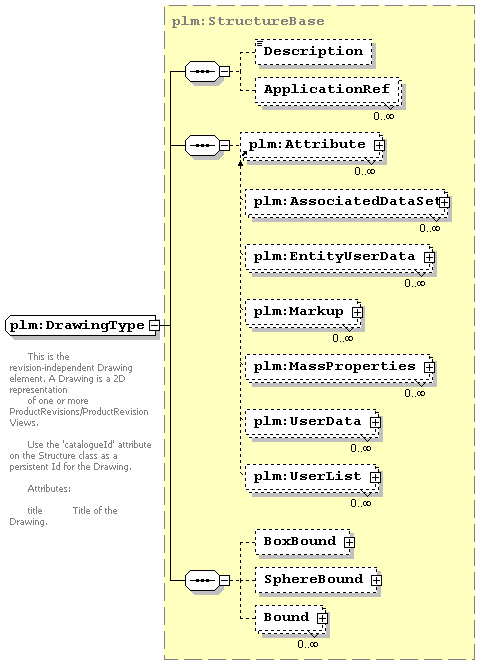

diagram
namespace http://www.plmxml.org/Schemas/PLMXMLSchema
type plm:DrawingType
children Description ApplicationRef plm:Attribute BoxBound SphereBound Bound
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID  optional
name  xsd:string  optional
attributeRefs  xsd:IDREFS  optional
accessRefs  plm:uriReferenceListType  optional
statusRef  plm:anyURIType  optional
checkoutRefs  plm:uriReferenceListType  optional
subType  xsd:string  optional
effectivityRefs  plm:uriReferenceListType  optional
catalogueId  xsd:string  optional
optionRefs  plm:uriReferenceListType  optional
releaseStatusRefs  plm:uriReferenceListType  optional
title  xsd:string  optional   &nbs p;
source
<xsd:element name="Drawing" type="plm:DrawingType" substitutionGroup="plm:Structure"/>

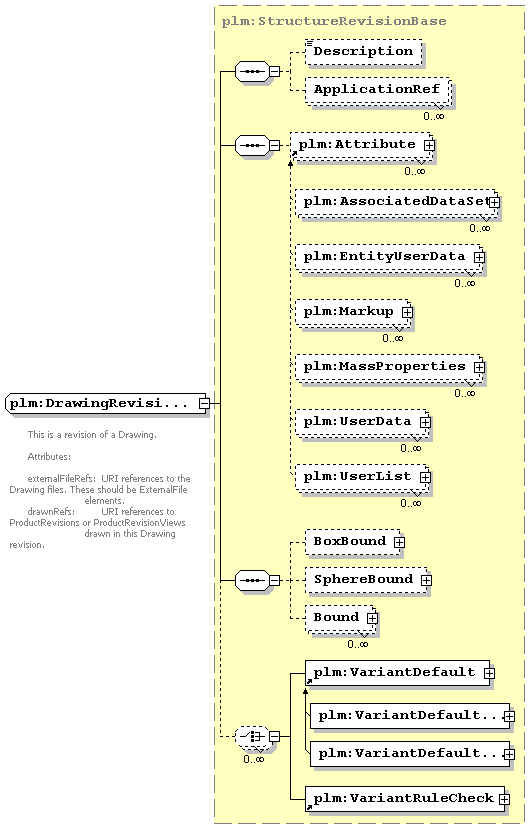

element plm:DrawingRevision

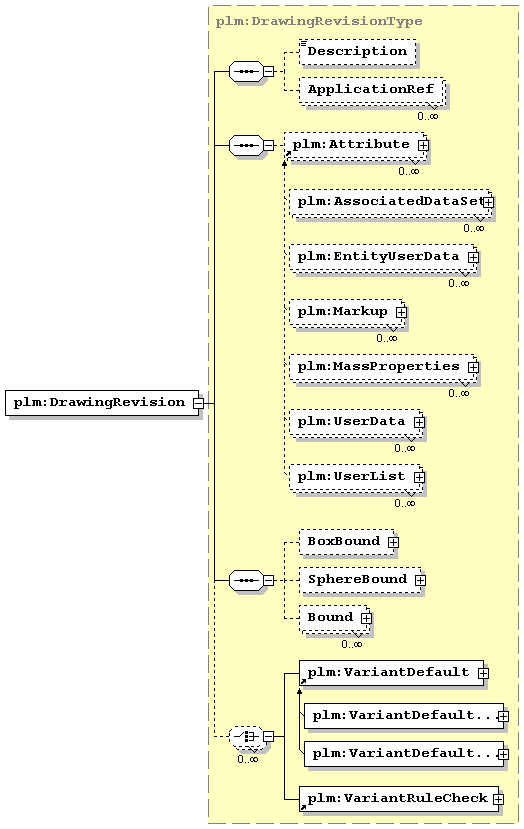

diagram
namespace http://www.plmxml.org/Schemas/PLMXMLSchema
type plm:DrawingRevisionType
children Description ApplicationRef plm:Attribute BoxBound SphereBound Bound plm:VariantDefault plm:VariantRuleCheck
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID  optional
name  xsd:string  optional
attributeRefs  xsd:IDREFS  optional
accessRefs  plm:uriReferenceListType  optional
statusRef  plm:anyURIType  optional
checkoutRefs  plm:uriReferenceListType  optional
subType  xsd:string  optional
effectivityRefs  plm:uriReferenceListType  optional
revision  xsd:string  r equired
version  xsd:nonNegativeInteger  optional
masterRef  plm:anyURIType  required
optionRefs  plm:uriReferenceListType  optional
releaseStatusRefs  plm:uriReferenceListType  optional
instanceRefs  plm:uriReferenceListType  optional
gdeInstanceRefs  plm:uriReferenceListType  optional       ;
simplifiedRepRefs  plm:uriReferenceListType  optional
externalFileRefs  plm:uriReferenceListType  optional
drawnRefs  plm:uriReferenceListType  optional
source
<xsd:element name="DrawingRevision" type="plm:DrawingRevisionType" substitutionGroup="plm:StructureRevision"/>

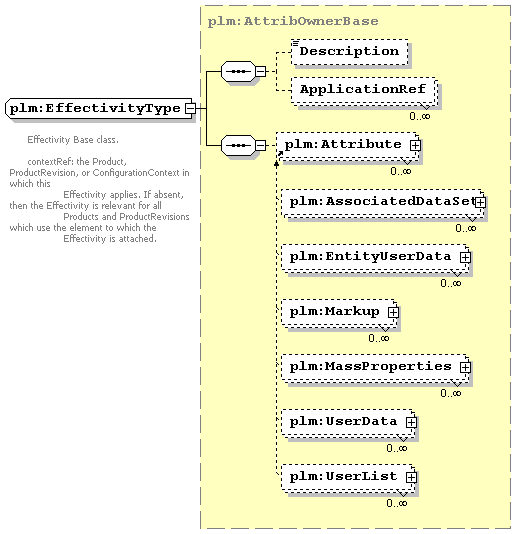

element plm:Effectivity

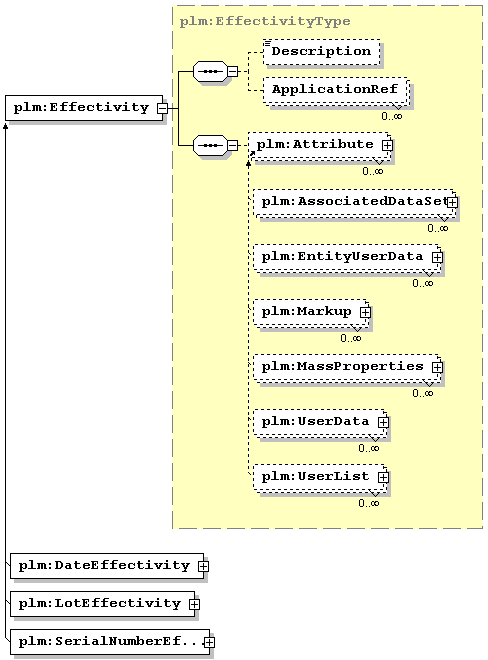

diagram
namespace http://www.plmxml.org/Schemas/PLMXMLSchema
type plm:EffectivityType
children Description ApplicationRef plm:Attribute
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID  optional
name  xsd:string  optional
attributeRefs  xsd:IDREFS  optional
contextRef  plm:anyURIType  optional
source
<xsd:element name="Effectivity" type="plm:EffectivityType" substitutionGroup="plm:AttribOwner"/>

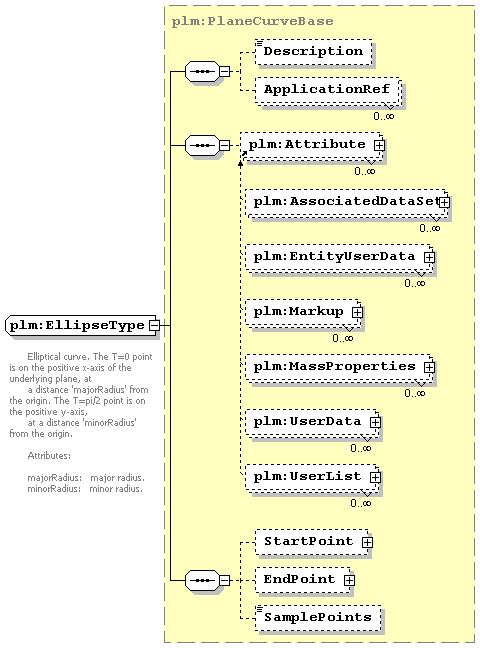

element plm:Ellipse

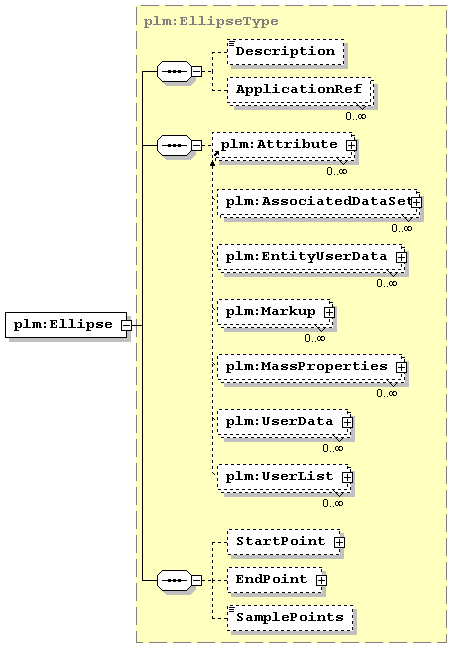

diagram
namespace http://www.plmxml.org/Schemas/PLMXMLSchema
type plm:EllipseType
children Description ApplicationRef plm:Attribute StartPoint EndPoint SamplePoints
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID  optional
name  xsd:string  optional
attributeRefs  xsd:IDREFS  optional
entityRef  plm:anyURIType  optional
startT  xsd:double  optional
endT  xsd:double  ; optional
origin  plm:VectorType    0 0 0
zAxis  plm:DirectionType    0 0 1
xAxis  plm:DirectionType    1 0 0
majorRadius  xsd:double  required
minorRadius  xsd:double  required
source
<xsd:element name="Ellipse" type="plm:EllipseType" substitutionGroup="plm:Curve"/>

element plm:EntityMaterial

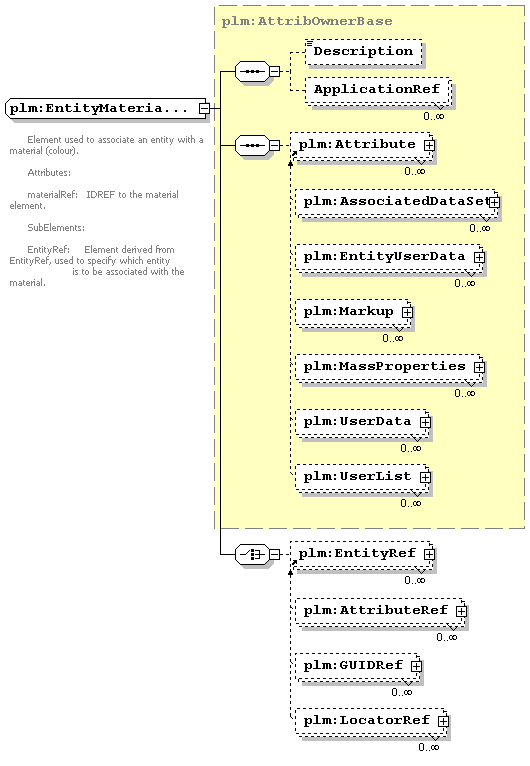

diagram
namespace http://www.plmxml.org/Schemas/PLMXMLSchema
type plm:EntityMaterialType
children Description ApplicationRef plm:Attribute plm:EntityRef
used by
complexTypes plm:OccurrenceType plm:RepresentationType
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID  optional
name  xsd:string  optional
attributeRefs  xsd:IDREFS  optional
materialRef  xsd:IDREF  required
source
<xsd:element name="EntityMaterial" type="plm:EntityMaterialType" substitutionGroup="plm:AttribOwner"/>

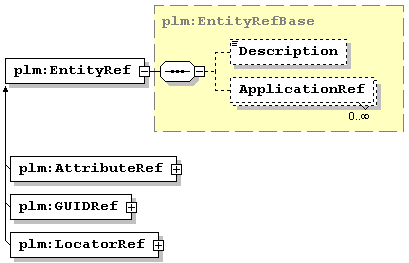

element plm:EntityRef

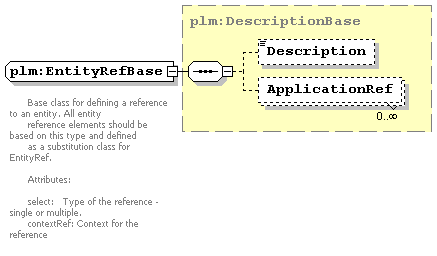

diagram
namespace http://www.plmxml.org/Schemas/PLMXMLSchema
type plm:EntityRefBase
children Description ApplicationRef
used by
complexTypes plm:EntityMaterialType plm:EntityTextureType plm:EntityUserDataType plm:FeatureBase plm:GDEReferenceType plm:MarkupType
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID  optional
name  xsd:string  optional
contextRef  plm:anyURIType  optional
select  plm:RefSelectType    single
source
<xsd:element name="EntityRef" type="plm:EntityRefBase"/>

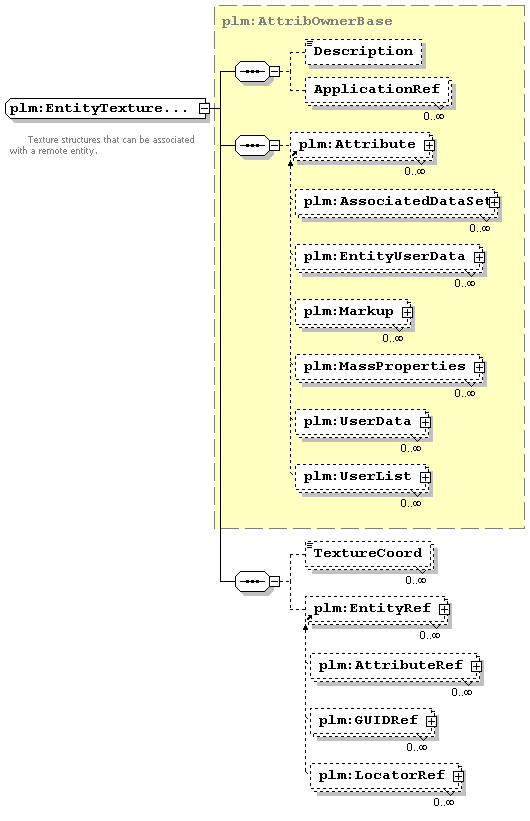

element plm:EntityTexture

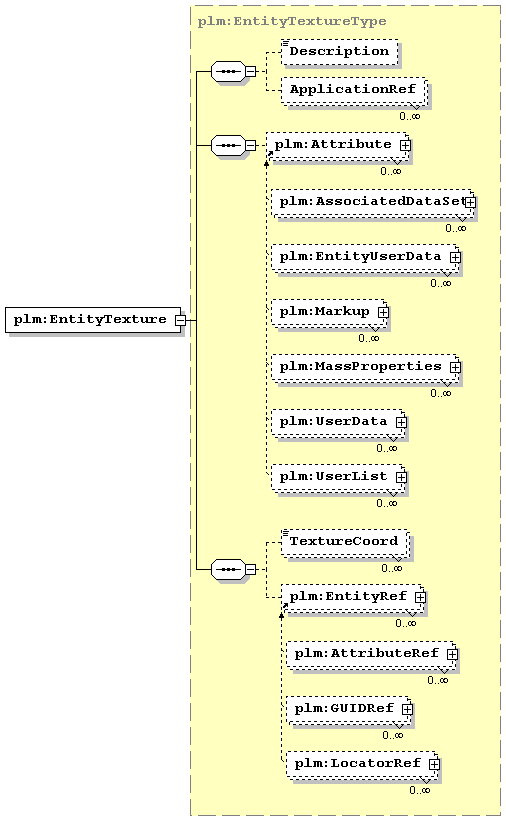

diagram
namespace http://www.plmxml.org/Schemas/PLMXMLSchema
type plm:EntityTextureType
children Description ApplicationRef plm:Attribute TextureCoord plm:EntityRef
used by
complexType plm:RepresentationType
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID  optional
name  xsd:string  optional
attributeRefs  xsd:IDREFS  optional
textureRef  xsd:IDREF  required
source
<xsd:element name="EntityTexture" type="plm:EntityTextureType" substitutionGroup="plm:AttribOwner"/>

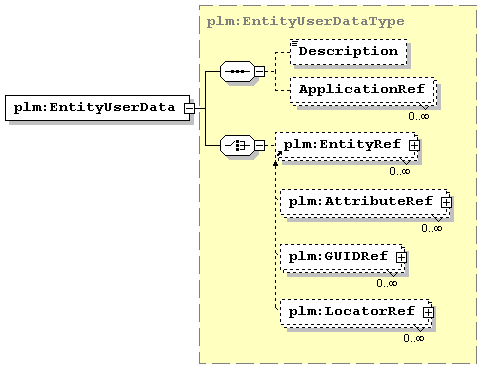

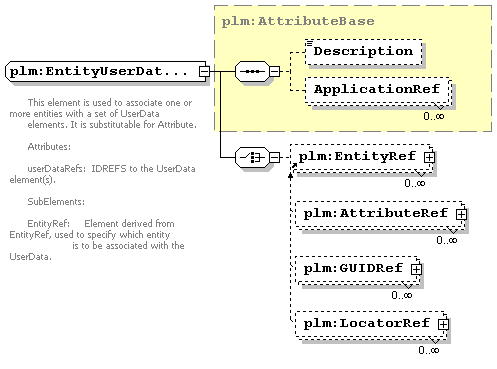

element plm:EntityUserData
diagram
namespace http://www.plmxml.org/Schemas/PLMXMLSchema
type plm:EntityUserDataType
children Description ApplicationRef plm:EntityRef
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID  optional
name  xsd:string  optional
userDataRefs  xsd:IDREFS  required
source
<xsd:element name="EntityUserData" type="plm:EntityUserDataType" substitutionGroup="plm:Attribute"/>

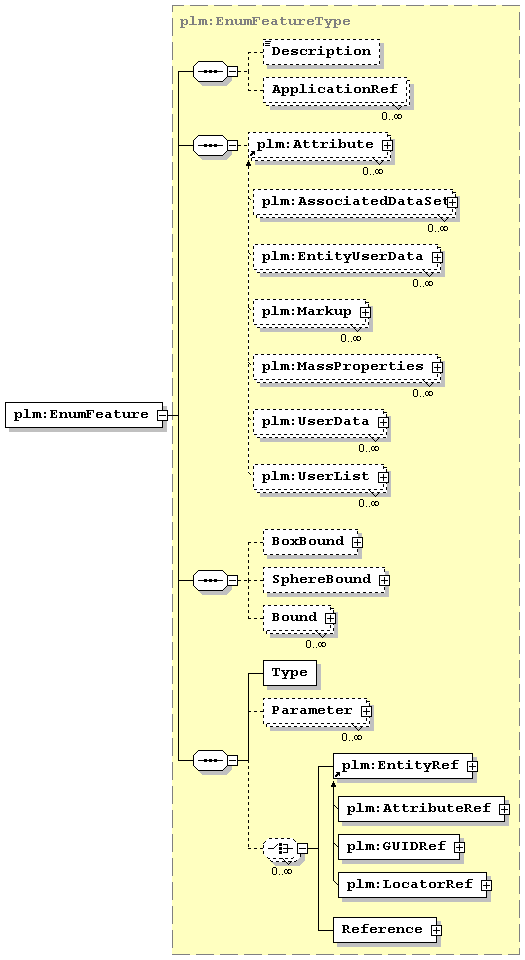

element plm:EnumFeature
diagram

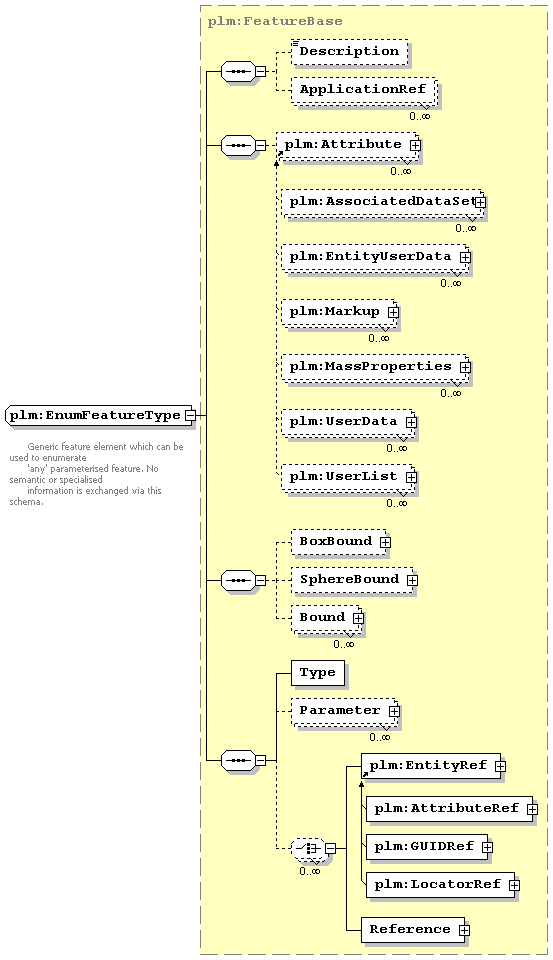

namespace http://www.plmxml.org/Schemas/PLMXMLSchema
type plm:EnumFeatureType
children Description ApplicationRef plm:Attribute BoxBound SphereBound Bound Type Parameter plm:EntityRef Reference
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID  optional
name  xsd:string  optional
attributeRefs  xsd:IDREFS  optional
accessRefs  plm:uriReferenceListType  optional
statusRef  plm:anyURIType  optional
checkoutRefs  plm:uriReferenceListType  optional
subType  xsd:string  optional
effectivityRefs  plm:uriReferenceListType  optional
catalogueId  xsd:string  optional
optionRefs  plm:uriReferenceListType  optional
releaseStatusRefs  plm:uriReferenceListType  optional
gdeInstanceRefs  plm:uriReferenceListType  optional
nextFeature  xsd:IDREF  optional
targetFeature  xsd:IDREF  optional
toolFeature  xsd:IDREF  optional
suppressed  xsd:boolean    false
editable  xsd:boolean    false
source
<xsd:element name="EnumFeature" type="plm:EnumFeatureType" substitutionGroup="plm:Feature"/>

element plm:ErrorMessage
diagram
namespace http://www.plmxml.org/Schemas/PLMXMLSchema
type plm:ErrorMessageType
attributes
Name  Type  Use  Default  Fixed  Annotation
message  xsd:string  required
source
<xsd:element name="ErrorMessage" type="plm:ErrorMessageType" substitutionGroup="plm:Message"/>

element plm:Expression

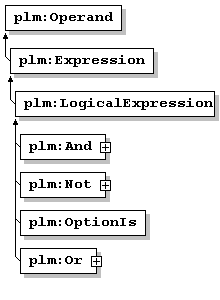

diagram
namespace http://www.plmxml.org/Schemas/PLMXMLSchema
type plm:ExpressionBase
source
<xsd:element name="Expression" type="plm:ExpressionBase" substitutionGroup="plm:Operand"/>

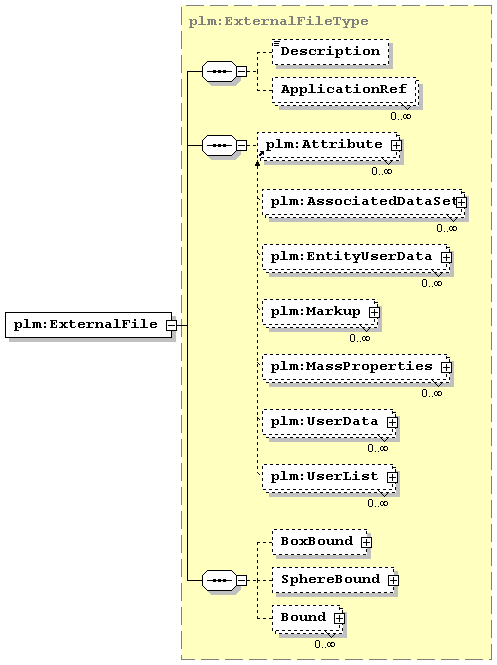

element plm:ExternalFile

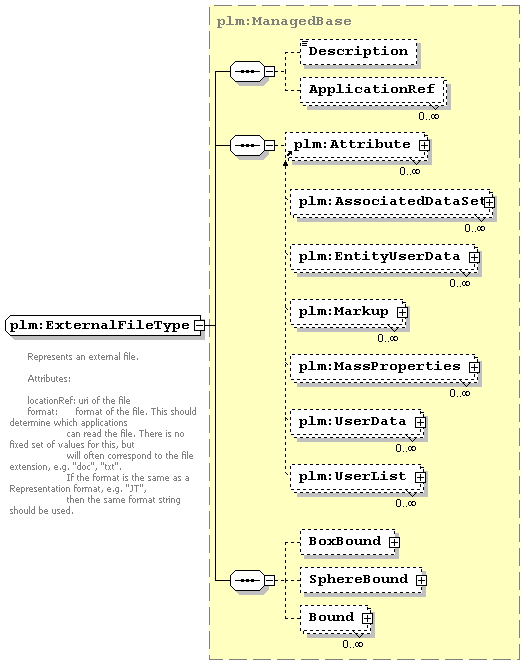

diagram
