Schema PLMXMLSchemaCollection.xsd


schema location:  E:\vss\products\sdk\plmxml\schemas\PLMXMLUmbrellaSchema.xsd
targetNamespace:  http://www.plmxml.org/Schemas/PLMXMLSchema



schema location:  E:\vss\products\sdk\plmxml\schemas\PLMXMLSchema.xsd
targetNamespace:  http://www.plmxml.org/Schemas/PLMXMLSchema

Elements  Complex types  Simple types  Attr. groups
AccessControl  AccessControlBase  AccessIntentEnum  idGroup
AccessIntent  AccessIntentType  AlphaType  MassPropertyGroup

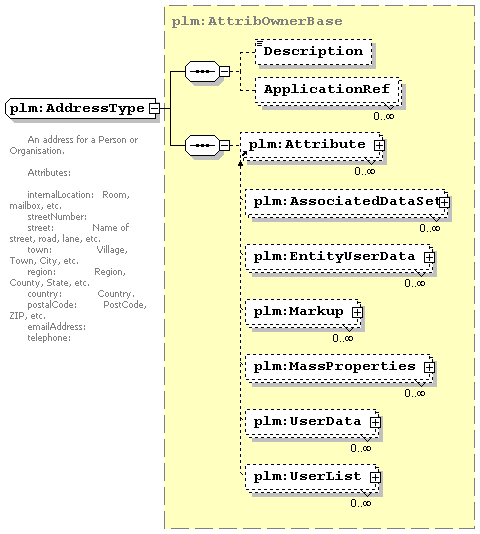

Address  AddressType  anyURIType  referenceGroup
And  AndType  AttenuationType
AssociatedDataSet  ApplicationRefType  AttributeClassType
AttribOwner  AreaType  AttributeOwnerType
Attribute  AssociatedDataSetType  AxisFieldType
AttributeClass  AttribOwnerBase  BooleanListType
AttributeLegalOwner  AttributeBase  BoundingType
AttributeRef  AttributeClassBase  CoordinateFieldType
Bound  AttributeLegalOwnerType  CutoffAngleType
BSplineCurve  AttributeRefType  DescriptionType
BSplineSurface  BoundType  DirectionFieldType

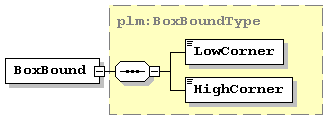

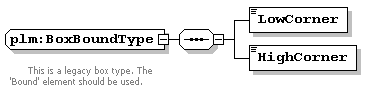

CheckMessage  BoxBoundType  DirectionType

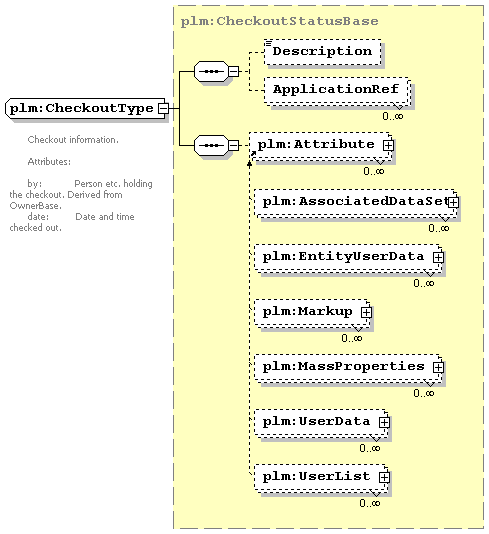

Checkout  BSplineCurveType  DoubleListType

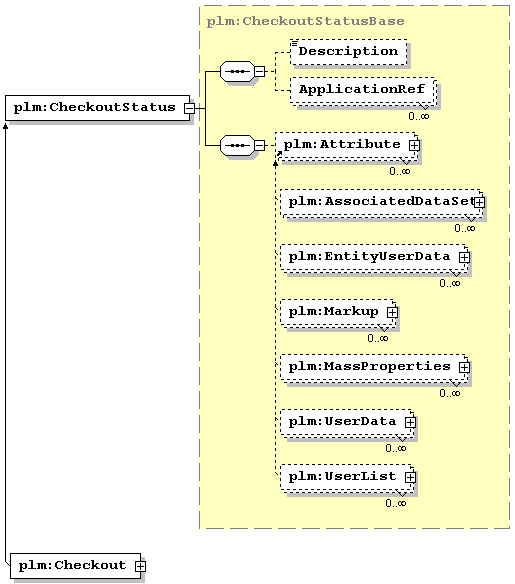

CheckoutStatus  BSplineSurfaceType  DrawingStyleType
Circle  CentreOfMassType  FloatListType
CompositeCurve  CheckMessageType  GeometryParamType
Cone  CheckoutStatusBase  IntegerFieldListType

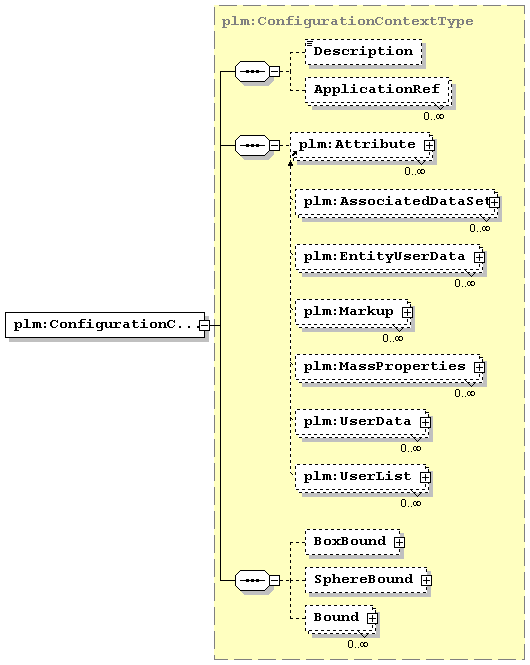

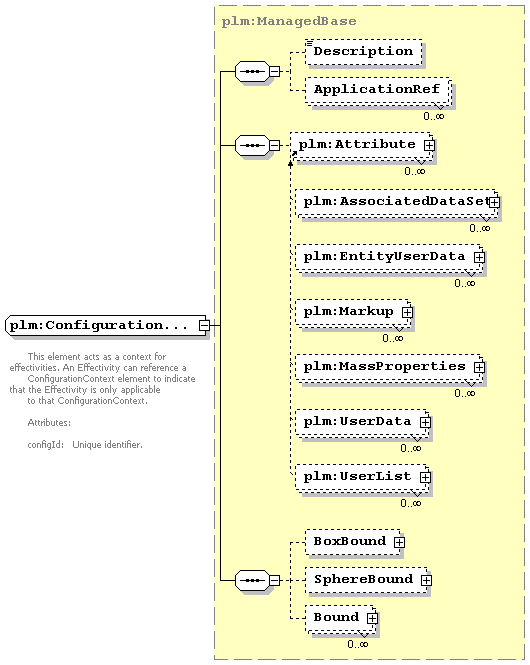

ConfigurationContext  CheckoutType  IntegerFieldType
CoordinateSystem  CircleType  IntegerListType
Curve  CompositeCurveType  IntensityExponentType
Cylinder  CompositionType  LocatorRefFormatType

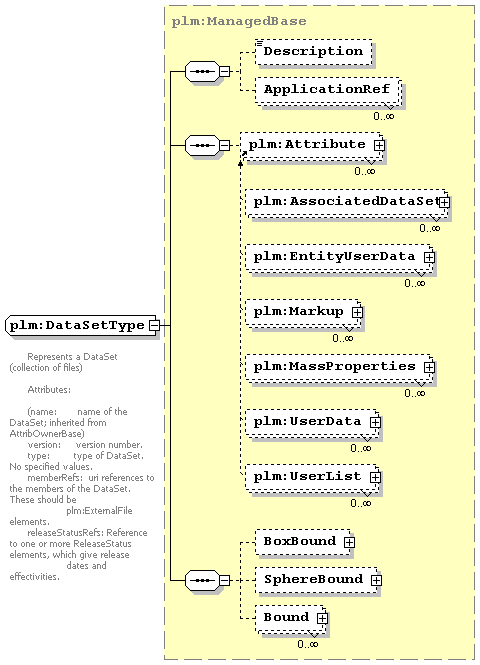

DataSet  CompoundRepType  LogicalOperationType

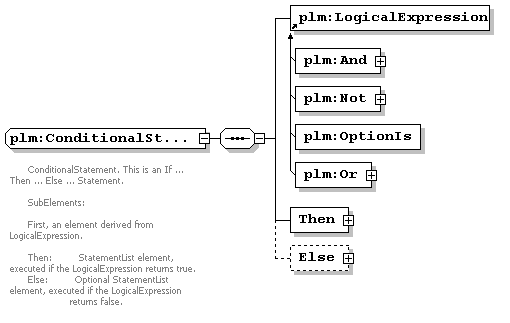

DateEffectivity  ConditionalStatementType  MassPropertyArrayFieldType
DirectionalLight  ConeType  MassPropertyUnitType
Effectivity  ConfigurationContextType  MatrixType

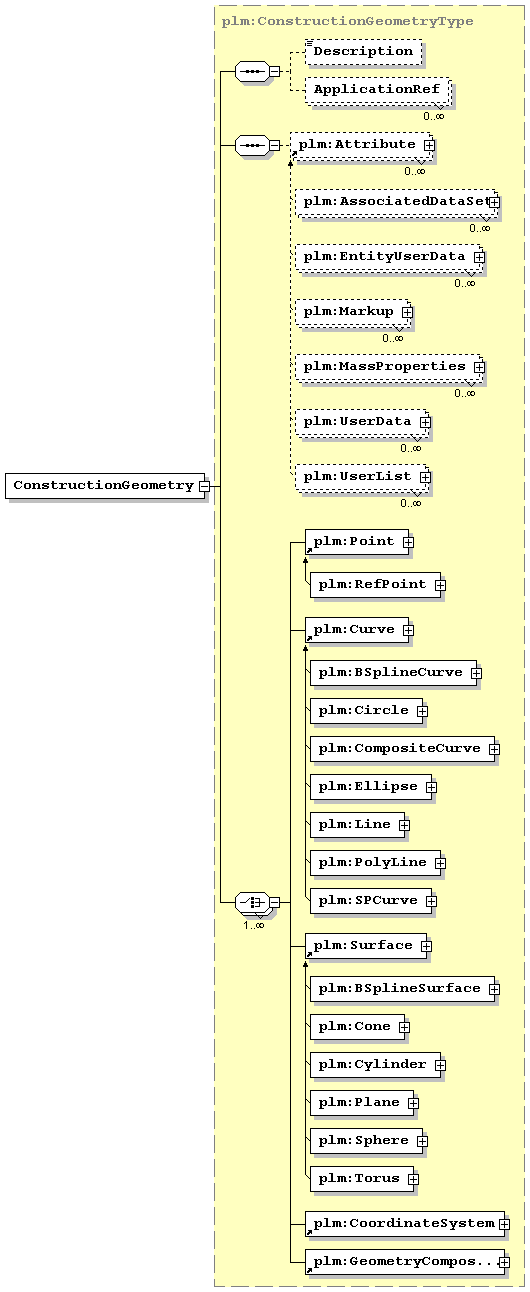

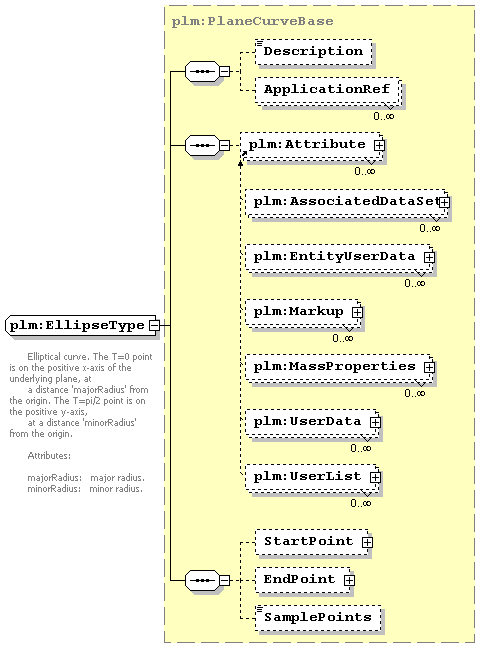

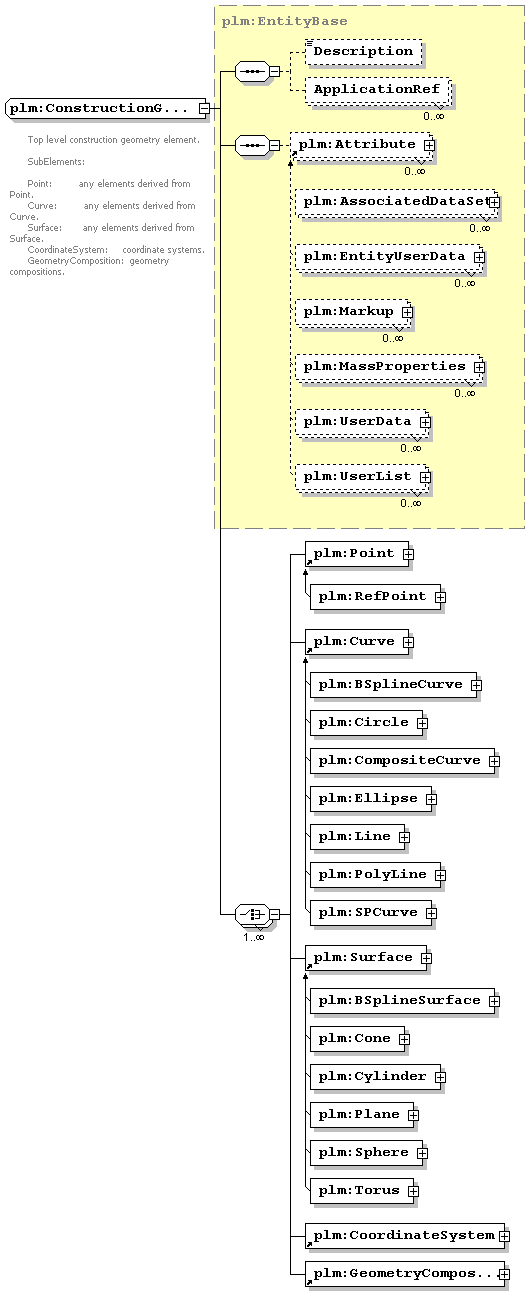

Ellipse  ConstructionGeometryType  OptionScopeType
EntityRef  CurveBase  OptionTypesType
EntityUserData  CylinderType  PartTypesType

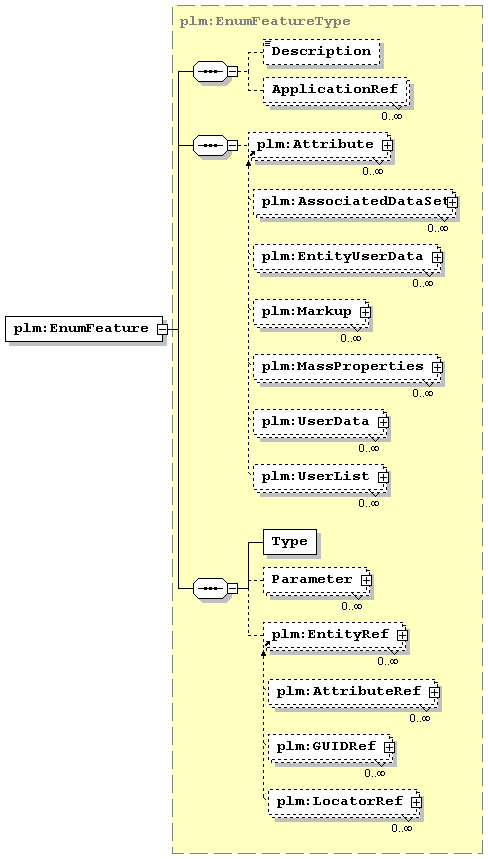

EnumFeature  DataSetType  PreferredPartUnitsType
ErrorMessage  DateEffectivityType  RealFieldListType
Expression  DensityType  RealFieldType
ExternalFile  DescriptionBase  RefSelectType
Feature  DirectionalLightType  RepresentationFormatType

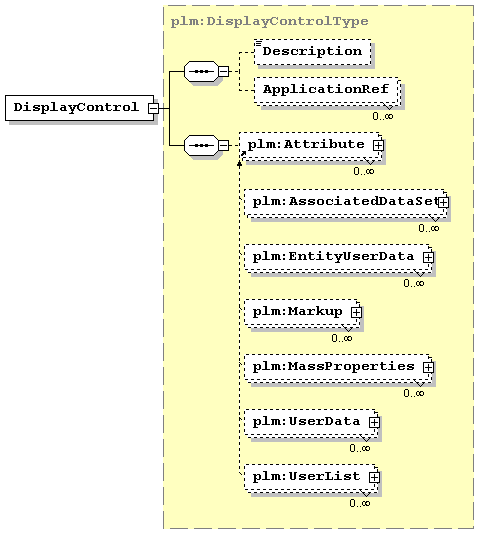

FeatureTree  DisplayControlType  RGBAType

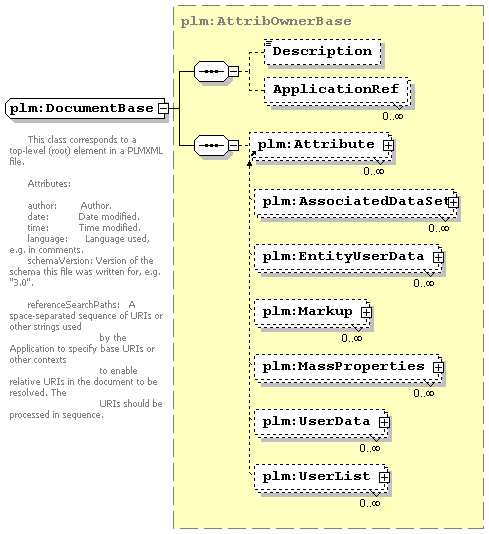

Fix  DocumentBase  RGBFloatListType

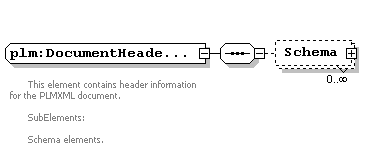

GeometryComposition  DocumentHeaderType  RGBFloatType

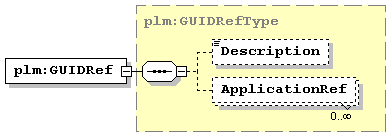

GUIDRef  EffectivityType  RGBType

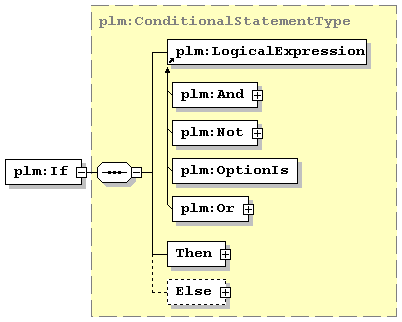

If  EllipseType  ShadingStyleType

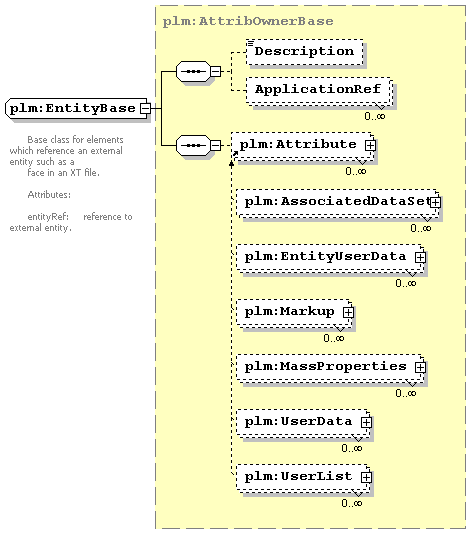

InformMessage  EntityBase  ShininessType
Instance  EntityMaterialType  SplineCurveFormType

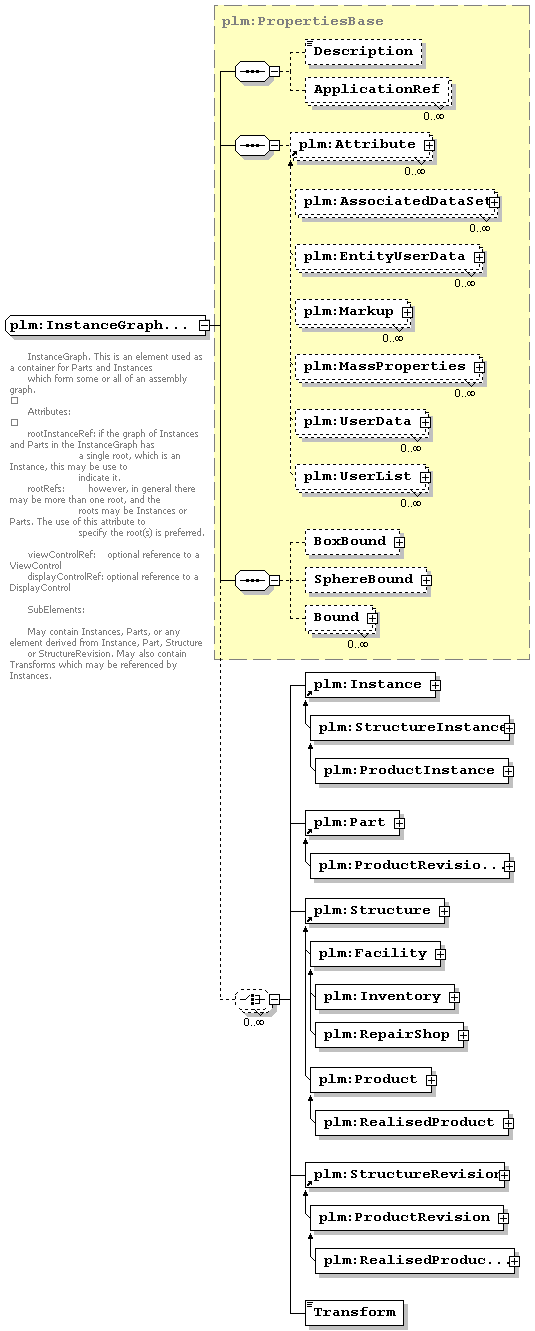

InstanceGraph  EntityRefBase  SplineDimensionType

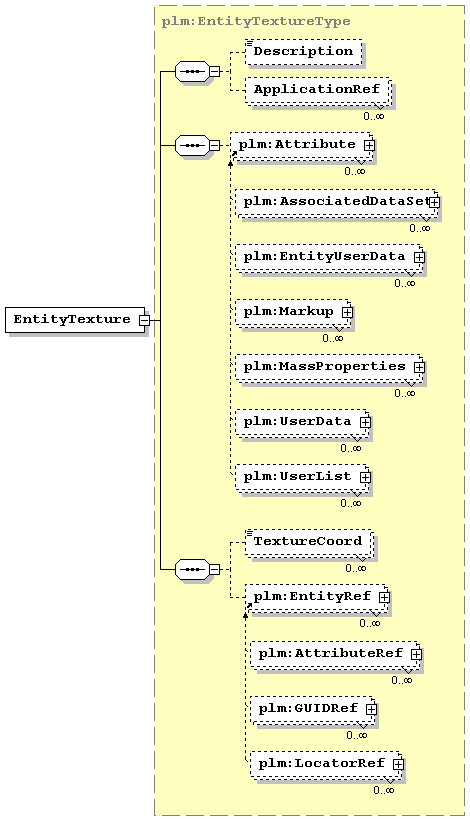

InternalRep  EntityTextureType  StringFieldType
LightSource  EntityUserDataType  TextureCoordDataType
Line  EnumFeatureType  TextureDataFormatType
LocatorRef  ErrorMessageType  TextureMapType
LogicalExpression  ExpressionBase  TextureSampleType
LotEffectivity  ExternalFileType  TextureWrapType
Managed  FeatureBase  TransformationType

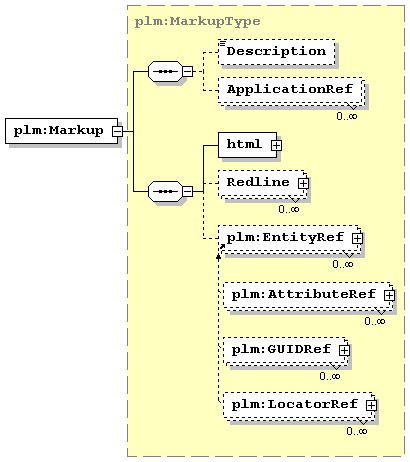

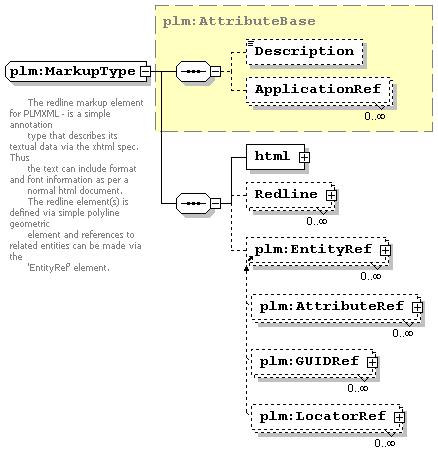

Markup  FeatureTreeType  uriReferenceListType
MassProperties  FixType  UserValueDataType
Message  GUIDRefType  VectorFieldType

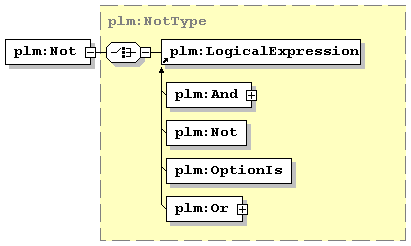

Not  IdBase  VectorType

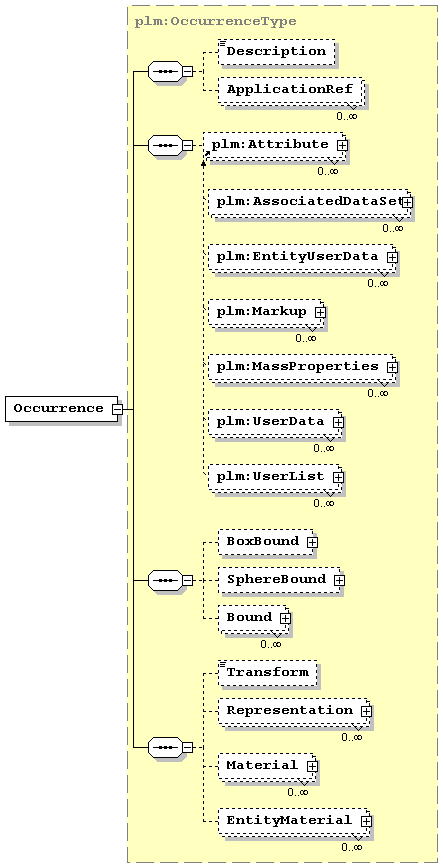

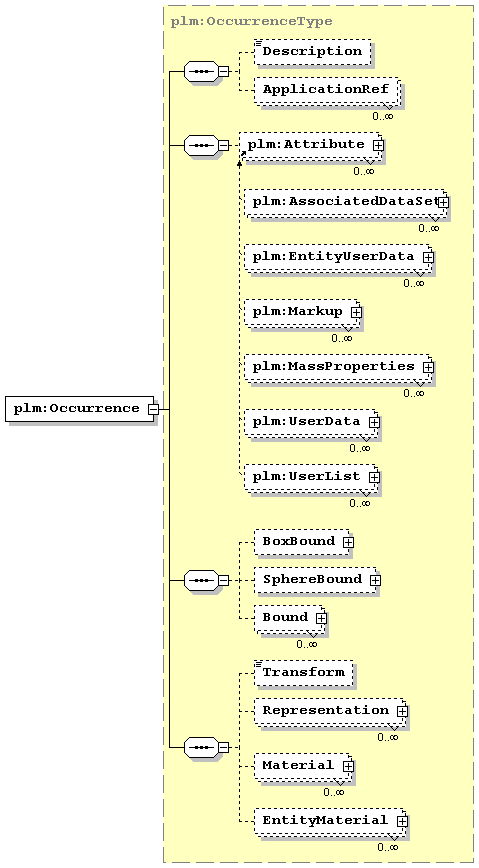

Occurrence  InformMessageType  ViewPortCornerType
Operand  InstanceGraphType  XTDataType

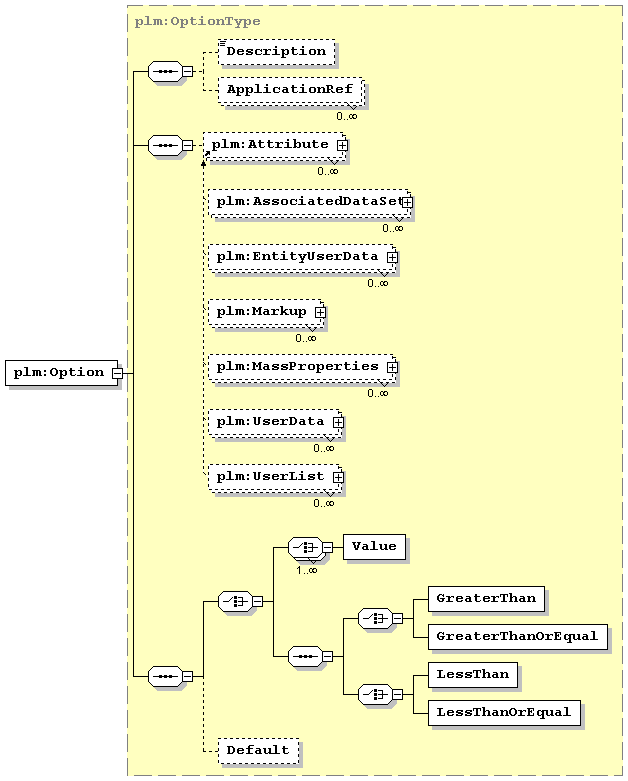

Option  InstanceType
OptionIs  InternalRepBase
Or  LengthType
Organisation  LightSourceBase

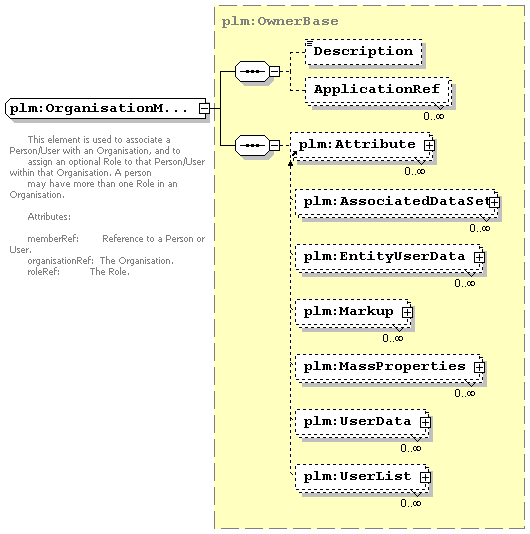

OrganisationMember  LineType
Owner  LocatorRefType

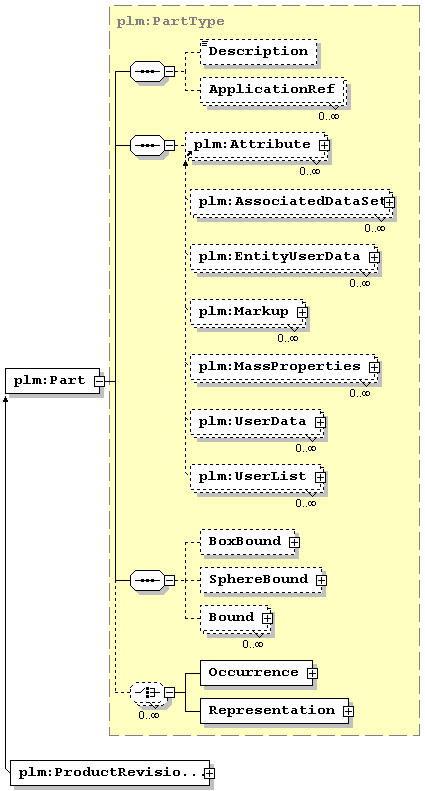

Part  LogicalExpressionBase

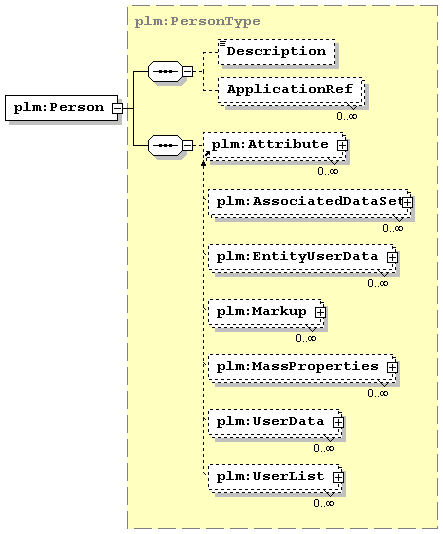

Person  LotEffectivityType

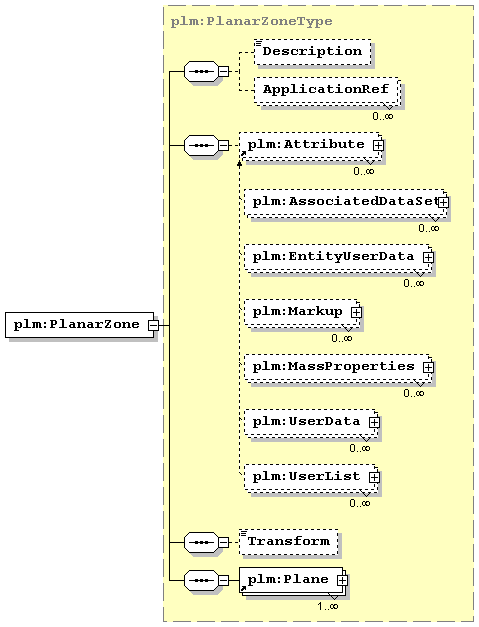

PlanarZone  ManagedBase
Plane  MarkupType

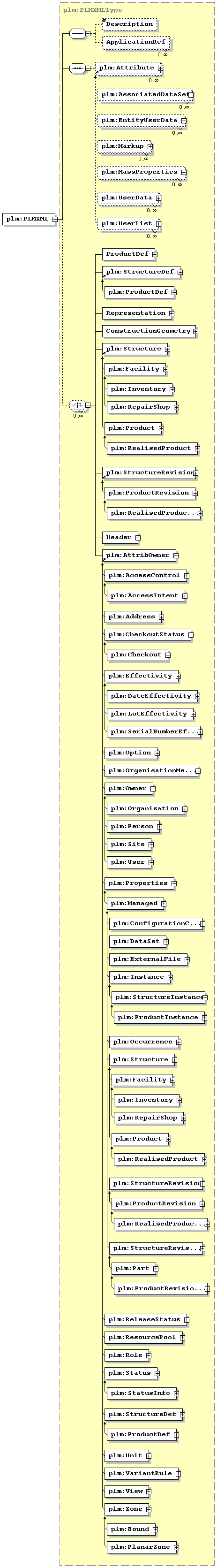

PLMXML  MassPropertyArrayType
Point  MassPropertyRealType

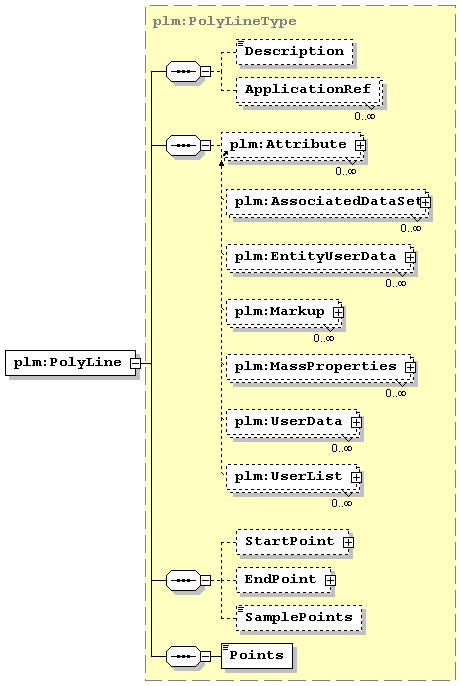

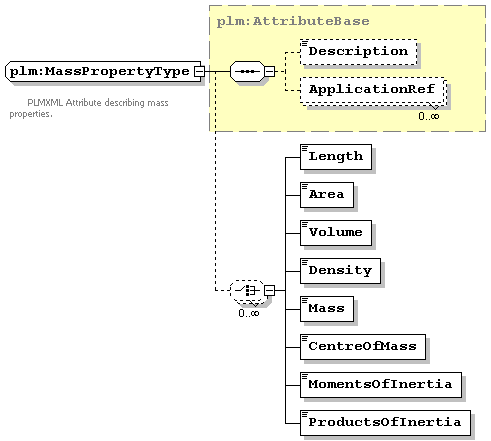

PolyLine  MassPropertyType

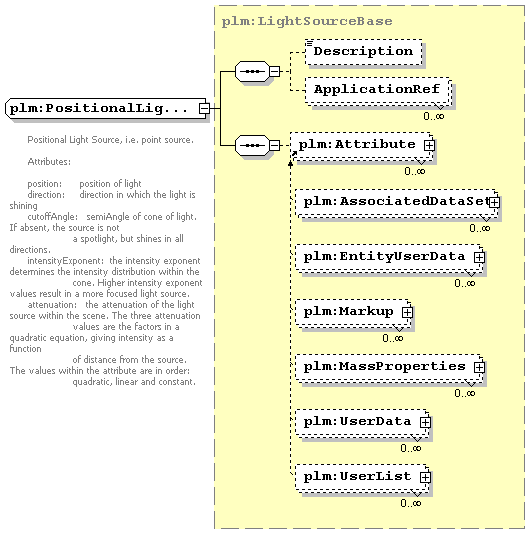

PositionalLight  MassPropertyVectorType
Product  MassType

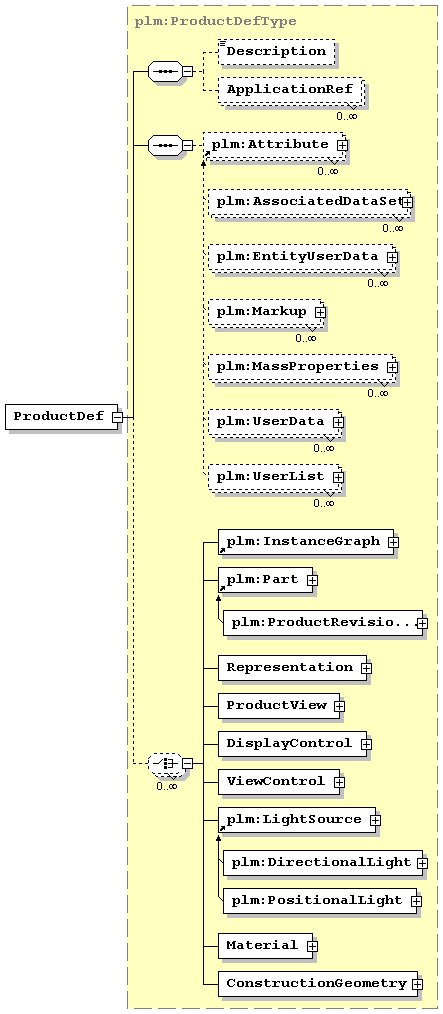

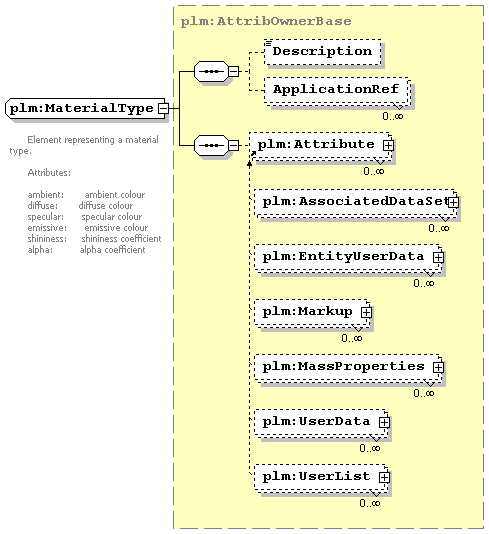

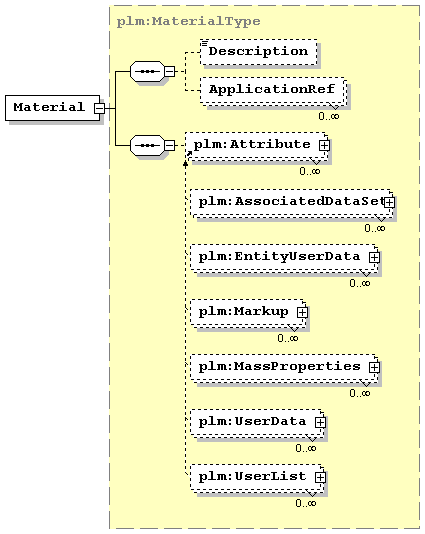

ProductDef  MaterialType
ProductInstance  MessageBase

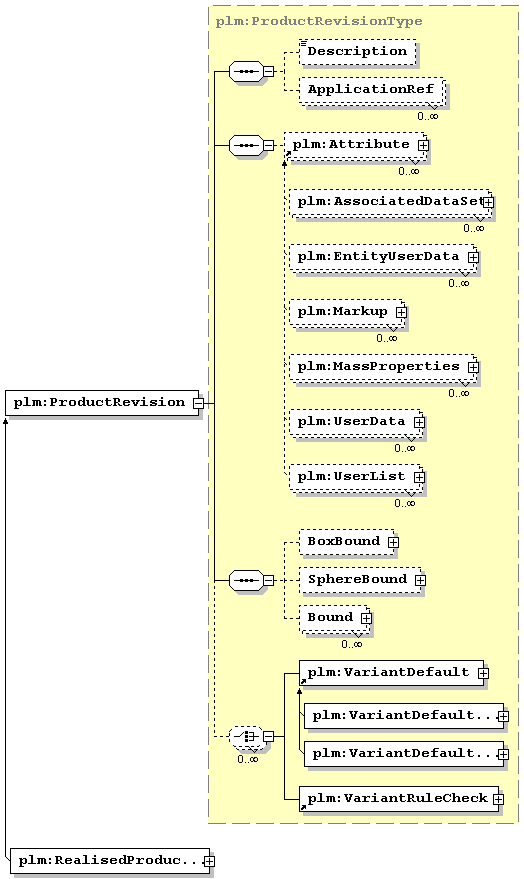

ProductRevision  MomentsOfInertiaType

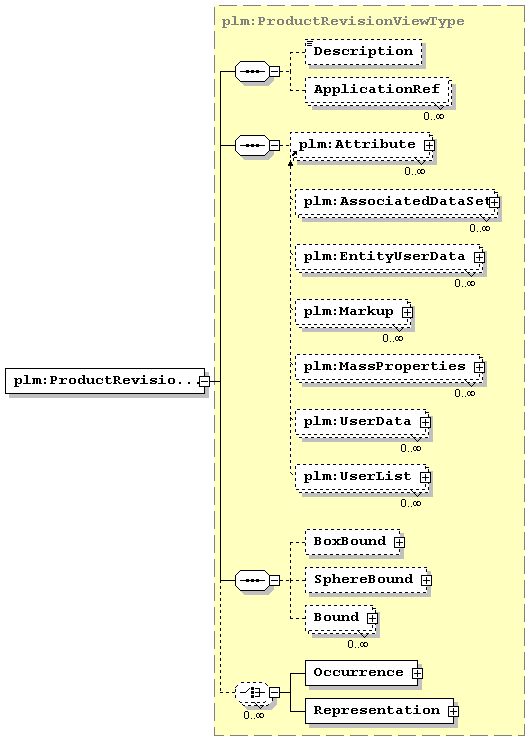

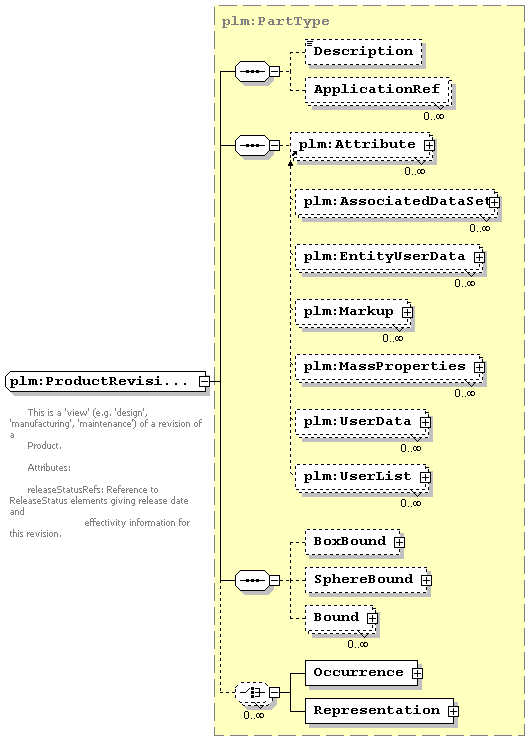

ProductRevisionView  NormalType

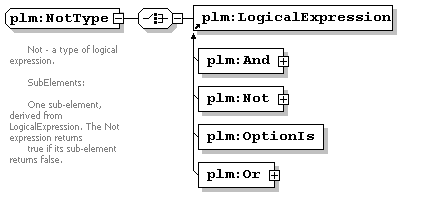

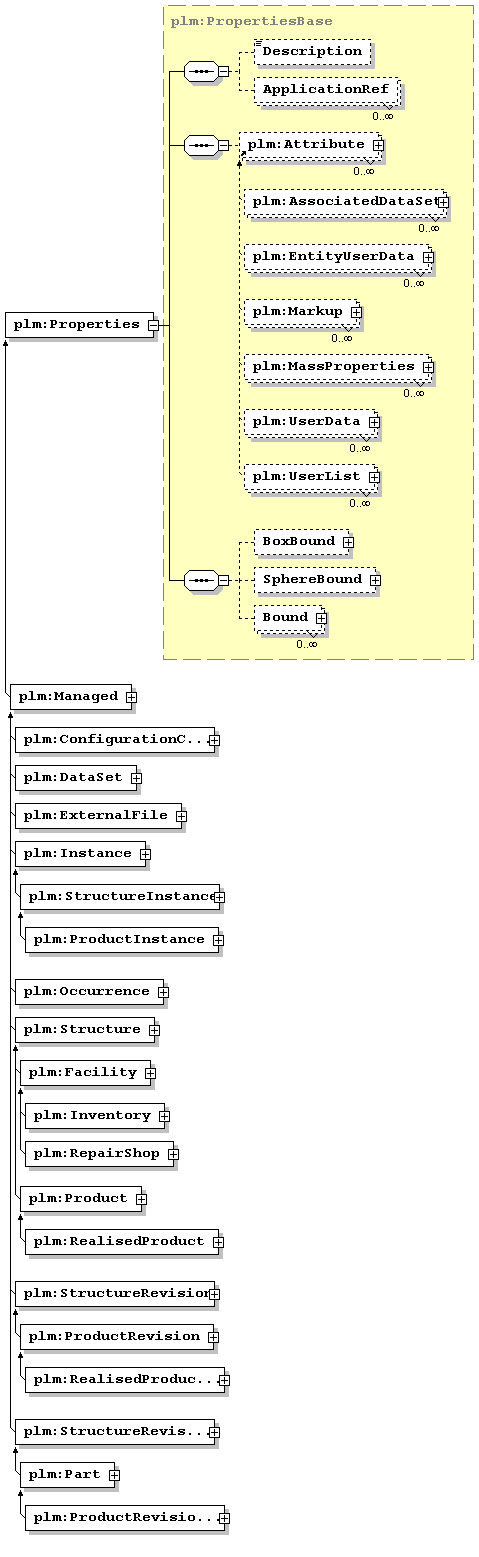

Properties  NotType

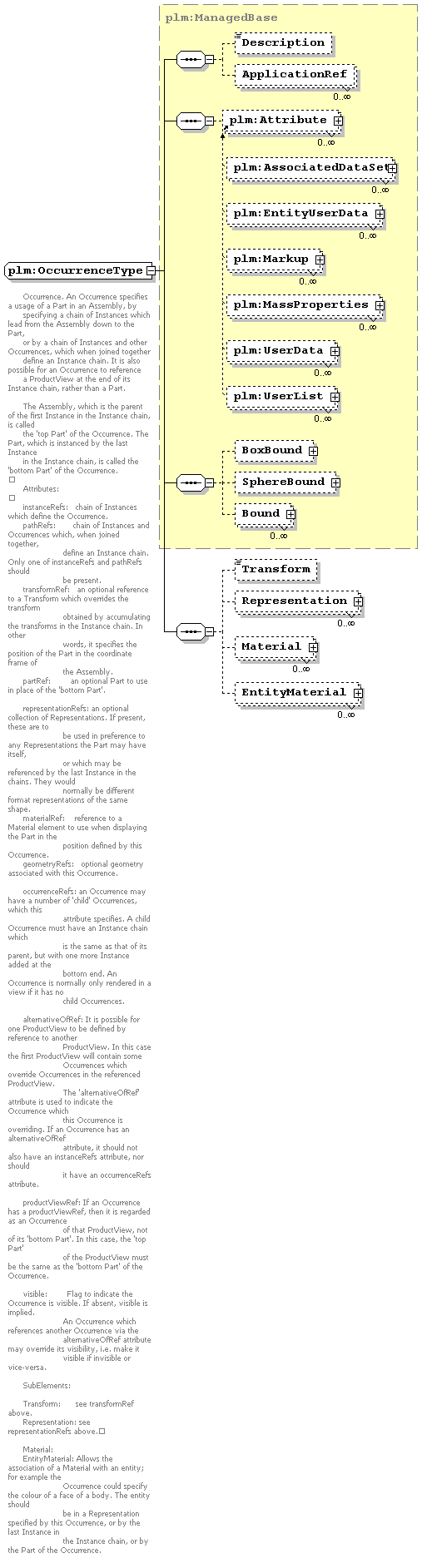

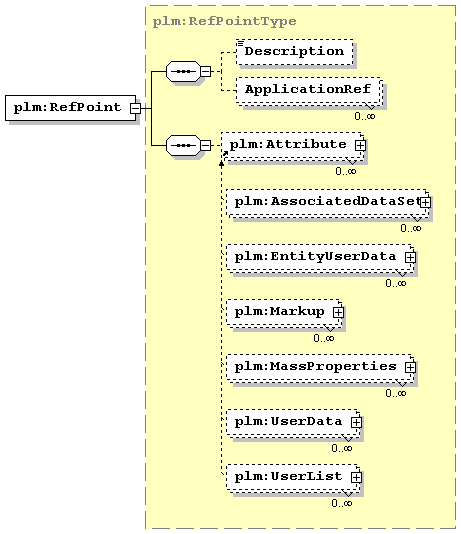

RefPoint  OccurrenceType

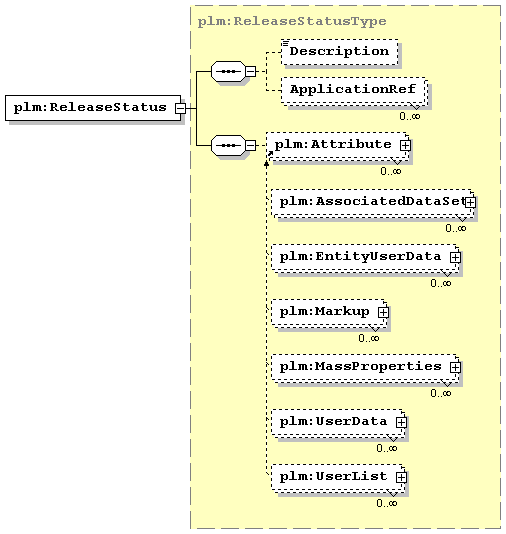

ReleaseStatus  OperandBase
ResourcePool  OptionIsType
Role  OptionType
SchemaInfo  OptionValueType

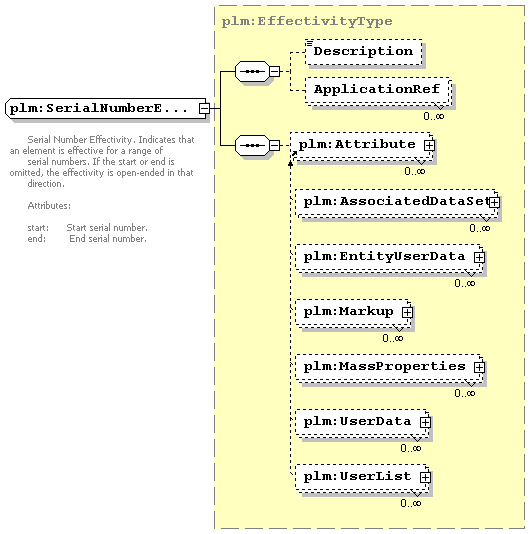

SerialNumberEffectivity  OrganisationMemberType

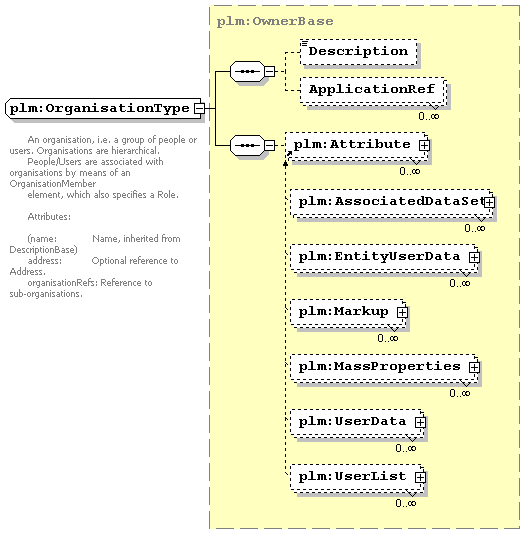

Set  OrganisationType

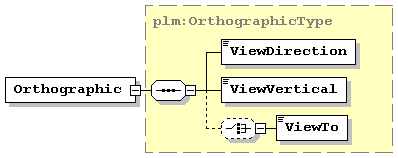

SetDefault  OrthographicType
Site  OrType

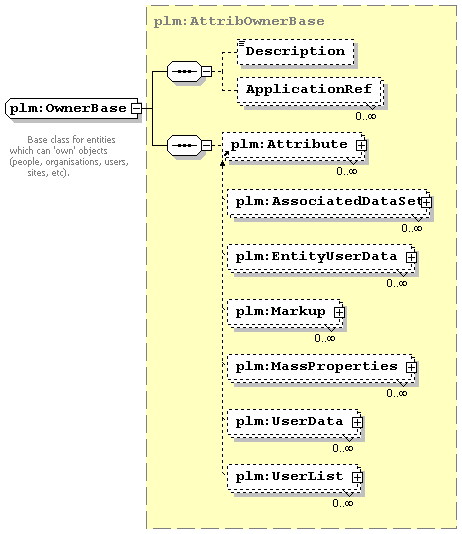

SPCurve  OwnerBase

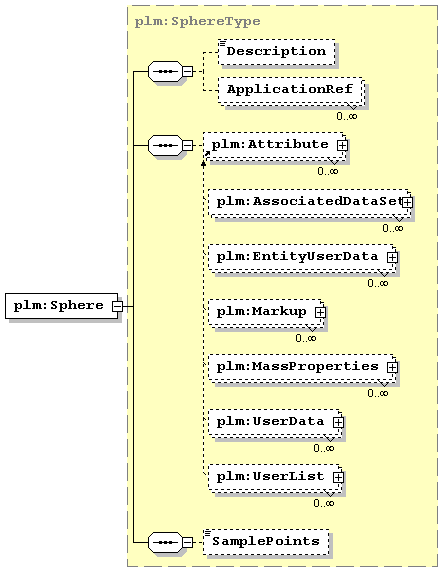

Sphere  PartType

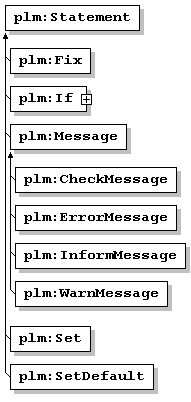

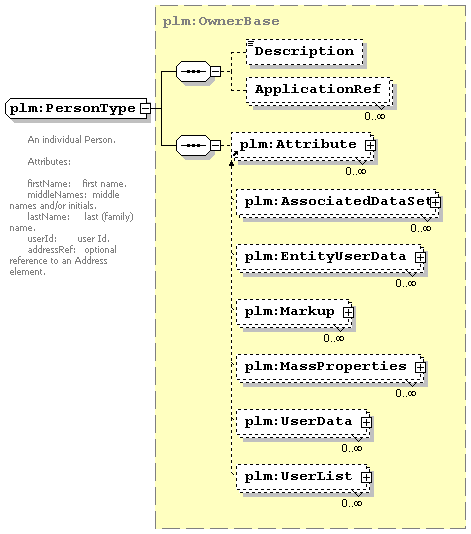

Statement  PersonType

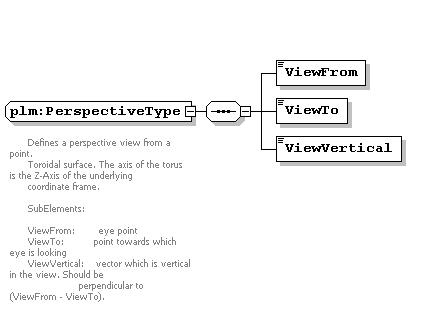

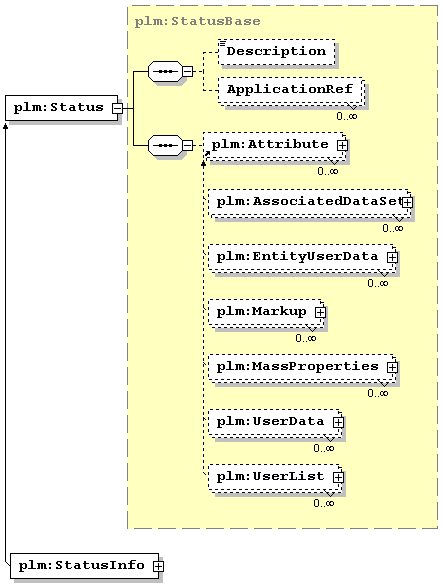

Status  PerspectiveType
StatusInfo  PlanarCoordinateSystemType

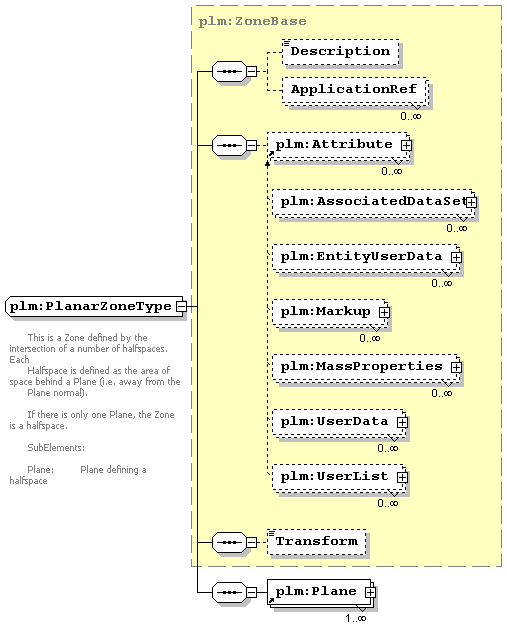

Structure  PlanarZoneType

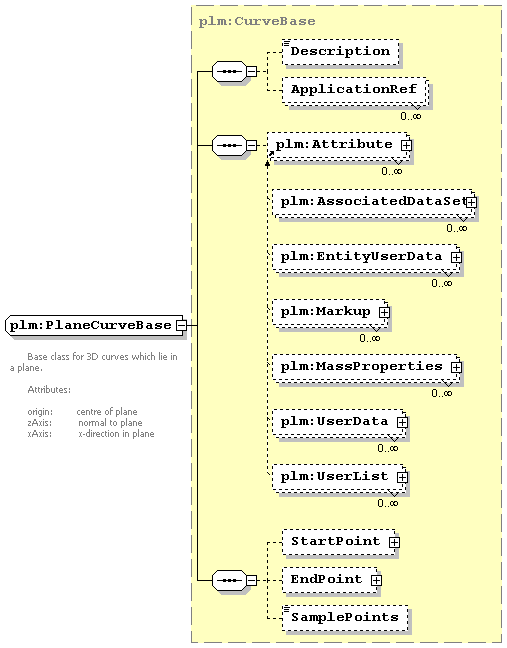

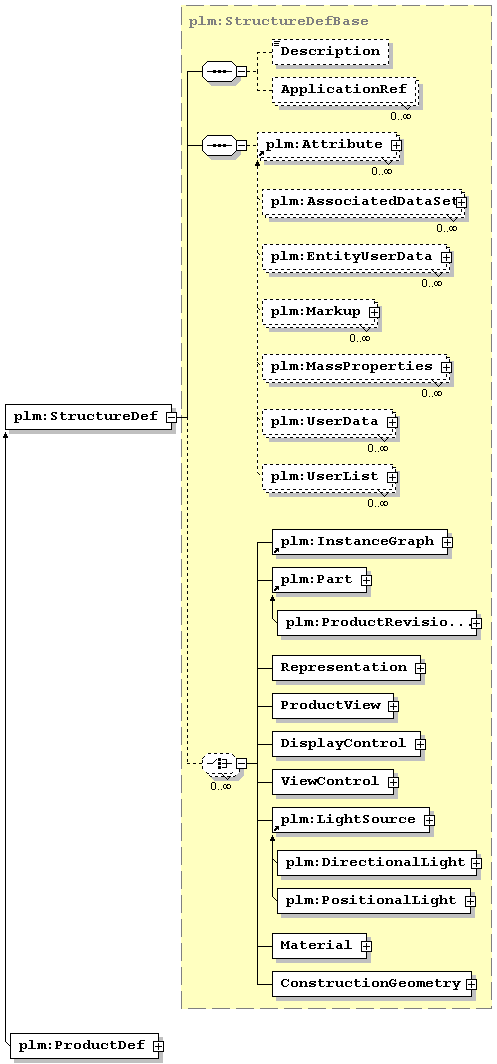

StructureDef  PlaneCurveBase

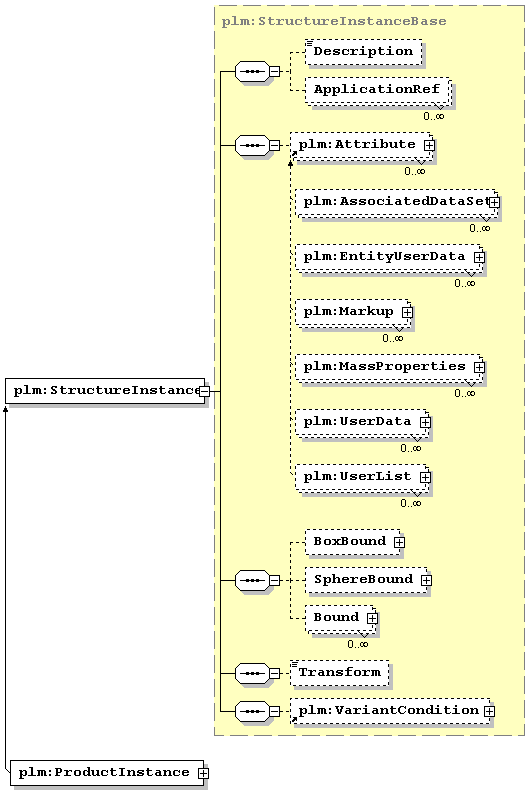

StructureInstance  PlaneType

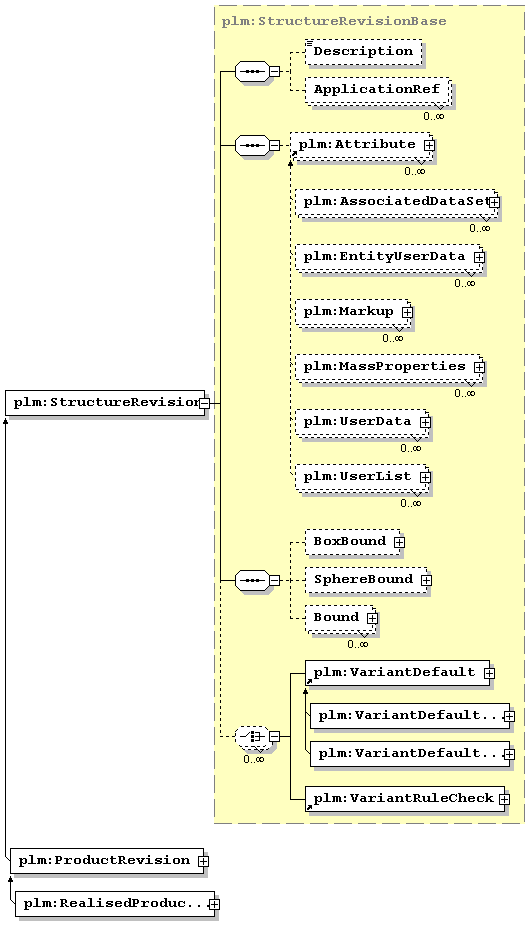

StructureRevision  PLMXMLType

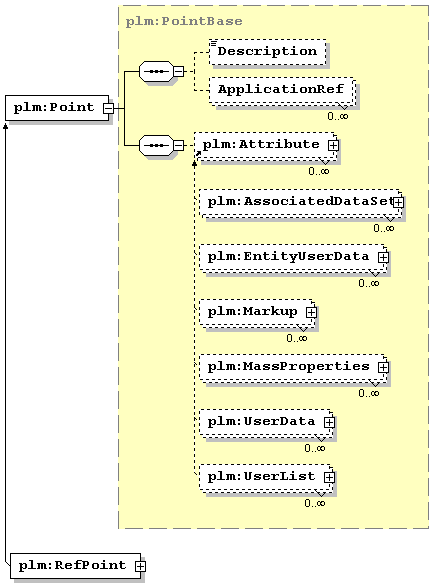

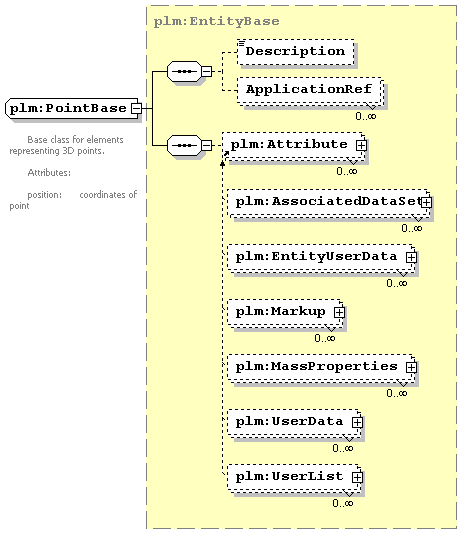

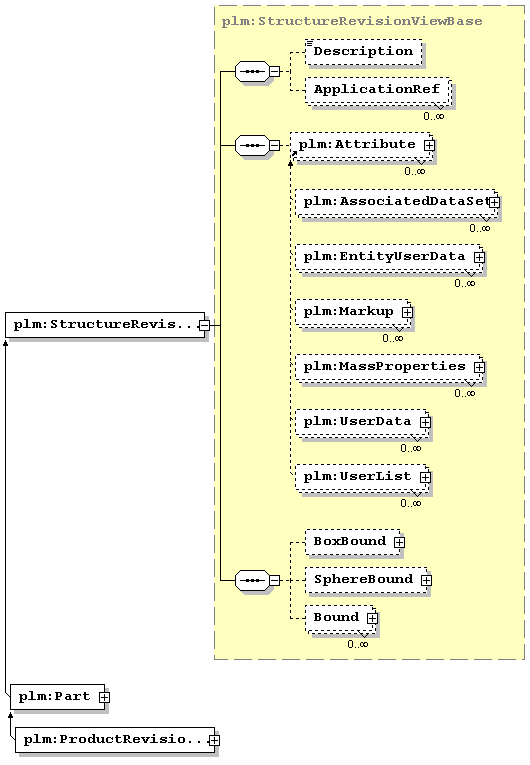

StructureRevisionView  PointBase

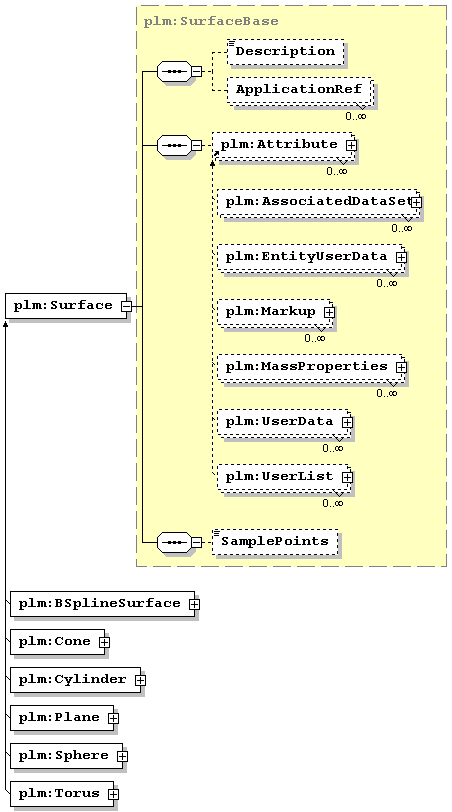

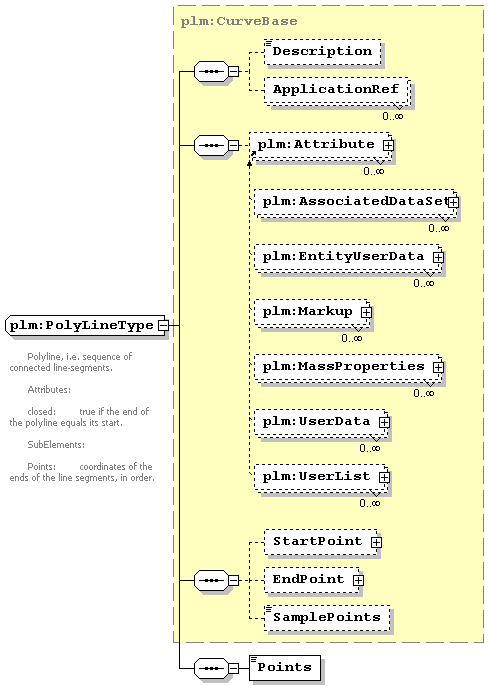

Surface  PolyLineType

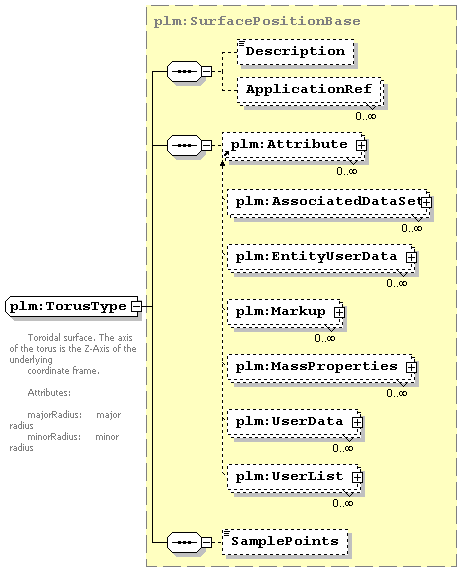

Torus  PositionalLightType
Unit  PositionType
User  ProductDefType

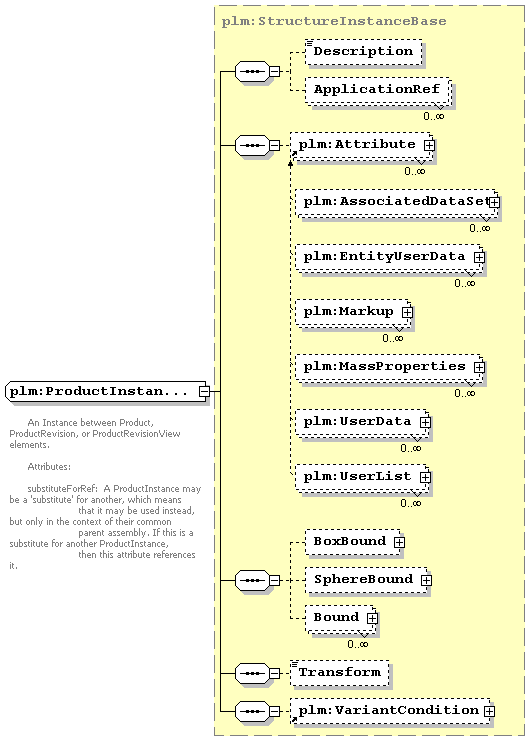

UserData  ProductInstanceType

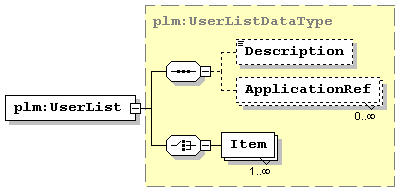

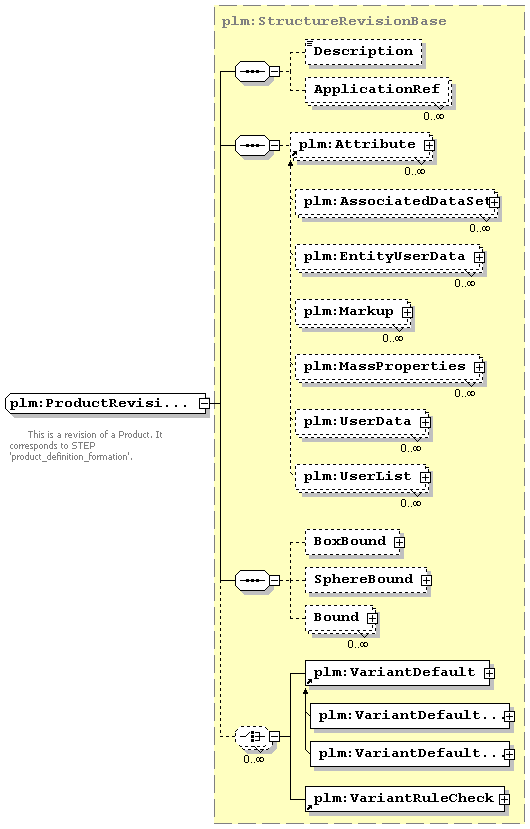

UserList  ProductRevisionType
VariantCondition  ProductRevisionViewType

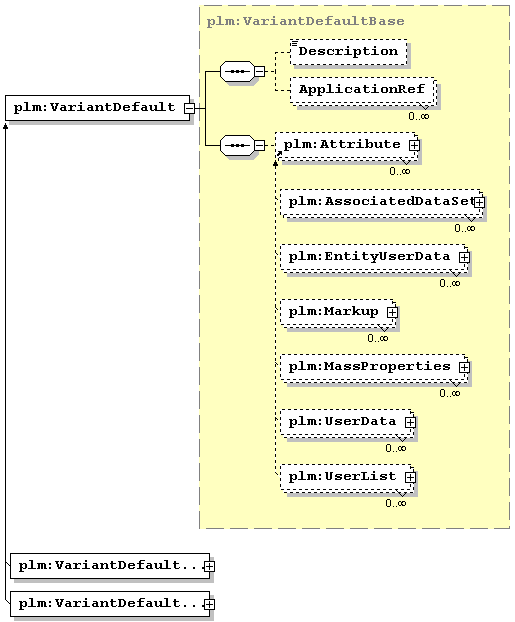

VariantDefault  ProductsOfInertiaType

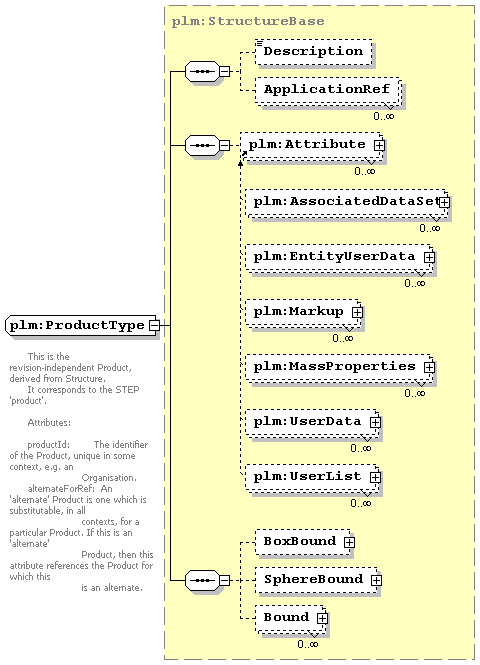

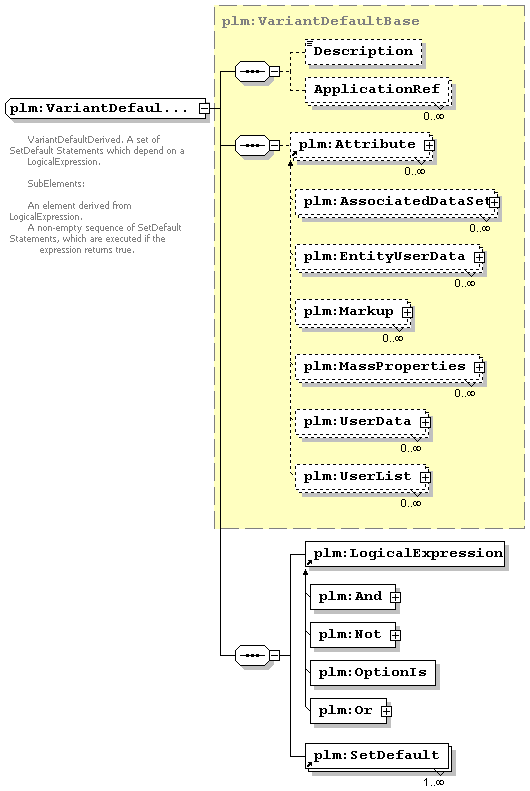

VariantDefaultDerived  ProductType

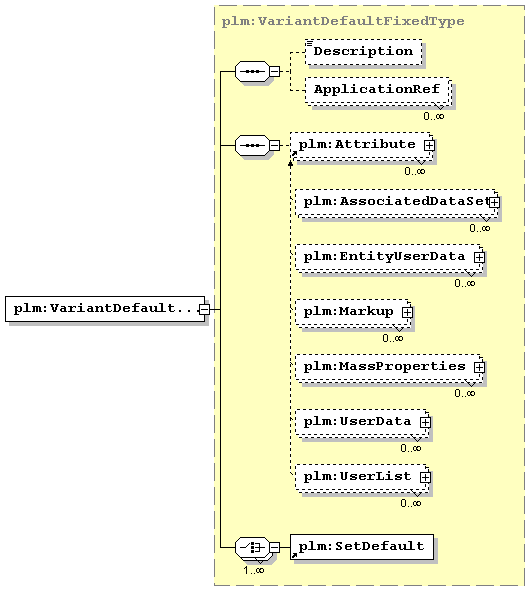

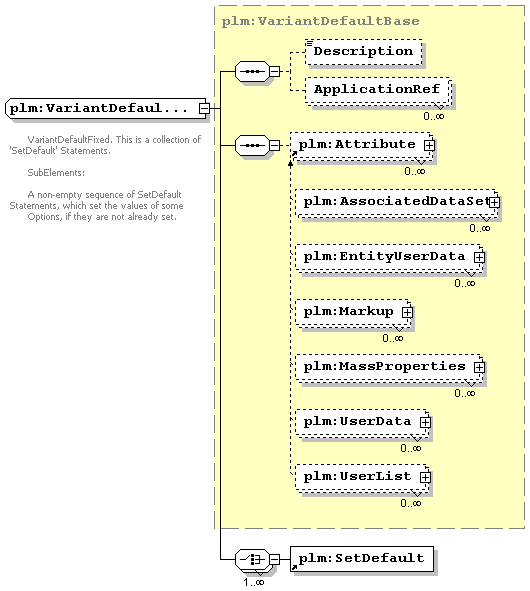

VariantDefaultFixed  ProductViewType

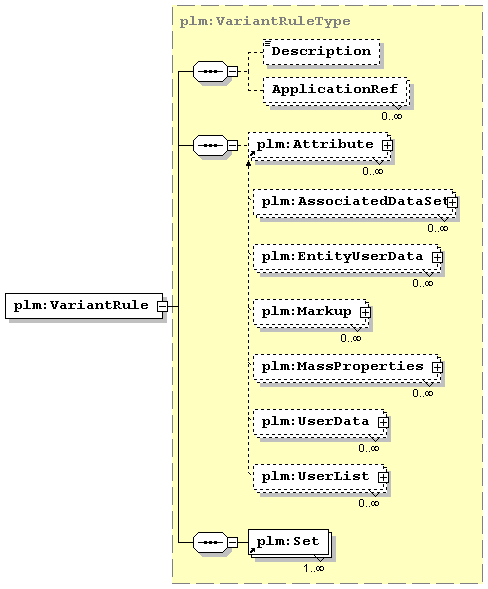

VariantRule  PropertiesBase

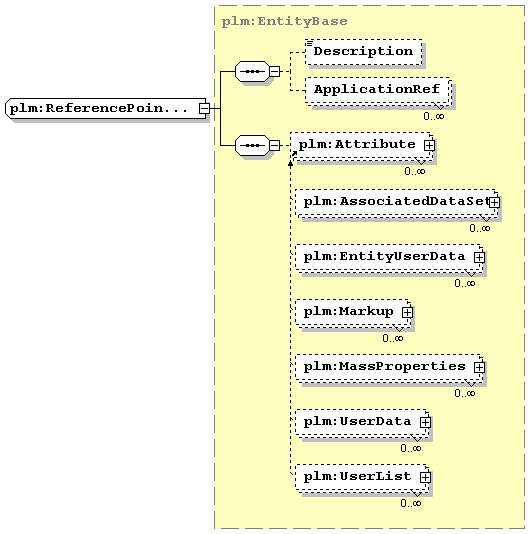

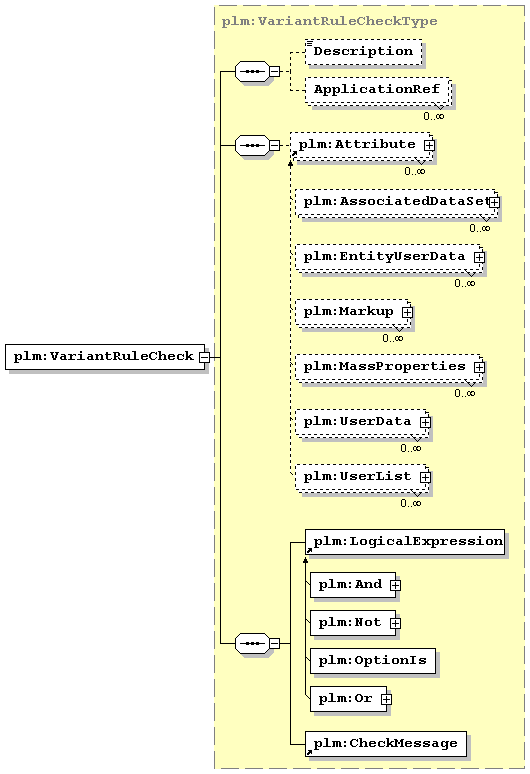

VariantRuleCheck  ReferencePointType

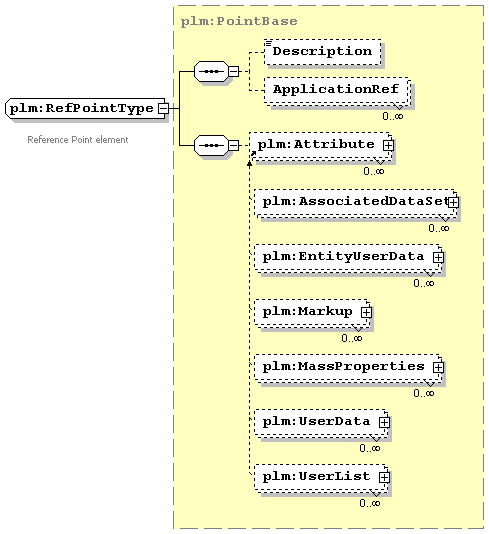

View  RefPointType
WarnMessage  ReleaseStatusType

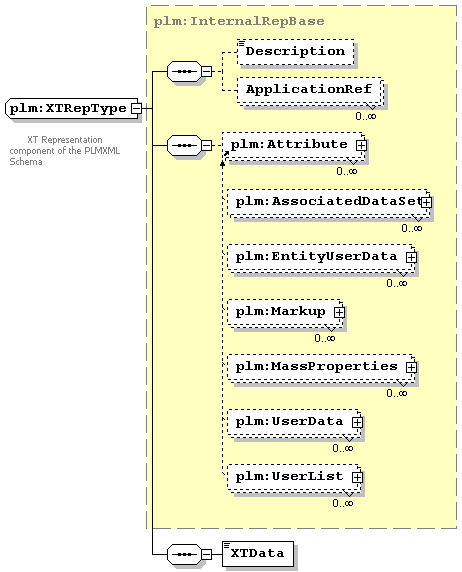

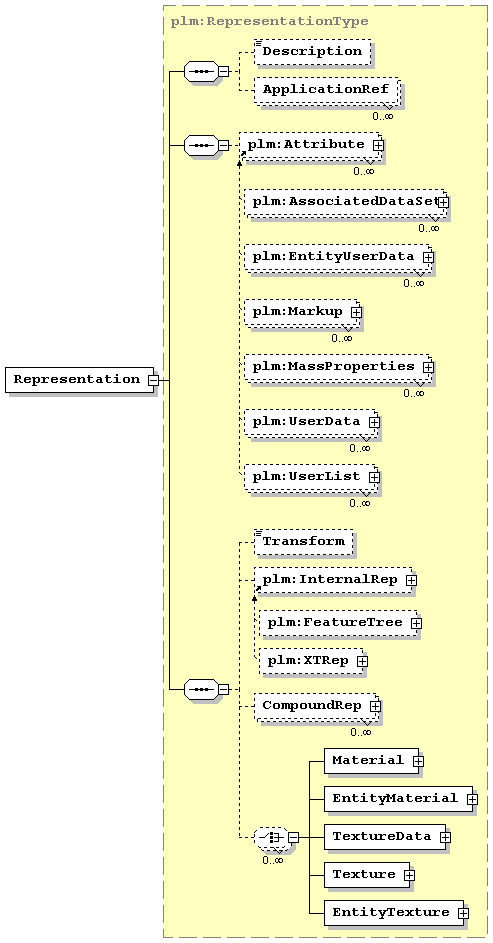

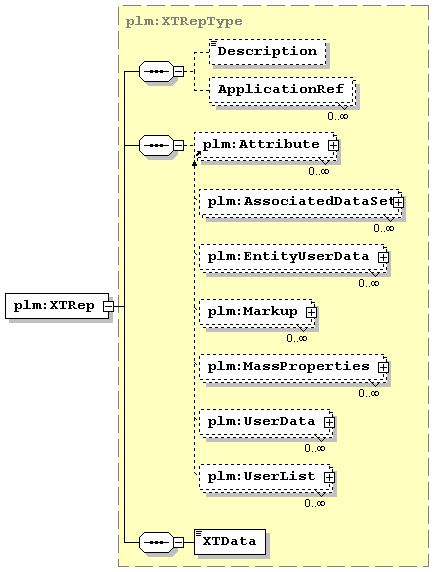

XTRep  RepresentationType

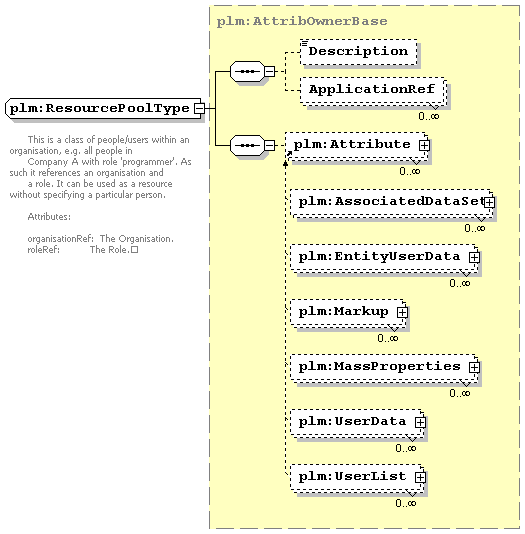

Zone  ResourcePoolType

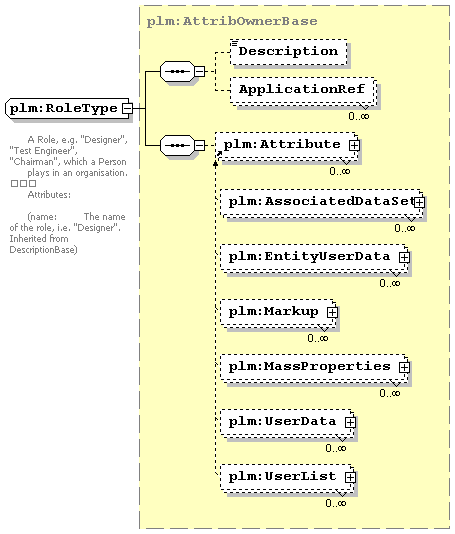

RoleType
SamplePointsType
SchemaInfoType

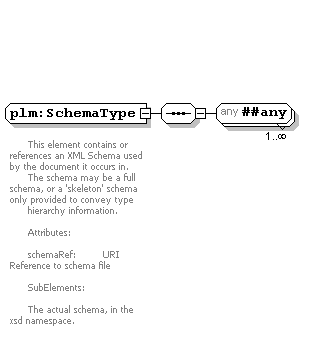

SchemaType
SerialNumberEffectivityType
SetDefaultType
SetType
SiteType

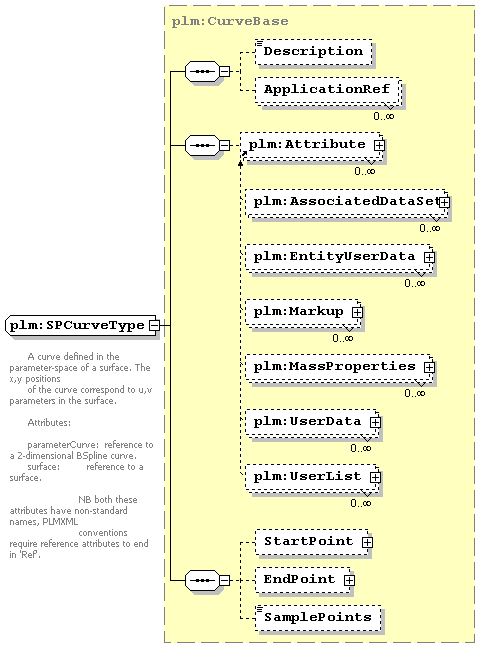

SPCurveType

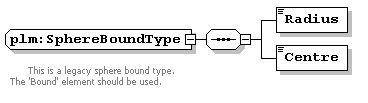

SphereBoundType
SphereType
StatementBase

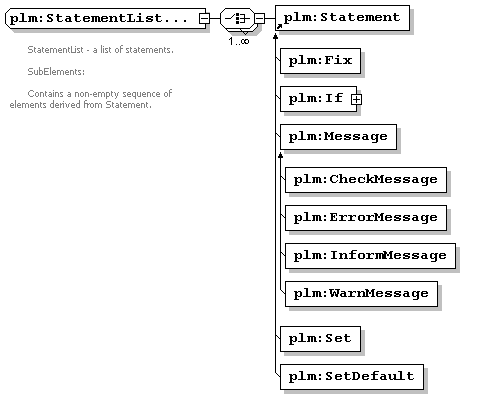

StatementListType
StatusBase

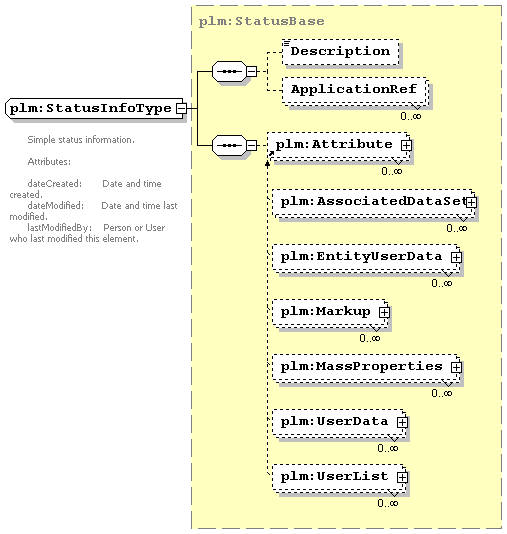

StatusInfoType
StructureBase
StructureDefBase
StructureInstanceBase
StructureRevisionBase

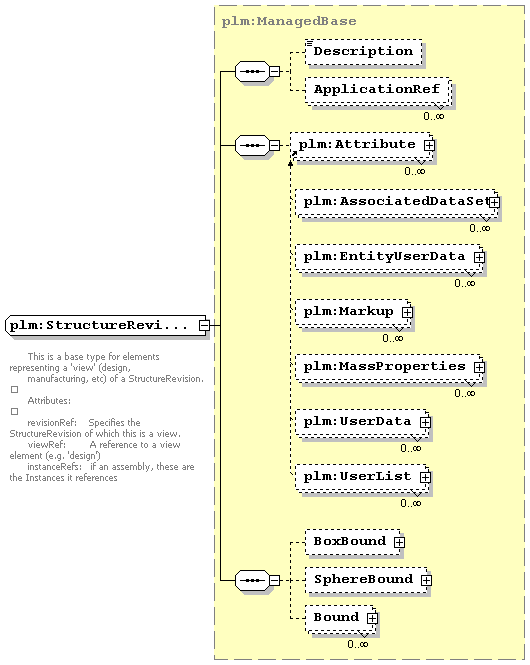

StructureRevisionViewBase

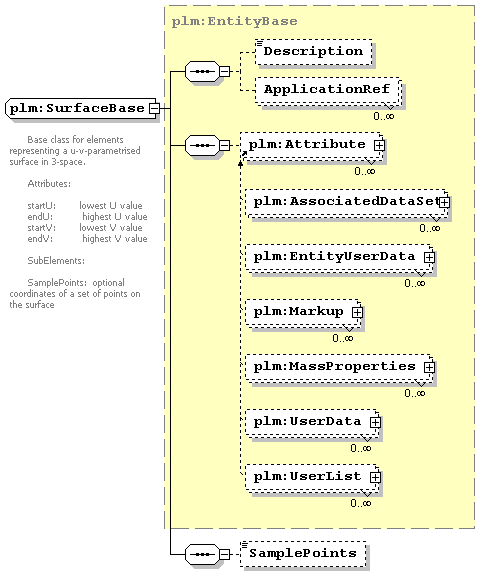

SurfaceBase

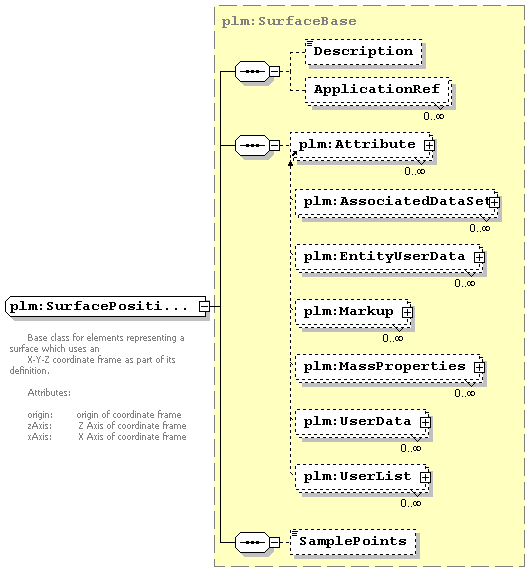

SurfacePositionBase
Texture1DDataType
Texture1DType
Texture2DDataType
Texture2DType
TextureCoordType

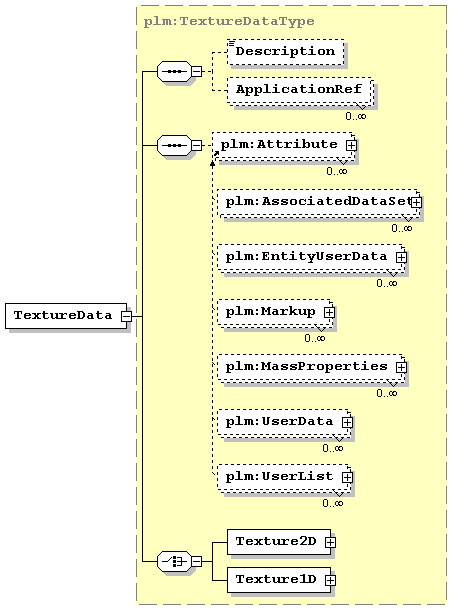

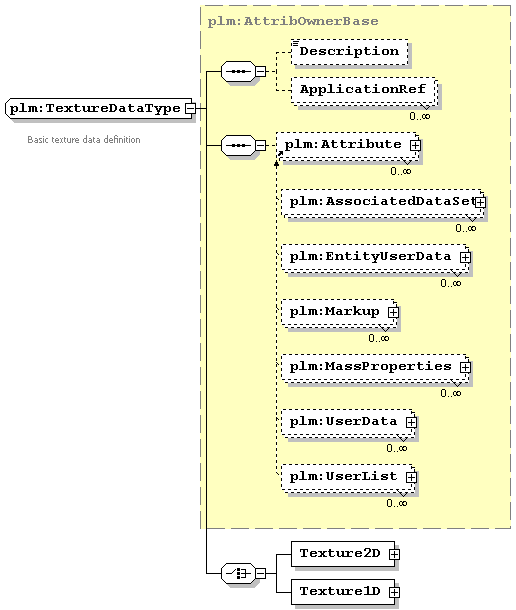

TextureDataType

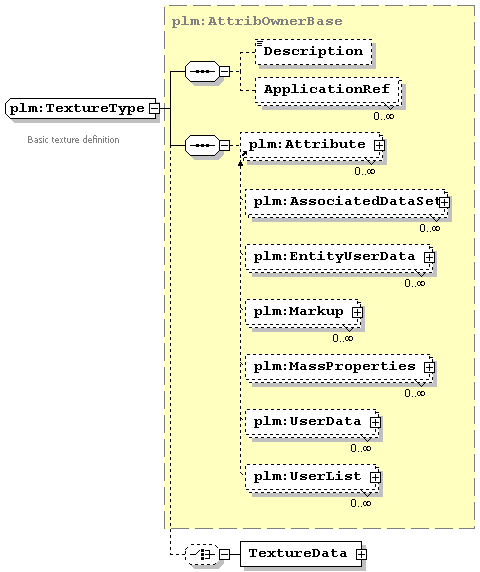

TextureType
TorusType
TransformType
UnitComponentType

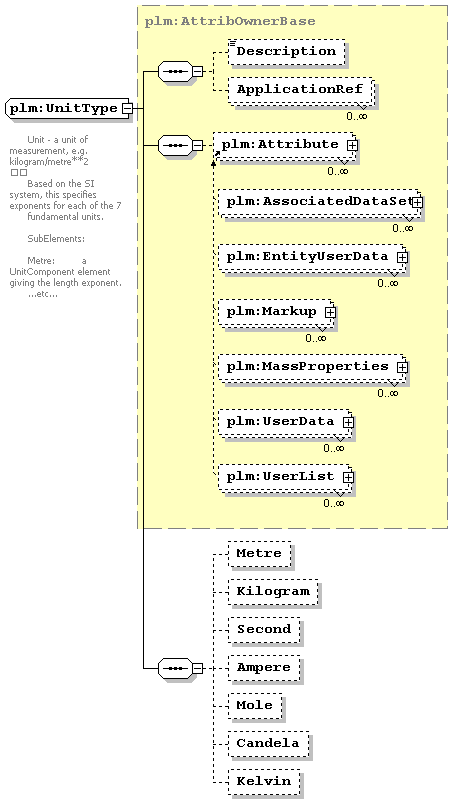

UnitType
UserDataElementType
UserDataType
UserEnumDataType

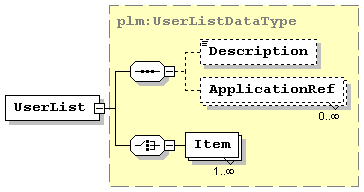

UserListDataType
UserListElementType

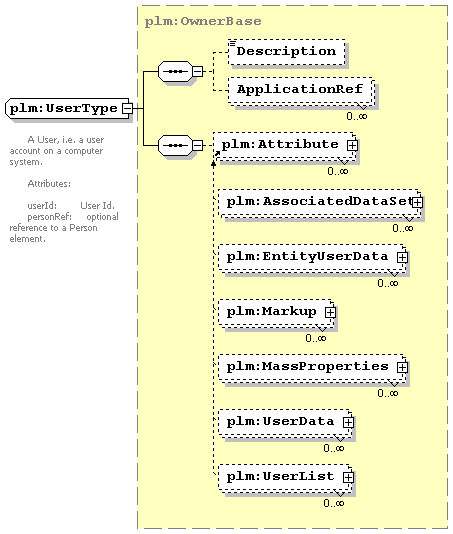

UserType
VariantConditionType
VariantDefaultBase
VariantDefaultDerivedType
VariantDefaultFixedType

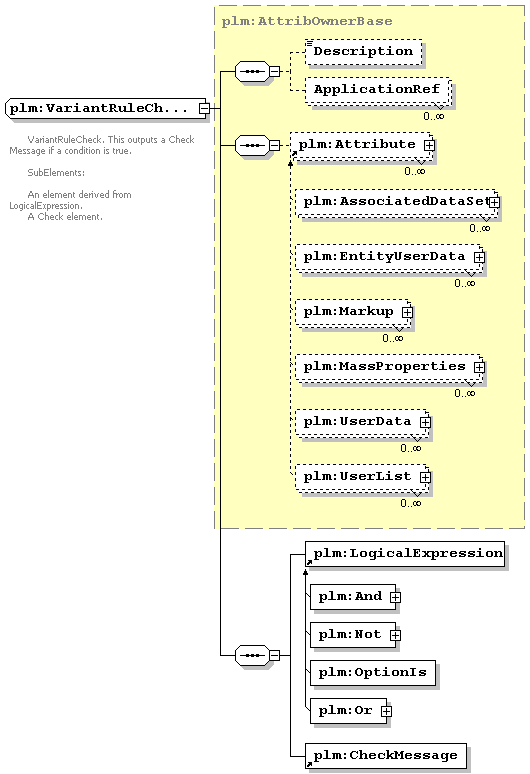

VariantRuleCheckType

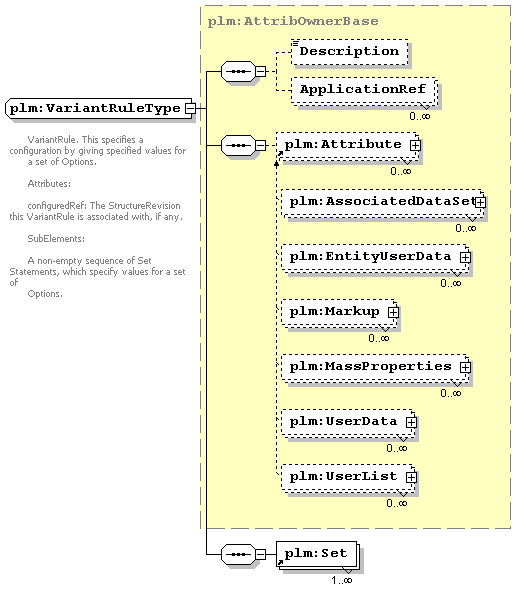

VariantRuleType
ViewControlType
ViewPortType

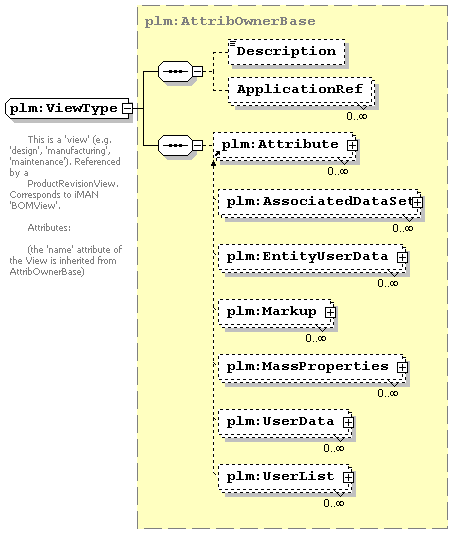

ViewType
VolumeType
WarnMessageType
XTRepType
ZoneBase


schema location:  E:\vss\products\sdk\plmxml\schemas\PLMXMLMROSchema.xsd
targetNamespace:  http://www.plmxml.org/Schemas/PLMXMLSchema

Elements  Complex types  Simple types

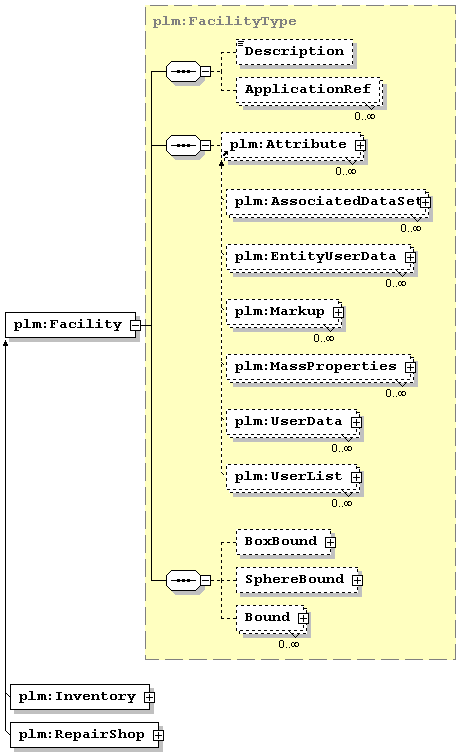

Facility  FacilityType  RealisedProductTraceableType

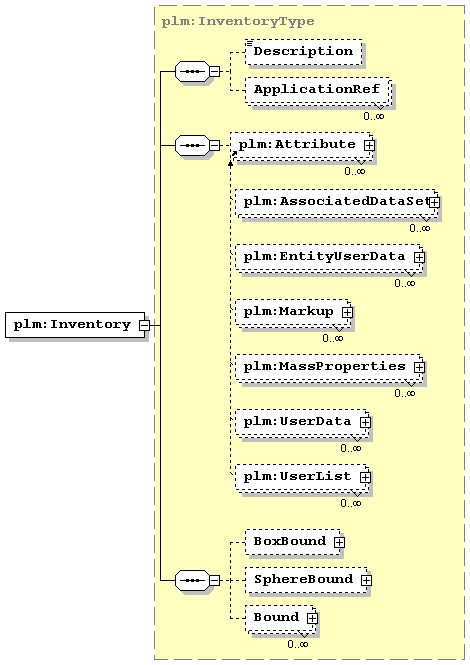

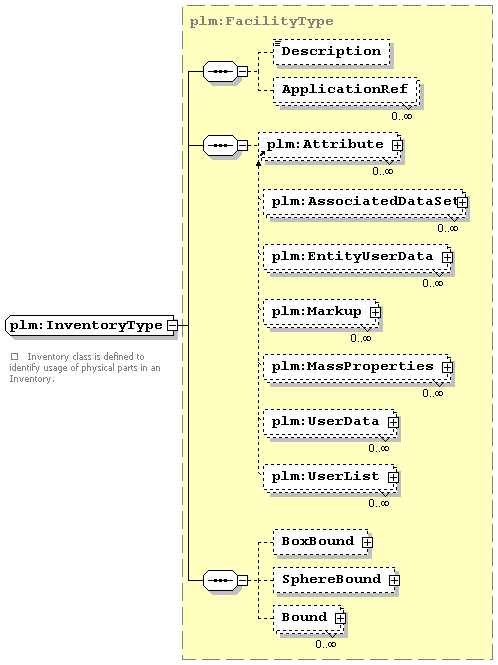

Inventory  InventoryType

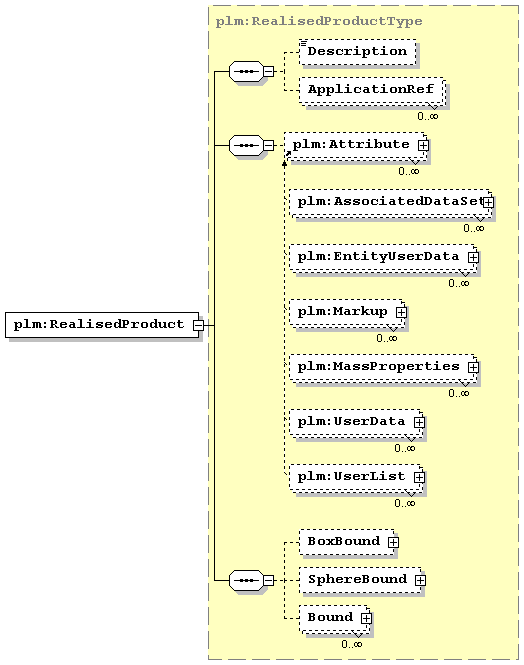

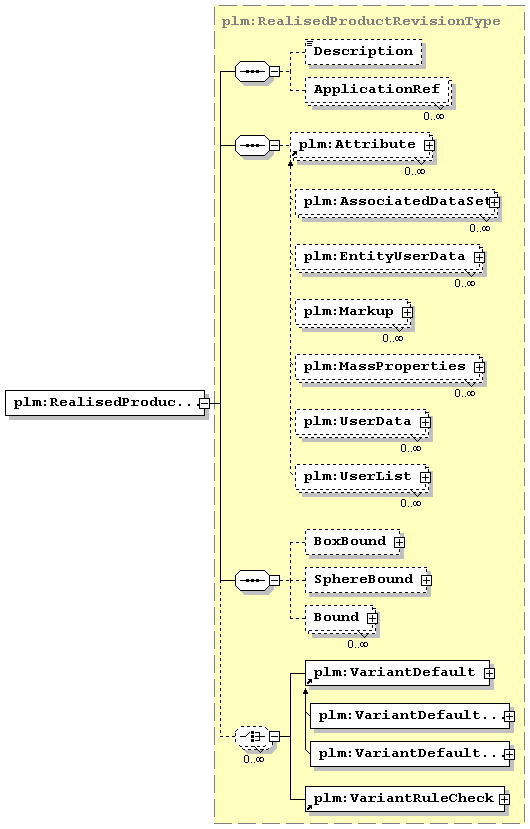

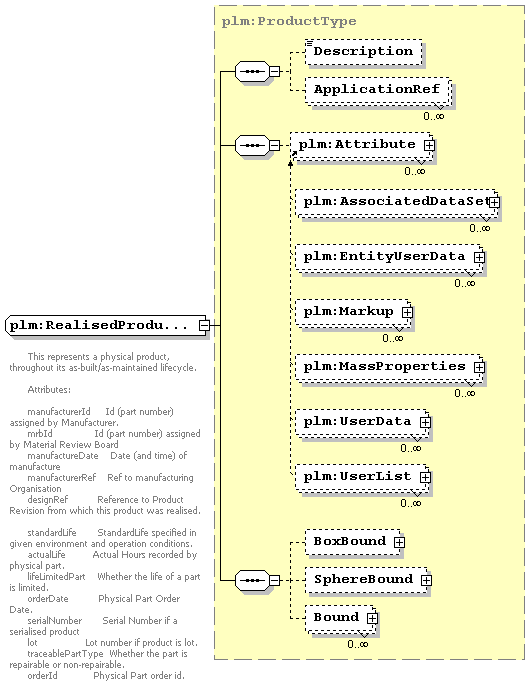

RealisedProduct  RealisedProductRevisionType
RealisedProductRevision  RealisedProductType

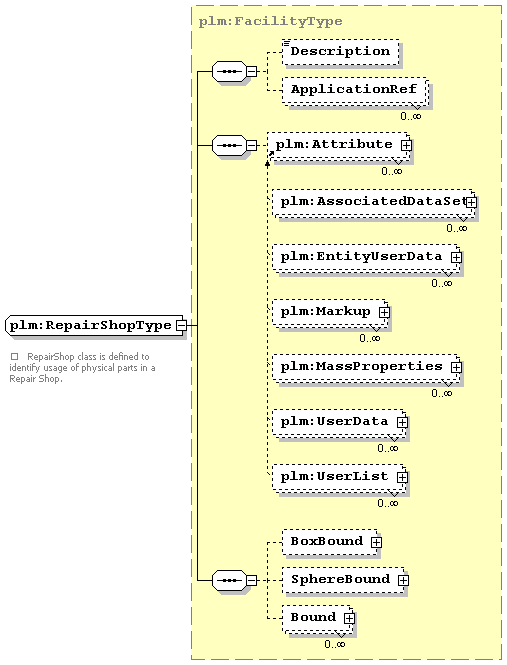

RepairShop  RepairShopType


schema location:  E:\vss\products\sdk\plmxml\schemas\PLMXMLDeltaSchema.xsd
targetNamespace:  http://www.plmxml.org/Schemas/PLMXMLSchema

Elements  Complex types  Simple types

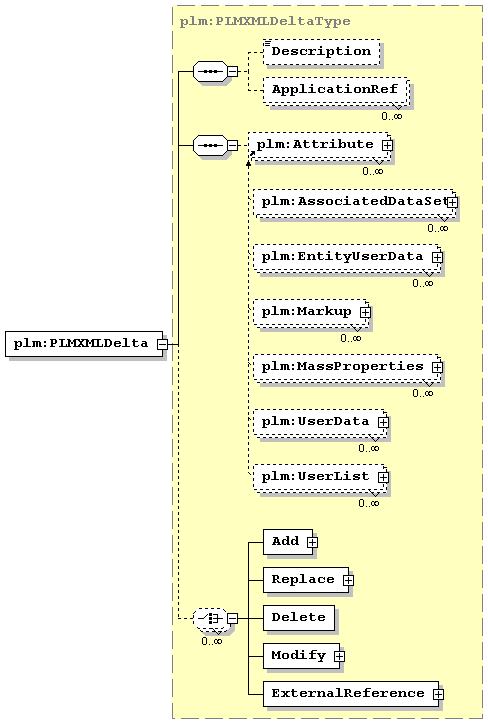

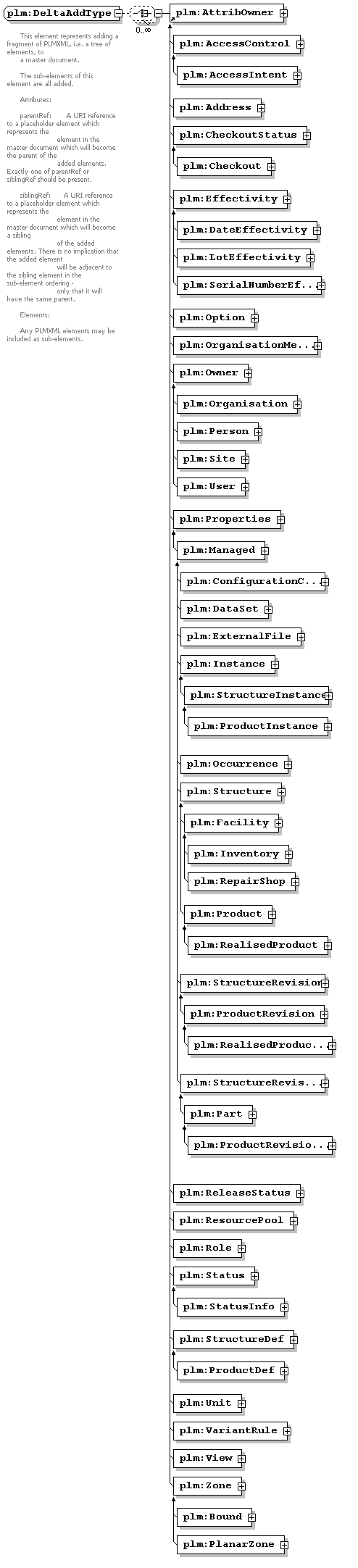

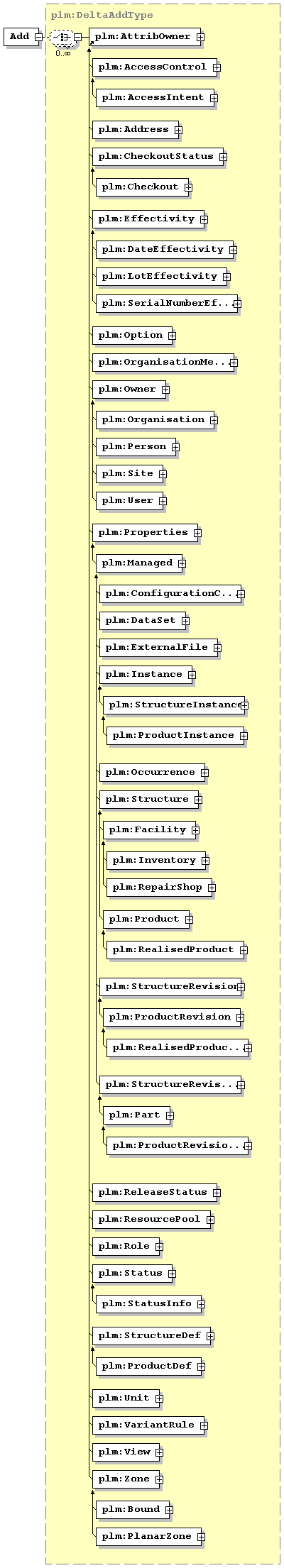

PLMXMLDelta  DeltaAddType  DeltaModifyOpType

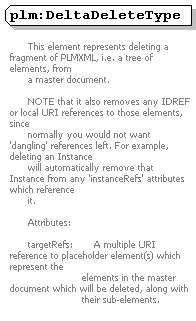

DeltaDeleteType

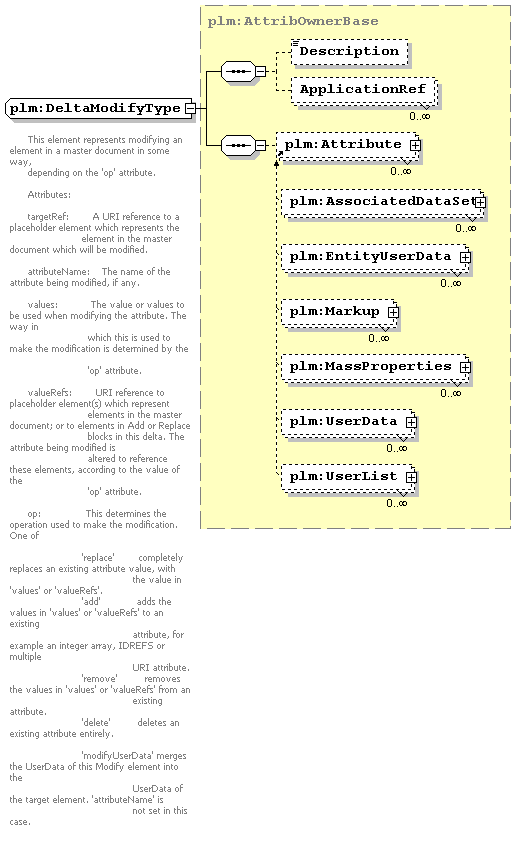

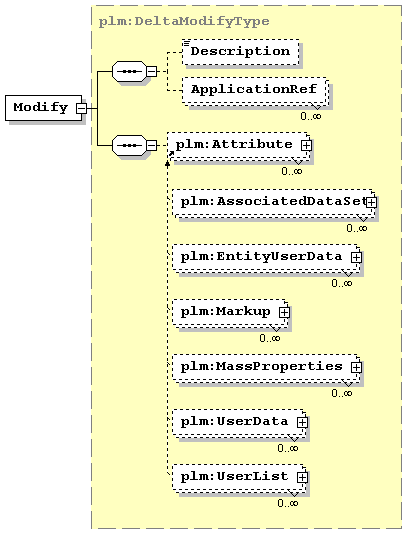

DeltaModifyType

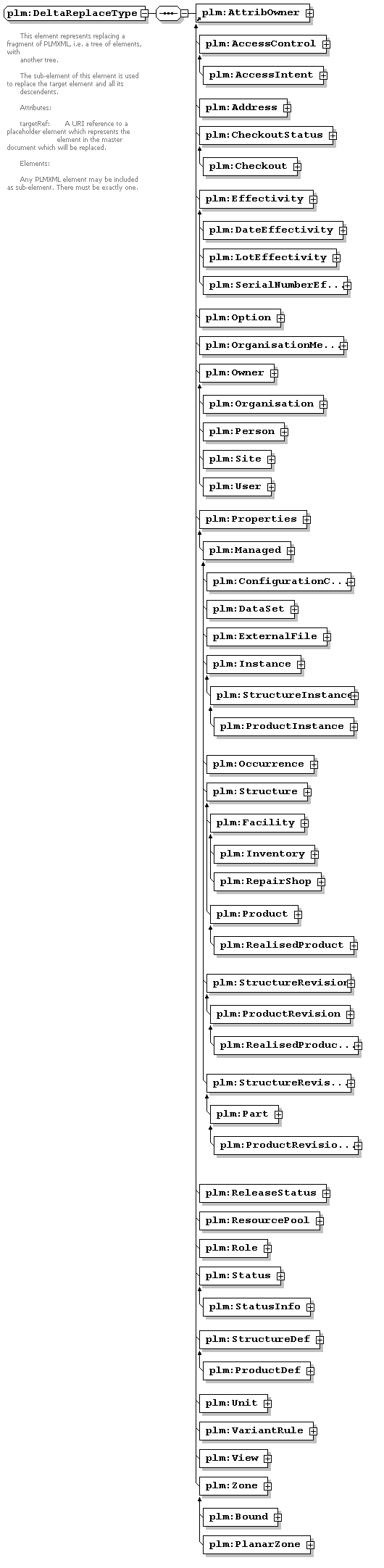

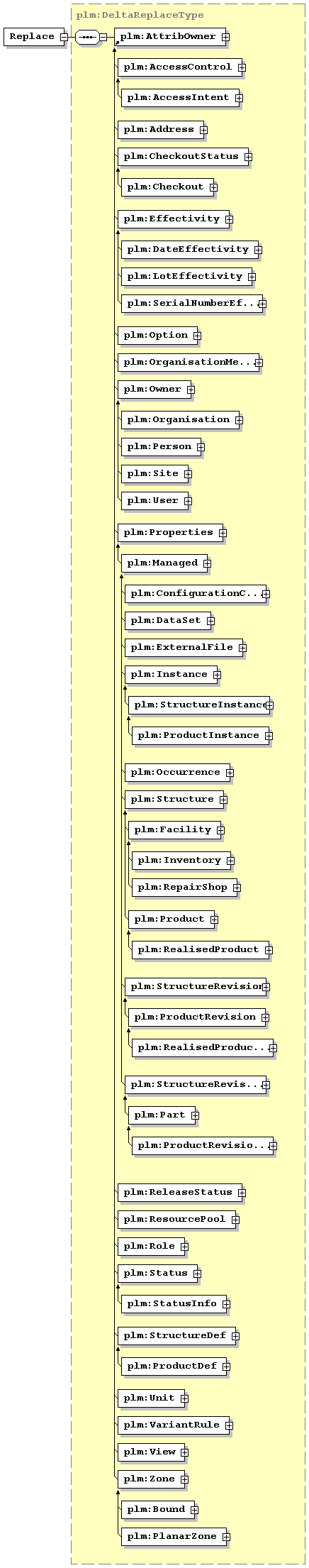

DeltaReplaceType

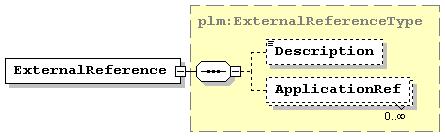

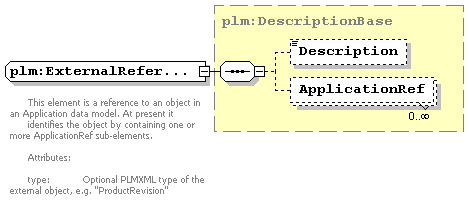

ExternalReferenceType
PLMXMLDeltaType

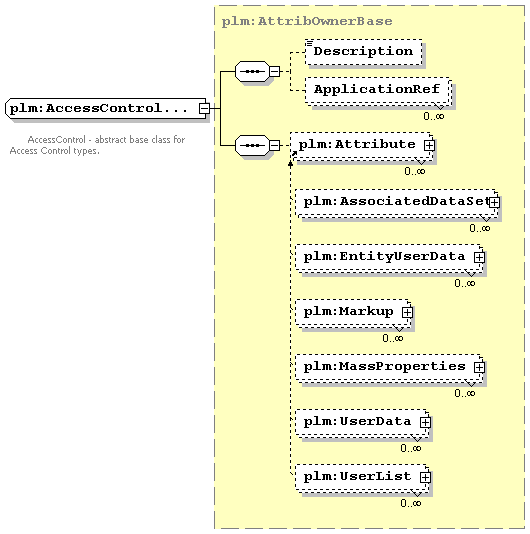

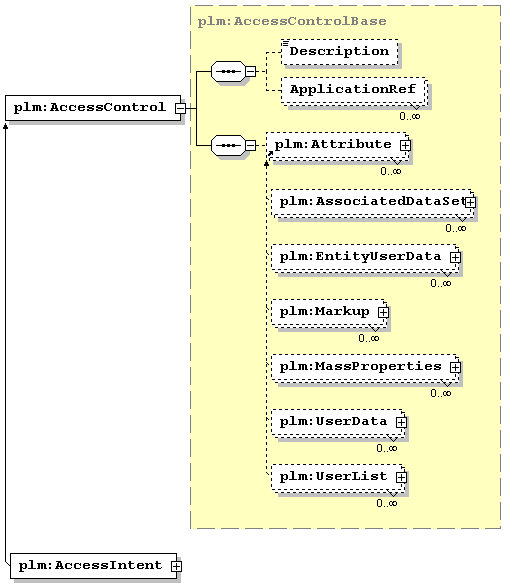

element plm:AccessControl
diagram
namespace http://www.plmxml.org/Schemas/PLMXMLSchema
type plm:AccessControlBase
children Description ApplicationRef plm:Attribute
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID  optional
name  xsd:string  optional
attributeRefs  xsd:IDREFS  optional
source
<xsd:element name="AccessControl" type="plm:AccessControlBase" substitutionGroup="plm:AttribOwner"/>

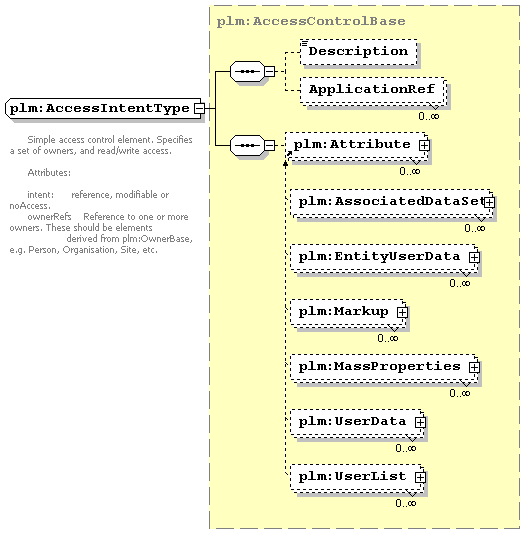

element plm:AccessIntent
diagram
namespace http://www.plmxml.org/Schemas/PLMXMLSchema
type plm:AccessIntentType
children Description ApplicationRef plm:Attribute
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID  optional
name  xsd:string  optional
attributeRefs  xsd:IDREFS  optional
ownerRefs  plm:uriReferenceListType  optional
intent  plm:AccessIntentEnum    modifiable
source
<xsd:element name="AccessIntent" type="plm:AccessIntentType" substitutionGroup="plm:AccessControl"/>

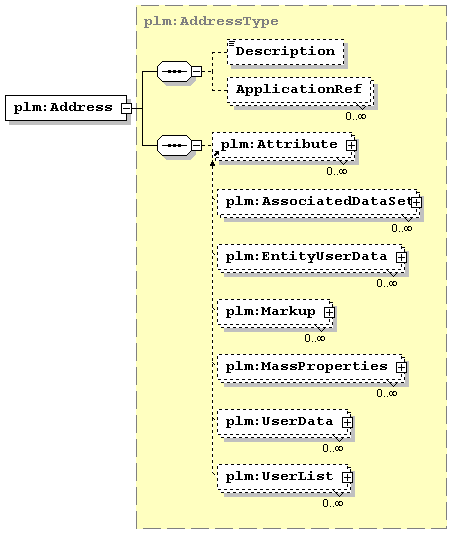

element plm:Address
diagram
namespace http://www.plmxml.org/Schemas/PLMXMLSchema
type plm:AddressType
children Description ApplicationRef plm:Attribute
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID  optional
name  xsd:string  optional
attributeRefs  xsd:IDREFS  optional
internalLocation  xsd:string  optional
streetNumber  xsd:string  optional
street  xsd:string  optional
town  xsd:string  optional
region  xsd:string  optional
postalCode  xsd:string  optional
country  xsd:string  optional
emailAddress  xsd:string  optional
telephone  xsd:string  optional
source
<xsd:element name="Address" type="plm:AddressType" substitutionGroup="plm:AttribOwner"/>

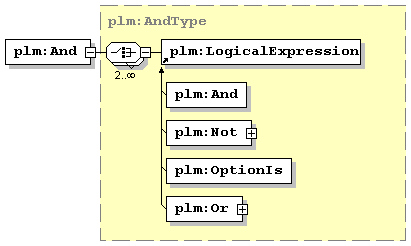

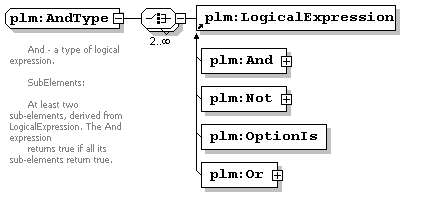

element plm:And
diagram
namespace http://www.plmxml.org/Schemas/PLMXMLSchema
type plm:AndType
children plm:LogicalExpression
source
<xsd:element name="And" type="plm:AndType" substitutionGroup="plm:LogicalExpression"/>

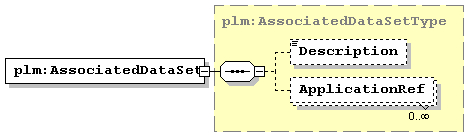

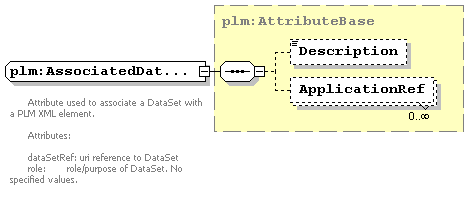

element plm:AssociatedDataSet
diagram
namespace http://www.plmxml.org/Schemas/PLMXMLSchema
type plm:AssociatedDataSetType
children Description ApplicationRef
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID  optional
name  xsd:string  optional
dataSetRef  plm:anyURIType  required
role  xsd:string  required
source
<xsd:element name="AssociatedDataSet" type="plm:AssociatedDataSetType" substitutionGroup="plm:Attribute"/>

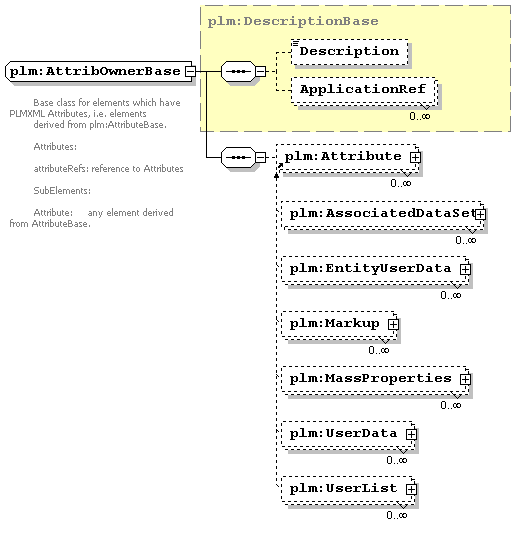

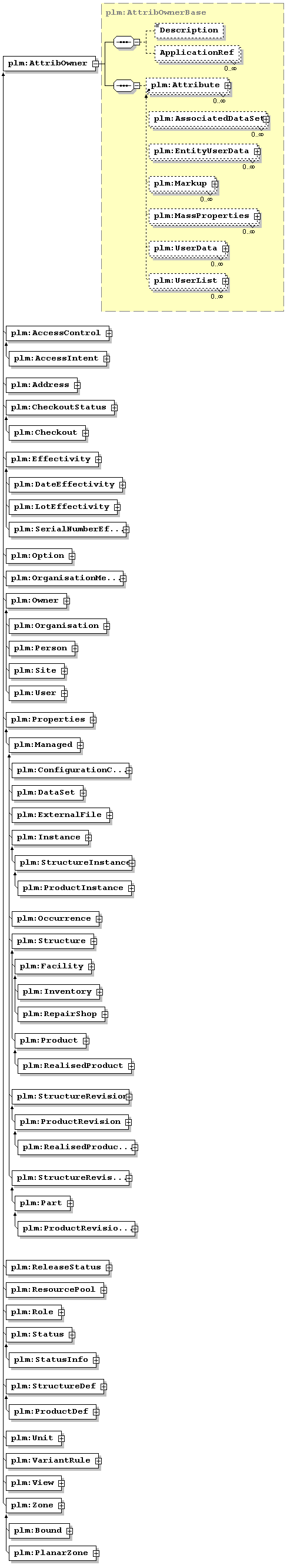

element plm:AttribOwner
diagram
namespace http://www.plmxml.org/Schemas/PLMXMLSchema
type plm:AttribOwnerBase
children Description ApplicationRef plm:Attribute
used by
complexTypes plm:DeltaAddType plm:DeltaReplaceType plm:PLMXMLType
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID  optional
name  xsd:string  optional
attributeRefs  xsd:IDREFS  optional
source
<xsd:element name="AttribOwner" type="plm:AttribOwnerBase"/>

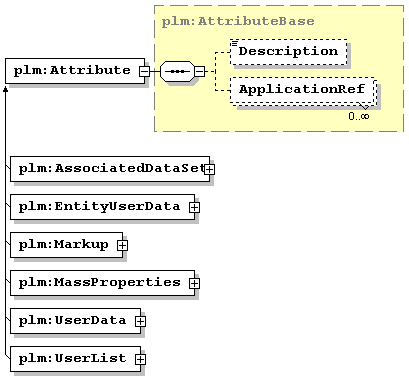

element plm:Attribute

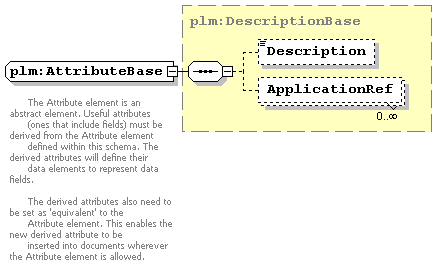

diagram
namespace http://www.plmxml.org/Schemas/PLMXMLSchema
type plm:AttributeBase
children Description ApplicationRef
used by
complexType plm:AttribOwnerBase
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID  optional
name  xsd:string  optional
source
<xsd:element name="Attribute" type="plm:AttributeBase"/>

element plm:AttributeClass
diagram
namespace http://www.plmxml.org/Schemas/PLMXMLSchema
type plm:AttributeClassBase
attributes
Name  Type  Use  Default  Fixed  Annotation
name  plm:AttributeClassType  required
source
<xsd:element name="AttributeClass" type="plm:AttributeClassBase"/>

element plm:AttributeLegalOwner
diagram
namespace http://www.plmxml.org/Schemas/PLMXMLSchema
type plm:AttributeLegalOwnerType
attributes
Name  Type  Use  Default  Fixed  Annotation
name  plm:AttributeOwnerType  required
source
<xsd:element name="AttributeLegalOwner" type="plm:AttributeLegalOwnerType"/>

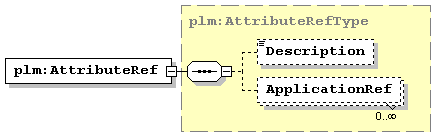

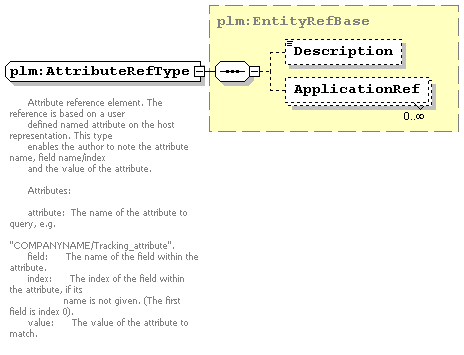

element plm:AttributeRef
diagram
namespace http://www.plmxml.org/Schemas/PLMXMLSchema
type plm:AttributeRefType
children Description ApplicationRef
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID  optional
name  xsd:string  optional
contextRef  plm:anyURIType  optional
select  plm:RefSelectType    single
attribute  xsd:string  required
field  xsd:string  optional
index  xsd:integer  optional
value  xsd:string  required
source
<xsd:element name="AttributeRef" type="plm:AttributeRefType" substitutionGroup="plm:EntityRef"/>

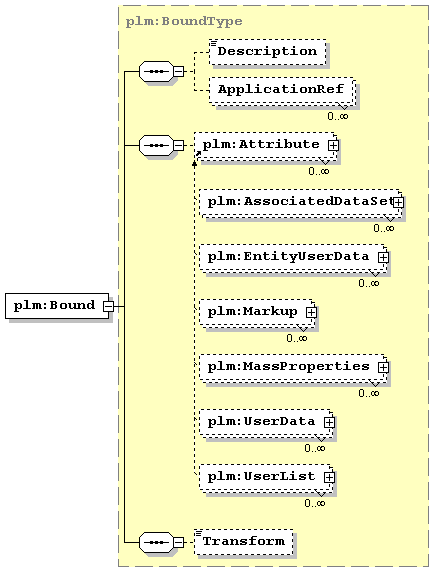

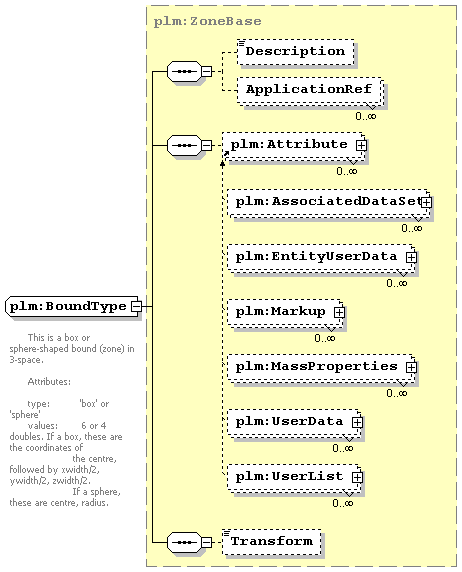

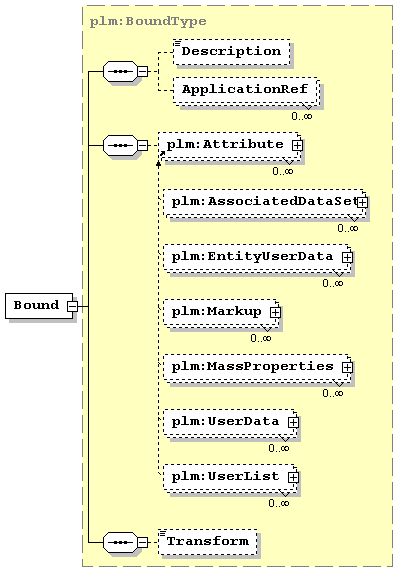

element plm:Bound
diagram
namespace http://www.plmxml.org/Schemas/PLMXMLSchema
type plm:BoundType
children Description ApplicationRef plm:Attribute Transform
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID  optional
name  xsd:string  optional
attributeRefs  xsd:IDREFS  optional
transformRef  xsd:IDREF  optional
type  plm:BoundingType    box
values  plm:DoubleListType  required
source
<xsd:element name="Bound" type="plm:BoundType" substitutionGroup="plm:Zone"/>

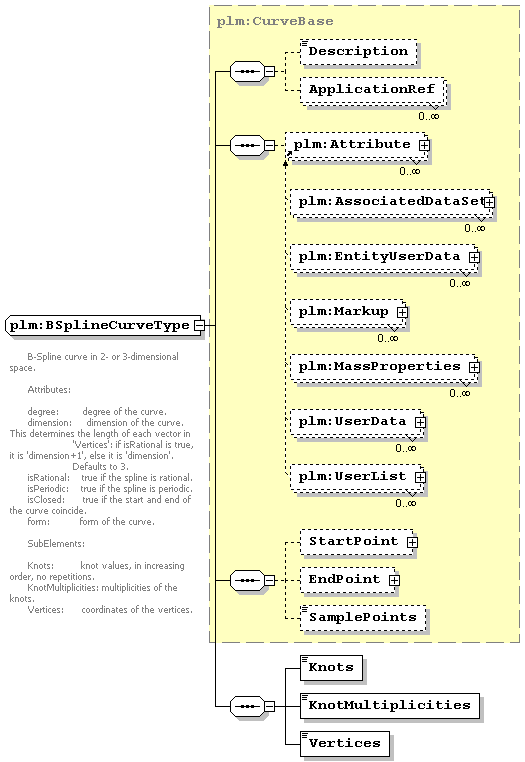

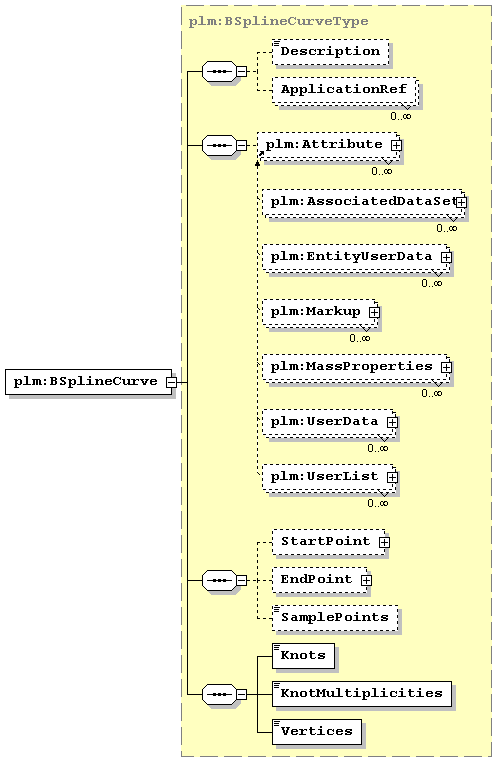

element plm:BSplineCurve
diagram
namespace http://www.plmxml.org/Schemas/PLMXMLSchema
type plm:BSplineCurveType

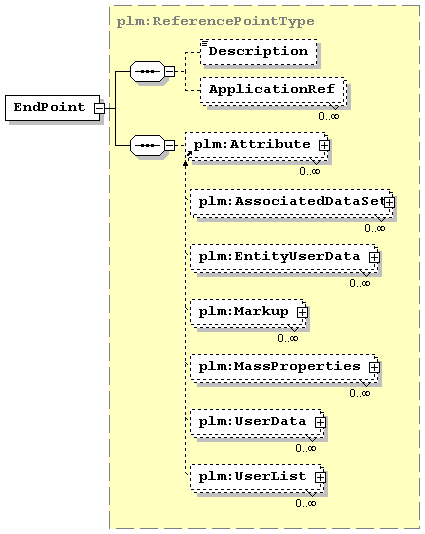

children Description ApplicationRef plm:Attribute StartPoint EndPoint SamplePoints Knots KnotMultiplicities Vertices
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID  optional
name  xsd:string  optional
attributeRefs  xsd:IDREFS  optional
entityRef  plm:anyURIType  optional
startT  xsd:double  optional
endT  xsd:double  optional
degree  xsd:positiveInteger  required
dimension  plm:SplineDimensionType    3
isRational  xsd:boolean  required
isPeriodic  xsd:boolean  required
isClosed  xsd:boolean  required
form  plm:SplineCurveFormType    unknown
source
<xsd:element name="BSplineCurve" type="plm:BSplineCurveType" substitutionGroup="plm:Curve"/>

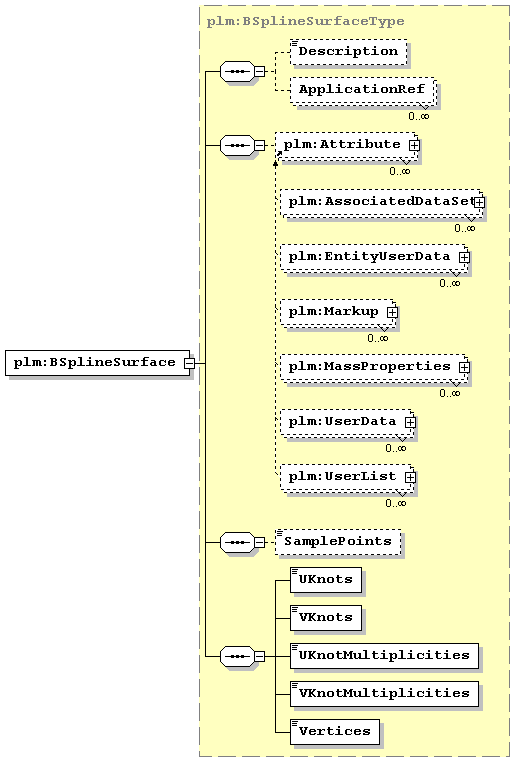

element plm:BSplineSurface
diagram
namespace http://www.plmxml.org/Schemas/PLMXMLSchema
type plm:BSplineSurfaceType
children Description ApplicationRef plm:Attribute SamplePoints UKnots VKnots UKnotMultiplicities VKnotMultiplicities Vertices
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID  optional
name  xsd:string  optional
attributeRefs  xsd:IDREFS  optional
entityRef  plm:anyURIType  optional
startU  xsd:double  optional
endU  xsd:double  optional
startV  xsd:double  optional
endV  xsd:double  optional
dimension  plm:SplineDimensionType    3
numberOfUVertices  xsd:positiveInteger  required
numberOfVVertices  xsd:positiveInteger  required
uDegree  xsd:positiveInteger  required
vDegree  xsd:positiveInteger  required
isRational  xsd:boolean  required
isUPeriodic  xsd:boolean  required
isVPeriodic  xsd:boolean  required
isUClosed  xsd:boolean  required
isVClosed  xsd:boolean  required
source
<xsd:element name="BSplineSurface" type="plm:BSplineSurfaceType" substitutionGroup="plm:Surface"/>

element plm:CheckMessage
diagram
namespace http://www.plmxml.org/Schemas/PLMXMLSchema
type plm:CheckMessageType
used by
complexType plm:VariantRuleCheckType
attributes
Name  Type  Use  Default  Fixed  Annotation
message  xsd:string  required
source
<xsd:element name="CheckMessage" type="plm:CheckMessageType" substitutionGroup="plm:Message"/>

element plm:Checkout
diagram
namespace http://www.plmxml.org/Schemas/PLMXMLSchema
type plm:CheckoutType
children Description ApplicationRef plm:Attribute
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID  optional
name  xsd:string  optional
attributeRefs  xsd:IDREFS  optional
date  xsd:dateTime  optional
by  plm:anyURIType  optional
source
<xsd:element name="Checkout" type="plm:CheckoutType" substitutionGroup="plm:CheckoutStatus"/>

element plm:CheckoutStatus
diagram
namespace http://www.plmxml.org/Schemas/PLMXMLSchema
type plm:CheckoutStatusBase
children Description ApplicationRef plm:Attribute
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID  optional
name  xsd:string  optional
attributeRefs  xsd:IDREFS  optional
source
<xsd:element name="CheckoutStatus" type="plm:CheckoutStatusBase" substitutionGroup="plm:AttribOwner"/>

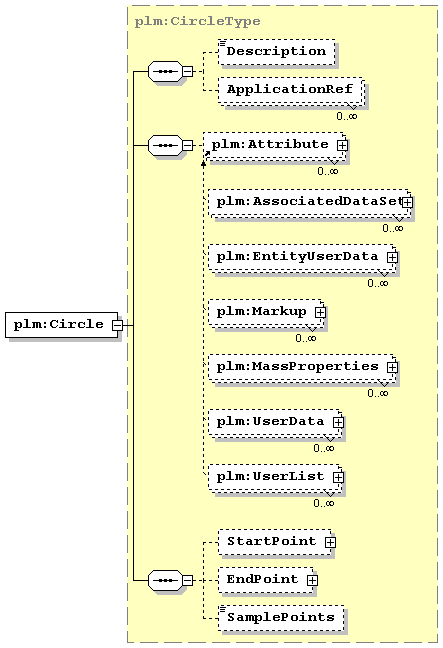

element plm:Circle
diagram
namespace http://www.plmxml.org/Schemas/PLMXMLSchema
type plm:CircleType
children Description ApplicationRef plm:Attribute StartPoint EndPoint SamplePoints
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID  optional
name  xsd:string  optional
attributeRefs  xsd:IDREFS  optional
entityRef  plm:anyURIType  optional
startT  xsd:double  optional
endT  xsd:double  optional
origin  plm:VectorType    0 0 0
zAxis  plm:DirectionType    0 0 1
xAxis  plm:DirectionType    1 0 0
radius  xsd:double  required
source
<xsd:element name="Circle" type="plm:CircleType" substitutionGroup="plm:Curve"/>

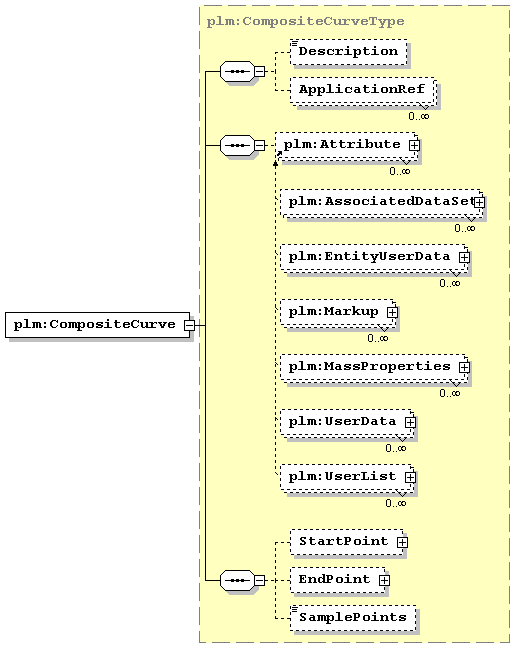

element plm:CompositeCurve

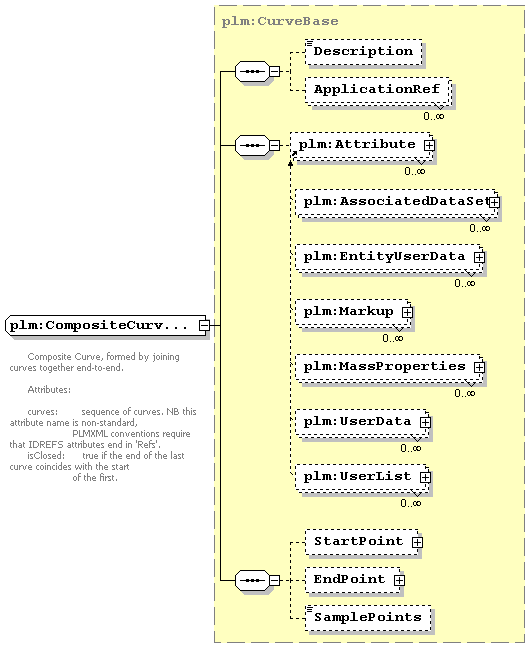

diagram
namespace http://www.plmxml.org/Schemas/PLMXMLSchema
type plm:CompositeCurveType
children Description ApplicationRef plm:Attribute StartPoint EndPoint SamplePoints
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID  optional
name  xsd:string  optional
attributeRefs  xsd:IDREFS  optional
entityRef  plm:anyURIType  optional
startT  xsd:double  optional
endT  xsd:double  optional
curves  xsd:IDREFS  required
isClosed  xsd:boolean    false
source
<xsd:element name="CompositeCurve" type="plm:CompositeCurveType" substitutionGroup="plm:Curve"/>

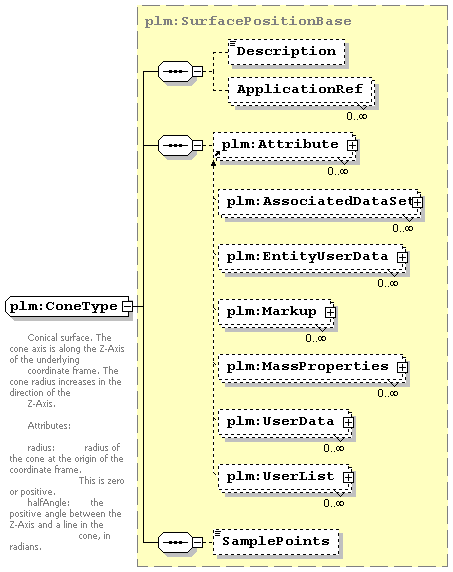

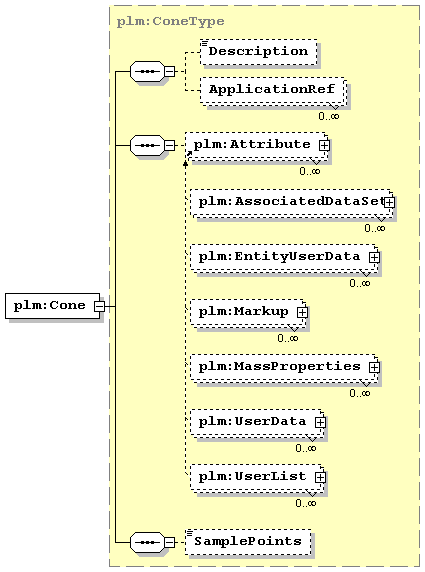

element plm:Cone
diagram
namespace http://www.plmxml.org/Schemas/PLMXMLSchema
type plm:ConeType
children Description ApplicationRef plm:Attribute SamplePoints
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID  optional
name  xsd:string  optional
attributeRefs  xsd:IDREFS  optional
entityRef  plm:anyURIType  optional
startU  xsd:double  optional
endU  xsd:double  optional
startV  xsd:double  optional
endV  xsd:double  optional
origin  plm:VectorType    0 0 0
zAxis  plm:DirectionType    0 0 1
xAxis  plm:DirectionType    1 0 0
radius  xsd:double  required
halfAngle  xsd:double  required
source
<xsd:element name="Cone" type="plm:ConeType" substitutionGroup="plm:Surface"/>

element plm:ConfigurationContext
diagram
namespace http://www.plmxml.org/Schemas/PLMXMLSchema
type plm:ConfigurationContextType
children Description ApplicationRef plm:Attribute BoxBound SphereBound Bound
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID  optional
name  xsd:string  optional
attributeRefs  xsd:IDREFS  optional
accessRefs  plm:uriReferenceListType  optional
statusRef  plm:anyURIType  optional
checkoutRefs  plm:uriReferenceListType  optional
subType  xsd:string  optional
configId  xsd:string  required
source
<xsd:element name="ConfigurationContext" type="plm:ConfigurationContextType" substitutionGroup="plm:Managed"/>

element plm:CoordinateSystem
diagram
namespace http://www.plmxml.org/Schemas/PLMXMLSchema
type plm:PlanarCoordinateSystemType
children Description ApplicationRef plm:Attribute
used by
complexTypes plm:CompositionType plm:ConstructionGeometryType
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID  optional
name  xsd:string  optional
attributeRefs  xsd:IDREFS  optional
entityRef  plm:anyURIType  optional
origin  plm:VectorType    0 0 0
zAxis  plm:DirectionType    0 0 1
xAxis  plm:DirectionType    1 0 0
source
<xsd:element name="CoordinateSystem" type="plm:PlanarCoordinateSystemType"/>

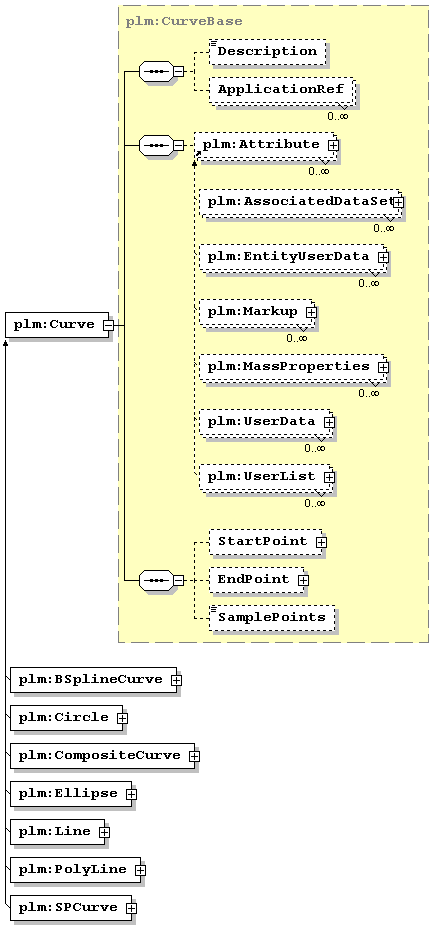

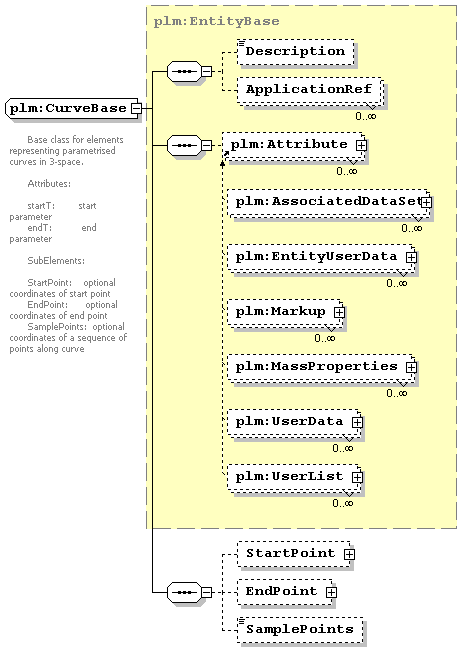

element plm:Curve
diagram
namespace http://www.plmxml.org/Schemas/PLMXMLSchema
type plm:CurveBase
children Description ApplicationRef plm:Attribute StartPoint EndPoint SamplePoints
used by
complexTypes plm:CompositionType plm:ConstructionGeometryType
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID  optional
name  xsd:string  optional
attributeRefs  xsd:IDREFS  optional
entityRef  plm:anyURIType  optional
startT  xsd:double  optional
endT  xsd:double  optional
source
<xsd:element name="Curve" type="plm:CurveBase"/>

element plm:Cylinder

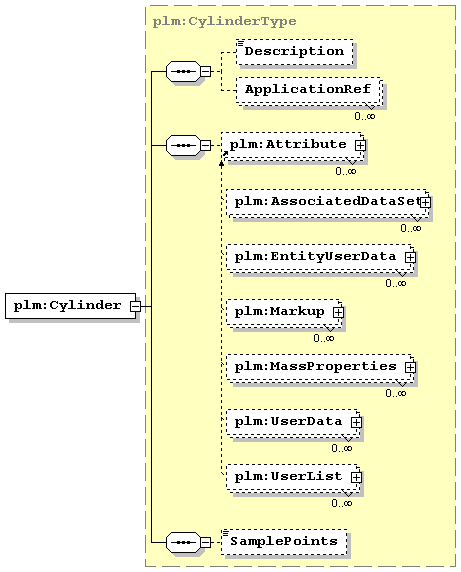

diagram
namespace http://www.plmxml.org/Schemas/PLMXMLSchema
type plm:CylinderType
children Description ApplicationRef plm:Attribute SamplePoints
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID  optional
name  xsd:string  optional
attributeRefs  xsd:IDREFS  optional
entityRef  plm:anyURIType  optional
startU  xsd:double  optional
endU  xsd:double  optional
startV  xsd:double  optional
endV  xsd:double  optional
origin  plm:VectorType    0 0 0
zAxis  plm:DirectionType    0 0 1
xAxis  plm:DirectionType    1 0 0
radius  xsd:double  required
source
<xsd:element name="Cylinder" type="plm:CylinderType" substitutionGroup="plm:Surface"/>

element plm:DataSet

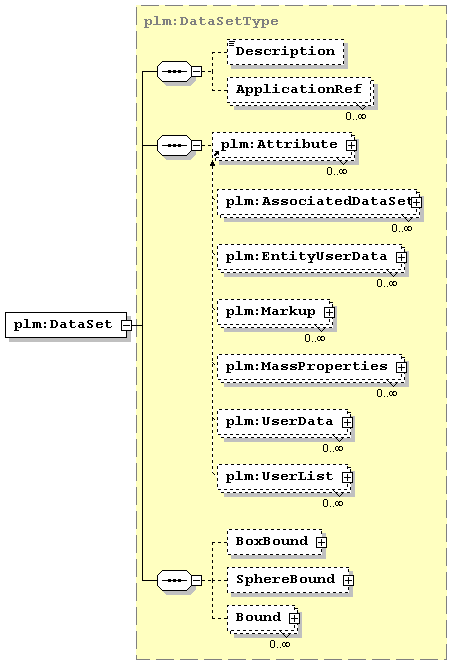

diagram
namespace http://www.plmxml.org/Schemas/PLMXMLSchema
type plm:DataSetType
children Description ApplicationRef plm:Attribute BoxBound SphereBound Bound
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID  optional
name  xsd:string  optional
attributeRefs  xsd:IDREFS  optional
accessRefs  plm:uriReferenceListType  optional
statusRef  plm:anyURIType  optional
checkoutRefs  plm:uriReferenceListType  optional
subType  xsd:string  optional
version  xsd:nonNegativeInteger  optional
type  xsd:string  optional
memberRefs  plm:uriReferenceListType  required
releaseStatusRefs  plm:uriReferenceListType  optional
source
<xsd:element name="DataSet" type="plm:DataSetType" substitutionGroup="plm:Managed"/>

element plm:DateEffectivity
diagram
namespace http://www.plmxml.org/Schemas/PLMXMLSchema
type plm:DateEffectivityType
children Description ApplicationRef plm:Attribute
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID  optional
name  xsd:string  optional
attributeRefs  xsd:IDREFS  optional
contextRef  plm:anyURIType  optional
start  xsd:dateTime  optional
end  xsd:dateTime  optional
source
<xsd:element name="DateEffectivity" type="plm:DateEffectivityType" substitutionGroup="plm:Effectivity"/>

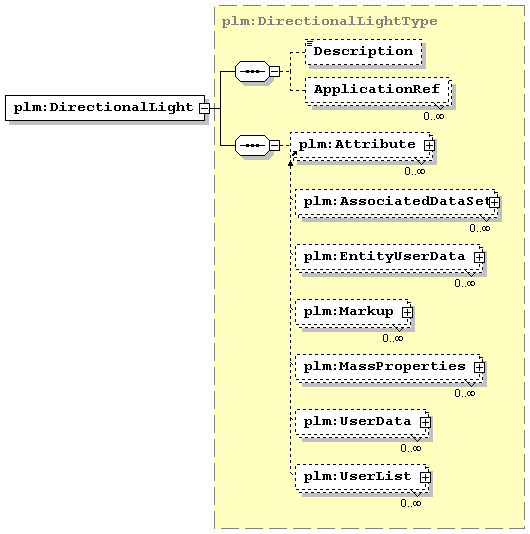

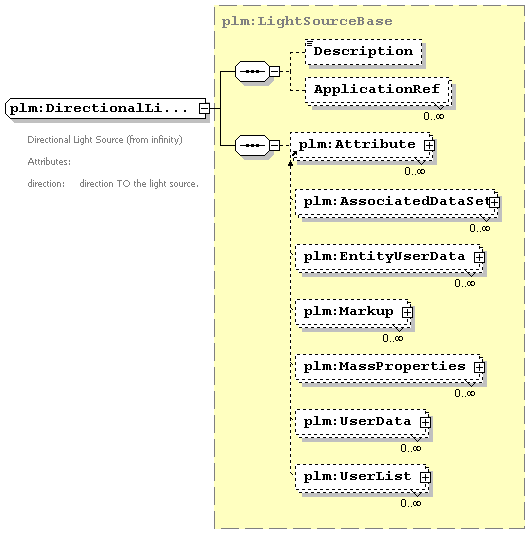

element plm:DirectionalLight
diagram
namespace http://www.plmxml.org/Schemas/PLMXMLSchema
type plm:DirectionalLightType
children Description ApplicationRef plm:Attribute
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID  optional
name  xsd:string  optional
attributeRefs  xsd:IDREFS  optional
ambient  plm:RGBType    0.0 0.0 0.0
diffuse  plm:RGBType    1.0 1.0 1.0
specular  plm:RGBType    1.0 1.0 1.0
intensity  plm:AlphaType    1.0
direction  plm:VectorType    0.0 0.0 1.0
source
<xsd:element name="DirectionalLight" type="plm:DirectionalLightType" substitutionGroup="plm:LightSource"/>

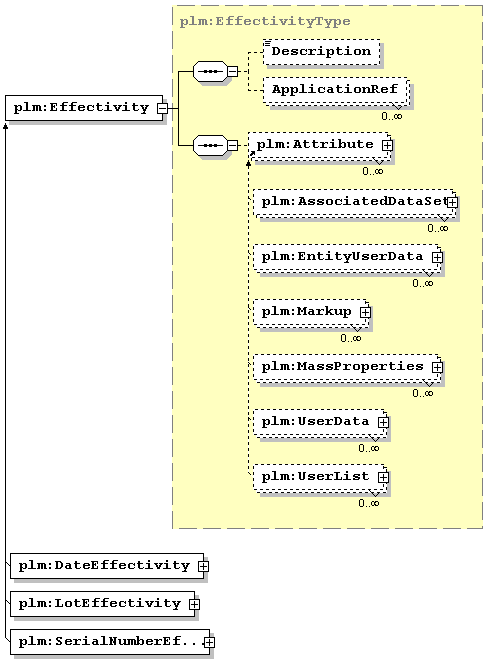

element plm:Effectivity

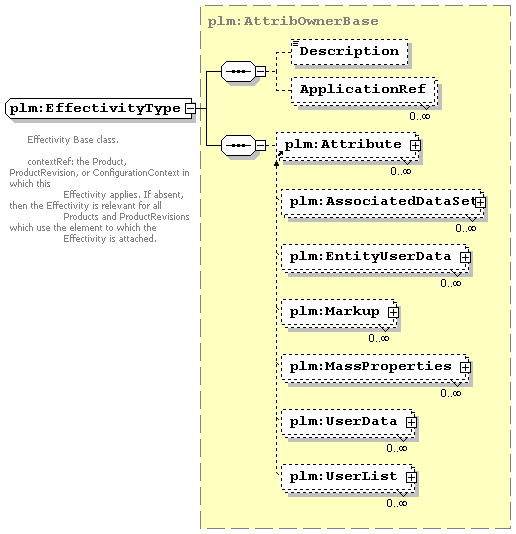

diagram
namespace http://www.plmxml.org/Schemas/PLMXMLSchema
type plm:EffectivityType
children Description ApplicationRef plm:Attribute
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID  optional
name  xsd:string  optional
attributeRefs  xsd:IDREFS  optional
contextRef  plm:anyURIType  optional
source
<xsd:element name="Effectivity" type="plm:EffectivityType" substitutionGroup="plm:AttribOwner"/>

element plm:Ellipse

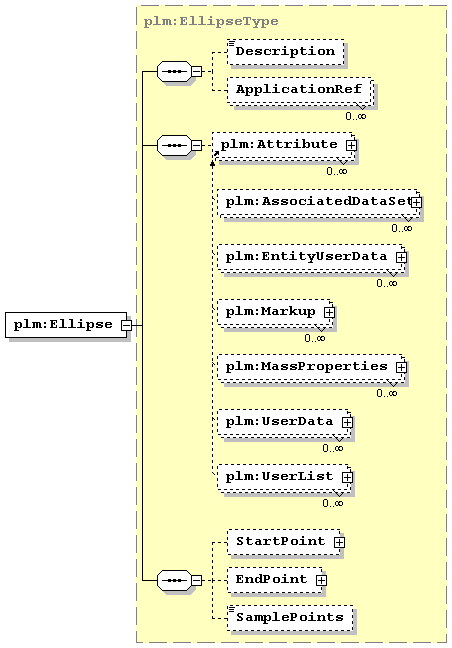

diagram
namespace http://www.plmxml.org/Schemas/PLMXMLSchema
type plm:EllipseType
children Description ApplicationRef plm:Attribute StartPoint EndPoint SamplePoints
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID  optional
name  xsd:string  optional
attributeRefs  xsd:IDREFS  optional
entityRef  plm:anyURIType  optional
startT  xsd:double  optional
endT  xsd:double  optional
origin  plm:VectorType    0 0 0
zAxis  plm:DirectionType    0 0 1
xAxis  plm:DirectionType    1 0 0
majorRadius  xsd:double  required
minorRadius  xsd:double  required
source
<xsd:element name="Ellipse" type="plm:EllipseType" substitutionGroup="plm:Curve"/>

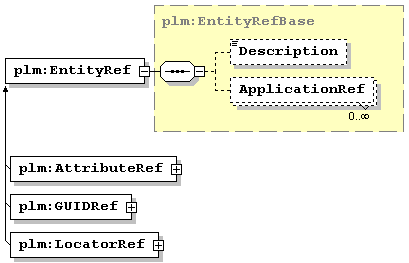

element plm:EntityRef

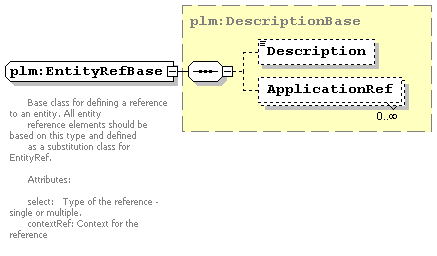

diagram
namespace http://www.plmxml.org/Schemas/PLMXMLSchema
type plm:EntityRefBase
children Description ApplicationRef
used by
complexTypes plm:EntityMaterialType plm:EntityTextureType plm:EntityUserDataType plm:FeatureBase plm:MarkupType
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID  optional
name  xsd:string  optional
contextRef  plm:anyURIType  optional
select  plm:RefSelectType    single
source
<xsd:element name="EntityRef" type="plm:EntityRefBase"/>

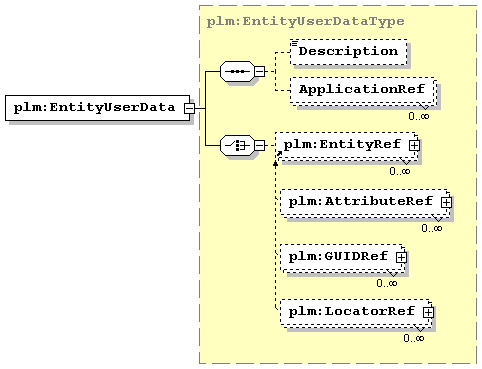

element plm:EntityUserData

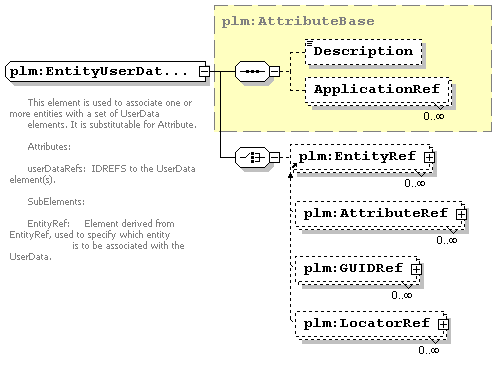

diagram
namespace http://www.plmxml.org/Schemas/PLMXMLSchema
type plm:EntityUserDataType
children Description ApplicationRef plm:EntityRef
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID  optional
name  xsd:string  optional
userDataRefs  xsd:IDREFS  required
source
<xsd:element name="EntityUserData" type="plm:EntityUserDataType" substitutionGroup="plm:Attribute"/>

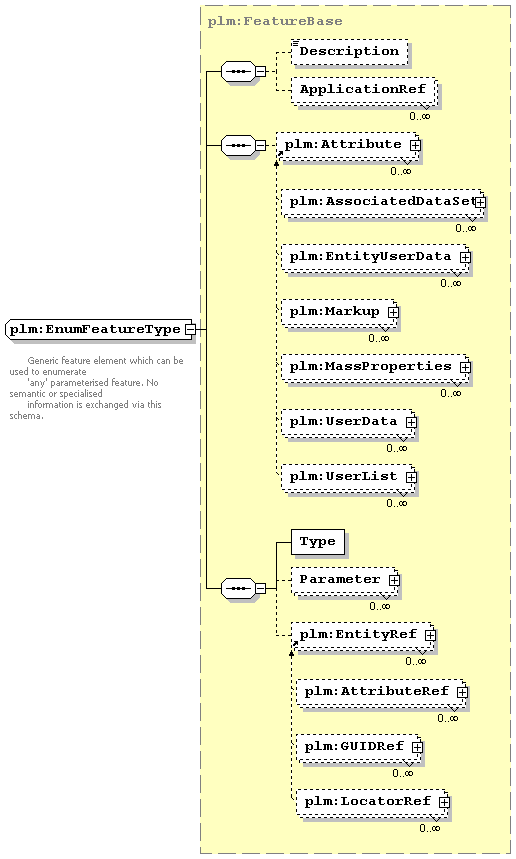

element plm:EnumFeature
diagram
namespace http://www.plmxml.org/Schemas/PLMXMLSchema
type plm:EnumFeatureType
children Description ApplicationRef plm:Attribute Type Parameter plm:EntityRef
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID  optional
name  xsd:string  optional
attributeRefs  xsd:IDREFS  optional
nextFeature  xsd:IDREF  optional
targetFeature  xsd:IDREF  optional
toolFeature  xsd:IDREF  optional
suppressed  xsd:boolean    false
editable  xsd:boolean    false
source
<xsd:element name="EnumFeature" type="plm:EnumFeatureType" substitutionGroup="plm:Feature"/>

element plm:ErrorMessage
diagram
namespace http://www.plmxml.org/Schemas/PLMXMLSchema
type plm:ErrorMessageType
attributes
Name  Type  Use  Default  Fixed  Annotation
message  xsd:string  required
source
<xsd:element name="ErrorMessage" type="plm:ErrorMessageType" substitutionGroup="plm:Message"/>

element plm:Expression
diagram
namespace http://www.plmxml.org/Schemas/PLMXMLSchema
type plm:ExpressionBase
source
<xsd:element name="Expression" type="plm:ExpressionBase" substitutionGroup="plm:Operand"/>

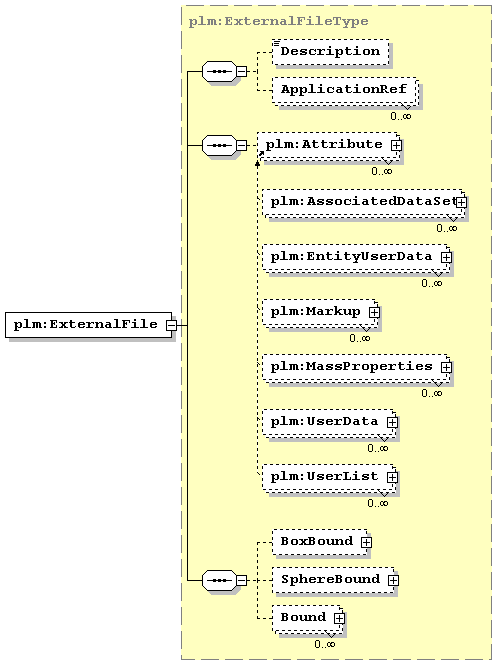

element plm:ExternalFile
diagram
namespace http://www.plmxml.org/Schemas/PLMXMLSchema
type plm:ExternalFileType
children Description ApplicationRef plm:Attribute BoxBound SphereBound Bound
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID  optional
name  xsd:string  optional
attributeRefs  xsd:IDREFS  optional
accessRefs  plm:uriReferenceListType  optional
statusRef  plm:anyURIType  optional
checkoutRefs  plm:uriReferenceListType  optional
subType  xsd:string  optional
locationRef  plm:anyURIType  required
format  xsd:string  required
source
<xsd:element name="ExternalFile" type="plm:ExternalFileType" substitutionGroup="plm:Managed"/>

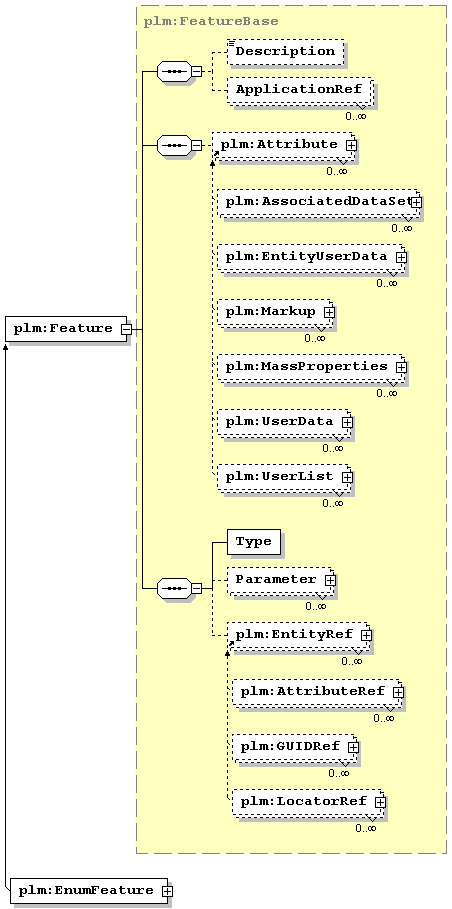

element plm:Feature

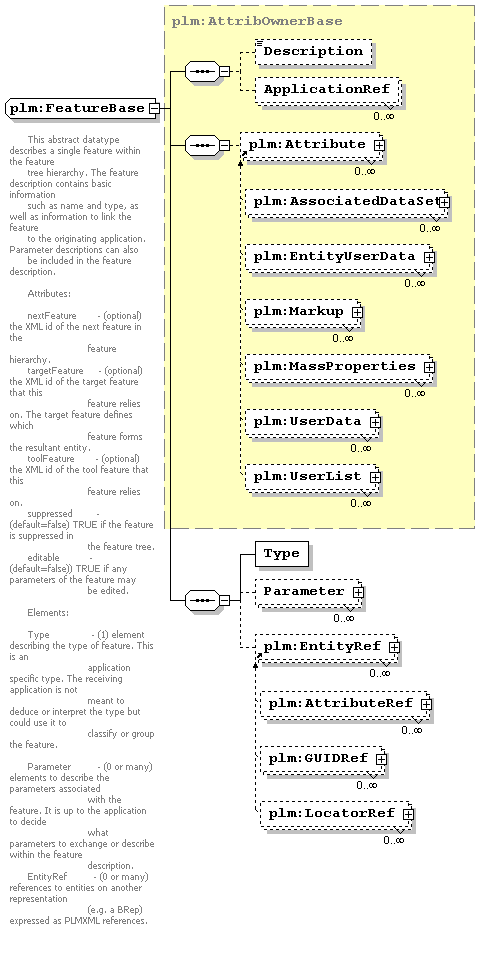

diagram
namespace http://www.plmxml.org/Schemas/PLMXMLSchema
type plm:FeatureBase
children Description ApplicationRef plm:Attribute Type Parameter plm:EntityRef
used by
complexType plm:FeatureTreeType
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID  optional
name  xsd:string  optional
attributeRefs  xsd:IDREFS  optional
nextFeature  xsd:IDREF  optional
targetFeature  xsd:IDREF  optional
toolFeature  xsd:IDREF  optional
suppressed  xsd:boolean    false
editable  xsd:boolean    false
source
<xsd:element name="Feature" type="plm:FeatureBase"/>

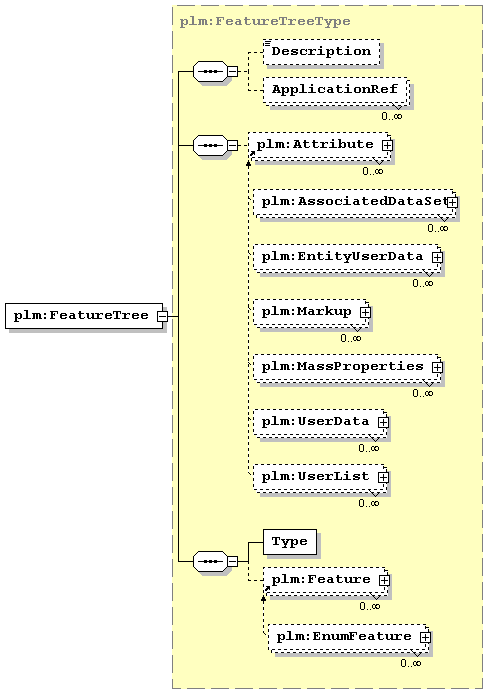

element plm:FeatureTree
diagram
namespace http://www.plmxml.org/Schemas/PLMXMLSchema

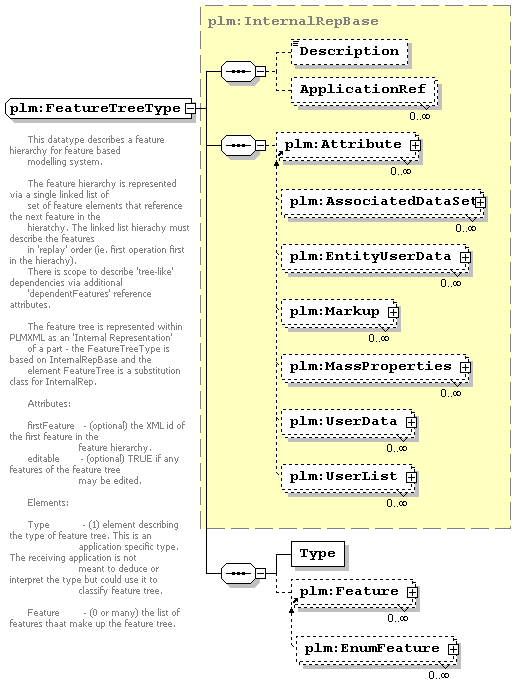

type plm:FeatureTreeType
children Description ApplicationRef plm:Attribute Type plm:Feature
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID  optional
name  xsd:string  optional
attributeRefs  xsd:IDREFS  optional
firstFeature  xsd:IDREF  optional
editable  xsd:boolean    false
source
<xsd:element name="FeatureTree" type="plm:FeatureTreeType" substitutionGroup="plm:InternalRep"/>

element plm:Fix
diagram
namespace http://www.plmxml.org/Schemas/PLMXMLSchema
type plm:FixType
attributes
Name  Type  Use  Default  Fixed  Annotation
optionRef  plm:anyURIType  required
value  xsd:string  required
source
<xsd:element name="Fix" type="plm:FixType" substitutionGroup="plm:Statement"/>

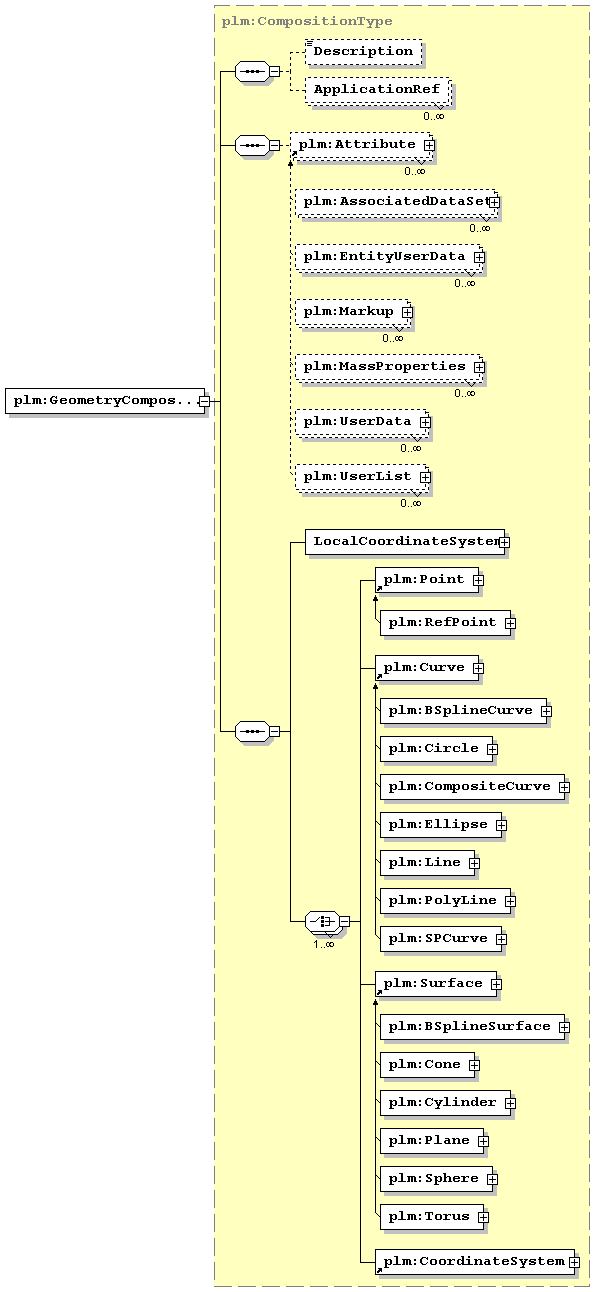

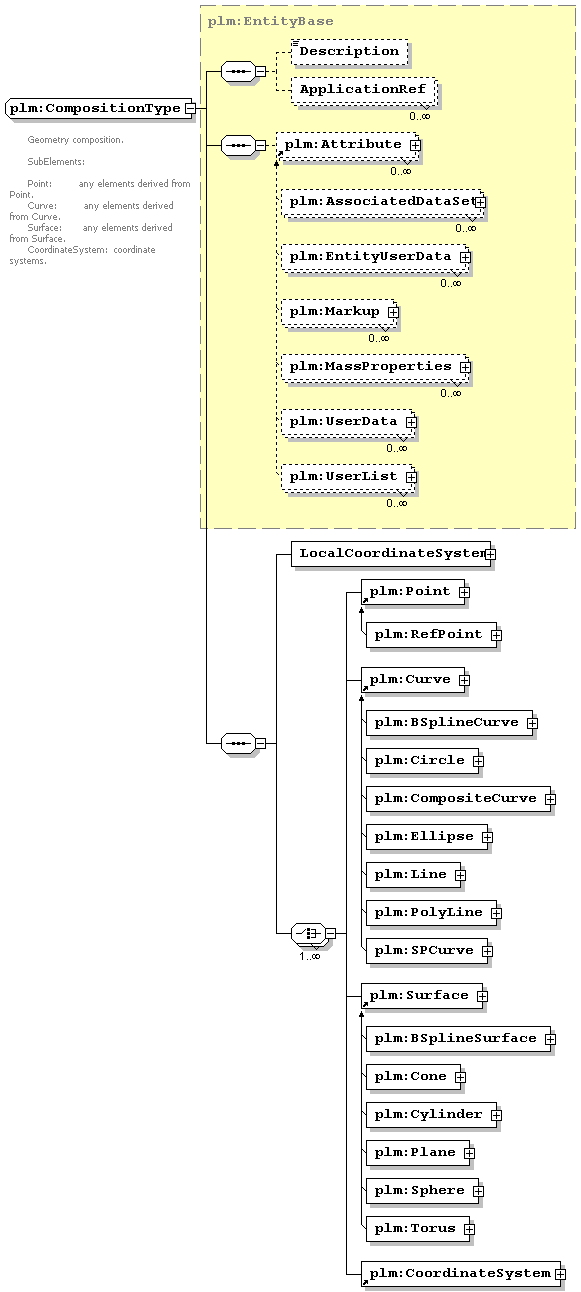

element plm:GeometryComposition
diagram
namespace http://www.plmxml.org/Schemas/PLMXMLSchema
type plm:CompositionType
children Description ApplicationRef plm:Attribute LocalCoordinateSystem plm:Point plm:Curve plm:Surface plm:CoordinateSystem
used by
complexType plm:ConstructionGeometryType
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID  optional
name  xsd:string  optional
attributeRefs  xsd:IDREFS  optional
entityRef  plm:anyURIType  optional
source
<xsd:element name="GeometryComposition" type="plm:CompositionType"/>

element plm:GUIDRef
diagram
namespace http://www.plmxml.org/Schemas/PLMXMLSchema
type plm:GUIDRefType
children Description ApplicationRef
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID  optional
name  xsd:string  optional
contextRef  plm:anyURIType  optional
select  plm:RefSelectType    single
guid  xsd:string  required
source
<xsd:element name="GUIDRef" type="plm:GUIDRefType" substitutionGroup="plm:EntityRef"/>

element plm:If
diagram
namespace http://www.plmxml.org/Schemas/PLMXMLSchema
type plm:ConditionalStatementType

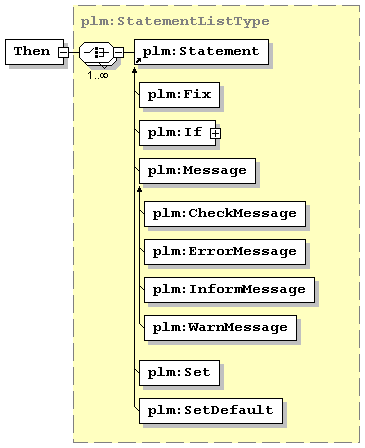

children plm:LogicalExpression Then Else
source
<xsd:element name="If" type="plm:ConditionalStatementType" substitutionGroup="plm:Statement"/>

element plm:InformMessage
diagram
namespace http://www.plmxml.org/Schemas/PLMXMLSchema
type plm:InformMessageType
attributes
Name  Type  Use  Default  Fixed  Annotation
message  xsd:string  required
source
<xsd:element name="InformMessage" type="plm:InformMessageType" substitutionGroup="plm:Message"/>

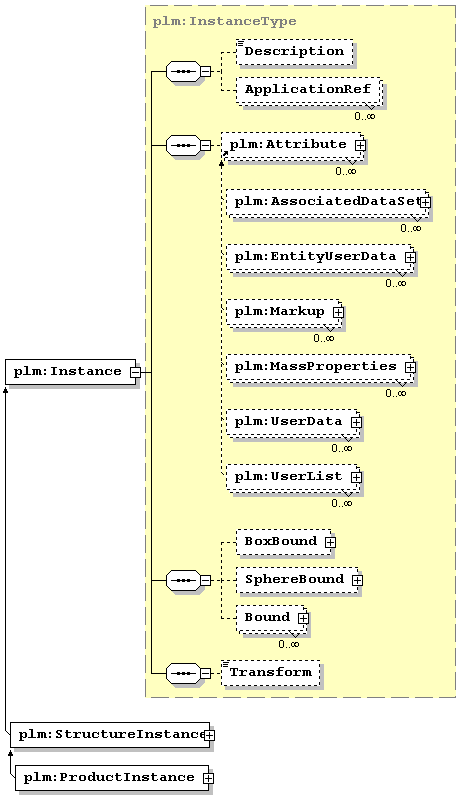

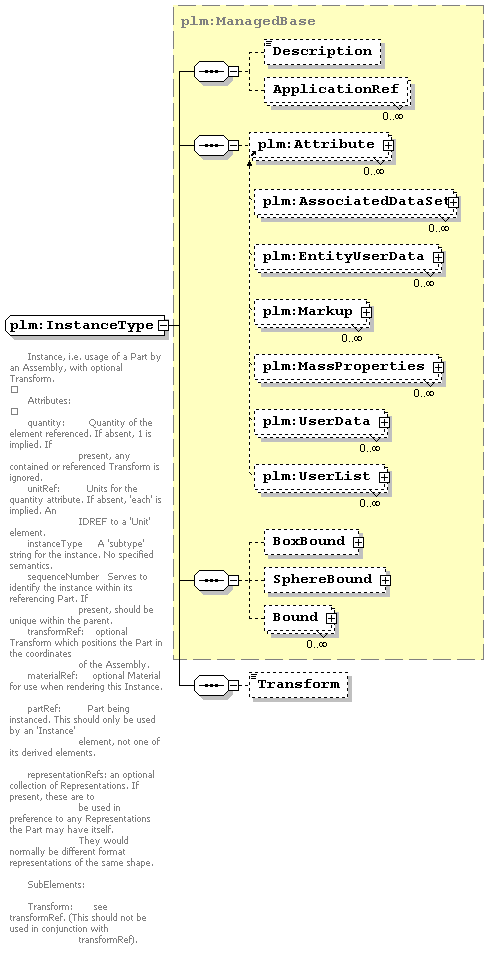

element plm:Instance
diagram
namespace http://www.plmxml.org/Schemas/PLMXMLSchema
type plm:InstanceType
children Description ApplicationRef plm:Attribute BoxBound SphereBound Bound Transform
used by
complexType plm:InstanceGraphType
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID  optional
name  xsd:string  optional
attributeRefs  xsd:IDREFS  optional
accessRefs  plm:uriReferenceListType  optional
statusRef  plm:anyURIType  optional
checkoutRefs  plm:uriReferenceListType  optional
subType  xsd:string  optional
partRef  plm:anyURIType  optional
transformRef  xsd:IDREF  optional
materialRef  xsd:IDREF  optional
quantity  xsd:double  optional
unitRef  xsd:IDREF  optional
instanceType  xsd:string  optional
sequenceNumber  xsd:nonNegativeInteger  optional
representationRefs  plm:uriReferenceListType  optional
source
<xsd:element name="Instance" type="plm:InstanceType" substitutionGroup="plm:Managed"/>

element plm:InstanceGraph
diagram
namespace http://www.plmxml.org/Schemas/PLMXMLSchema
type plm:InstanceGraphType
children Description ApplicationRef plm:Attribute BoxBound SphereBound Bound plm:Instance plm:Part plm:Structure plm:StructureRevision Transform
used by

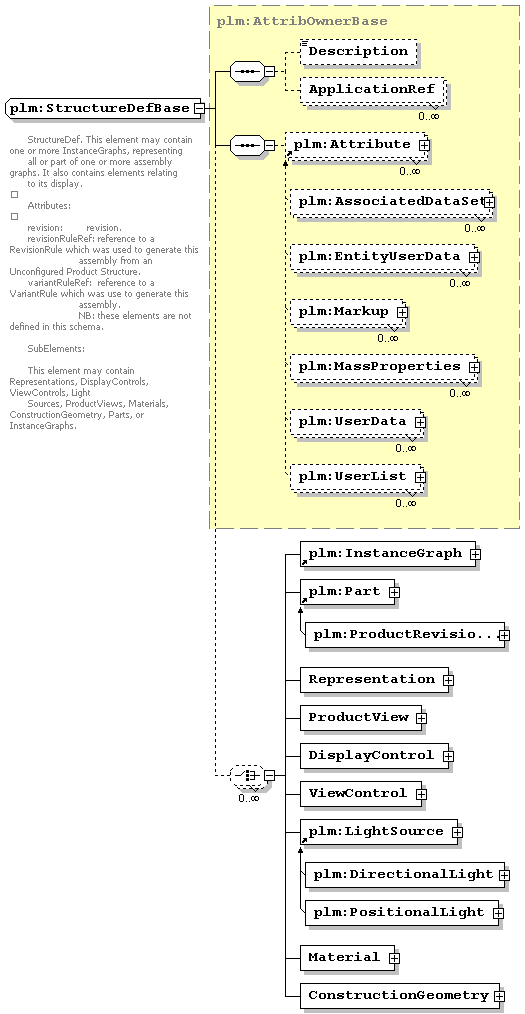

complexType plm:StructureDefBase
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID  optional
name  xsd:string  optional
attributeRefs  xsd:IDREFS  optional
rootInstanceRef  xsd:IDREF  optional
rootRefs  xsd:IDREFS  optional
viewControlRef  xsd:IDREF  optional
displayControlRef  xsd:IDREF  optional
source
<xsd:element name="InstanceGraph" type="plm:InstanceGraphType"/>

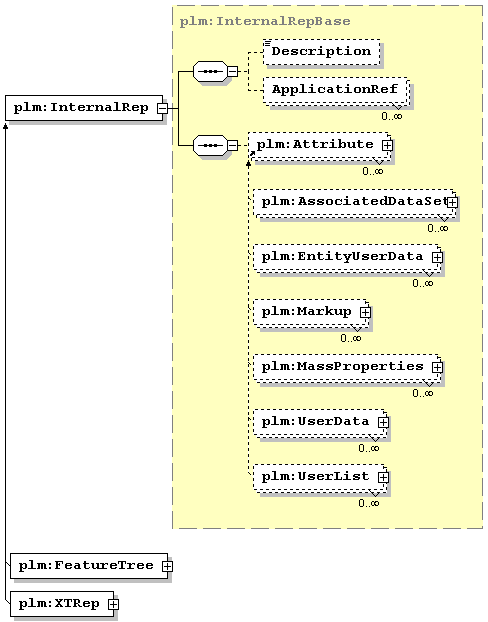

element plm:InternalRep
diagram
namespace http://www.plmxml.org/Schemas/PLMXMLSchema
type plm:InternalRepBase
children Description ApplicationRef plm:Attribute
used by
complexType plm:RepresentationType
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID  optional
name  xsd:string  optional
attributeRefs  xsd:IDREFS  optional
source
<xsd:element name="InternalRep" type="plm:InternalRepBase"/>

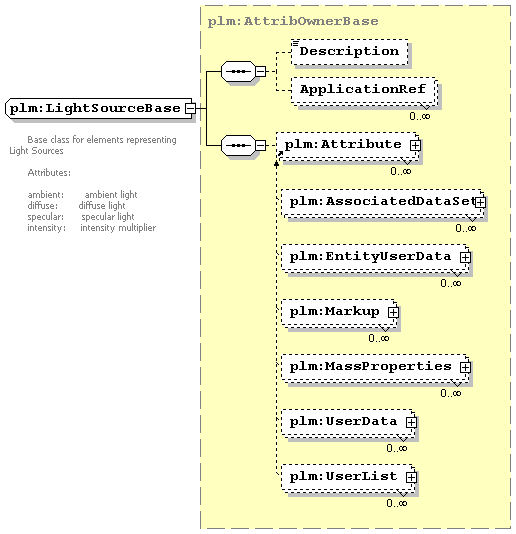

element plm:LightSource

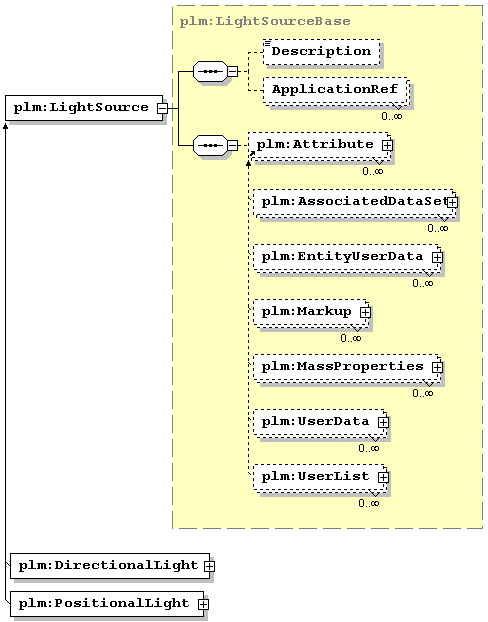

diagram
namespace http://www.plmxml.org/Schemas/PLMXMLSchema
type plm:LightSourceBase
children Description ApplicationRef plm:Attribute
used by
complexType plm:StructureDefBase
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID  optional
name  xsd:string  optional
attributeRefs  xsd:IDREFS  optional
ambient  plm:RGBType    0.0 0.0 0.0
diffuse  plm:RGBType    1.0 1.0 1.0
specular  plm:RGBType    1.0 1.0 1.0
intensity  plm:AlphaType    1.0
source
<xsd:element name="LightSource" type="plm:LightSourceBase"/>

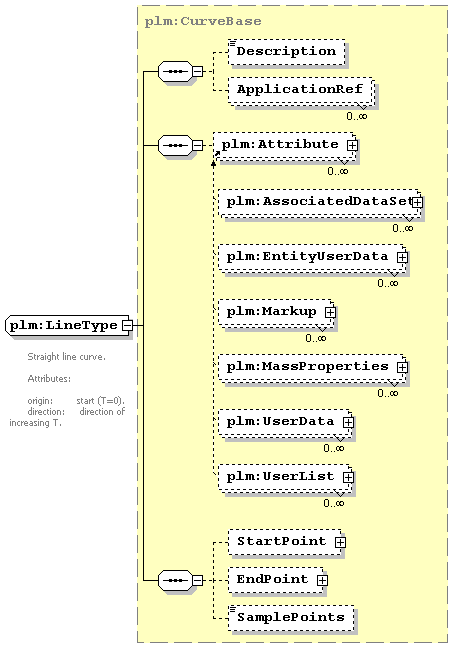

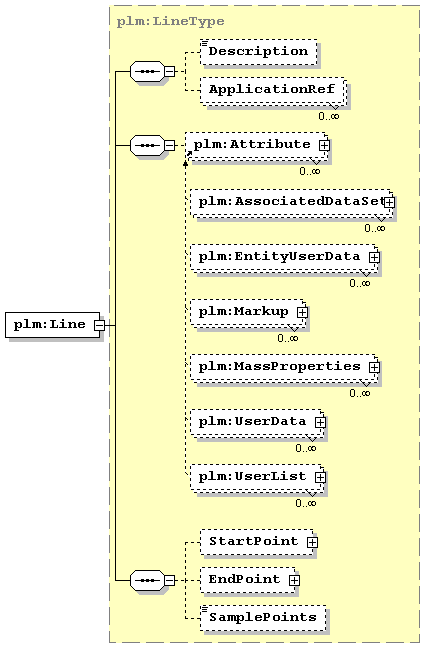

element plm:Line
diagram
namespace http://www.plmxml.org/Schemas/PLMXMLSchema
type plm:LineType
children Description ApplicationRef plm:Attribute StartPoint EndPoint SamplePoints
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID  optional
name  xsd:string  optional
attributeRefs  xsd:IDREFS  optional
entityRef  plm:anyURIType  optional
startT  xsd:double  optional
endT  xsd:double  optional
origin  plm:VectorType  required
direction  plm:DirectionType  required
source
<xsd:element name="Line" type="plm:LineType" substitutionGroup="plm:Curve"/>

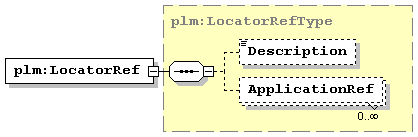

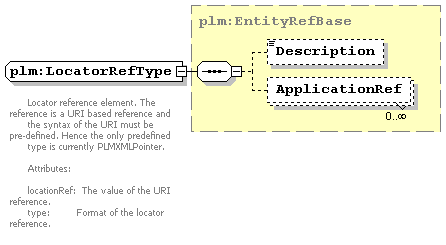

element plm:LocatorRef
diagram
namespace http://www.plmxml.org/Schemas/PLMXMLSchema
type plm:LocatorRefType
children Description ApplicationRef
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID  optional
name  xsd:string  optional
contextRef  plm:anyURIType  optional
select  plm:RefSelectType    single
locationRef  plm:anyURIType  required
type  plm:LocatorRefFormatType    PLMXMLPointer
source
<xsd:element name="LocatorRef" type="plm:LocatorRefType" substitutionGroup="plm:EntityRef"/>

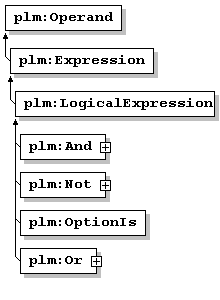

element plm:LogicalExpression
diagram
namespace http://www.plmxml.org/Schemas/PLMXMLSchema
type plm:LogicalExpressionBase
used by
complexTypes plm:AndType plm:ConditionalStatementType plm:NotType plm:OrType plm:VariantConditionType plm:VariantDefaultDerivedType plm:VariantRuleCheckType
source
<xsd:element name="LogicalExpression" type="plm:LogicalExpressionBase" substitutionGroup="plm:Expression"/>

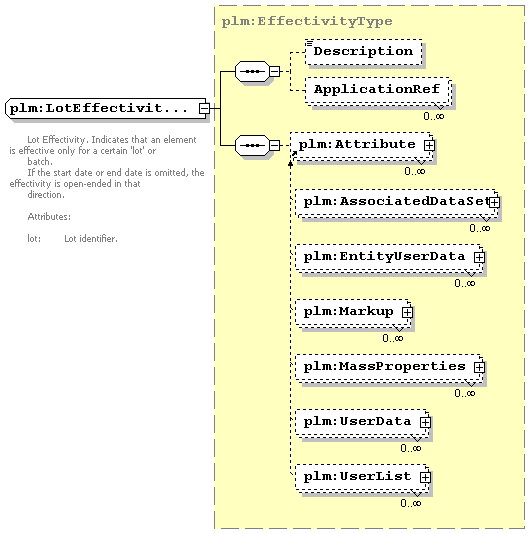

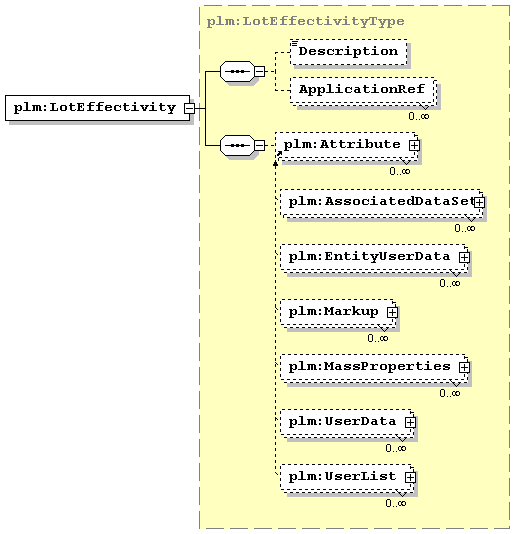

element plm:LotEffectivity
diagram
namespace http://www.plmxml.org/Schemas/PLMXMLSchema
type plm:LotEffectivityType
children Description ApplicationRef plm:Attribute
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID  optional
name  xsd:string  optional
attributeRefs  xsd:IDREFS  optional
contextRef  plm:anyURIType  optional
lot  xsd:string  required
source
<xsd:element name="LotEffectivity" type="plm:LotEffectivityType" substitutionGroup="plm:Effectivity"/>

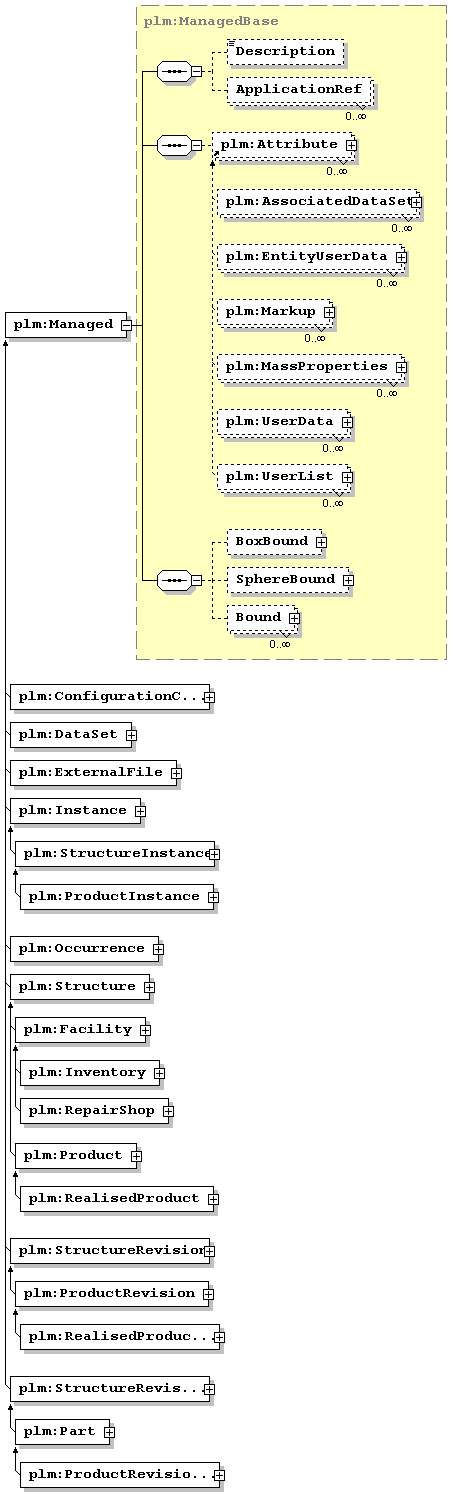

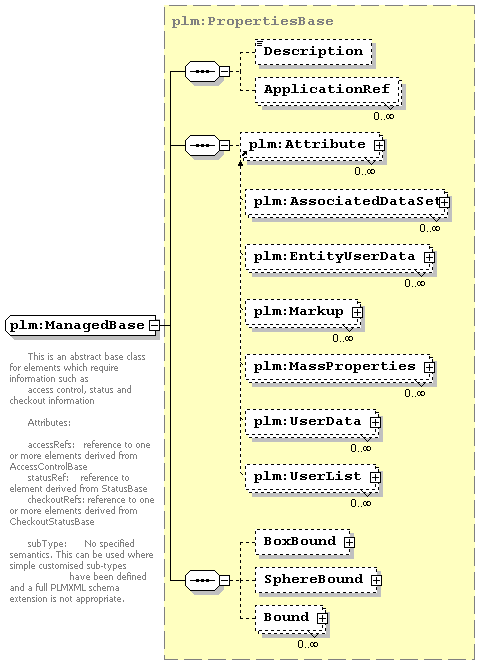

element plm:Managed
diagram
namespace http://www.plmxml.org/Schemas/PLMXMLSchema
type plm:ManagedBase
children Description ApplicationRef
