Schema PLMXMLSchema.xsd


schema location:  ..\..\PLMXML Schema\PLMXMLSchema.xsd
targetNamespace:  http://www.plmxml.org/Schemas/PLMXMLSchema

Elements  Complex types  Simple types  Attr. groups
AnnotationQuery  AnnotationQueryType  AlphaType  idGroup
AttribOwner  ApplicationRefType  AttenuationType  MassPropertyGroup
Attribute  AreaType  AttributeClassType  referenceGroup
AttributeClass  AttribOwnerBase  AttributeOwnerType  UserValueDataGroup
AttributeLegalOwner  AttributeBase  AxisFieldType  UserValueRangeGroup
AttributeRef  AttributeClassBase  BooleanListType
BSplineCurve  AttributeLegalOwnerType  BoundingType
BSplineSurface  AttributeRefType  CoordinateFieldType
Circle  BoundType  CutoffAngleType
CompositeCurve  BoxBoundType  DescriptionType
Cone  BSplineCurveType  DirectionFieldType
CoordinateSystem  BSplineSurfaceType  DirectionType
Curve  CentreOfMassType  DoubleListType
Cylinder  CircleType  DrawingStyleType
DirectionalLight  CompositeCurveType  EntityFieldListType
Ellipse  CompositionType  EntityFieldType
EntityRef  CompoundRepType  EntityRefType
EnumFeature  ConeType  FacetsetControl
Feature  ConstructionGeometryType  FloatListType
FeatureQuery  CurveBase  GeometryParamType
FeatureTree  CylinderType  IntegerFieldListType
GeometryComposition  DensityType  IntegerFieldType
GUIDRef  DescriptionBase  IntegerListType
Instance  DirectionalLightType  IntensityExponentType
InstanceGraph  DisplayControlType  LocatorRefFormatType
InternalRep  DocumentBase  MassPropertyArrayFieldType
LightSource  EllipseType  MassPropertyUnitType
Line  EntityBase  MatrixType
LocatorRef  EntityMaterialType  PartTypesType
Markup  EntityRefBase  PreferredPartUnitsType
MassProperties  EntityTextureType  RealFieldListType
Part  EnumFeatureType  RealFieldType
Plane  FacetControlsType  RefSelectType
PLMXML  FeatureBase  RepQueryType
PLMXMLRequest  FeatureQueryType  RepresentationFormatType
Point  FeatureTreeType  RequestIdType
PolyLine  GUIDRefType  RequestResultType
PositionalLight  IdBase  RequestSeverityType
ProductDefQuery  InstanceGraphType  RGBAType
Query  InstanceType  RGBFloatListType
RefPoint  InternalRepBase  RGBFloatType
RepresentationQuery  LengthType  RGBType
RequestInformation  LightSourceBase  ShadingStyleType
SPCurve  LineType  ShininessType
Sphere  LocatorRefType  SplineCurveFormType
Surface  MarkupType  SplineDimensionType
SurfacePosition  MassPropertyArrayType  StringFieldType
Torus  MassPropertyRealType  TextureCoordDataType
UserData  MassPropertyType  TextureDataFormatType
UserList  MassPropertyVectorType  TextureMapType
XTRep  MassType  TextureSampleType
MaterialType  TextureWrapType
MomentsOfInertiaType  TransformationType
NormalType  TristripControl
OccurrenceType  uriReferenceListType
OrthographicType  UserValueDataType
PartType  VectorFieldType
PerspectiveType  VectorType
PlanarCoordinateSystemType  ViewPortCornerType
PlaneCurveBase  XTDataType
PlaneType
PLMXMLRequestType
PLMXMLType
PointBase
PolyLineType
PositionalLightType
PositionType
ProductDefQueryType
ProductDefType
ProductsOfInertiaType
ProductViewType
PropertiesBase
QueryBase
ReferencePointType
RefPointType
RepresentationQueryType
RepresentationType
RequestInformationType
RequestType
SamplePointsType
SPCurveType
SphereBoundType
SphereType
SurfaceBase
SurfacePositionBase
Texture1DDataType
Texture1DType
Texture2DDataType
Texture2DType
TextureCoordType
TextureDataType
TextureType
TorusType
TransformType
UserDataElementType
UserDataType
UserEnumDataType
UserListDataType
UserListElementType
ViewControlType
ViewPortType
VolumeType
XTRepType


element AnnotationQuery
diagram
namespace http://www.plmxml.org/Schemas/PLMXMLSchema
type plm:AnnotationQueryType
attributes
Name  Type  Use  Default  Fixed  Annotation
label  xsd:string  optional

element AttribOwner
diagram
namespace http://www.plmxml.org/Schemas/PLMXMLSchema
type plm:AttribOwnerBase
children Description ApplicationRef plm:Attribute
used by
complexType PLMXMLType
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID  optional
attributeRefs  xsd:IDREFS  optional

element Attribute
diagram
namespace http://www.plmxml.org/Schemas/PLMXMLSchema
type plm:AttributeBase
children Description ApplicationRef
used by
complexTypes AttribOwnerBase PLMXMLType PLMXMLType
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID  optional

element AttributeClass
diagram
namespace http://www.plmxml.org/Schemas/PLMXMLSchema
type plm:AttributeClassBase
attributes
Name  Type  Use  Default  Fixed  Annotation
name  plm:AttributeClassType  required

element AttributeLegalOwner
diagram
namespace http://www.plmxml.org/Schemas/PLMXMLSchema
type plm:AttributeLegalOwnerType
attributes
Name  Type  Use  Default  Fixed  Annotation
name  plm:AttributeOwnerType  required

element AttributeRef
diagram
namespace http://www.plmxml.org/Schemas/PLMXMLSchema
type plm:AttributeRefType
children Description ApplicationRef
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID  optional
name  xsd:string  optional
contextRef  xsd:anyURI  optional
select  plm:RefSelectType    single
attribute  xsd:string  required
field  xsd:string  optional
index  xsd:integer  optional
value  xsd:string  required

element BSplineCurve
diagram
namespace http://www.plmxml.org/Schemas/PLMXMLSchema
type plm:BSplineCurveType
children Description ApplicationRef plm:Attribute StartPoint EndPoint SamplePoints Knots KnotMultiplicities Vertices
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID  optional
attributeRefs  xsd:IDREFS  optional
entityRef  plm:EntityRefType  optional
startT  xsd:double  optional
endT  xsd:double  optional
degree  xsd:positiveInteger  required
dimension  plm:SplineDimensionType    3
isRational  xsd:boolean  required
isPeriodic  xsd:boolean  required
isClosed  xsd:boolean  required
form  plm:SplineCurveFormType    unknown

element BSplineSurface
diagram
namespace http://www.plmxml.org/Schemas/PLMXMLSchema
type plm:BSplineSurfaceType
children Description ApplicationRef plm:Attribute SamplePoints UKnots VKnots UKnotMultiplicities VKnotMultiplicities Vertices
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID  optional
attributeRefs  xsd:IDREFS  optional
entityRef  plm:EntityRefType  optional
startU  xsd:double  optional
endU  xsd:double  optional
startV  xsd:double  optional
endV  xsd:double  optional
dimension  plm:SplineDimensionType    3
numberOfUVertices  xsd:positiveInteger  required
numberOfVVertices  xsd:positiveInteger  required
uDegree  xsd:positiveInteger  required
vDegree  xsd:positiveInteger  required
isRational  xsd:boolean  required
isUPeriodic  xsd:boolean  required
isVPeriodic  xsd:boolean  required
isUClosed  xsd:boolean  required
isVClosed  xsd:boolean  required

element Circle
diagram
namespace http://www.plmxml.org/Schemas/PLMXMLSchema
type plm:CircleType
children Description ApplicationRef plm:Attribute StartPoint EndPoint SamplePoints
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID  optional
attributeRefs  xsd:IDREFS  optional
entityRef  plm:EntityRefType  optional
startT  xsd:double  optional
endT  xsd:double  optional
origin  plm:VectorType    0 0 0
zAxis  plm:DirectionType    0 0 1
xAxis  plm:DirectionType    1 0 0
radius  xsd:double  required

element CompositeCurve
diagram
namespace http://www.plmxml.org/Schemas/PLMXMLSchema
type plm:CompositeCurveType
children Description ApplicationRef plm:Attribute StartPoint EndPoint SamplePoints
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID  optional
attributeRefs  xsd:IDREFS  optional
entityRef  plm:EntityRefType  optional
startT  xsd:double  optional
endT  xsd:double  optional
curves  xsd:IDREFS  required
isClosed  xsd:boolean    false

element Cone
diagram
namespace http://www.plmxml.org/Schemas/PLMXMLSchema
type plm:ConeType
children Description ApplicationRef plm:Attribute SamplePoints
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID  optional
attributeRefs  xsd:IDREFS  optional
entityRef  plm:EntityRefType  optional
startU  xsd:double  optional
endU  xsd:double  optional
startV  xsd:double  optional
endV  xsd:double  optional
origin  plm:VectorType    0 0 0
zAxis  plm:DirectionType    0 0 1
xAxis  plm:DirectionType    1 0 0
radius  xsd:double  required
halfAngle  xsd:double  required

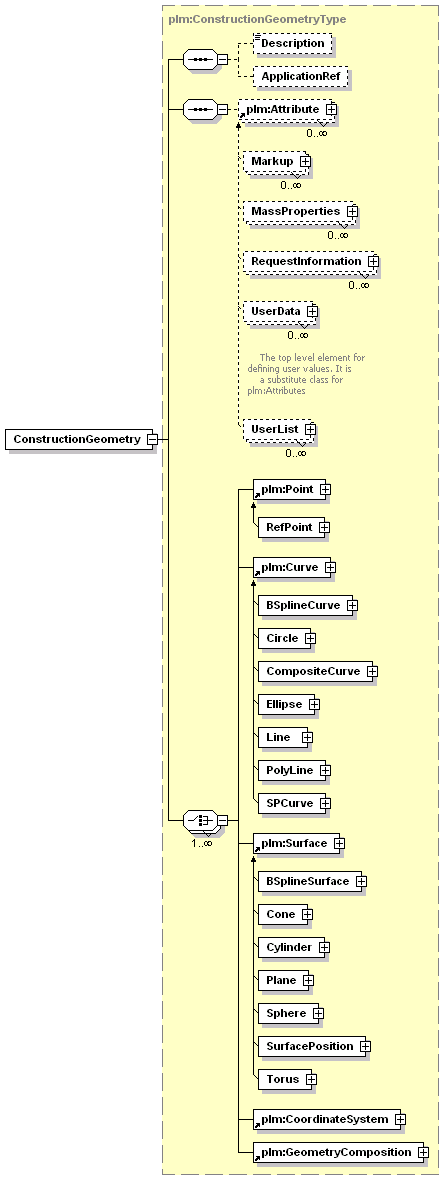

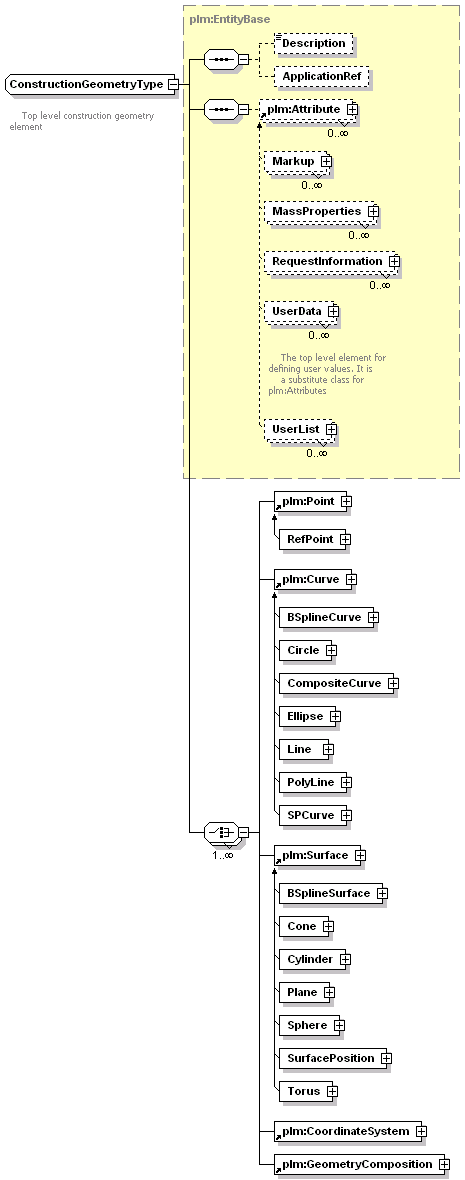

element CoordinateSystem
diagram
namespace http://www.plmxml.org/Schemas/PLMXMLSchema
type plm:PlanarCoordinateSystemType
children Description ApplicationRef plm:Attribute
used by
complexTypes CompositionType ConstructionGeometryType
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID  optional
attributeRefs  xsd:IDREFS  optional
entityRef  plm:EntityRefType  optional
origin  plm:VectorType    0 0 0
zAxis  plm:DirectionType    0 0 1
xAxis  plm:DirectionType    1 0 0

element Curve
diagram
namespace http://www.plmxml.org/Schemas/PLMXMLSchema
type plm:CurveBase
children Description ApplicationRef plm:Attribute StartPoint EndPoint SamplePoints
used by
complexTypes CompositionType ConstructionGeometryType
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID  optional
attributeRefs  xsd:IDREFS  optional
entityRef  plm:EntityRefType  optional
startT  xsd:double  optional
endT  xsd:double  optional

element Cylinder
diagram
namespace http://www.plmxml.org/Schemas/PLMXMLSchema
type plm:CylinderType
children Description ApplicationRef plm:Attribute SamplePoints
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID  optional
attributeRefs  xsd:IDREFS  optional
entityRef  plm:EntityRefType  optional
startU  xsd:double  optional
endU  xsd:double  optional
startV  xsd:double  optional
endV  xsd:double  optional
origin  plm:VectorType    0 0 0
zAxis  plm:DirectionType    0 0 1
xAxis  plm:DirectionType    1 0 0
radius  xsd:double  required

element DirectionalLight
diagram
namespace http://www.plmxml.org/Schemas/PLMXMLSchema
type plm:DirectionalLightType
children Description ApplicationRef plm:Attribute
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID  optional
attributeRefs  xsd:IDREFS  optional
name  xsd:string  optional
ambient  plm:RGBType    0.0 0.0 0.0
diffuse  plm:RGBType    1.0 1.0 1.0
specular  plm:RGBType    1.0 1.0 1.0
intensity  plm:AlphaType    1.0
direction  plm:VectorType    0.0 0.0 1.0

element Ellipse
diagram
namespace http://www.plmxml.org/Schemas/PLMXMLSchema
type plm:EllipseType
children Description ApplicationRef plm:Attribute StartPoint EndPoint SamplePoints
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID  optional
attributeRefs  xsd:IDREFS  optional
entityRef  plm:EntityRefType  optional
startT  xsd:double  optional
endT  xsd:double  optional
origin  plm:VectorType    0 0 0
zAxis  plm:DirectionType    0 0 1
xAxis  plm:DirectionType    1 0 0
majorRadius  xsd:double  required
minorRadius  xsd:double  required

element EntityRef
diagram
namespace http://www.plmxml.org/Schemas/PLMXMLSchema
type plm:EntityRefBase
children Description ApplicationRef
used by
complexTypes EntityMaterialType EntityTextureType FeatureBase MarkupType
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID  optional
name  xsd:string  optional
contextRef  xsd:anyURI  optional
select  plm:RefSelectType    single

element EnumFeature
diagram
namespace http://www.plmxml.org/Schemas/PLMXMLSchema
type plm:EnumFeatureType
children Description ApplicationRef plm:Attribute Type Parameter plm:EntityRef
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID  optional
attributeRefs  xsd:IDREFS  optional
name  xsd:string  required
nextFeature  xsd:IDREF  optional
targetFeature  xsd:IDREF  optional
toolFeature  xsd:IDREF  optional
suppressed  xsd:boolean    false
editable  xsd:boolean    false

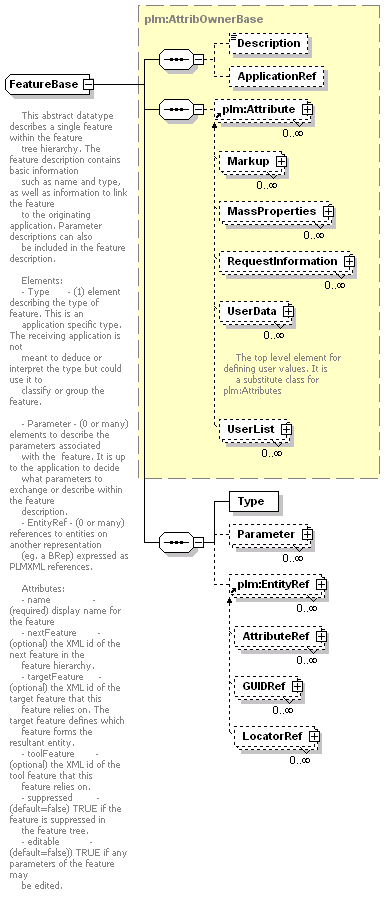

element Feature
diagram
namespace http://www.plmxml.org/Schemas/PLMXMLSchema
type plm:FeatureBase
children Description ApplicationRef plm:Attribute Type Parameter plm:EntityRef
used by
complexType FeatureTreeType
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID  optional
attributeRefs  xsd:IDREFS  optional
name  xsd:string  required
nextFeature  xsd:IDREF  optional
targetFeature  xsd:IDREF  optional
toolFeature  xsd:IDREF  optional
suppressed  xsd:boolean    false
editable  xsd:boolean    false

element FeatureQuery
diagram
namespace http://www.plmxml.org/Schemas/PLMXMLSchema
type plm:FeatureQueryType
attributes
Name  Type  Use  Default  Fixed  Annotation
label  xsd:string  optional

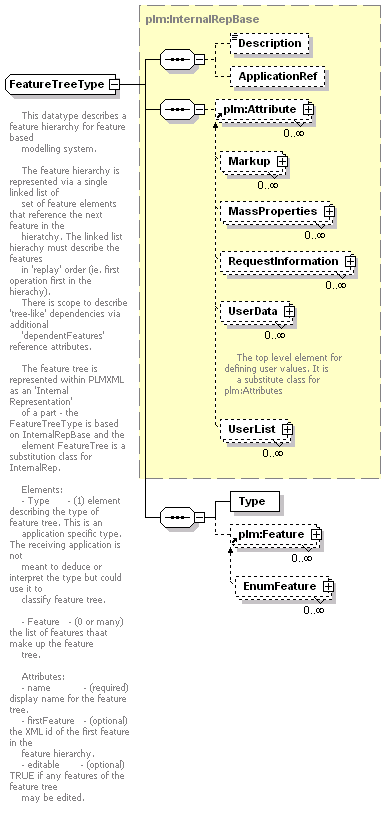

element FeatureTree
diagram
namespace http://www.plmxml.org/Schemas/PLMXMLSchema
type plm:FeatureTreeType
children Description ApplicationRef plm:Attribute Type plm:Feature
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID  optional
attributeRefs  xsd:IDREFS  optional
name  xsd:string  required
firstFeature  xsd:IDREF  optional
editable  xsd:boolean    false

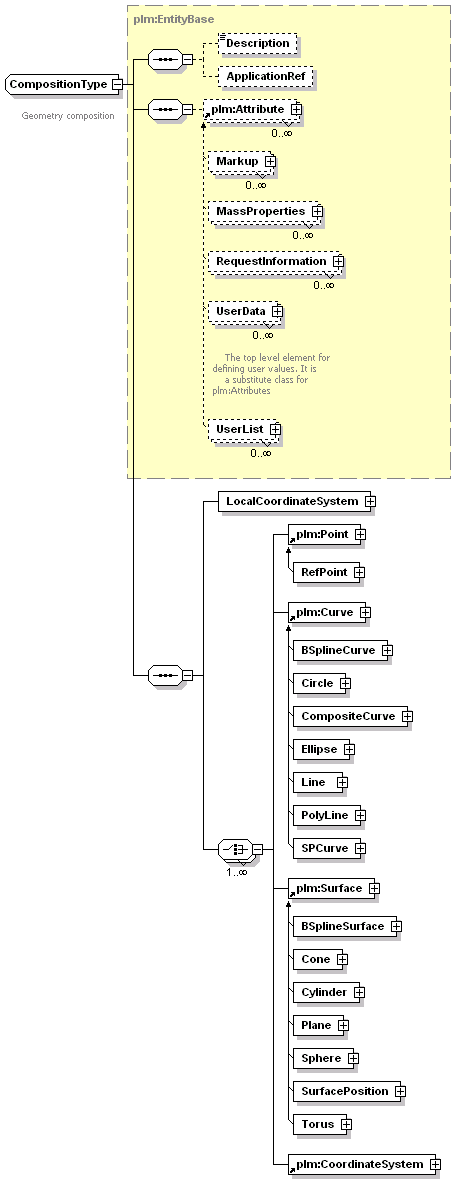

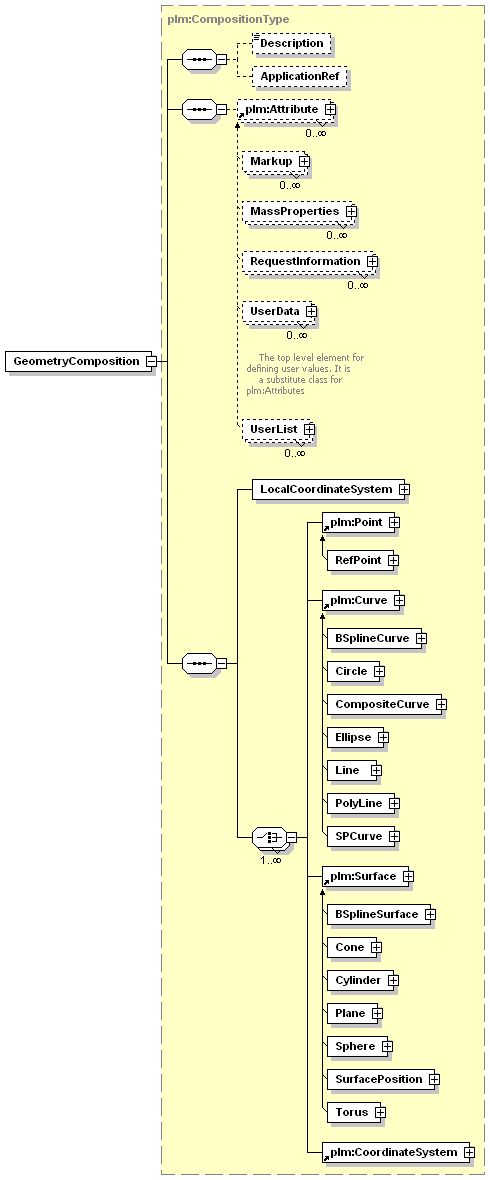

element GeometryComposition
diagram
namespace http://www.plmxml.org/Schemas/PLMXMLSchema
type plm:CompositionType
children Description ApplicationRef plm:Attribute LocalCoordinateSystem plm:Point plm:Curve plm:Surface plm:CoordinateSystem
used by
complexType ConstructionGeometryType
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID  optional
attributeRefs  xsd:IDREFS  optional
entityRef  plm:EntityRefType  optional

element GUIDRef
diagram
namespace http://www.plmxml.org/Schemas/PLMXMLSchema
type plm:GUIDRefType
children Description ApplicationRef
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID  optional
name  xsd:string  optional
contextRef  xsd:anyURI  optional
select  plm:RefSelectType    single
guid  xsd:string  required

element Instance
diagram
namespace http://www.plmxml.org/Schemas/PLMXMLSchema
type plm:InstanceType
children Description ApplicationRef plm:Attribute BoxBound SphereBound Bound Transform
used by
complexType InstanceGraphType
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID  optional
attributeRefs  xsd:IDREFS  optional
name  xsd:string  optional
partRef  xsd:anyURI  required
transformRef  xsd:IDREF  optional
materialRef  xsd:IDREF  optional

element InstanceGraph
diagram
namespace http://www.plmxml.org/Schemas/PLMXMLSchema
type plm:InstanceGraphType
children Description ApplicationRef plm:Attribute BoxBound SphereBound Bound plm:Instance plm:Part Transform
used by
complexType ProductDefType
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID  optional
attributeRefs  xsd:IDREFS  optional
rootInstanceRef  xsd:IDREF  optional
rootRefs  xsd:IDREFS  optional
viewControlRef  xsd:IDREF  optional
displayControlRef  xsd:IDREF  optional

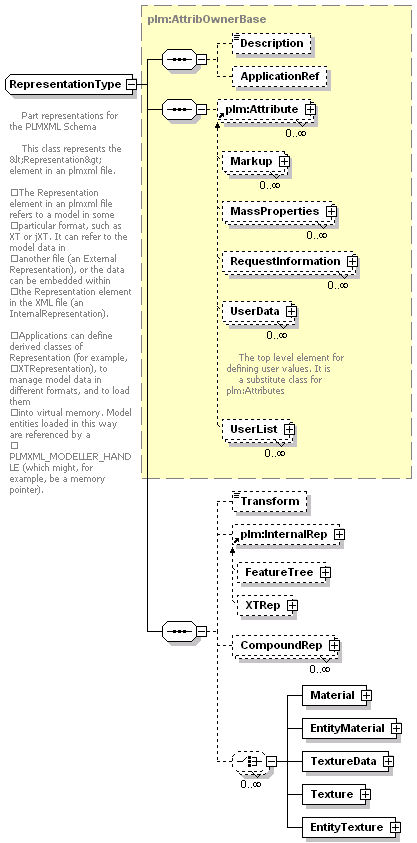

element InternalRep
diagram
namespace http://www.plmxml.org/Schemas/PLMXMLSchema
type plm:InternalRepBase
children Description ApplicationRef plm:Attribute
used by
complexType RepresentationType
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID  optional
attributeRefs  xsd:IDREFS  optional

element LightSource
diagram
namespace http://www.plmxml.org/Schemas/PLMXMLSchema
type plm:LightSourceBase
children Description ApplicationRef plm:Attribute
used by
complexType ProductDefType
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID  optional
attributeRefs  xsd:IDREFS  optional
name  xsd:string  optional
ambient  plm:RGBType    0.0 0.0 0.0
diffuse  plm:RGBType    1.0 1.0 1.0
specular  plm:RGBType    1.0 1.0 1.0
intensity  plm:AlphaType    1.0

element Line
diagram
namespace http://www.plmxml.org/Schemas/PLMXMLSchema
type plm:LineType
children Description ApplicationRef plm:Attribute StartPoint EndPoint SamplePoints
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID  optional
attributeRefs  xsd:IDREFS  optional
entityRef  plm:EntityRefType  optional
startT  xsd:double  optional
endT  xsd:double  optional
origin  plm:VectorType  required
direction  plm:DirectionType  required

element LocatorRef
diagram
namespace http://www.plmxml.org/Schemas/PLMXMLSchema
type plm:LocatorRefType
children Description ApplicationRef
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID  optional
name  xsd:string  optional
contextRef  xsd:anyURI  optional
select  plm:RefSelectType    single
locationRef  xsd:anyURI  required
type  plm:LocatorRefFormatType    PLMXMLPointer

element Markup
diagram
namespace http://www.plmxml.org/Schemas/PLMXMLSchema
type plm:MarkupType
children Description ApplicationRef html Redline plm:EntityRef
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID  optional
author  xsd:string  optional
time  xsd:time  optional
date  xsd:date  optional

element MassProperties
diagram
namespace http://www.plmxml.org/Schemas/PLMXMLSchema
type plm:MassPropertyType
children Description ApplicationRef Length Area Volume Density Mass CentreOfMass MomentsOfInertia ProductsOfInertia
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID  optional
units  plm:MassPropertyUnitType    kilograms,metres

element Part
diagram
namespace http://www.plmxml.org/Schemas/PLMXMLSchema
type plm:PartType
children Description ApplicationRef plm:Attribute BoxBound SphereBound Bound Occurrence Representation
used by
complexTypes InstanceGraphType ProductDefType
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID  optional
attributeRefs  xsd:IDREFS  optional
name  xsd:string  optional
type  plm:PartTypesType  optional
partRefs  xsd:IDREFS  optional
instanceRefs  xsd:IDREFS  optional
representationRefs  xsd:IDREFS  optional
materialRef  xsd:IDREF  optional
preferredUnits  plm:PreferredPartUnitsType    millimetres
geometryRefs  plm:uriReferenceListType  optional
annotation3DGroupRefs  plm:uriReferenceListType  optional

element Plane
diagram
namespace http://www.plmxml.org/Schemas/PLMXMLSchema
type plm:PlaneType
children Description ApplicationRef plm:Attribute SamplePoints
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID  optional
attributeRefs  xsd:IDREFS  optional
entityRef  plm:EntityRefType  optional
startU  xsd:double  optional
endU  xsd:double  optional
startV  xsd:double  optional
endV  xsd:double  optional
origin  plm:VectorType    0 0 0
zAxis  plm:DirectionType    0 0 1
xAxis  plm:DirectionType    1 0 0

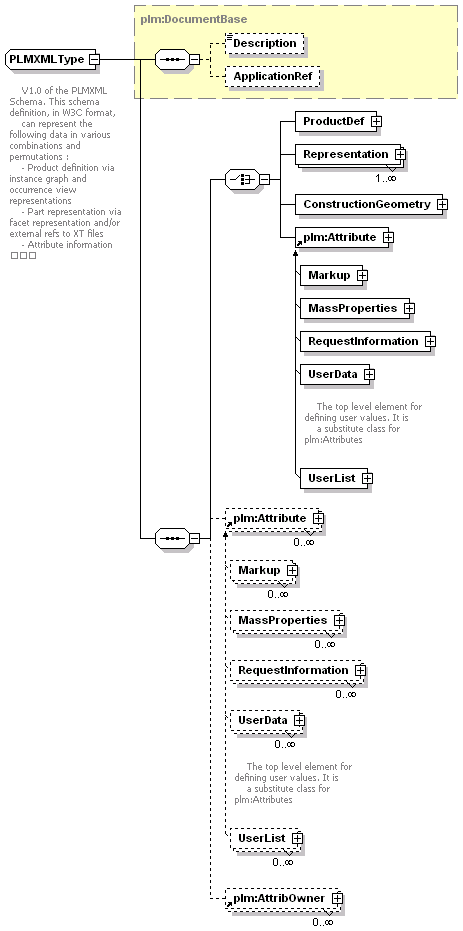

element PLMXML
diagram
namespace http://www.plmxml.org/Schemas/PLMXMLSchema
type plm:PLMXMLType
children Description ApplicationRef ProductDef Representation ConstructionGeometry plm:Attribute plm:AttribOwner
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID  optional
schemaVersion  xsd:decimal  required
author  xsd:string  required
time  xsd:time  required
date  xsd:date  required
language  xsd:language    en
annotation
appInfo
sdkname=Document

element PLMXMLRequest
diagram
namespace http://www.plmxml.org/Schemas/PLMXMLSchema
type plm:PLMXMLRequestType
children Description ApplicationRef Request
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID  optional
schemaVersion  xsd:decimal  required
author  xsd:string  required
time  xsd:time  required
date  xsd:date  required
language  xsd:language    en
application  xsd:string  required
requestId  plm:RequestIdType  required
annotation
appInfo
sdkname=RequestDocument

element Point
diagram
namespace http://www.plmxml.org/Schemas/PLMXMLSchema
type plm:PointBase
children Description ApplicationRef plm:Attribute
used by
complexTypes CompositionType ConstructionGeometryType
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID  optional
attributeRefs  xsd:IDREFS  optional
entityRef  plm:EntityRefType  optional
position  plm:VectorType

element PolyLine
diagram
namespace http://www.plmxml.org/Schemas/PLMXMLSchema
type plm:PolyLineType
children Description ApplicationRef plm:Attribute StartPoint EndPoint SamplePoints Points
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID  optional
attributeRefs  xsd:IDREFS  optional
entityRef  plm:EntityRefType  optional
startT  xsd:double  optional
endT  xsd:double  optional
closed  xsd:boolean    false

element PositionalLight
diagram
namespace http://www.plmxml.org/Schemas/PLMXMLSchema
type plm:PositionalLightType
children Description ApplicationRef plm:Attribute
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID  optional
attributeRefs  xsd:IDREFS  optional
name  xsd:string  optional
ambient  plm:RGBType    0.0 0.0 0.0
diffuse  plm:RGBType    1.0 1.0 1.0
specular  plm:RGBType    1.0 1.0 1.0
intensity  plm:AlphaType    1.0
position  plm:VectorType    0.0 0.0 1.0
direction  plm:VectorType    0.0 0.0 -1.0
cutoffAngle  plm:CutoffAngleType  optional
intensityExponent  plm:IntensityExponentType    0.0
attenuation  plm:AttenuationType    0.0 0.0 1.0

element ProductDefQuery
diagram
namespace http://www.plmxml.org/Schemas/PLMXMLSchema
type plm:ProductDefQueryType
attributes
Name  Type  Use  Default  Fixed  Annotation

element Query
diagram
namespace http://www.plmxml.org/Schemas/PLMXMLSchema
type plm:QueryBase
used by
complexType RequestType
attributes
Name  Type  Use  Default  Fixed  Annotation

element RefPoint
diagram
namespace http://www.plmxml.org/Schemas/PLMXMLSchema
type plm:RefPointType
children Description ApplicationRef plm:Attribute
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID  optional
attributeRefs  xsd:IDREFS  optional
entityRef  plm:EntityRefType  optional
position  plm:VectorType

element RepresentationQuery
diagram
namespace http://www.plmxml.org/Schemas/PLMXMLSchema
type plm:RepresentationQueryType
children FacetControls
attributes
Name  Type  Use  Default  Fixed  Annotation
type  plm:RepQueryType  required
label  xsd:string  optional

element RequestInformation
diagram
namespace http://www.plmxml.org/Schemas/PLMXMLSchema
type plm:RequestInformationType
children Description ApplicationRef
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID  optional
requestId  plm:RequestIdType  required
result  plm:RequestResultType    Success
description  xsd:string  optional

element SPCurve
diagram
namespace http://www.plmxml.org/Schemas/PLMXMLSchema
type plm:SPCurveType
children Description ApplicationRef plm:Attribute StartPoint EndPoint SamplePoints
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID  optional
attributeRefs  xsd:IDREFS  optional
entityRef  plm:EntityRefType  optional
startT  xsd:double  optional
endT  xsd:double  optional
parameterCurve  xsd:IDREF  required
surface  xsd:IDREF  required

element Sphere
diagram
namespace http://www.plmxml.org/Schemas/PLMXMLSchema
type plm:SphereType
children Description ApplicationRef plm:Attribute SamplePoints
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID  optional
attributeRefs  xsd:IDREFS  optional
entityRef  plm:EntityRefType  optional
startU  xsd:double  optional
endU  xsd:double  optional
startV  xsd:double  optional
endV  xsd:double  optional
origin  plm:VectorType    0 0 0
zAxis  plm:DirectionType    0 0 1
xAxis  plm:DirectionType    1 0 0
radius  xsd:double  required

element Surface
diagram
namespace http://www.plmxml.org/Schemas/PLMXMLSchema
type plm:SurfaceBase
children Description ApplicationRef plm:Attribute SamplePoints
used by
complexTypes CompositionType ConstructionGeometryType
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID  optional
attributeRefs  xsd:IDREFS  optional
entityRef  plm:EntityRefType  optional
startU  xsd:double  optional
endU  xsd:double  optional
startV  xsd:double  optional
endV  xsd:double  optional

element SurfacePosition
diagram
namespace http://www.plmxml.org/Schemas/PLMXMLSchema
type plm:SurfacePositionBase
children Description ApplicationRef plm:Attribute SamplePoints
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID  optional
attributeRefs  xsd:IDREFS  optional
entityRef  plm:EntityRefType  optional
startU  xsd:double  optional
endU  xsd:double  optional
startV  xsd:double  optional
endV  xsd:double  optional
origin  plm:VectorType    0 0 0
zAxis  plm:DirectionType    0 0 1
xAxis  plm:DirectionType    1 0 0

element Torus
diagram
namespace http://www.plmxml.org/Schemas/PLMXMLSchema
type plm:TorusType
children Description ApplicationRef plm:Attribute SamplePoints
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID  optional
attributeRefs  xsd:IDREFS  optional
entityRef  plm:EntityRefType  optional
startU  xsd:double  optional
endU  xsd:double  optional
startV  xsd:double  optional
endV  xsd:double  optional
origin  plm:VectorType    0 0 0
zAxis  plm:DirectionType    0 0 1
xAxis  plm:DirectionType    1 0 0
majorRadius  xsd:double  required
minorRadius  xsd:double  required

element UserData
diagram
namespace http://www.plmxml.org/Schemas/PLMXMLSchema
type plm:UserDataType
children Description ApplicationRef UserValue
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID  optional
annotation
documentation

    The top level element for defining user values. It is
    a substitute class for plm:Attributes

element UserList
diagram
namespace http://www.plmxml.org/Schemas/PLMXMLSchema
type plm:UserListDataType
children Description ApplicationRef Item
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID  optional
name  xsd:string  optional
type  plm:UserValueDataType    string

element XTRep
diagram
namespace http://www.plmxml.org/Schemas/PLMXMLSchema
type plm:XTRepType
children Description ApplicationRef plm:Attribute XTData
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID  optional
attributeRefs  xsd:IDREFS  optional

complexType AnnotationQueryType
diagram
namespace http://www.plmxml.org/Schemas/PLMXMLSchema
type extension of plm:QueryBase
used by
element AnnotationQuery
attributes
Name  Type  Use  Default  Fixed  Annotation
label  xsd:string  optional
annotation
documentation

    This datatype is used to describe an Annotation query. The
    element is defined as a substitution element for the abstract
    Query element.
    Attributes:
    - label - (optional) If a suitable application label is specified
              the request must return the annotation matching the
              specified label.
              If no label is specified, then the request must return
              an PLMXML document that specifies all the annotations
              within the specified context.

complexType ApplicationRefType
diagram
namespace http://www.plmxml.org/Schemas/PLMXMLSchema
used by
element DescriptionBase/ApplicationRef
attributes
Name  Type  Use  Default  Fixed  Annotation
application  xsd:string  required
label  xsd:string  required
version  xsd:string  optional
annotation
documentation

    The ApplicationRef element is meant to relate the parent element (Part, Representation, etc)
    back to the owning entity in the sending  application. The attributes can be described
    as follows:

    - application : the context in which the contents of the label and version attributes make sense.
    Whether this field includes an application version number is up to the application, as long
    as it starts with something identifiable to the sending application.

    - label : the string which identifies the application entity - the value of this field is only
    meaningful to the sending/authoring application. The receiving application can compare the
    contents of the attribute to test if two entities are the 'same' entity. But the actual
    value is meaningless to the receiving application.

    - version : the optional string attribute which identifies the version of the application entity.
    This attribute can only be used to test if the versions of an entity are the same (i.e. the
    test is only meaningful if the label attribute values are the same). No version ordering
    can be deduced from the value. Similar to the label attribute, the version attribute
    contents are meaningless to the receiving application.

complexType AreaType
diagram
namespace http://www.plmxml.org/Schemas/PLMXMLSchema
type restriction of plm:MassPropertyRealType
used by
element MassPropertyType/Area
attributes
Name  Type  Use  Default  Fixed  Annotation
error  plm:RealFieldType  optional

complexType AttribOwnerBase
diagram
namespace http://www.plmxml.org/Schemas/PLMXMLSchema
type extension of plm:DescriptionBase
children Description ApplicationRef plm:Attribute
used by
element AttribOwner
complexTypes CompoundRepType DisplayControlType EntityBase EntityMaterialType EntityTextureType FeatureBase InternalRepBase LightSourceBase MaterialType OccurrenceType ProductDefType ProductViewType PropertiesBase RepresentationType TextureDataType TextureType
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID  optional
attributeRefs  xsd:IDREFS  optional

complexType AttributeBase
diagram
namespace http://www.plmxml.org/Schemas/PLMXMLSchema
type extension of plm:DescriptionBase
children Description ApplicationRef
used by
element Attribute
complexTypes MarkupType MassPropertyType RequestInformationType UserDataType UserListDataType
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID  optional

complexType AttributeClassBase
diagram
namespace http://www.plmxml.org/Schemas/PLMXMLSchema
used by
element AttributeClass
attributes
Name  Type  Use  Default  Fixed  Annotation
name  plm:AttributeClassType  required
annotation
documentation

    Attribute component of the PLMXML Schema.
    Note: The Attribute element is an abstract element. Useful attributes
    (ones that include fields) must be derived from the Attribute element
    defined within this schema. The derived attributes will define their
    data elements to represent data fields.
    The derived attributes also need to be set as 'equivalent' to the
    Attribute element. This enables the new derived attribute to be
    inserted into documents wherever the Attribute element is allowed.
appInfo
output=ignore

complexType AttributeLegalOwnerType
diagram
namespace http://www.plmxml.org/Schemas/PLMXMLSchema
used by
element AttributeLegalOwner
attributes
Name  Type  Use  Default  Fixed  Annotation
name  plm:AttributeOwnerType  required
annotation
appInfo
output=ignore

complexType AttributeRefType
diagram
namespace http://www.plmxml.org/Schemas/PLMXMLSchema
type extension of plm:EntityRefBase
children Description ApplicationRef
used by
element AttributeRef
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID  optional
name  xsd:string  optional
contextRef  xsd:anyURI  optional
select  plm:RefSelectType    single
attribute  xsd:string  required
field  xsd:string  optional
index  xsd:integer  optional
value  xsd:string  required
annotation
documentation

    Attribute reference element. The reference is based on a user
    defined named attribute on the host representation. This type
    enables the author to note the attribute name, field name/index
    and the value of the attribute.

    Attributes:
    - name   -(mandatory) The name of the attribute to query
    - field  -(optional) The name of the field within the attribute
    - index  -(optional) The index of the field within the attribute
    (if 'field' cannot be mapped).
    - value  -(mandatory) The value of the attribute to match.

complexType BoundType
diagram
namespace http://www.plmxml.org/Schemas/PLMXMLSchema
children Transform
used by
element PropertiesBase/Bound
attributes
Name  Type  Use  Default  Fixed  Annotation
type  plm:BoundingType    box
values  plm:MatrixType  required
transformRef  xsd:IDREF  optional

element BoundType/Transform
diagram
namespace http://www.plmxml.org/Schemas/PLMXMLSchema
type plm:TransformType
facets
minLength 1
maxLength 16
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID  optional
type  plm:TransformationType    general

complexType BoxBoundType
diagram
namespace http://www.plmxml.org/Schemas/PLMXMLSchema
children LowCorner HighCorner
used by
element PropertiesBase/BoxBound
annotation
appInfo
output=ignore

element BoxBoundType/LowCorner
diagram
namespace http://www.plmxml.org/Schemas/PLMXMLSchema
type plm:VectorType
facets
length 3

element BoxBoundType/HighCorner
diagram
namespace http://www.plmxml.org/Schemas/PLMXMLSchema
type plm:VectorType
facets
length 3

complexType BSplineCurveType
diagram
namespace http://www.plmxml.org/Schemas/PLMXMLSchema
type extension of plm:CurveBase
children Description ApplicationRef plm:Attribute StartPoint EndPoint SamplePoints Knots KnotMultiplicities Vertices
used by
element BSplineCurve
attributes
Name  Type  Use  Default  Fixed  Annotation
id  xsd:ID  optional
attributeRefs  xsd:IDREFS  optional
entityRef  plm:EntityRefType  optional
startT  xsd:double  optional
endT  xsd:double  optional
degree  xsd:positiveInteger  required
dimension  plm:SplineDimensionType    3
isRational  xsd:boolean  required
isPeriodic  xsd:boolean  required
isClosed  xsd:boolean  required
form  plm:SplineCurveFormType    unknown

element BSplineCurveType/Knots
diagram
namespace http://www.plmxml.org/Schemas/PLMXMLSchema
type plm:DoubleListType

element BSplineCurveType/KnotMultiplicities
diagram
namespace http://www.plmxml.org/Schemas/PLMXMLSchema
type plm:IntegerListType

element BSplineCurveType/Vertices
diagram
namespace http://www.plmxml.org/Schemas/PLMXMLSchema
type plm:DoubleListType

complexType BSplineSurfaceType
diagram
namespace http://www.plmxml.org/Schemas/PLMXMLSchema
type extension of plm:SurfaceBase
children
